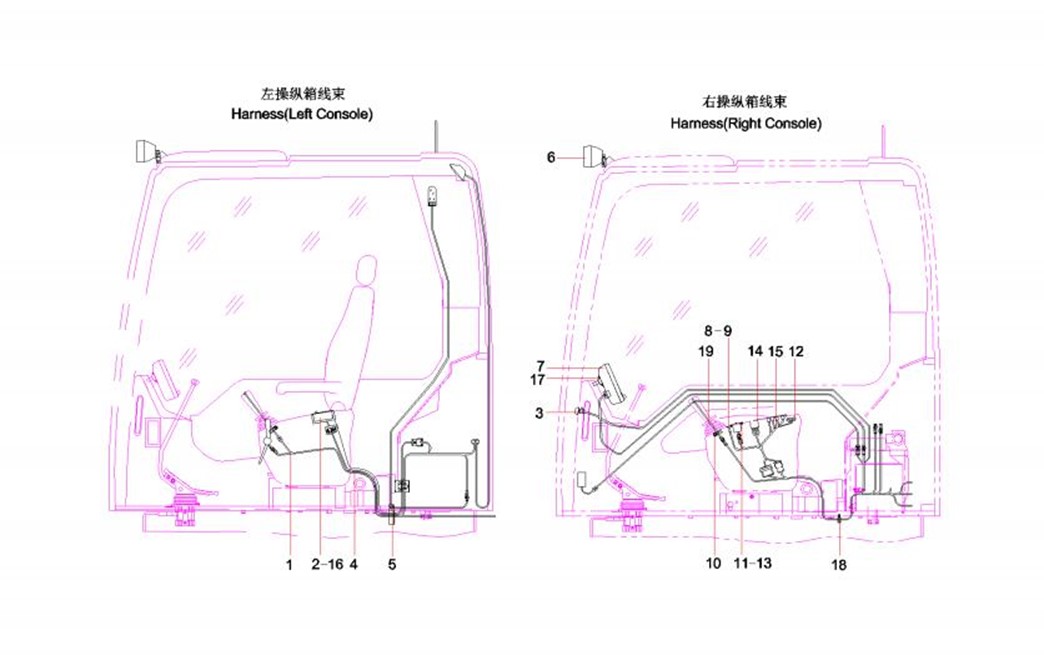

SANY SY220C SY220C9 SY220C9M2K EXCAVATOR parts catalog 37
Chapter 5
Electric system
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-3-1 |
1 |
13688278 |
1 |
Driver’s Cab Harness |
5-3-2 |
2 |
60205002 |
1 |
Radio |
5-3-3 |
3 |
A210204000115 |
6 |
Screw M5×12GB70.1 |
5-3-4 |
4 |
60060300 |
1 |
Extension, antenna |
5-3-5 |
5 |
A210204000340 |
4 |
Screw M8×16GB70.1 10.9 |
5-3-6 |
6 |
B241100000391 |
2 |
Lamp, working |
5-3-7 |
7 |
12401565 |
1 |
Sany Encourage Control Display |
5-3-8 |
8 |
60053220 |
1 |
Lamp, indicator, LED, red |
5-3-9 |
9 |
60053221 |
1 |
Lamp, indicator, LED, yellow |
5-3-10 |
10 |
A230200000170 |
2 |
Clamp |
5-3-11 |
11 |
60117463 |
1 |
Switch, fuel control |
5-3-12 |
12 |
60021249 |
1 |
Switch, rocker |
5-3-13 |
13 |
60060562 |
5 |
Washer |
5-3-14 |
14 |
A241200001217 |
1 |
Switch, ignition |
5-3-15 |
15 |
11854607 |
1 |
Harness, control switch |
5-3-16 |
16 |
24000509 |
2 |
Washer |
5-3-17 |
17 |
A210404000010 |
4 |
Washer 5GB96.1 |
5-3-17 |
17 |
Modification or other |
4 |
Washer 5GB96.1 |
5-3-18 |
18 |
60260292 |
1 |
Nylon belting |
5-3-18 |
18 |
Modification or other |
1 |
Nylon belting |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-5-19 |
19 |
13400087 |
1 |
horn switch tansfer harness |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-7-1 |
1 |
60190200 |
1 |
Wire, power supply |
5-7-2 |
2 |
12537763 |
1 |
power lineSY60.5C.8 |
5-7-3 |
3 |
60308534 |
2 |
Battery |
5-7-4 |
4 |
60012793 |
1 |
Line, power |
5-7-5 |
5 |
60013322 |
2 |
Terminal Group, Battery Postive |
5-7-6 |
6 |
60013321 |
2 |
Terminal Group, Battery Negative |
5-7-7 |
7 |
A210111000323 |
2 |
Bolt M8×25GB5783 10.9 |
5-7-8 |
8 |
23000169 |
4 |
Nut |
5-7-9 |
9 |
60217140 |
2 |
Pressure Sensor |
5-7-10 |
10 |
24000633 |
10 |
Washer |
5-7-11 |
11 |
60086354 |
8 |
Clamp, harness |
5-7-12 |
12 |
A210111000199 |
21 |
Bolt M12×20GB5783 10.9 |
5-7-13 |
13 |
11420499 |
1 |
Clamp, holding, connector |
5-7-14 |
14 |
60060565 |
2 |
Washer |
5-7-15 |
15 |
A210111000012 |
3 |
Bolt M10×20GB5783 10.9 |
5-7-16 |
16 |
A241300000059 |
1 |
Box, fuse |
5-7-17 |
17 |
A820606030059 |
1 |
Grommet |
5-7-18 |
18 |
A210111000342 |
1 |
Bolt M8×16GB5783 10.9 |
5-7-19 |
19 |
A810201058132 |
1 |
Wire, power supply |
5-7-20 |
20 |
B241000000022 |
1 |
Socket, two-wire |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-9-21 |
21 |
60173565 |
1 |
Wire, power supply |
5-9-22 |
22 |
60260292 |
6 |
Nylon belting |
5-9-22 |
22 |
Modification or other |
6 |
Nylon belting |
5-9-23 |
23 |
A210204000130 |
1 |
Screw M6×16GB70.1 |
5-9-24 |
24 |
11779657 |
1 |
Sleeve, rubber |
5-9-25 |
25 |
60217141 |
9 |
Pressure Sensor |
5-9-26 |
26 |
24000639 |
21 |
Washer |
5-9-27 |
27 |
60238783 |
2 |
Washer |
5-9-28 |
28 |
A210204000132 |
2 |
Screw M6×25GB70.1 |
5-9-29 |
29 |
A210111000079 |
1 |
Bolt M6×16GB5783 |
