SANY SY700C SY700C2I2K EXCAVATOR parts catalog 36
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-327-41 |
41 |
60153240 |
1 |
热敏电阻总成 |
Thermistor AS |
|
2-327-42 |
42 |
60049968 |
1 |
空调功率晶体管总成 |
Transistor AS, air conditioner |
|
2-327-43 |
43 |
60049952 |
1 |
感温包零件支架 |
Bracket, thermo-bulb parts |
第3章
行走装置
(Travel device)
|

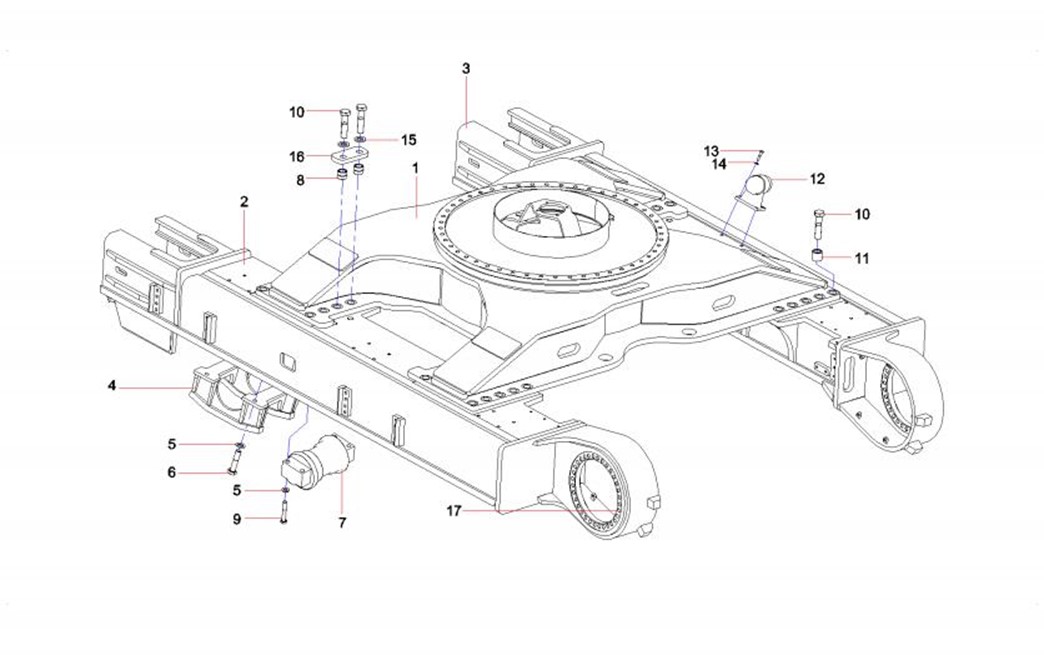

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
3-3-1 |
1 |
11397564 |
1 |
主车架总成 |
Main carriage AS |
|
3-3-2 |
2 |
11389821 |
1 |
左行走梁 |
Beam, travel |
|
3-3-3 |
3 |
11400669 |
1 |
右行走梁 |
Beam, travel |
|
3-3-4 |
4 |
13654848 |
6 |
履带护板 |
Crawler guard board |
|
3-3-5 |
5 |
A210444000004 |
88 |
垫圈 |
Washer 27GB1230 |
|
3-3-6 |
6 |
A311142707516 |
24 |
螺栓 |
Bolt |
|
3-3-7 |
7 |
12756748 |
16 |
支重轮总成 |
Track RollerSWZ260A |
|
3-3-8 |
8 |
11401209 |
8 |
定位套 |
Sleeve, locating |
|
3-3-9 |
9 |
A210110000430 |
64 |
螺栓M27×160GB5782 10.9级 |
Bolt |
|
3-3-10 |
10 |
A210110000423 |
44 |
螺栓M42×180GB5782 10.9级 |
Bolt |
|
3-3-11 |
11 |
11401208 |
36 |
压紧套 |
Sleeve, pressure |
|
3-3-12 |
12 |
12964096 |
6 |
托链轮总成 |
carrier rollerSWT260A |
|
3-3-13 |
13 |
A210111000063 |
24 |
螺栓M20×70GB5783 10.9级 |
Bolt M20×70GB5783 10.9 |
|
3-3-14 |
14 |
A210491000132 |
72 |
垫圈 |
Washer 20GB1230 |
|
3-3-15 |
15 |
A210406000003 |
8 |
垫圈 |
Washer 42(GB97.1) |
|
3-3-16 |
16 |
11401211 |
4 |
压板 |
Clamp |
|
3-3-17 |
17 |
11452273 |
1 |
下车液压管路 |
Pipeline, hydraulic, undercarriage |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

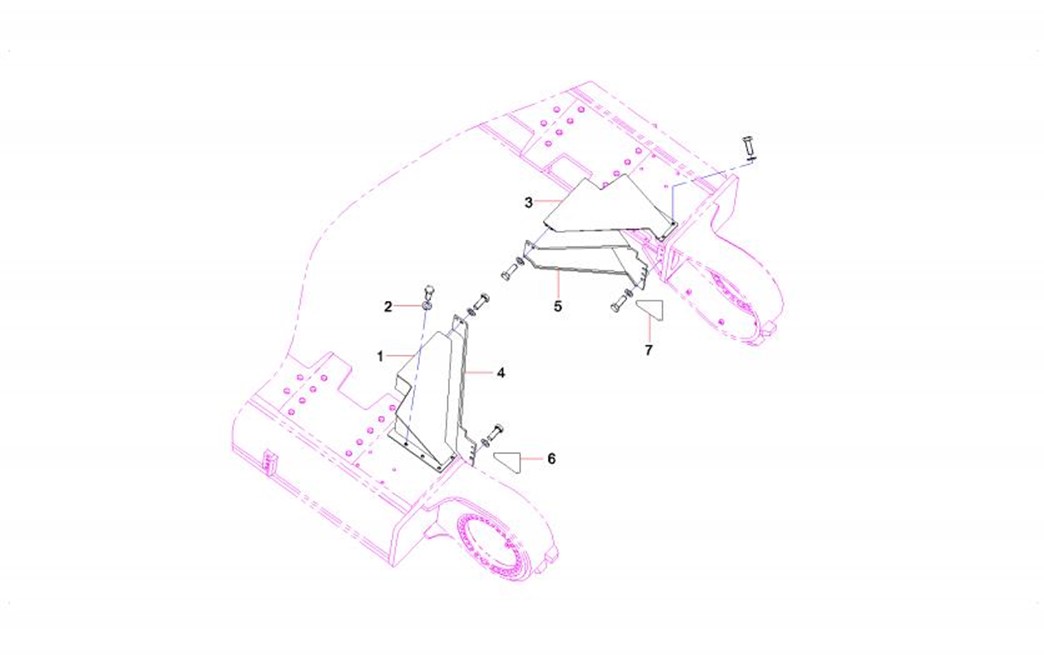

3-5-1 |
1 |
60280528 |
2 |
引导轮总成 |
Guide Wheel Assy. |
|
3-5-2 |
2 |
A210110000205 |
16 |
螺栓M20×100GB5782 10.9级 |
Bolt M20×100GB578210.9 |
|
3-5-3 |
3 |
11398232 |
1 |
右马达盖板 |
Coverplate, motor |
|
3-5-4 |
4 |
60043189 |
2 |
张紧装置 |
Idler tensioner AS |
|
3-5-5 |
5 |
13475278 |
4 |
上踏板 |
Upper pedal SY850C3.2-8 |
|
3-5-6 |
6 |
13474999 |
4 |
脚踏板 |
Footboard SY850C3.2.9 |
|
3-5-7 |
7 |
A210111000221 |
32 |
螺栓M20×50GB5783 10.9级 |
Bolt M20×50GB5783 10.9 |
|
3-5-8 |
8 |
60043448 |
2 |
驱动轮 |
Sprocket |
|
3-5-9 |
9 |
A210491000122 |
116 |
垫圈 |
Washer 24GB1230 |
|
3-5-10 |
10 |
60039139 |
116 |
螺栓M24×90DIN931 10.9级 |
Bolt |
|
3-5-11 |
11 |
11398070 |
1 |
左马达盖板 |
Coverplate, motor |
|
3-5-12 |
12 |
12845800 |
2 |
橡胶护套 |
Rubber protective sleeveSY700C.2 |
|

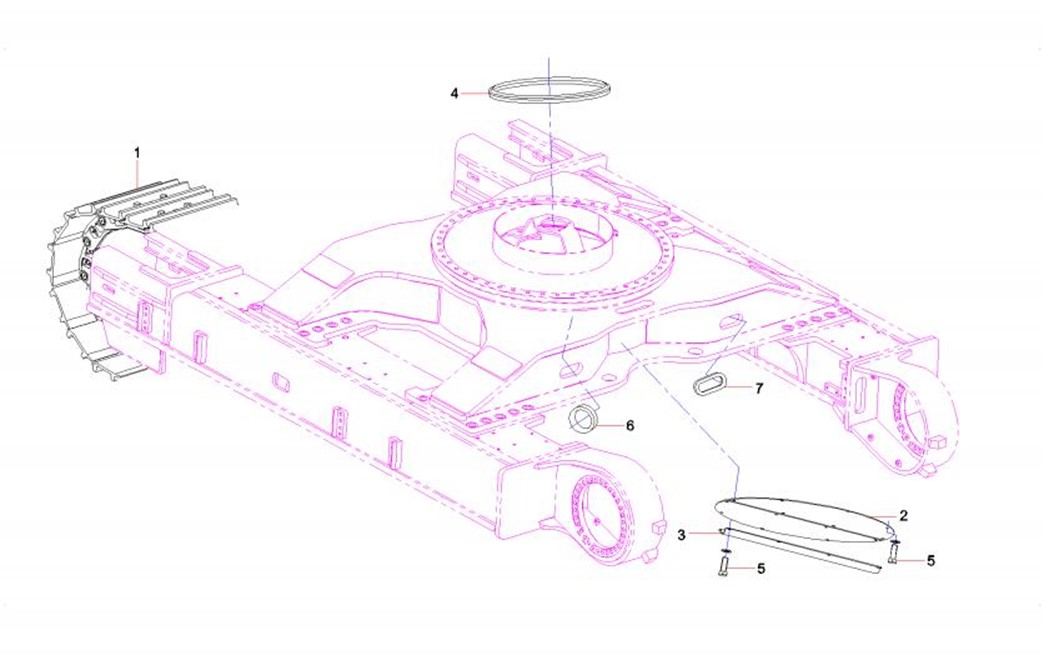

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
3-7-2 |
2 |
11398441 |
2 |
底盖板 |
Cover |
|
3-7-3 |
3 |
11401212 |
1 |
底盖板横梁 |
Beam |
|
3-7-4 |
4 |
11401206 |
1 |
油池密封圈 |
Ring, sealing, oil pool |
|
3-7-5 |
5 |
A210111000053 |
46 |
螺栓 |
Bolt M16×40GB5783 10.9 |
|
3-7-6 |
6 |
11401207 |
2 |
橡胶护套 |
Jacket, rubber |
|
3-7-7 |
7 |
A820606030965 |
2 |
护套 |
Sheath |
