SANY SY135C SY135C9 SY135C9I4K EXCAVATOR parts catalog 27
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-249-89 |
89 |
10138038 |
2 |
Lock catch, roof window |
2-249-97 |
97 |
60235889 |
5 |
front upper glass |
2-249-98 |
98 |
60090897 |
1 |
Corner,rotary |
2-249-110 |
110 |
11308197 |
6 |
Slinger spacer |
2-249-111 |
111 |
A313251202803 |
4 |
Screw M12GB825 |
2-249-115 |
115 |
A210404000009 |
11 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

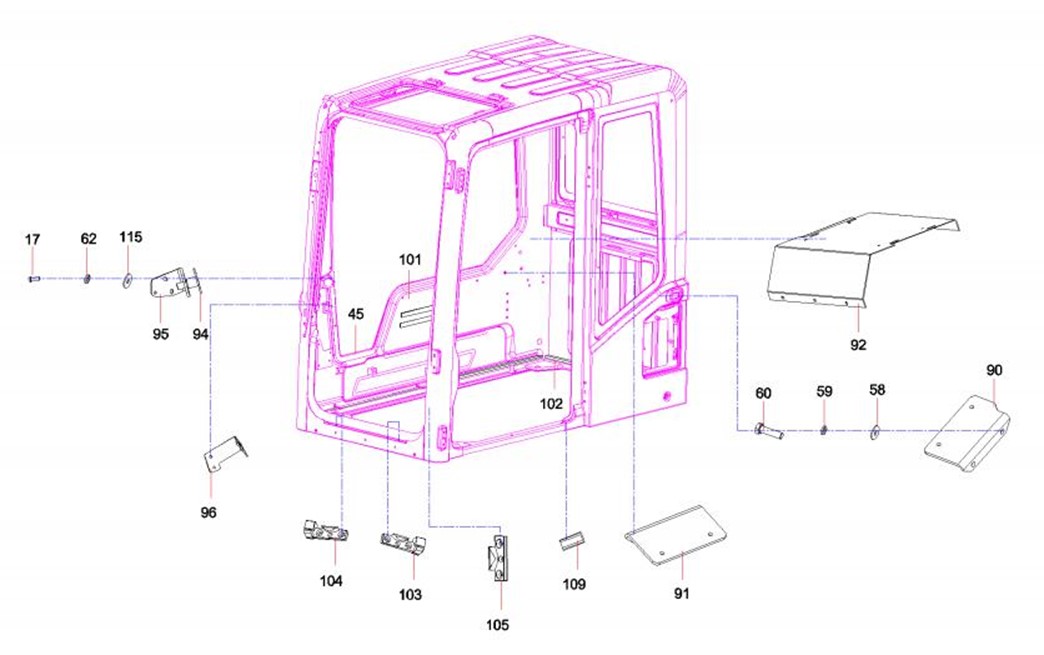

2-251-17 |
17 |
A210204000131 |
3 |
Screw M6×20GB70.1 |
2-251-45 |
45 |
60045595 |
1 |
Strip, decorative |
2-251-90 |
90 |
10465291 |
1 |
Left bracket AS,air conditioner |
2-251-91 |
91 |
10465435 |
1 |
Right bracket GP,air conditioner |
2-251-92 |
92 |
11762934 |
1 |
Air conditioner cover GP |
2-251-94 |
94 |
12048863 |
1 |
Bracket monitor |
2-251-95 |
95 |
11648652 |
1 |
Mounting plate, monitor |
2-251-96 |
96 |
11764044 |
1 |
Bracket monitor display |
2-251-101 |
101 |
11277865 |
2 |
Wind protection sponge |
2-251-102 |
102 |
11277867 |
3 |
Wind protection sponge |
2-251-103 |
103 |
A229900008231 |
1 |
Block, fixing, lower left |
2-251-104 |
104 |
A229900008230 |
1 |
Block, fixing, lower right |
2-251-105 |
105 |
A229900008229 |
2 |
Block,fixed,long |
2-251-109 |
109 |
11574210 |
2 |
Plug,strip,seal |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

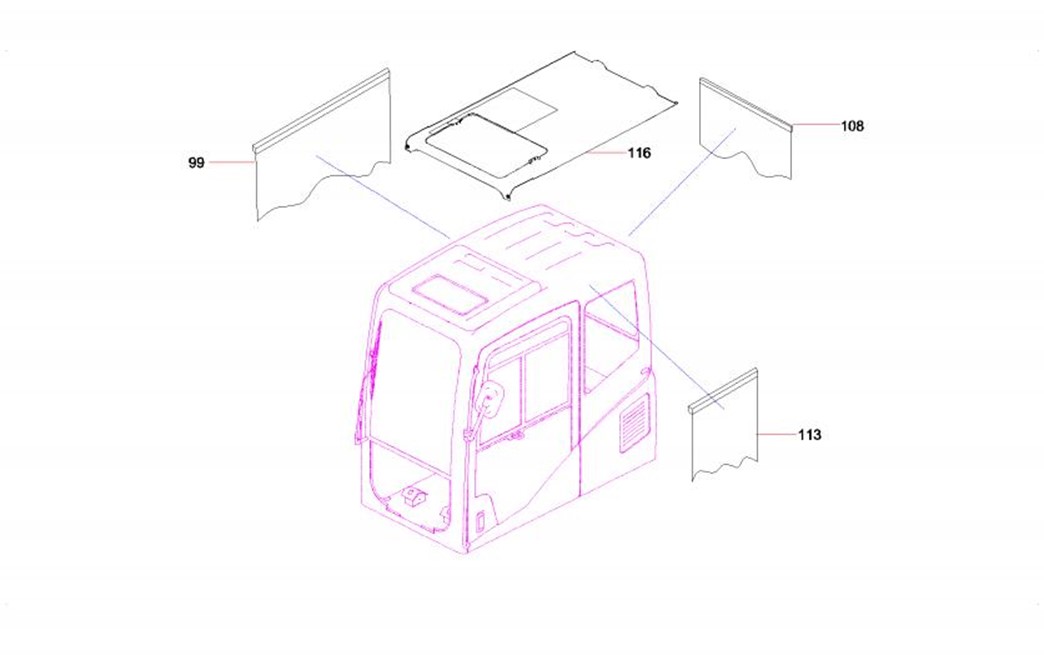

2-253-99 |
99 |
60237085 |
1 |
right curtain and rail |
2-253-108 |
108 |
60235892 |
1 |
rear curtain and rail |
2-253-113 |
113 |
60235893 |
1 |
left curtain and rail |
2-253-116 |
116 |
60235897 |
1 |
top inner plaque |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

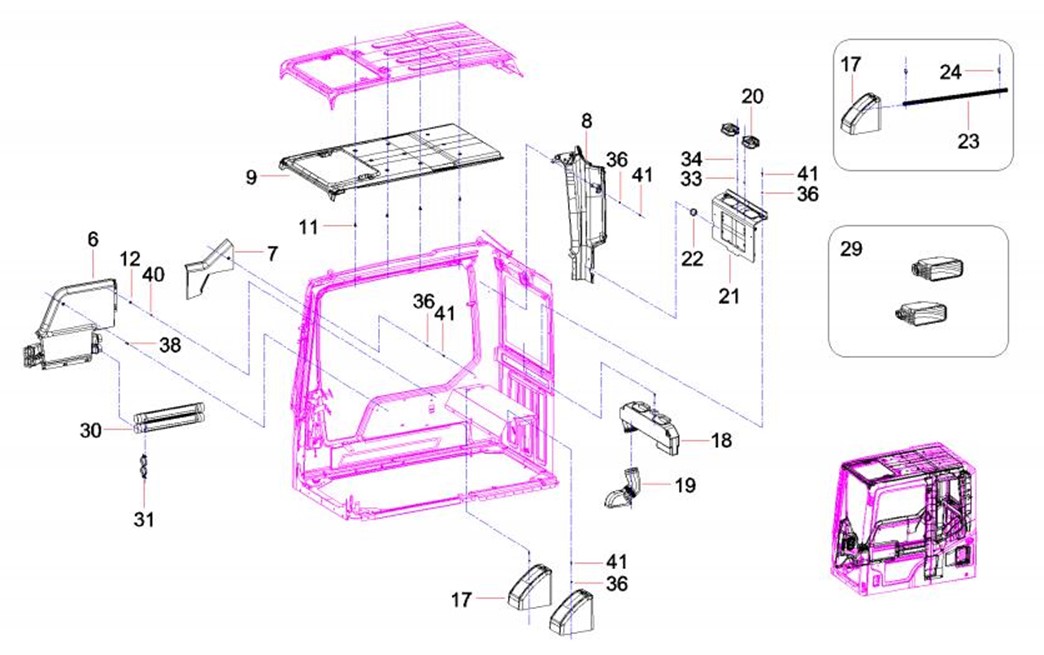

2-255-6 |
6 |
11334874 |
1 |
Side wall GP,right |
2-255-7 |
7 |
11334865 |
1 |
Cover plate,rear,side wall,right |
2-255-8 |
8 |
10640038 |
1 |
Plate,upright column,right rear |
2-255-9 |
9 |
11169629 |
1 |
Ceiling |
2-255-11 |
11 |
11334708 |
11 |
Bayonet catch, top shed |
2-255-12 |
12 |
11209482 |
1 |
Expansion clip, square |
2-255-17 |
17 |
10639298 |
2 |
Toolbox |
2-255-18 |
18 |
11169633 |
1 |
Reservoir,air |
2-255-19 |
19 |
11573808 |
1 |
Connector GP,ventilation pipe,rear |
2-255-20 |
20 |
10640138 |
2 |
Outlet, air |
2-255-21 |
21 |
11169632 |
1 |
Harness, air conditioner |
2-255-22 |
22 |
11334721 |
1 |
Protective sleeve,ventilation |
2-255-23 |
23 |
12921517 |
1 |
Glove case blowing |
2-255-24 |
24 |
A229900002962 |
2 |
Hoop, hose |
2-255-29 |
29 |
11551410 |
2 |
Joint,air outlet,right-hand |
2-255-30 |
30 |
11551411 |
2 |
Pipe,connection,corrugated |
2-255-31 |
31 |
A210855000012 |
1 |
Clamp |
2-255-33 |
33 |
A210218000022 |
7 |
Tapping screw |
2-255-34 |
34 |
A210405000004 |
4 |
Washer |
2-255-36 |
36 |
A210405000006 |
22 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

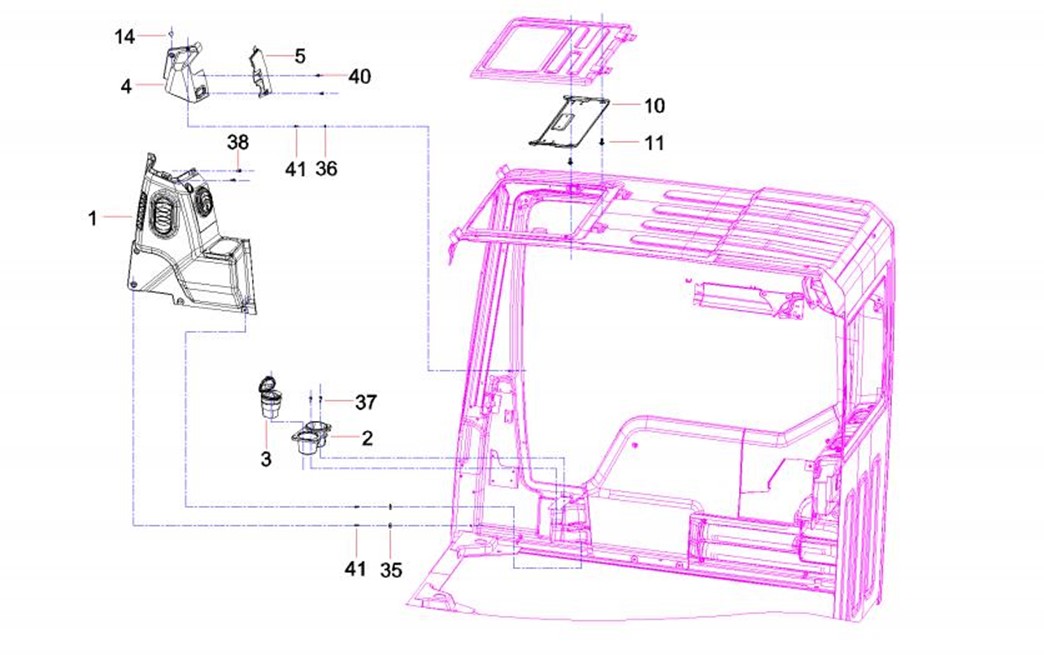

2-257-38 |
38 |
A210211000007 |
2 |
Screw M6×16GB819.1 |
2-257-40 |
40 |
11326706 |
3 |
Screw, self-tap |
2-257-41 |
41 |
A210210000008 |
31 |
Screw |
