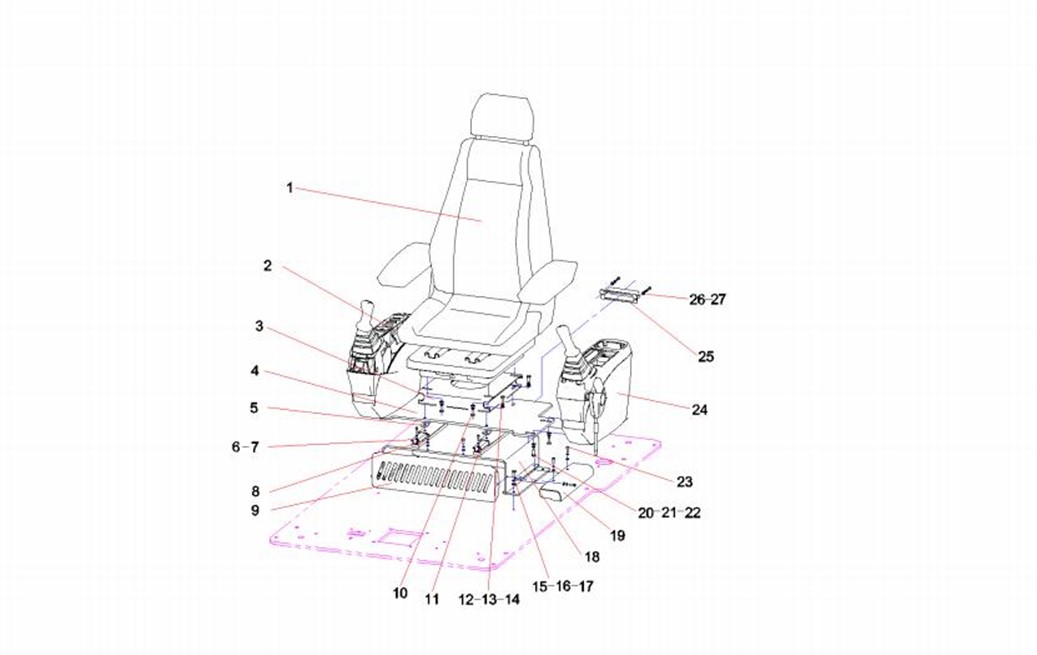

SANY SY135C SY135C9 SY135C9I4K EXCAVATOR parts catalog 31
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-289-1 |
1 |
60188806 |
1 |
Driver seat assembly |
2-289-2 |
2 |
60022656 |
1 |
Armrest AS, right |
2-289-3 |
3 |
10115295 |
1 |
Bracket, upper base, seat |
2-289-4 |
4 |
13526417 |
1 |
Supporting Plate |
2-289-5 |
5 |
10130346 |
4 |
Adjuster, guide rail, seat |
2-289-6 |
6 |
B229900000494 |
1 |
Pull rod, seat |
2-289-7 |
7 |
60033517 |
1 |
Guide rail, seat, right |
2-289-8 |
8 |
A210210000010 |
4 |
Screw |
2-289-9 |
9 |
10140450 |
1 |
Cover, seat bracket, front |
2-289-10 |
10 |
A210111000343 |
4 |
Bolt M8×20GB5783 10.9 |
2-289-11 |
11 |
60033205 |
1 |
Guide rail, seat, left |
2-289-12 |
12 |
A210307000012 |
8 |
Nut |
2-289-13 |
13 |
24000633 |
8 |
Washer |
2-289-14 |
14 |
A210204000164 |
4 |
Screw M8×30GB70.1 |
2-289-15 |
15 |
A210111000090 |
4 |
Bolt |
2-289-16 |
16 |
60060565 |
4 |
Washer |
2-289-17 |
17 |
24000511 |
12 |
Washer |
2-289-18 |
18 |
10428097 |
1 |
Bracket, lower base, seat |
2-289-19 |
19 |
10344193 |
1 |
Hood, outer |
2-289-20 |
20 |
A210111000197 |
8 |
Bolt M10×25GB5783 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-291-21 |
21 |
24000637 |
8 |
Washer |
2-291-22 |
22 |
24000512 |
8 |
Washer |
2-291-23 |
23 |
A210204000172 |
2 |
Screw |
2-291-24 |
24 |
A229900007792 |
1 |
Armrest AS, left |
2-291-25 |
25 |
10241175 |
1 |
Flange, coupling, air duct |
2-291-26 |
26 |
A210204000130 |
2 |
Screw M6×16GB70.1 |
2-291-27 |
27 |
24000632 |
2 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-293-1 |
1 |
60309859 |
1 |
backrest sponge assembly |
2-293-2 |
2 |
60309857 |
1 |
armrest assembly(R) |
2-293-3 |
3 |
60309865 |
1 |
seat sponge assembly |
2-293-4 |
4 |
60309864 |
1 |
covering casing(R) |
2-293-5 |
5 |
60309872 |
1 |
adjust load handle |
2-293-6 |
6 |
60309871 |
1 |
damping cover |
2-293-7 |
7 |
60309869 |
1 |
slideway handle |
2-293-8 |
8 |
60309866 |
1 |
slideway |
2-293-9 |
9 |
60309863 |
1 |
covering casing(L) |
2-293-10 |
10 |
60309861 |
1 |
angle adjustment handle |
2-293-11 |
11 |
60309856 |
1 |
safety belt |
2-293-12 |
12 |
60309862 |
1 |
armrest assembly(L) |
2-293-13 |
13 |
60309858 |
1 |
head rest assembly |
2-293-14 |
14 |
60309868 |
1 |
head rest fixed plastic hat |
2-293-15 |
15 |
60309870 |
1 |
head rest fixed plastic tube |
2-293-16 |
16 |
60309860 |
1 |
information bag assembly |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

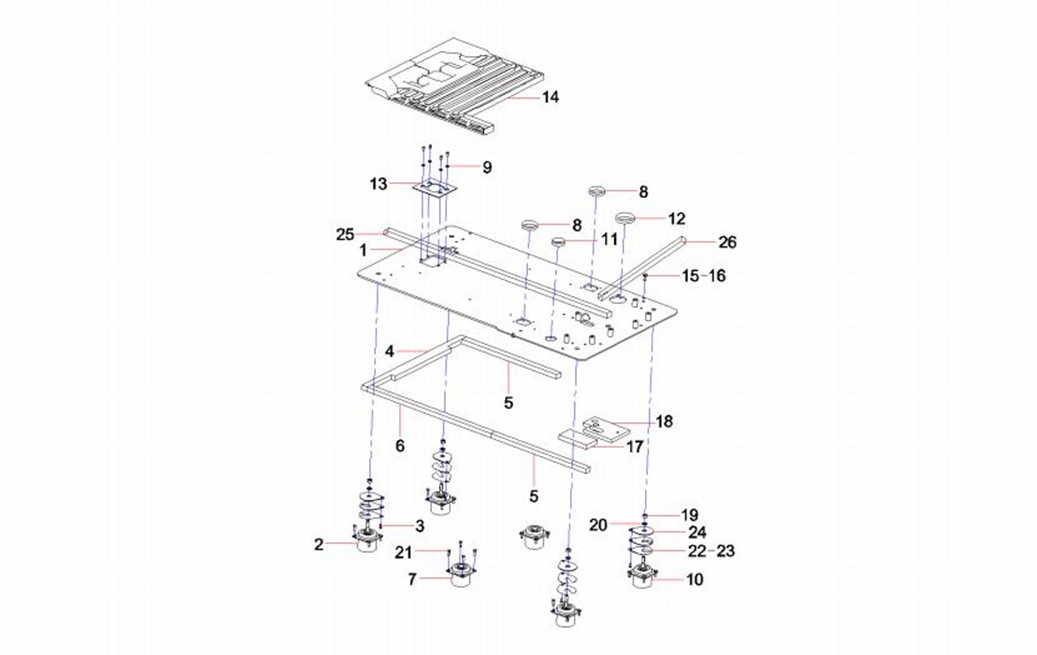

2-295-1 |
1 |
12653044 |
1 |
Base Plate SY135C9.1.5.6.1 |
2-295-2 |
2 |
B229900000244 |
2 |
Support, cab |
2-295-3 |
3 |
A210111000195 |
8 |
Bolt |
2-295-4 |
4 |
A820699000679 |
1 |
Sponge, bottom plate, cab |
2-295-5 |
5 |
A820699000678 |
2 |
Sponge, bottom plate, cab |
2-295-6 |
6 |
A820699000677 |
1 |
Sponge, bottom plate, cab |
2-295-7 |
7 |
60242011 |
2 |
Damper |
2-295-8 |
8 |
A820606030056 |
2 |
Grommet |
2-295-9 |
9 |
24000637 |
8 |
Washer |
2-295-10 |
10 |
B229900000245 |
2 |
Support, cab |
2-295-11 |
11 |
A820606030059 |
1 |
Grommet |
2-295-12 |
12 |
10898697 |
1 |
Grommet |
2-295-13 |
13 |
11937141 |
1 |
Gasket, foot valve |
2-295-14 |
14 |
11670604 |
1 |
Mat, floor |
2-295-15 |
15 |
24000639 |
5 |
Washer |
2-295-16 |
16 |
A210111000203 |
5 |
Bolt |
2-295-17 |
17 |
A820699000215 |
1 |
Foam, back |
2-295-18 |
18 |
11935737 |
1 |
Foam, sealing |
2-295-19 |
19 |
A210307000028 |
4 |
Nut |
2-295-20 |
20 |
24000642 |
4 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-297-21 |
21 |
A210111000024 |
24 |
Bolt |
2-297-22 |
22 |
11593942 |
4 |
Shim |
2-297-23 |
23 |
11594064 |
4 |
Shim |
2-297-24 |
24 |
11546613 |
4 |
Plate |
2-297-25 |
25 |
13874875 |
2 |
sealing sponge SY135C9.1.5.6-1 |
2-297-26 |
26 |
13874876 |
2 |
sealing sponge SY135C9.1.5.6-2 |
