SANY SY16C SY16C3 SY16C3Y4W EXCAVATOR parts catalog 02
Chapter 2
Slewing device
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

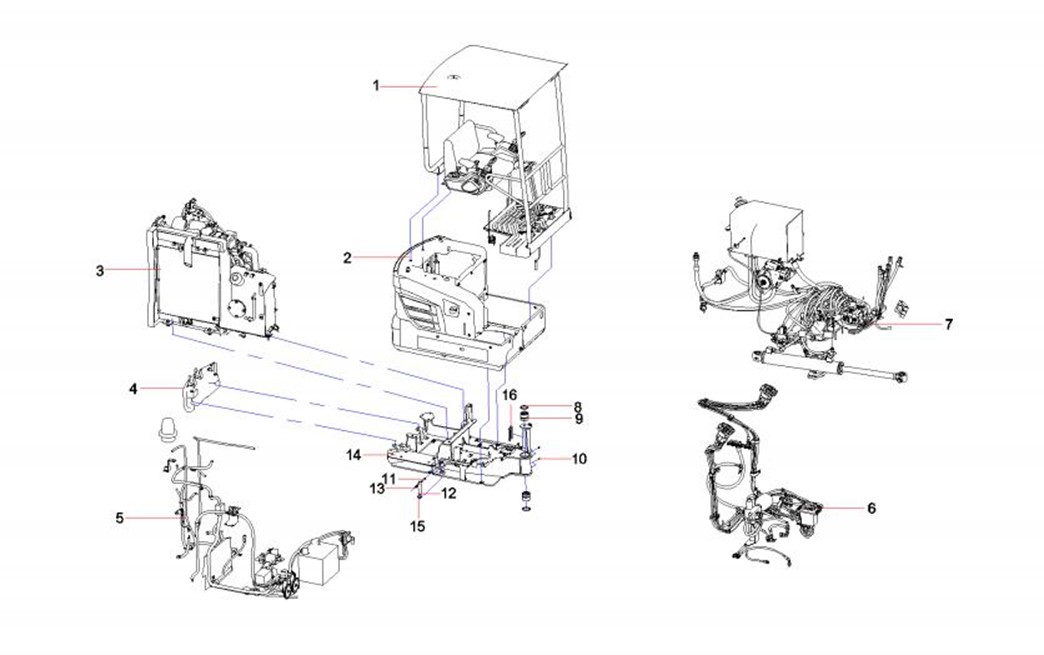

2-3-1 |
1 |
13545141 |
1 |
cab assem SY16C3K4W.1.5B |
2-3-2 |
2 |
13549596 |
1 |
covering parts component |
2-3-3 |
3 |
13014712 |
1 |
Engine system |
2-3-4 |
4 |
13009761 |
1 |
Counterweight |
2-3-5 |
5 |
13007219 |
1 |
Electrical System |
2-3-6 |
6 |
13299131 |
1 |
pilot pipeline SY16C3Y2W.1.4 |
2-3-7 |
7 |
13014122 |
1 |
Hydraulic main pipeline |
2-3-8 |
8 |
B230101001118 |
2 |
DLI-ring, dustproof |
2-3-9 |
9 |
A820202005319 |
2 |
Sleeve, shaft |
2-3-10 |
10 |
A210804000002 |
2 |
Cup, oil M10×1JB7940.1 |
2-3-11 |
11 |
A210111000032 |
1 |
Bolt |
2-3-12 |
12 |
12980345 |
1 |
Shaft |
2-3-13 |
13 |
A210307000017 |
2 |
Nut M10GB6170 |
2-3-14 |
14 |
13003643 |
1 |
Revolving frame |
2-3-15 |
15 |
13000200 |
16 |
Spacer |
2-3-16 |
16 |
11863921 |
2 |
Sheath |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

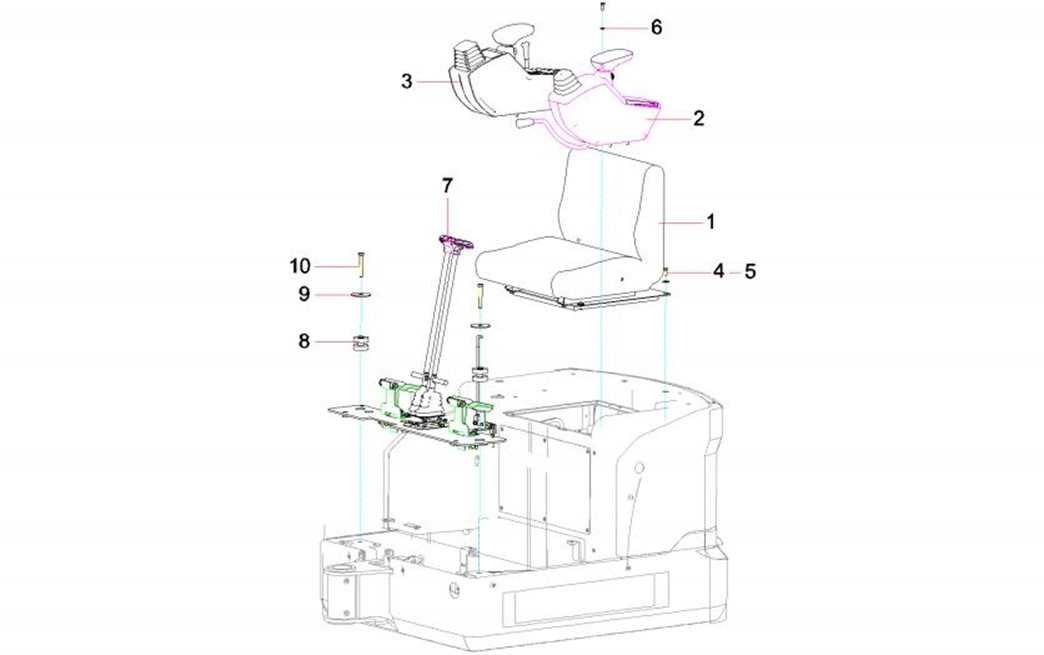

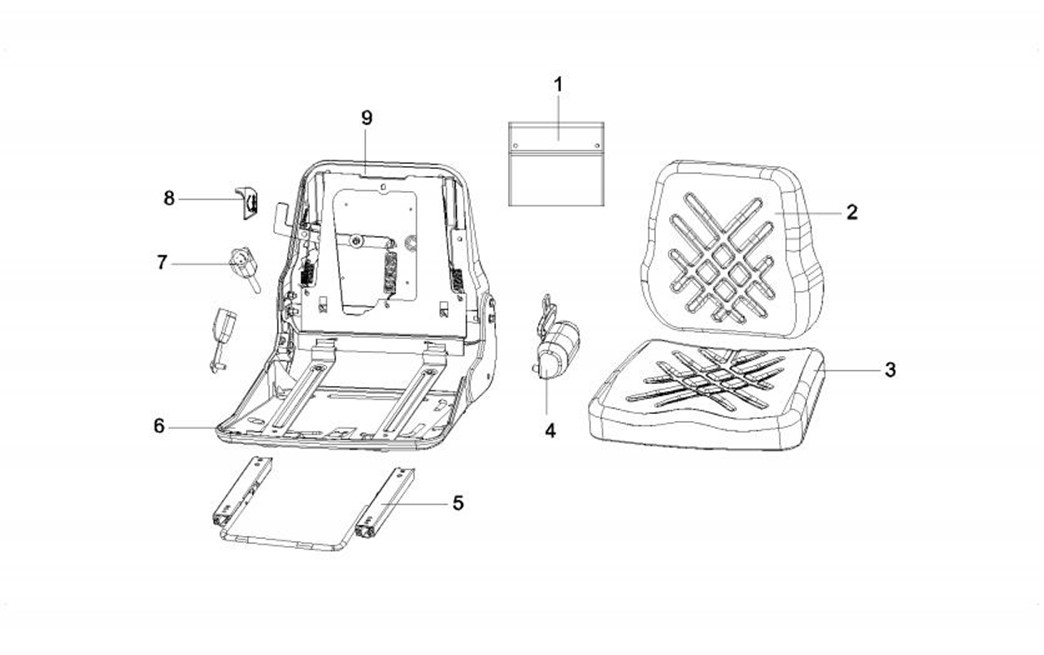

2-5-1 |
1 |
13004845 |
1 |
Seat AS |
2-5-2 |
2 |
60223376 |
1 |
Left armrest box assembly |
2-5-3 |
3 |
60282631 |
1 |
right armrest boxes assembly |
2-5-4 |
4 |
A210111000343 |
28 |
Bolt M8×20GB5783 10.9 |
2-5-5 |
5 |
60060565 |
18 |
Washer |
2-5-6 |
6 |
24000633 |
11 |
Washer |
2-5-7 |
7 |
13545024 |
1 |
bottom board component |
2-5-8 |
8 |
60226781 |
2 |
Damper |
2-5-9 |
9 |
13004265 |
2 |
Damper lower backup plate |
2-5-10 |
10 |
A210111000127 |
2 |
Bolt M12×80GB5783 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

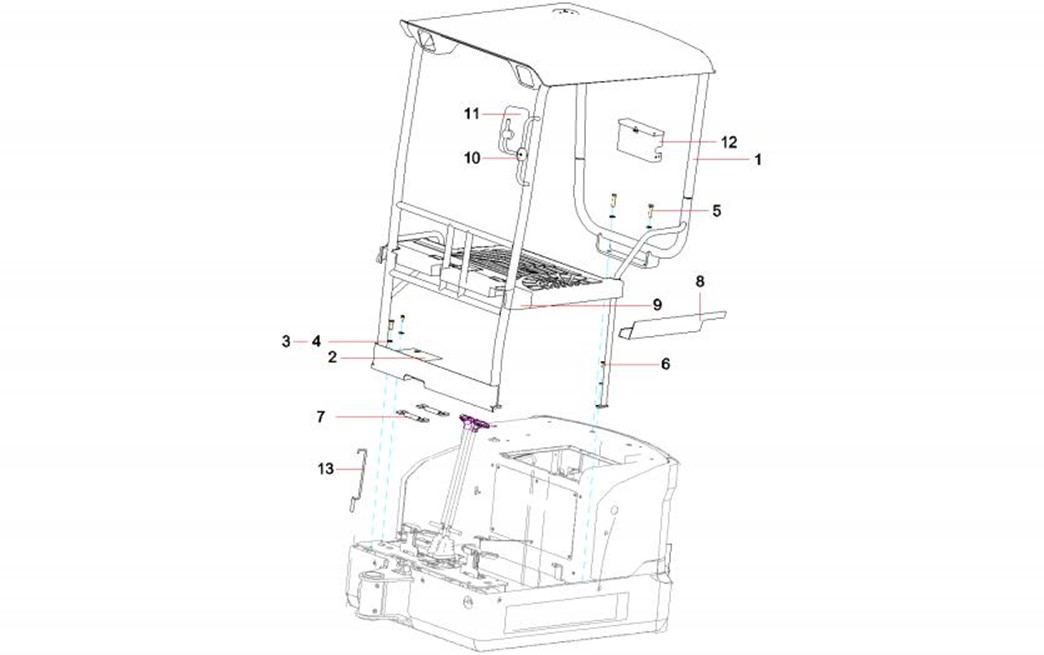

2-7-1 |
1 |
13107154 |
1 |
Cab frame |
2-7-2 |
2 |
13106963 |
1 |
Right pedal component |
2-7-3 |
3 |
A210111000203 |
2 |
Bolt M12×35GB5783 10.9 |
2-7-4 |
4 |
24000639 |
6 |
Washer |
2-7-5 |
5 |
A210111000042 |
2 |
Bolt M12×50GB5783 |
2-7-6 |
6 |
A210111000342 |
1 |
Bolt M8×16GB5783 10.9 |
2-7-7 |
7 |
13111223 |
2 |
Bracket |
2-7-8 |
8 |
13653295 |
1 |
bottom board pad fixed plate |
2-7-9 |
9 |
13653335 |
1 |
bottom board pad SY16C3K4W.1.5 |
2-7-10 |
10 |
12051215 |
1 |
Bracket GP, rear view mirror |
2-7-11 |
11 |
60151838 |
1 |
Mirror, rear view, cab |
2-7-12 |
12 |
13298793 |
1 |
toolbox SY16C3Y4W.1.5.8 |
2-7-13 |
13 |
Modification or other |
1 |
Positioning mechanism |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

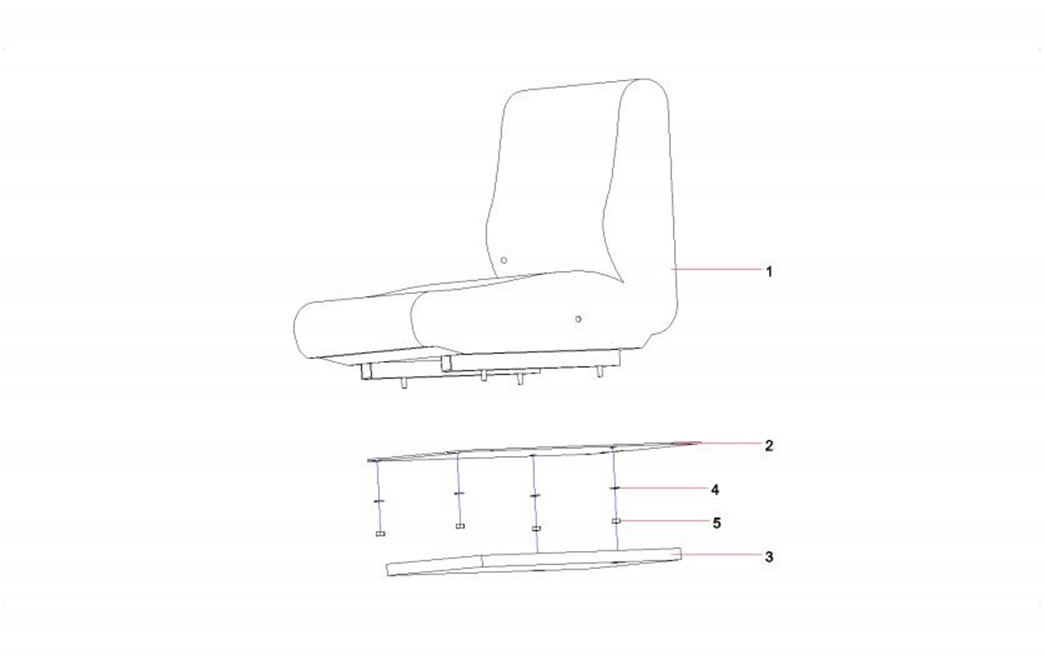

2-9-1 |
1 |
60281073 |
1 |
Driver cab seat |
2-9-2 |
2 |
13004843 |
1 |
Seat installation plate |
2-9-3 |
3 |
13004844 |
1 |
Seat base component sponge |
2-9-4 |
4 |
24000633 |
4 |
Washer |
2-9-5 |
5 |
A210307000012 |
4 |
Nut M8GB6170 |
