SANY SY16C SY16C3 SY16C3Y4W EXCAVATOR parts catalog 30

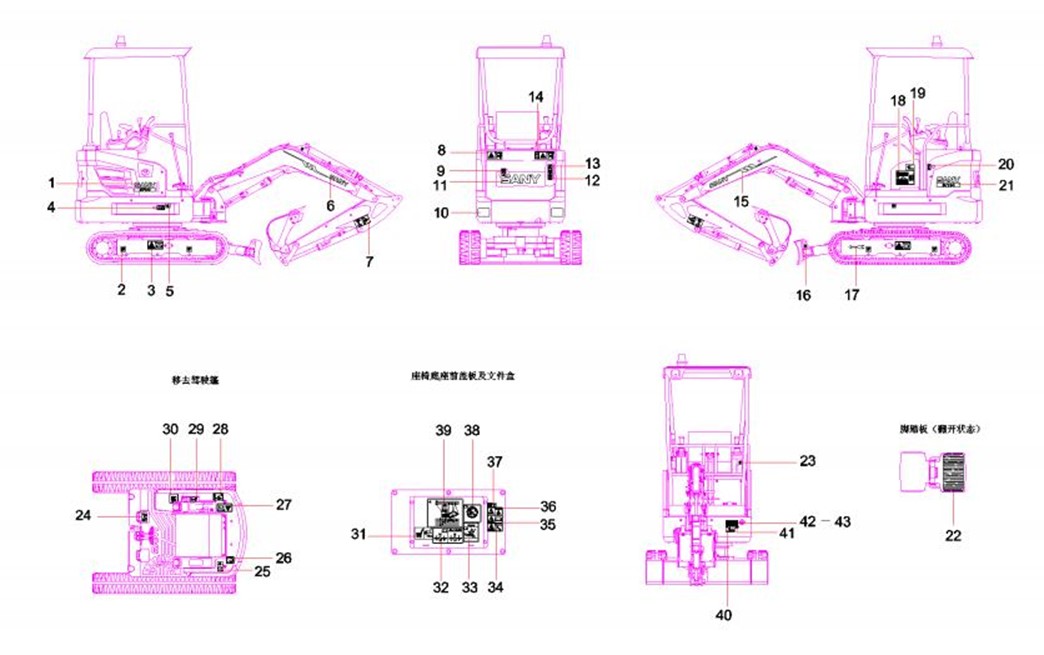

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-5-21 |
21 |
13168022 |
1 |
SANY logo markSY16C3-TZ-25 |
5-5-22 |
22 |
13342566 |
2 |
Antiskid paste SY35C2Y4WU-TZ- |
5-5-23 |
23 |
13155987 |
1 |
Leading switch mark |
5-5-24 |
24 |
13156069 |
1 |
Foot pedal mark |
5-5-25 |
25 |
13272748 |
1 |
Hydraulic oil tank indicative board |
5-5-26 |
26 |
13340334 |
1 |
Oil level label SY75C3I3R-TZ-17 |
5-5-27 |
27 |
13340515 |
1 |
Antispray caution plate SY75C3I3R |
5-5-28 |
28 |
13578164 |
1 |
One way/two way valve |
5-5-29 |
29 |
13234045 |
1 |
Crawler telescopic and bulldozing |
5-5-30 |
30 |
13166425 |
1 |
Fuel tank indicatorSY215CAI4K- |
5-5-31 |
31 |
13166512 |
1 |
Seat adjustment |
5-5-32 |
32 |
13578185 |
1 |
Control indicating diagram |
5-5-33 |
33 |
13411426 |
1 |
Suffering Power Of Single Side |
5-5-34 |
34 |
13450924 |
1 |
Warning board for high pressure |
5-5-35 |
35 |
12496543 |
1 |
Label, warning, read manual |
5-5-36 |
36 |
13450932 |
1 |
Seat safety caution board |
5-5-37 |
37 |
13567095 |
1 |
Joystick change indication |
5-5-38 |
38 |
13386272 |
1 |
Forbidding tilting machine when |
5-5-39 |
39 |
13475295 |
1 |
Lubricating graphic chart |
5-5-40 |
40 |
13411269 |
1 |
Lifting Mark SY35C2Y4WU(北美)- |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-7-41 |
41 |
13148777 |
1 |
Power sign |
5-7-42 |
42 |
13141404 |
1 |
nameplateSY135C8I3K-TZ-3 |
5-7-43 |
43 |
A210510000007 |
4 |
Rivet |

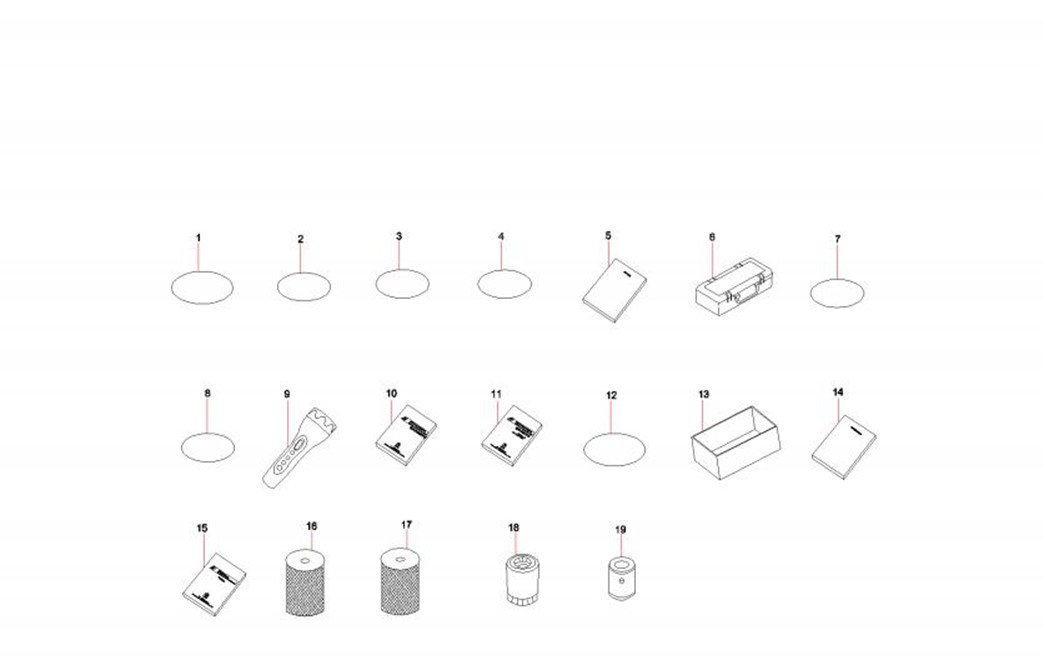

Chapter 6
Accessories
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-3-1 |
1 |
B230101000036 |
4 |
O-ring 29.4×3.1JISB2401 |
6-3-2 |
2 |
A230101000247 |
6 |
O-ring 10.9×2.3(JISB2401) |
6-3-3 |
3 |
B230101000049 |
6 |
O-ring 13.8×2.4JISB2401 |
6-3-4 |
4 |
23002753 |
6 |
O-ring |
6-3-5 |
5 |
13106659 |
1 |
Operation instruction |
6-3-6 |
6 |
60041997 |
1 |
Box, accessory |
6-3-7 |
7 |
B230101000047 |
4 |
O-ring |
6-3-8 |
8 |
A210608000022 |
6 |
O-ring |
6-3-9 |
9 |
60126008 |
1 |
Work lamp, hand-hold |
6-3-10 |
10 |
13447545 |
1 |
SA Excavator SY Series ML |
6-3-11 |
11 |
13444871 |
1 |
SA Excavator SY16 SOM |
6-3-12 |
12 |
13003724 |
4 |
O Ring |
6-3-13 |
13 |
13229265 |
1 |
Attached tools |
6-3-14 |
14 |
13300474 |
1 |
book |
6-3-15 |
15 |
13180135 |
1 |
Book, parts |
6-3-16 |
16 |
60023849 |
1 |
Primary filter element |
6-3-17 |
17 |
60023848 |
1 |
Element,filter,safety |
6-3-18 |
18 |
60027937 |
1 |
Fuel filter |
6-3-19 |
19 |
60027935 |
1 |
Filter,oil |

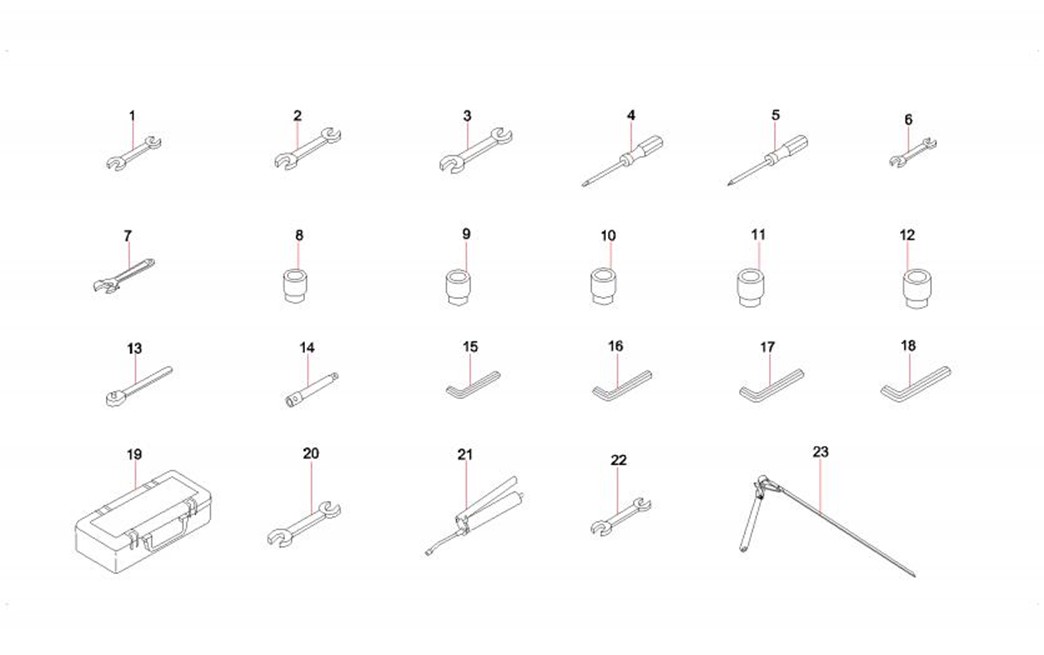

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-5-1 |
1 |
A260401030090 |
1 |
Spanner |
6-5-2 |
2 |
A260401030007 |
1 |
Wrench, open-end 22×24GB4388 |
6-5-3 |
3 |
A260401030008 |
1 |
Double-ended spanner |
6-5-4 |
4 |
A260402010013 |
1 |
Rotator, screw, slot |
6-5-5 |
5 |
A260402020026 |
1 |
Screwdriver, Phillips head |
6-5-6 |
6 |
A260401030002 |
1 |
Wrench, open-end 8×10GB4388 |
6-5-7 |
7 |
A260401040002 |
1 |
Spanner, adjustable |
6-5-8 |
8 |
A260401010077 |
1 |
Socket 17×12.5GB3390.1 |
6-5-9 |
9 |
A260401010081 |
1 |
Socket 19×12.5GB3390.1 |
6-5-10 |
10 |
A260401010078 |
1 |
Socket 22×12.5GB3390.1 |
6-5-11 |
11 |
A260401010051 |
1 |
Socket 24×12.5GB3390.1 |
6-5-12 |
12 |
A260401010029 |
1 |
Socket |
6-5-13 |
13 |
A260401090010 |
1 |
Wrench, ratchet, reversible |
6-5-14 |
14 |
A260401010092 |
1 |
Rod, extension |
6-5-15 |
15 |
A260401020008 |
1 |
Wrench, Allen 4RGB5356 |
6-5-16 |
16 |
A260401020010 |
1 |
Wrench, Allen 6RGB5356 |
6-5-17 |
17 |
A260401020011 |
1 |
Wrench, Allen 8RGB5356 |
6-5-18 |
18 |
A260401020004 |
1 |
Wrench, Allen 10RGB5356 |
6-5-19 |
19 |
60246887 |
1 |
Portable toolbox |
6-5-20 |
20 |
A260401030005 |
1 |
Wrench, open-end 17×19GB4388 |
