SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 19
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

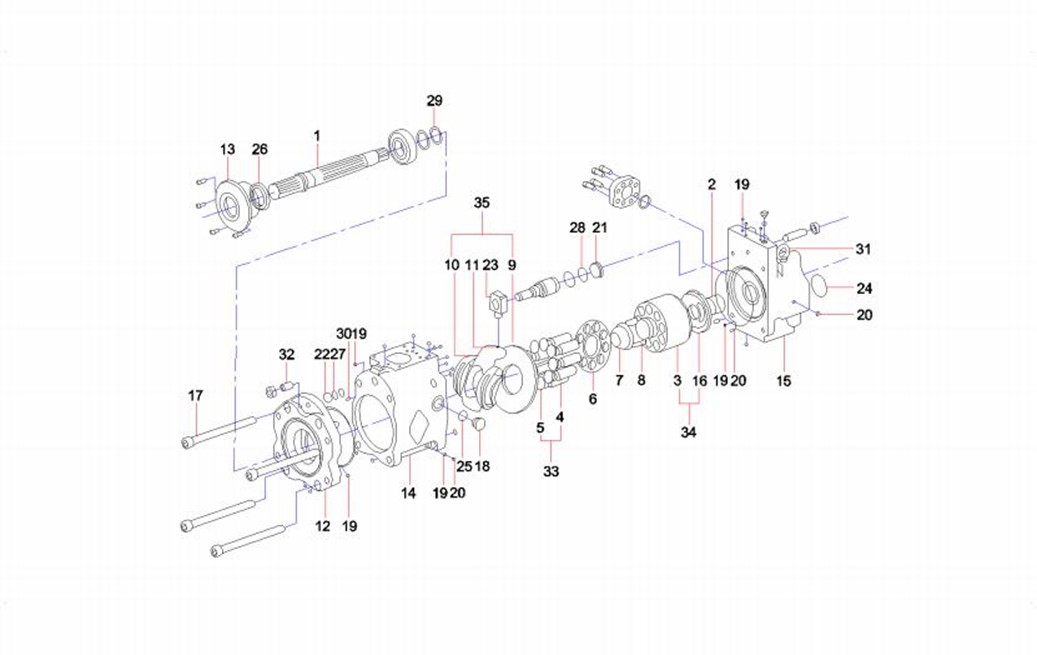

2-169-1 |
1 |
60075452 |
1 |
Shaft, drive |
2-169-2 |
2 |
60006939 |
2 |
Bearing, rear |
2-169-3 |
3 |
60125196 |
2 |
Cylinder body |
2-169-4 |
4 |
60125205 |
18 |
Plunger |
2-169-5 |
5 |
60125190 |
18 |
Boots,sliding |
2-169-6 |
6 |
60075467 |
2 |
Plate, pressure |
2-169-7 |
7 |
60015817 |
2 |
Bushing, spherical |
2-169-8 |
8 |
60054345 |
18 |
Spring |
2-169-9 |
9 |
60015757 |
2 |
Plate, sliding |
2-169-10 |
10 |
60015821 |
2 |
Plate, swash |
2-169-11 |
11 |
60075449 |
2 |
Sleeve, incline |
2-169-12 |
12 |
60064450 |
2 |
Support, swash plate |
2-169-13 |
13 |
60075480 |
1 |
Cover, oil seal |
2-169-14 |
14 |
60125192 |
2 |
Pump body |
2-169-15 |
15 |
60075385 |
1 |
Cover, oil distribution |
2-169-16 |
16 |
60125201 |
1 |
Plate,oil,distribution |
2-169-17 |
17 |
60075438 |
4 |
Screw |
2-169-18 |
18 |
60039400 |
4 |
Plug, oil |
2-169-19 |
19 |
60008728 |
28 |
Setscrew |
2-169-20 |
20 |
60008820 |
5 |
Plug |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-171-21 |
21 |
60075377 |
2 |
Post, bumping |
2-171-22 |
22 |
60075376 |
2 |
Post, bumping |
2-171-23 |
23 |
60008549 |
2 |
Pin |
2-171-24 |
24 |
60150563 |
1 |
O-Ring |
2-171-25 |
25 |
60039422 |
4 |
O-ring |
2-171-26 |
26 |
60075479 |
1 |
Seal, oil |
2-171-27 |
27 |
60075424 |
2 |
Ring, retaining |
2-171-28 |
28 |
60075423 |
2 |
Ring, retaining |
2-171-29 |
29 |
60064417 |
2 |
Gear, sun |
2-171-30 |
30 |
60008878 |
5 |
Pin |
2-171-31 |
31 |
60075426 |
2 |
Ring, lifting |
2-171-32 |
32 |
60075441 |
2 |
Rod, threaded |
2-171-33 |
33 |
60331154 |
1 |
Component |
2-171-34 |
34 |
60331155 |
1 |
Component |
2-171-35 |
35 |
60331156 |
1 |
Component |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

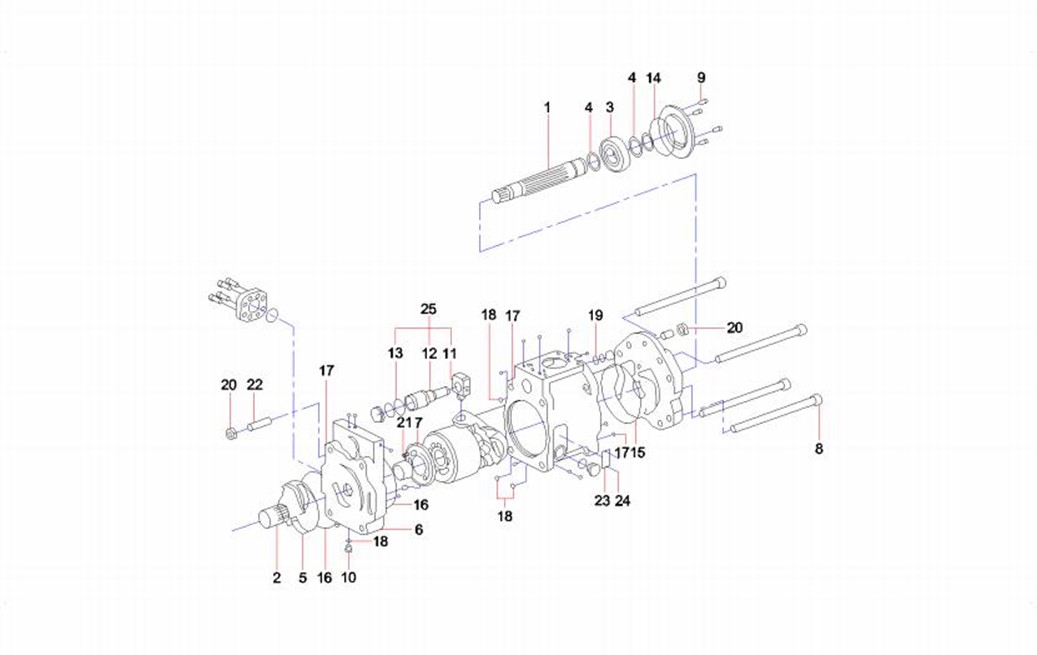

2-173-1 |
1 |
60075453 |
1 |
Shaft, drive |
2-173-2 |
2 |
60075431 |
1 |
Coupler, spline |
2-173-3 |
3 |
60006941 |
2 |
Bearing, front |
2-173-4 |
4 |
60075476 |
3 |
Washer, bearing |
2-173-5 |
5 |
60075469 |
1 |
Vane, boosting |
2-173-6 |
6 |
60150552 |
1 |
Cover Valve |
2-173-7 |
7 |
60125200 |
1 |
Plate,oil,distribution |
2-173-8 |
8 |
60075439 |
4 |
Bolt |
2-173-9 |
9 |
60039371 |
4 |
Screw, socket head |
2-173-10 |
10 |
60038654 |
4 |
Plug, oil |
2-173-11 |
11 |
60075450 |
2 |
Pin, angular |
2-173-12 |
12 |
60075455 |
2 |
Plunger, servo |
2-173-13 |
13 |
60093160 |
2 |
O-ring |
2-173-14 |
14 |
60125207 |
1 |
O-ring |
2-173-15 |
15 |
60125209 |
2 |
O-ring |
2-173-16 |
16 |
60075477 |
3 |
O-ring |
2-173-17 |
17 |
60038716 |
19 |
Seal, O-ring |
2-173-18 |
18 |
60038712 |
6 |
Seal, O-ring |
2-173-19 |
19 |
60125208 |
2 |
O-ring |
2-173-20 |
20 |
60039359 |
4 |
Nut, hex |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-175-21 |
21 |
60075461 |
2 |
Pin |
2-175-22 |
22 |
60075440 |
2 |
Rod, screw |
2-175-23 |
23 |
60100511 |
1 |
Nameplate |
2-175-24 |
24 |
60038620 |
2 |
Pin |
2-175-25 |
25 |
60331157 |
1 |
Component |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-177-1 |
1 |
60008508 |
1 |
Stem, valve |
2-177-2 |
2 |
60008493 |
1 |
Seat, valve |
2-177-3 |
3 |
60008523 |
1 |
Ring, retaining |
2-177-4 |
4 |
60008500 |
1 |
Spring |
2-177-5 |
5 |
60008496 |
1 |
Screw, adjusting |
2-177-6 |
6 |
60008505 |
1 |
Nut 2903480-0032 |
2-177-7 |
7 |
60075382 |
1 |
Body, machine |
2-177-8 |
8 |
60075409 |
1 |
Gear |
2-177-9 |
9 |
60075410 |
1 |
Gear |
2-177-10 |
10 |
60008491 |
1 |
Element, filter |
2-177-11 |
11 |
60075381 |
1 |
Body, machine |
2-177-12 |
12 |
60081461 |
2 |
Screw |
2-177-13 |
13 |
60081462 |
2 |
Screw |
2-177-14 |
14 |
60081460 |
4 |
Screw |
2-177-15 |
15 |
60008724 |
1 |
Plug |
2-177-16 |
16 |
60008504 |
1 |
Washer |
2-177-17 |
17 |
60008736 |
2 |
Pin |
2-177-18 |
18 |
60008697 |
1 |
O-ring |
2-177-19 |
19 |
60008701 |
1 |
O-ring |
2-177-20 |
20 |
60075425 |
1 |
Washer |
