SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 21
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-189-1 |
1 |
A820203001389 |
2 |
Flange |
2-189-2 |
2 |
B230103005131 |
1 |
Hose, rubber |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

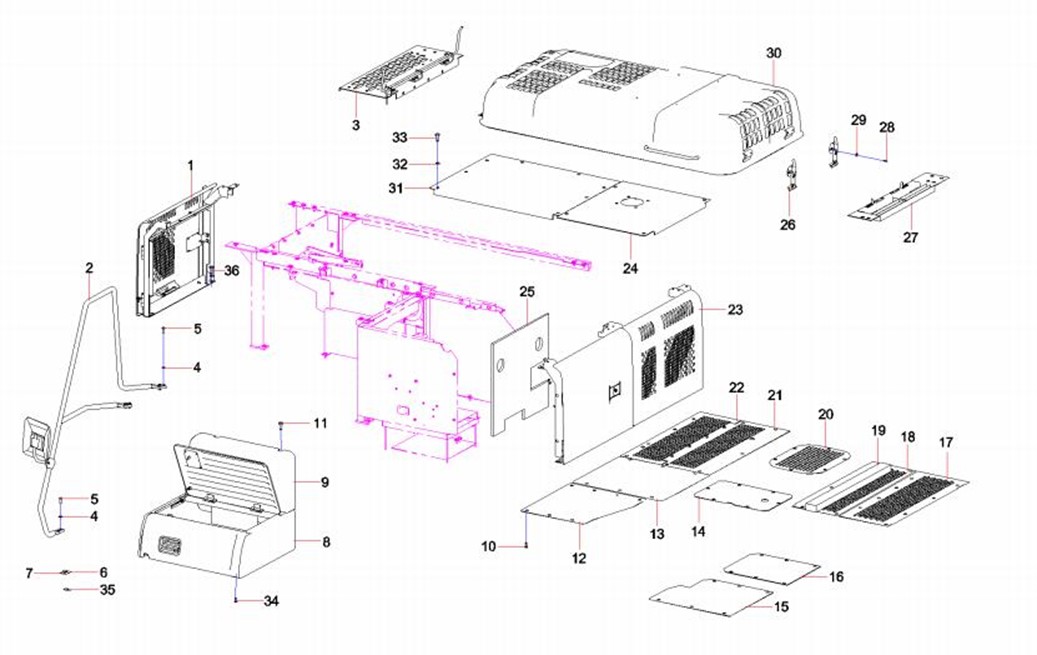

2-191-1 |
1 |
12855224 |
1 |
Door GP, right |
2-191-2 |
2 |
A810502020139 |
1 |
Handhold |
2-191-3 |
3 |
10123768 |
1 |
Cover, rear, upper right |
2-191-4 |
4 |
60262513 |
6 |
Washer |
2-191-5 |
5 |
Modification or other |
6 |
Bolt |
2-191-6 |
6 |
Modification or other |
2 |
Gasket |
2-191-7 |
7 |
Modification or other |
2 |
Gasket |
2-191-8 |
8 |
12909447 |
1 |
Battery Box Assy SY300E.1.6.10 |
2-191-9 |
9 |
12909452 |
1 |
Trim cover SY300E.1.6.11 |
2-191-10 |
10 |
Modification or other |
52 |
Bolt M12×30GB578310.9 |
2-191-11 |
11 |
60262507 |
61 |
Bolt |
2-191-12 |
12 |
Modification or other |
1 |
Bottom covered plate of fuel tank |
2-191-13 |
13 |
Modification or other |
1 |
Bottom cover plate of hydraulic oil |
2-191-14 |
14 |
Modification or other |
1 |
Main valve seat cover plate |
2-191-15 |
15 |
Modification or other |
1 |
cab bottom cover SY285C9I3K.1.6 |
2-191-16 |
16 |
Modification or other |
1 |
back cover plate(M) |
2-191-17 |
17 |
13423728 |
1 |
Back cover plate(L) |
2-191-18 |
18 |
13423729 |
1 |
Middle cover plate(L) |
2-191-19 |
19 |
13705616 |
1 |
Sponge SY335C9H.1.6.37-2 |
2-191-20 |
20 |
10179546 |
1 |
Coverplate, bottom, engine |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-193-21 |
21 |
A810502012251 |
1 |
Cover |
2-193-22 |
22 |
A820101342509 |
1 |
Cover |
2-193-23 |
23 |
12697690 |
1 |
left door assy SY305C9I2K.1.6.12 |
2-193-24 |
24 |
12697699 |
1 |
Air filter plate SY305C9I2K.1.6.13 |
2-193-25 |
25 |
12855576 |
1 |
spongeSY335C9H.1.6-22 |
2-193-26 |
26 |
A222200000065 |
2 |
Lock, door |
2-193-27 |
27 |
A810502012207 |
1 |
Cover, rear, upper left |
2-193-28 |
28 |
60262506 |
8 |
Bolt |
2-193-29 |
29 |
60262510 |
8 |
Washer |
2-193-30 |
30 |
11256386 |
1 |
Engine hood GP |
2-193-31 |
31 |
11945259 |
1 |
Middle(B) plate |
2-193-32 |
32 |
Modification or other |
95 |
Washer |
2-193-33 |
33 |
60262508 |
34 |
Bolt |
2-193-34 |
34 |
A210111000204 |
4 |
Bolt |
2-193-35 |
35 |
Modification or other |
2 |
Gasket |
2-193-36 |
36 |
A210111000101 |
10 |
Bolt M12×25GB5783 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

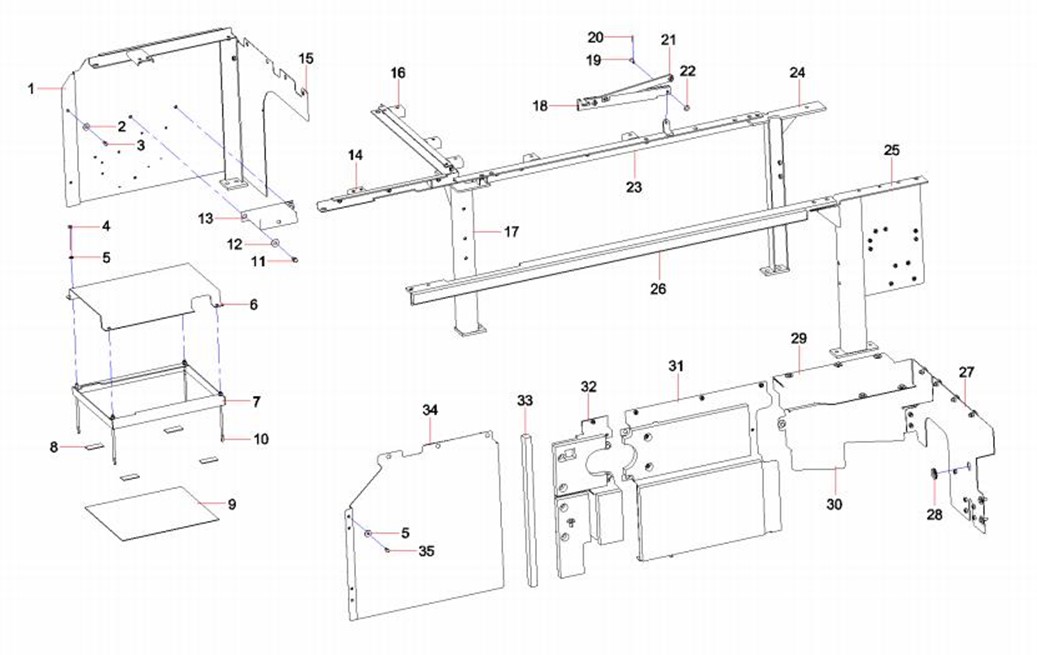

2-195-1 |
1 |
12697701 |
1 |
Rear support of |
2-195-2 |
2 |
60060546 |
2 |
Washer 10GB96.1 |
2-195-3 |
3 |
A210111000195 |
2 |
Bolt M10×16GB5783 10.9 |
2-195-4 |
4 |
A210307000036 |
8 |
Nut |
2-195-5 |
5 |
24000637 |
8 |
Washer |
2-195-6 |
6 |
12602227 |
1 |
Battery protective |
2-195-7 |
7 |
11583629 |
1 |
Battery fixed |
2-195-8 |
8 |
A820606030643 |
4 |
Cushion, battery |
2-195-9 |
9 |
12569036 |
1 |
Battery rubber padSY305.1.6-63 |
2-195-10 |
10 |
A820301015908 |
4 |
Stud |
2-195-11 |
11 |
A210111000199 |
5 |
Bolt M12×20GB5783 10.9 |
2-195-12 |
12 |
60060548 |
71 |
Washer 12GB96.1 |
2-195-13 |
13 |
12739184 |
1 |
Relay Protective |
2-195-14 |
14 |
12456158 |
1 |
air cleaner cross |
2-195-15 |
15 |
11945338 |
1 |
Air cleaner baffleSY310C1.1.6- |
2-195-16 |
16 |
11945285 |
1 |
Connection Beam |
2-195-17 |
17 |
11945719 |
1 |
Left(F) bracket |
2-195-18 |
18 |
A820302010101 |
1 |
Rod, bearing |
2-195-19 |
19 |
A210508000009 |
3 |
Roll, pin |
2-195-20 |
20 |
A210491000014 |
3 |
Pin 3.2×20GB91 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-197-21 |
21 |
A810502015065 |
1 |
Bar, support |
2-197-22 |
22 |
24000639 |
3 |
Washer |
2-197-23 |
23 |
A810502015192 |
1 |
Beam, cross, front |
2-197-24 |
24 |
A810502015197 |
1 |
Bracket, front, right |
2-197-25 |
25 |
A810502015195 |
1 |
Bracket |
2-197-26 |
26 |
A810502015193 |
1 |
Beam, cross, rear |
2-197-27 |
27 |
12859666 |
1 |
Upper partition plate |
2-197-28 |
28 |
11169936 |
1 |
Jacket, rubber |
2-197-29 |
29 |
10122468 |
1 |
Body, side partition |
2-197-30 |
30 |
12859668 |
1 |
Main body of main valve lower |
2-197-31 |
31 |
12859671 |
1 |
engine clapboard |
2-197-32 |
32 |
A810502012215 |
1 |
Partition, lower, engine |
2-197-33 |
33 |
A820699000954 |
1 |
Sponge |
2-197-34 |
34 |
12456160 |
1 |
baffle bodySY310C1.1.6.58C.1 |
2-197-35 |
35 |
A210111000012 |
4 |
Bolt M10×20GB5783 10.9 |
