SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 25
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-229-41 |
41 |
60153240 |
1 |
Thermistor AS |
2-229-42 |
42 |
60049968 |
1 |
Transistor AS, air conditioner |
2-229-43 |
43 |
60049952 |
1 |
Bracket, thermo-bulb parts |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

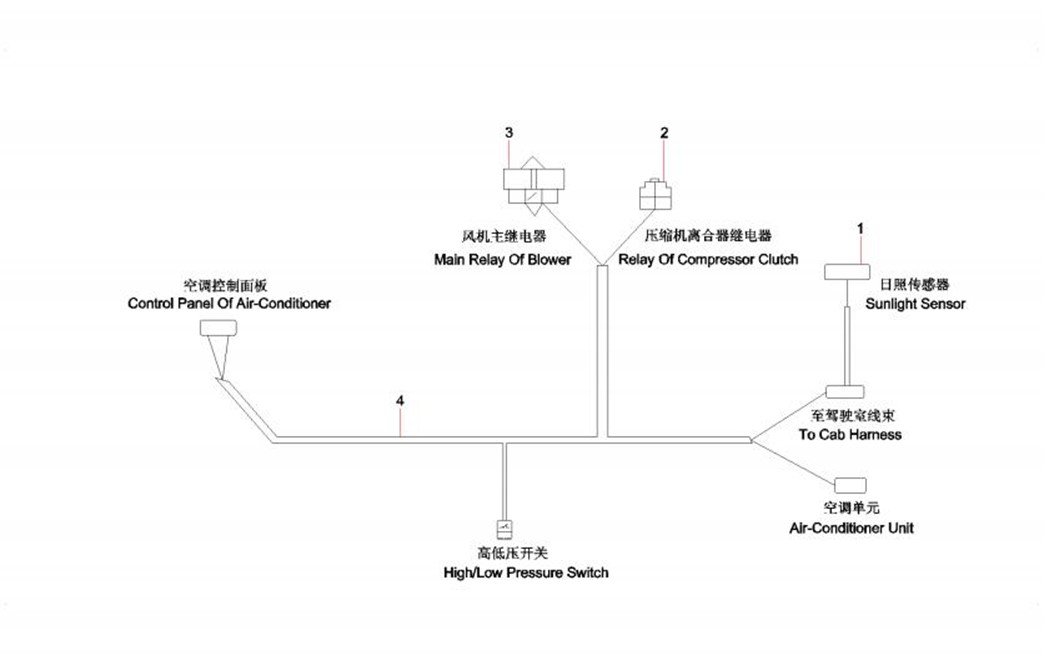

2-231-1 |
1 |
B240600000334 |
1 |
Sensor, sunlight |
2-231-2 |
2 |
B240700000473 |
1 |
Relay |
2-231-3 |
3 |
B240700000472 |
1 |
Relay |
2-231-4 |
4 |
10448933 |
1 |
Wire, connecting, air conditioner |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-233-1 |
1 |
11287548 |
1 |
Sponge, noise reduction, |
2-233-2 |
2 |
11287549 |
1 |
Sponge, noise reduction, |
2-233-3 |
3 |
11287547 |
1 |
Sponge, noise reduction, |
2-233-4 |
4 |
11598223 |
1 |
Counterweight |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

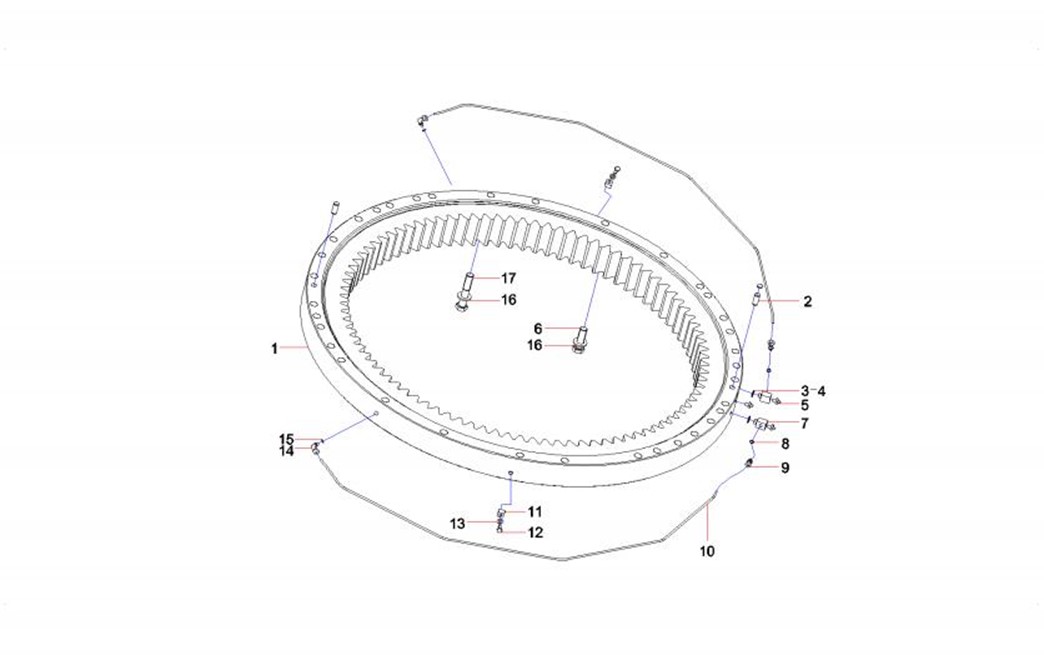

2-235-1 |
1 |
10954162 |
1 |
Bearing,slewing |
2-235-2 |
2 |
A820301012418 |
2 |
Pin |
2-235-3 |
3 |
Modification or other |
2 |
Seal, ring |
2-235-4 |
4 |
10668938 |
2 |
Gasket |
2-235-5 |
5 |
B229900000686 |
3 |
Fitting, grease |
2-235-6 |
6 |
60199488 |
40 |
Bolt |
2-235-7 |
7 |
A820205000954 |
2 |
Joint, square |
2-235-8 |
8 |
A820102010474 |
4 |
Washer |
2-235-9 |
9 |
A210711000010 |
2 |
Connector, pipe |
2-235-10 |
10 |
A820207010441 |
2 |
Pipe |
2-235-11 |
11 |
A820101118370 |
2 |
Clamp, pipe |
2-235-12 |
12 |
A210111000195 |
2 |
Bolt M10×16GB5783 10.9 |
2-235-13 |
13 |
24000637 |
2 |
Washer |
2-235-14 |
14 |
A210770000195 |
2 |
Connector, pipe |
2-235-15 |
15 |
10668937 |
4 |
Washer |
2-235-16 |
16 |
A210491000122 |
75 |
Washer 24GB1230 |
2-235-17 |
17 |
60238692 |
35 |
Bolt |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

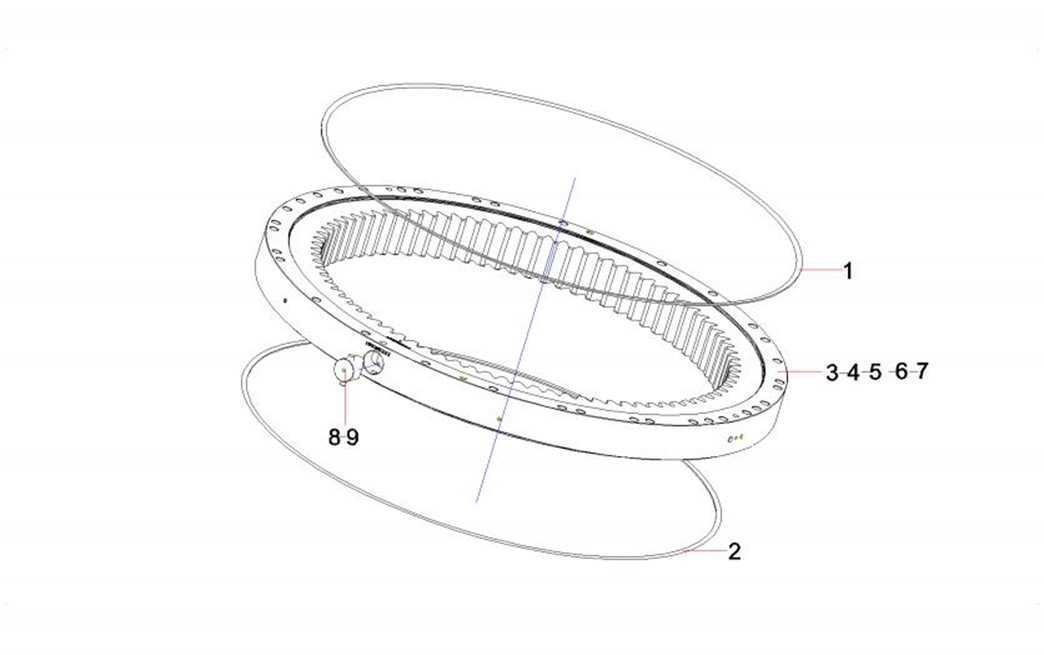

2-237-1 |
1 |
12791140 |
1 |
|
2-237-2 |
2 |
12791139 |
1 |
|
2-237-3 |
3 |
10954159 |
1 |
Ring,inner |
2-237-4 |
4 |
10954160 |
1 |
Ring,outer |
2-237-5 |
5 |
A210661000041 |
75 |
Ball |
2-237-6 |
6 |
A229900010025 |
75 |
Spacers |
2-237-7 |
7 |
60012591 |
1 |
Pin 3×10GB879.1 |
2-237-8 |
8 |
11217895 |
1 |
Plug |
2-237-9 |
9 |
A210551000025 |
1 |
Pin 16×100GB117 |
