IC

INDEX

PART NUMBER

QTY

PART NAME

2-299-1

1

B230103000914

1

Hose

2-299-2

2

B230103001359

1

Hose, rubber

2-299-3

3

B230103000808

1

Hose, rubber

2-299-4

4

A210110000437

4

Bolt M12×65GB5782 10.9

2-299-5

5

B230103000992

1

Hose, rubber

2-299-6

6

B230103000993

3

Hose, rubber

2-299-7

7

A831213050000

3

Hose, rubber

2-299-8

8

B230103000977

3

Hose, rubber

2-299-9

9

B230103002045

1

Hose, rubber

2-299-10

10

10237402

1

Plate, guard, relay

2-299-11

11

10077269

1

Adapter

2-299-12

12

B210780000172

1

Connector, pipe

2-299-13

13

11415538

1

Plate, adapter

2-299-14

14

B230103004133

6

Hose

2-299-15

15

B210780000170

10

Connector, pipe

2-299-16

16

A820205000940

1

Connector

2-299-17

17

B230103001947

1

Hose, rubber

IC

INDEX

PART NUMBER

QTY

PART NAME

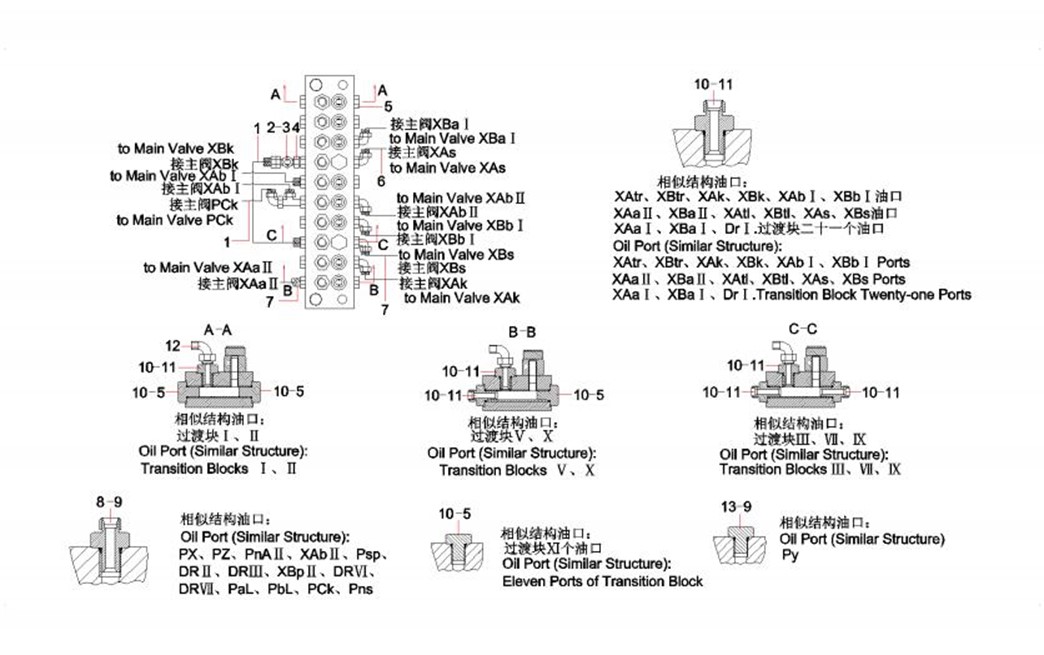

2-301-1

1

B230103002657

3

Hose

2-301-2

2

A820205001061

1

Coupler, sensor, negative flow

2-301-3

3

B220400000169

1

Valve, shuttle, tee

2-301-4

4

B210780001045

2

Connector, pipe

2-301-5

5

A820205000947

11

Plug

2-301-6

6

B230103003046

1

Hose

2-301-7

7

A831213035000

2

Hose, rubber

2-301-8

8

A820205000940

14

Connector

2-301-9

9

B230101000047

18

O-ring

2-301-10

10

B230101000049

49

O-ring 13.8×2.4JISB2401

2-301-11

11

A820205000946

36

Connector

2-301-12

12

B210780000418

17

Connector, pipe

2-301-13

13

A820205001771

1

Plug

IC

INDEX

PART NUMBER

QTY

PART NAME

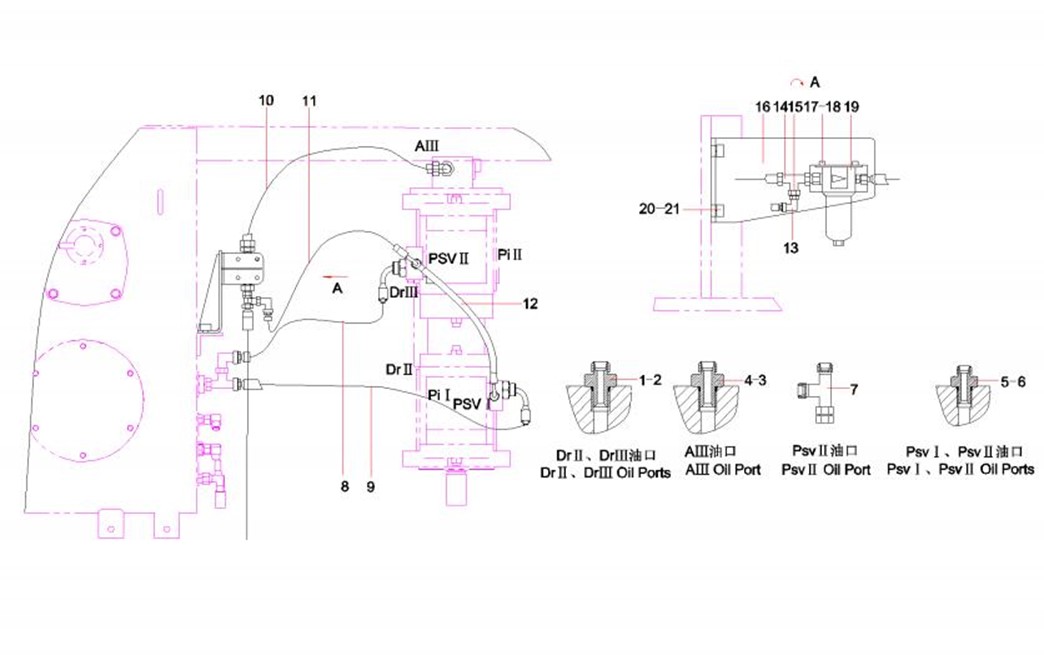

2-303-1

1

A820205000942

2

Connector

2-303-2

2

B230101000356

2

O-ring 23.7×3.5JISB2401

2-303-3

3

A820205000941

1

Connector

2-303-4

4

B230101000090

1

O-ring 17.8×2.4JISB2401

2-303-5

5

A820205000940

2

Connector

2-303-6

6

B230101000047

2

O-ring

2-303-7

7

B210780000170

1

Connector, pipe

2-303-8

8

B230103001239

1

Hose, rubber

2-303-9

9

B230103002446

1

Hose, rubber

2-303-10

10

21033030

1

Hose, rubber

2-303-11

11

A831213035000

1

Hose, rubber

2-303-12

12

21018549

1

Hose, rubber

2-303-13

13

B210780000418

2

Connector, pipe

2-303-14

14

B210780000016

1

Fitting, Tee

2-303-15

15

B210780000827

1

Connector, pipe

2-303-16

16

11213443

1

Bracket, pilot filter

2-303-17

17

24000511

4

Washer

2-303-18

18

A210204000340

4

Screw M8×16GB70.1 10.9

2-303-19

19

B229900000063

1

Filter, oil

2-303-20

20

23000066

2

Screw M10×25GB70.1 10.9

IC

INDEX

PART NUMBER

QTY

PART NAME

2-305-21

21

24000637

2

Washer

IC

INDEX

PART NUMBER

QTY

PART NAME

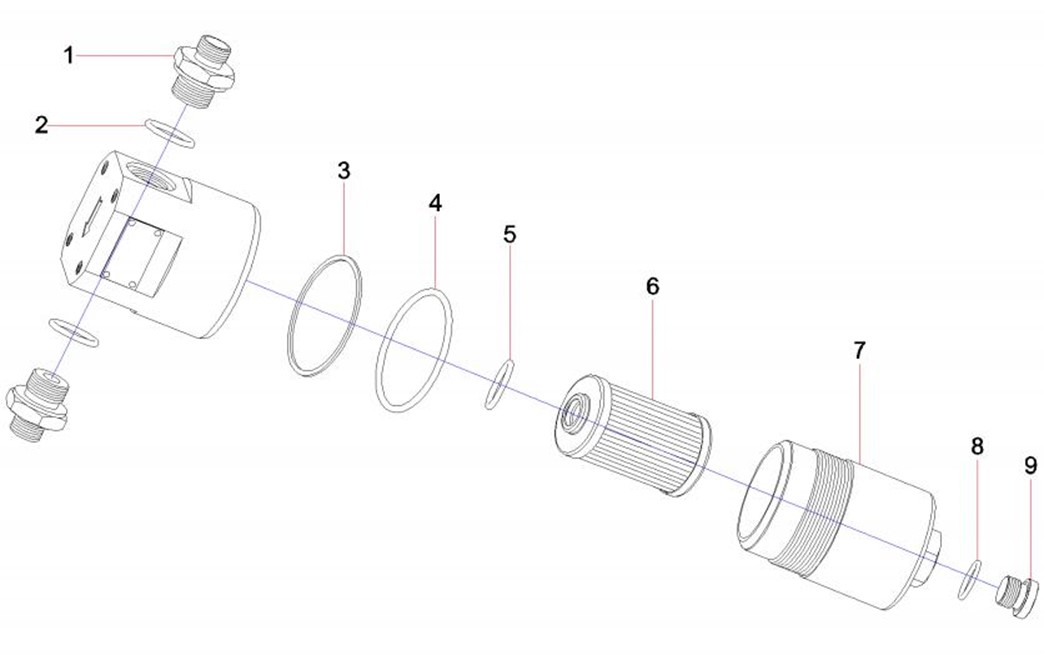

2-307-1

1

60294881

2

adaptor

2-307-2

2

29010015

2

O-ring

2-307-3

3

60294882

1

sealing cushion

2-307-4

4

A230101000563

1

Seal,O-ring

2-307-5

5

24002612

1

O-Ring-20×2.4(GB1235)

2-307-6

6

A222100000119

1

Element, pilot filter

2-307-7

7

60294883

1

housing

2-307-8

8

21000077

1

O-ring

2-307-9

9

60294884

1

screw plug
