IC

INDEX

PART NUMBER

QTY

PART NAME

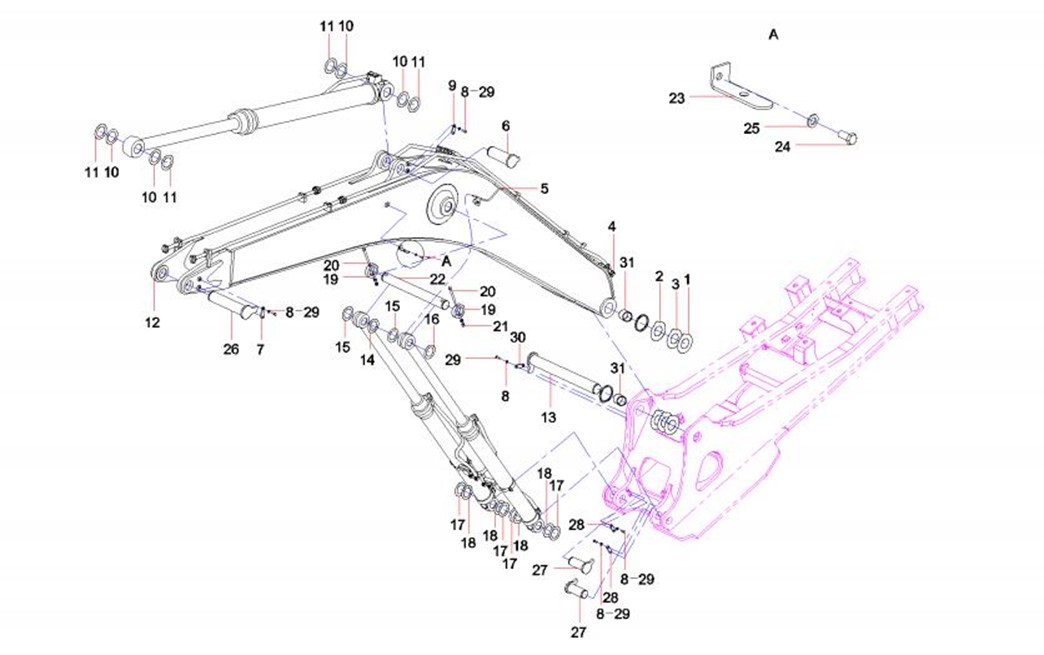

4-3-1

1

11166679

2

Gasket, resin

4-3-2

2

Modification or other

4

Gasket, resin

4-3-3

3

Modification or other

4

Gasket, resin

4-3-4

4

12174692

1

Work device tube

4-3-5

5

12127622

1

Pipeline, lubrication

4-3-6

6

A810303990037

1

Roll, pin

4-3-7

7

A820101211702

1

Plate, pressure

4-3-8

8

24000642

14

Washer

4-3-9

9

A820101211710

3

Plate, pressure

4-3-10

10

Modification or other

4

Gasket

4-3-11

11

Modification or other

4

Shim

4-3-12

12

12672624

1

Boom SY335C9I2K.3.2H

4-3-13

13

A810303990036

1

Roll, pin

4-3-14

14

Modification or other

2

Gasket, resin

4-3-15

15

Modification or other

2

Gasket, resin

4-3-16

16

11166681

2

Gasket, resin

4-3-17

17

11041901

4

Gasket, resin

4-3-18

18

11112327

4

Gasket, resin

4-3-19

19

A820101211704

2

Retainer

4-3-20

20

Modification or other

3

Bolt M20×200GB5782 10.9

IC

INDEX

PART NUMBER

QTY

PART NAME

4-5-21

21

A210307000029

12

Nut

4-5-22

22

A820301020537

1

Roll, pin

4-5-23

23

A820101322531

2

Bracket, lamp

4-5-24

24

A210111000263

2

Bolt

4-5-25

25

24000514

2

Washer

4-5-26

26

12740454

1

Pin

4-5-27

27

A810303990034

2

Roll, pin

4-5-28

28

11274145

2

Plate, pressure

4-5-29

29

A210111000212

14

Bolt M16×35GB5783 10.9

4-5-30

30

11274177

1

Plate, pressure

4-5-31

31

11306936

2

Sleeve, shaft

IC

INDEX

PART NUMBER

QTY

PART NAME

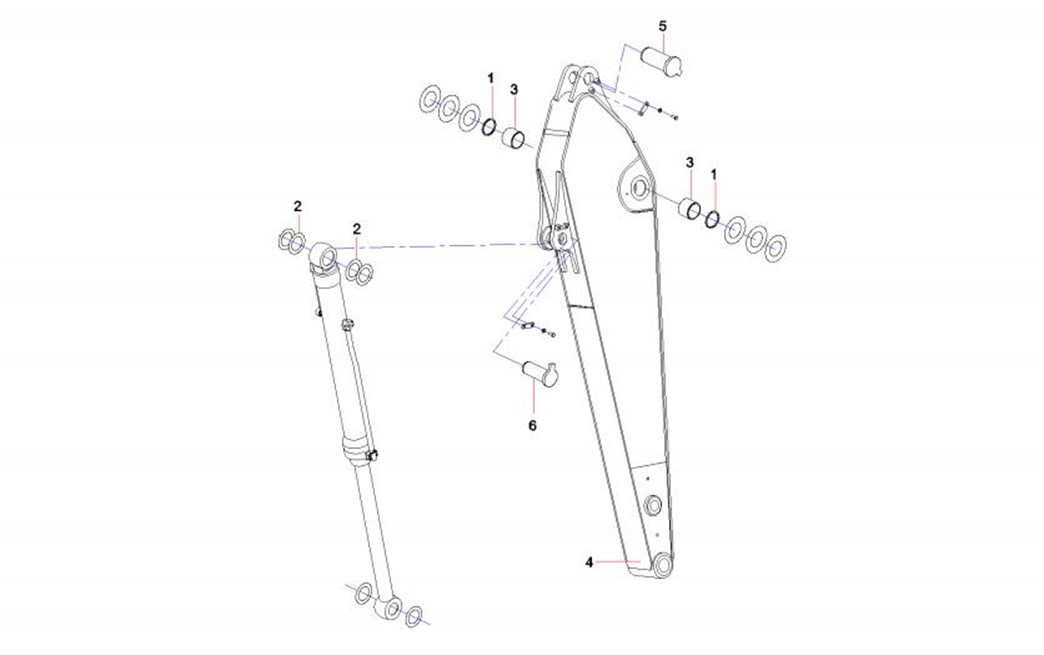

4-7-1

1

B230101000534

4

Dustproof

4-7-2

2

Modification or other

24

Gasket

4-7-3

3

11806747

2

Sleeve, shaft

4-7-4

4

12689367

1

Arm

4-7-5

5

A810303990035

1

Roll, pin

4-7-6

6

A810303990033

1

Roll, pin

IC

INDEX

PART NUMBER

QTY

PART NAME

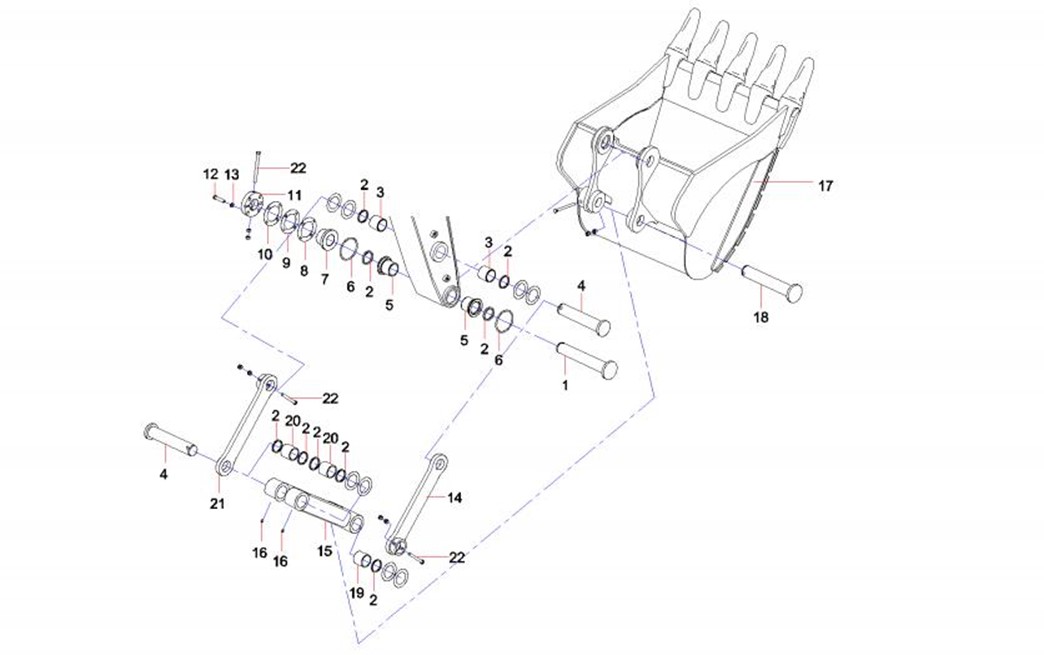

4-9-1

1

11945933

1

Roll, pin

4-9-2

2

60055872

10

DLI-ring, dustproof

4-9-3

3

A820202003323

2

Sleeve, shaft

4-9-4

4

A810303990032

2

Roll, pin

4-9-5

5

11744971

2

Sleeve, shaft

4-9-6

6

A210608000108

2

O-ring

4-9-7

7

A820403000465

1

Sleeve, pressure

4-9-8

8

11945936

4

Shim, adjusting

4-9-9

9

11945934

4

Shim, adjusting

4-9-10

10

11945935

4

Shim, adjusting

4-9-11

11

11904436

1

Plate

4-9-12

12

Modification or other

4

Bolt M20×70GB5782 grade 10.9

4-9-13

13

24000515

4

Washer 20GB93 DACROMET

4-9-14

14

11267311

1

Idler, bucket

4-9-15

15

11789611

1

Rod, connecting

4-9-16

16

B229900000686

6

Fitting, grease

4-9-17

17

Modification or other

1

BucketSY335C.3.4SY335C.3.4

4-9-18

18

A810303990031

1

Roll, pin

4-9-19

19

A820202003320

2

Sleeve, shaft

4-9-20

20

A820202003321

2

Sleeve, shaft
