SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 44
|
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
|
8-3-1 |
1 |
60018964 |
196 |
Bolt,crawler |
|
8-3-2 |
2 |
60018960 |
196 |
Nut,crawler |
|
8-3-3 |
3 |
11574003 |
1 |
Track GP,chain |
|
8-3-4 |
4 |
12372012 |
1 |
Track UnitSTC216MB.1 自制 |
|
8-3-5 |
5 |
11402652 |
1 |
Master bushSTC216MA-6045.1-1 |
|
8-3-6 |
6 |
11402654 |
2 |
Shim |
|
8-3-7 |
7 |
11402653 |
1 |
Master pinSTC216MA-6045.1-2 |
|
8-3-8 |
8 |
11402655 |
48 |
Shaft,pin |
|
8-3-9 |
9 |
60019265 |
96 |
Ring,seal |
|
8-3-10 |
10 |
11402166 |
48 |
Bushing,pin |
|
8-3-11 |
11 |
11402657 |
49 |
Link,track,chain,right |
|
8-3-12 |
12 |
11402676 |
49 |
Link,chain,left |
|
8-3-13 |
13 |
60051463 |
49 |
Shoe,crawler |
|
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
|

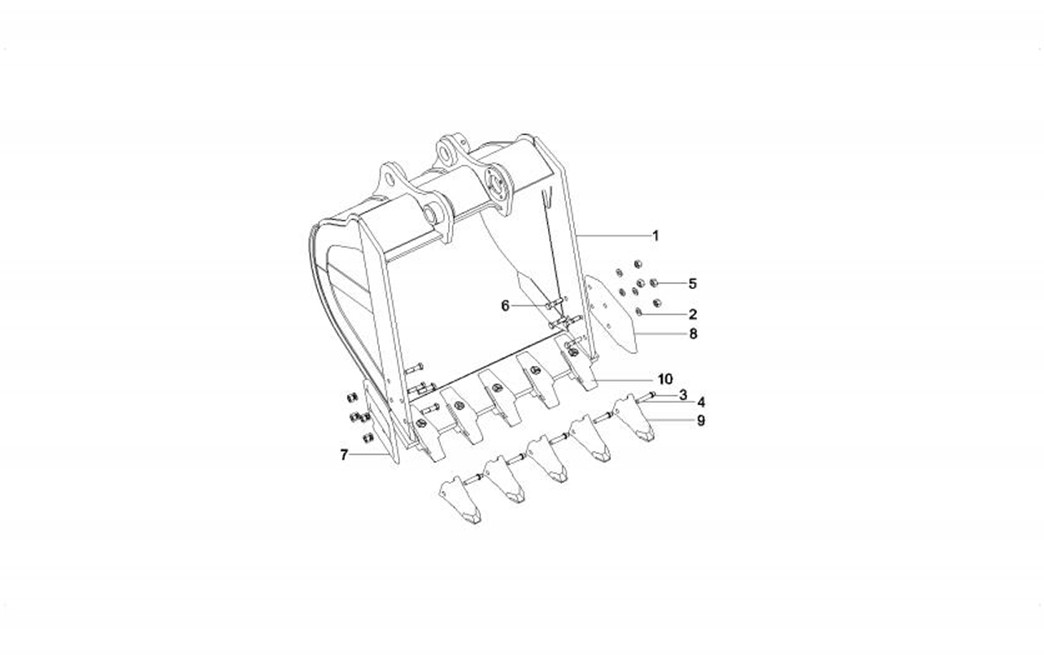

8-5-1 |
1 |
12171977 |
1 |
Bucket |
|
8-5-2 |
2 |
A210491000122 |
8 |
Washer 24GB1230 |
|
8-5-3 |
3 |
60116439 |
5 |
Spring, snap |
|
8-5-4 |
4 |
60116440 |
5 |
Pin |
|
8-5-5 |
5 |
A210334000013 |
8 |
Nut |
|
8-5-6 |
6 |
A210110000239 |
8 |
Bolt M24×100GB5782 10.9 |
|
8-5-7 |
7 |
11182515 |
1 |
Cutter, side, left |
|
8-5-8 |
8 |
11182516 |
1 |
Cutter, side, right |
|
8-5-9 |
9 |
60116436 |
5 |
Tooth Top |
|
8-5-10 |
10 |
60116435 |
5 |
Seat,toothed |
|
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
|
8-6-1 |
1 |
11178765 |
1 |
Cover |
|
8-6-2 |
2 |
12103866 |
1 |
Bottom covered plate of fuel tank |
|
8-6-3 |
3 |
A820101219918 |
1 |
Cover |
|
8-6-4 |
4 |
A820101219919 |
1 |
Cover |
|
8-6-5 |
5 |
13298341 |
1 |
Main valve seat cover plate |
|
8-6-6 |
6 |
12265746 |
1 |
Manual, operation and |
|
8-6-7 |
7 |
11826337 |
1 |
Manual, operation and |
|
8-6-8 |
8 |
12535566 |
1 |
CD, excavator maintenance |
|
8-6-9 |
9 |
A810502019122 |
4 |
Sleeve, cylinder |
|
8-6-10 |
10 |
60054415 |
7 |
Tape,shield,screwed |
|
8-6-11 |
11 |
60210572 |
1 |
dacal |
|
8-6-12 |
12 |
10764083 |
4 |
Pedal,widened |
|
8-6-13 |
13 |
A210307000031 |
8 |
Nut M12GB6170 10 |
|
8-6-14 |
14 |
24000639 |
8 |
Washer |
|
8-6-15 |
15 |
13353565 |
1 |
Sany Encourage Control Display 三 |
|
8-6-16 |
16 |
60118712 |
1 |
Box, accessories |
|
8-6-17 |
17 |
60125384 |
1 |
Switch, power |
|
8-6-18 |
18 |
13774935 |
1 |
Bracket of power switch |
|
8-6-19 |
19 |
60060548 |
2 |
Washer 12GB96.1 |
|
8-6-20 |
20 |
13654121 |
1 |
Power Supply Line DYX900-60-10 |
|
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
|
8-7-21 |
21 |
13626475 |
4 |
Flange block head T09-Q-150023 |
|
8-7-22 |
22 |
13626471 |
4 |
Flange block head T09-Q-150023 |
|
8-7-23 |
23 |
A420101000001 |
25 |
Oil，diesel |
