SANY SY35C SY35C2 SY35C2Y4WU EXCAVATOR parts catalog 30
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

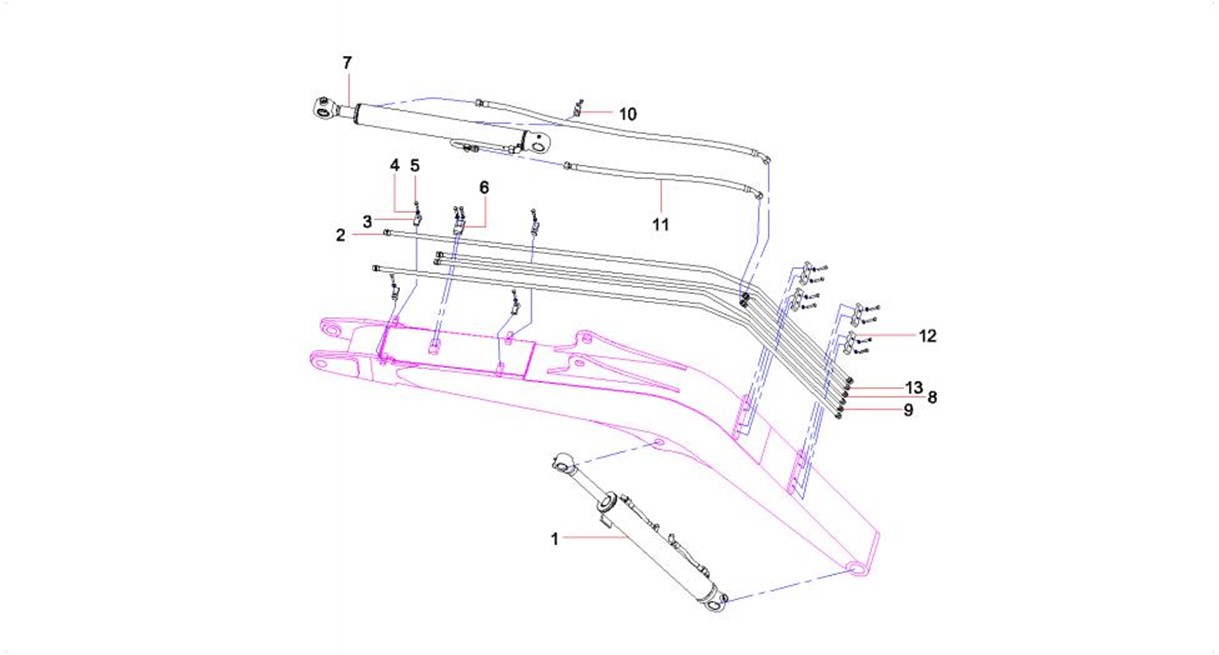

4-9-1 |
1 |
13072929 |
1 |
Support |
4-9-2 |
2 |
A820102010793 |
12 |
Shim |
4-9-3 |
3 |
13077579 |
1 |
Brace piece axial |
4-9-4 |
4 |
B230101001119 |
2 |
DLI-ring, dustproof |
4-9-5 |
5 |
10574181 |
2 |
Sleeve, shaft |
4-9-6 |
6 |
A210111000199 |
3 |
Bolt M12×20GB5783 10.9 |
4-9-7 |
7 |
60060548 |
3 |
Washer 12GB96.1 |
4-9-8 |
8 |
A210110000384 |
2 |
Bolt M12×110GB5782 10.9 |
4-9-9 |
9 |
13077577 |
1 |
Brace piece axial pin |
4-9-10 |
10 |
13063805 |
1 |
Shaft |
4-9-11 |
11 |
13063806 |
1 |
Shaft |
4-9-12 |
12 |
13072985 |
1 |
Brace piece axial pin |
4-9-13 |
13 |
13529173 |
2 |
Spacer SY35C1Y3WU.3-24 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

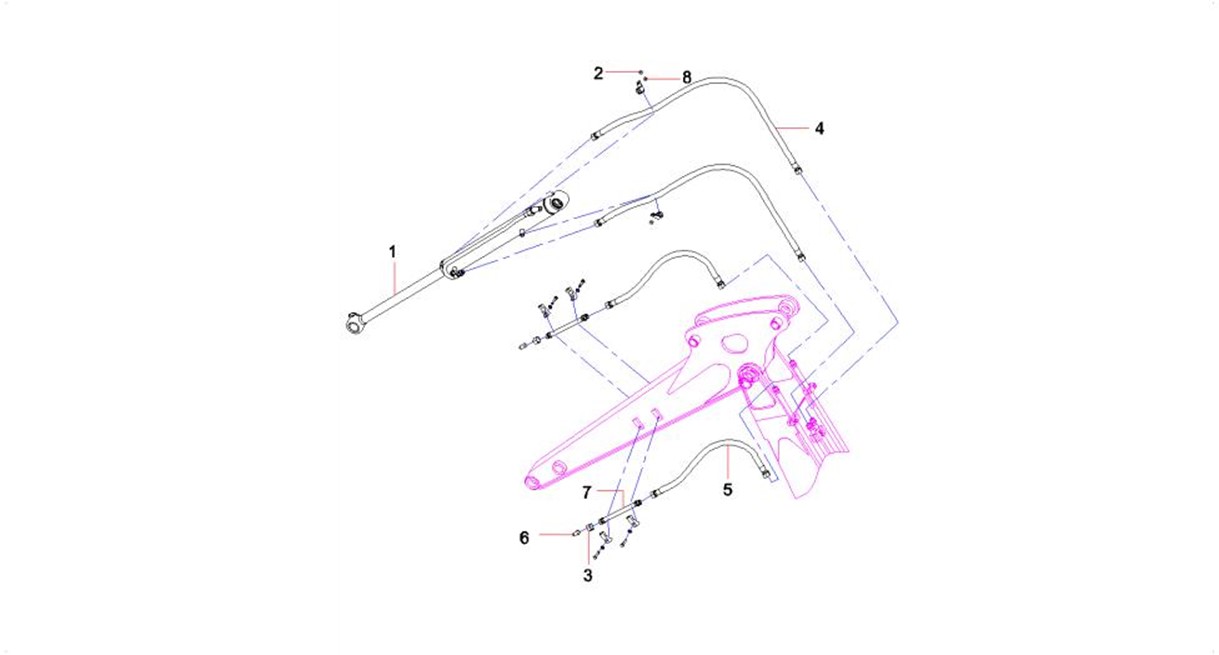

4-11-1 |
1 |
13019985 |
1 |
Oil |
4-11-2 |
2 |
13054004 |
2 |
steel tube assembly |
4-11-3 |
3 |
13060351 |
8 |
Pipe nip |
4-11-4 |
4 |
A210405000007 |
18 |
Washer 8GB97.1 |
4-11-5 |
5 |
A210111000093 |
18 |
Bolt M8×40GB5783 |
4-11-6 |
6 |
13060309 |
1 |
Pipe nip |
4-11-7 |
7 |
13048968 |
1 |
Arm cylinder |
4-11-8 |
8 |
13053966 |
2 |
steel tube |
4-11-9 |
9 |
13053604 |
1 |
steel tube |
4-11-10 |
10 |
13335611 |
2 |
Clamp SY35C1Y3WU.3.1-5 |
4-11-11 |
11 |
B230103005316 |
2 |
Hose |
4-11-12 |
12 |
13060281 |
4 |
Pipe nip |
4-11-13 |
13 |
13053950 |
1 |
steel tube |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-13-1 |
1 |
13048176 |
1 |
Bucket oil cylinder |
4-13-2 |
2 |
A210401000017 |
2 |
Washer 8GB93 |
4-13-3 |
3 |
B210334000012 |
2 |
Nut |
4-13-4 |
4 |
60025560 |
2 |
Hose, rubber |
4-13-5 |
5 |
B230103005171 |
2 |
Rubber hose 2SN12-DKOL-800 |
4-13-6 |
6 |
B210780000089 |
2 |
Plug |
4-13-7 |
7 |
13131062 |
2 |
Steel tube |
4-13-8 |
8 |
A210404000005 |
2 |
Washer 8GB96.1 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

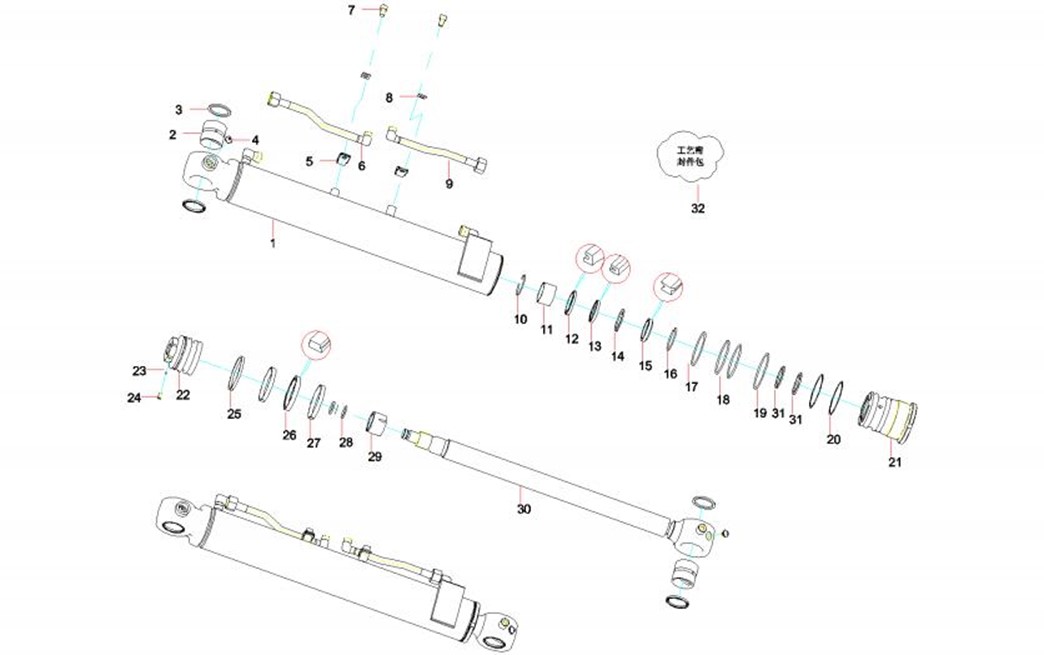

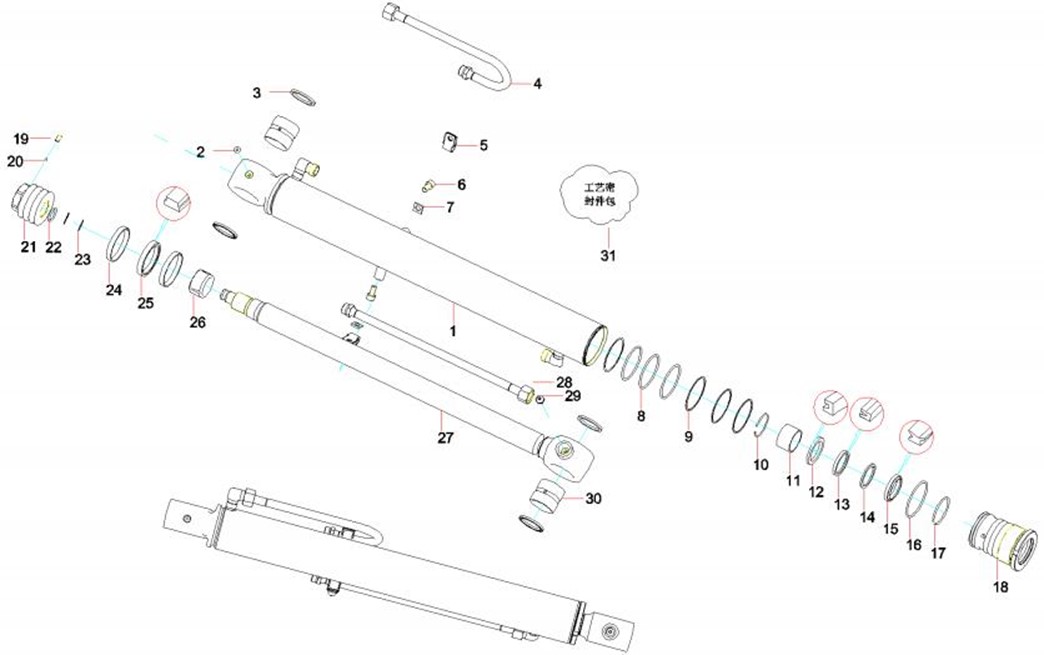

4-15-1 |
1 |
13047761 |
1 |
Cylinder Assem. ZX35.3.1.2 |
4-15-2 |
2 |
13047577 |
2 |
Bush ZX35.3.1-6 |
4-15-3 |
3 |
60176726 |
4 |
Dust Ring |
4-15-4 |
4 |
A229900010158 |
2 |
Cup, oil |
4-15-5 |
5 |
13046617 |
2 |
Pipe ClampZX35.3.2A-4 |
4-15-6 |
6 |
13047767 |
1 |
Oil tube component ZX35.3.1.3 |
4-15-7 |
7 |
A210204000202 |
2 |
Screw M10×16GB70.1 |
4-15-8 |
8 |
13039393 |
2 |
washerZX65.3.1B-13 |
4-15-9 |
9 |
13047769 |
1 |
Oil tube component II ZX35.3.1.4 |
4-15-10 |
10 |
60183946 |
1 |
Retaining Ring |
4-15-11 |
11 |
60180960 |
1 |
Bearing, oilless |
4-15-12 |
12 |
60176730 |
1 |
Seal ring |
4-15-13 |
13 |
60176732 |
1 |
Seal ring |
4-15-14 |
14 |
60180968 |
1 |
|
4-15-15 |
15 |
60176723 |
1 |
Dust Ring |
4-15-16 |
16 |
A210417000107 |
1 |
Ring, retaining 55GB895.1 |
4-15-17 |
17 |
A210608000098 |
1 |
O-ring 79.4×3.1JISB2401 |
4-15-18 |
18 |
B230101000709 |
2 |
O-ring 78.97×3.53AS568-235 |
4-15-19 |
19 |
A210609000082 |
1 |
O-ring 85×3.55GB3452.1 |
4-15-20 |
20 |
B229900001470 |
2 |
Ring, retainer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-17-21 |
21 |
13047573 |
1 |
guide sleeve ZX35.3.1-1 |
4-17-22 |
22 |
13047574 |
1 |
Piston ZX35.3.1-2 |
4-17-23 |
23 |
A210661000016 |
1 |
Ball, steel |
4-17-24 |
24 |
A210206000004 |
1 |
Screw M8×16GB77 |
4-17-25 |
25 |
60192119 |
1 |
Anti-pollution loop |
4-17-26 |
26 |
60184746 |
1 |
Seal Ring |
4-17-27 |
27 |
B230101001878 |
2 |
UP-ring, guide |
4-17-28 |
28 |
B230101000580 |
2 |
O-ring 24.99×3.53AS568-214 |
4-17-29 |
29 |
13047576 |
1 |
Bumper SleeveZX35.3.1-4 |
4-17-30 |
30 |
13047759 |
1 |
Piston Rod ZX35.3.1.1 |
4-17-31 |
31 |
B229900006227 |
2 |
Ring,retainer |
4-17-32 |
32 |
13048172 |
1 |
W31process sealer packageSS |
