SANY SY35C SY35C3Y4WU EXCAVATOR parts catalog 17
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

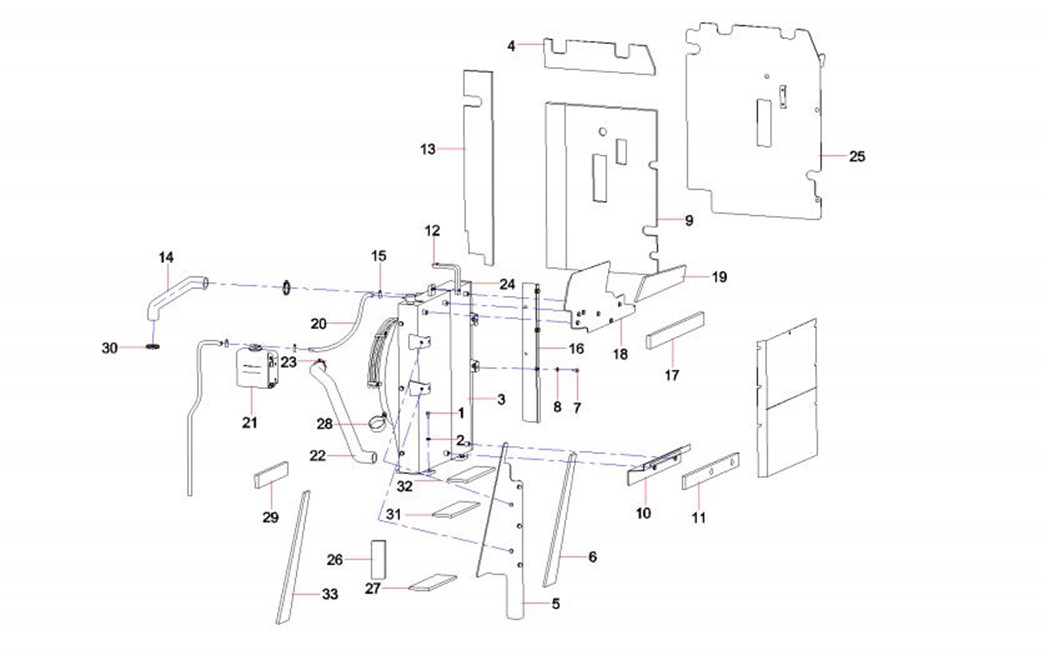

2-151-1 |
1 |
A210111000101 |
4 |
Bolt M12×25GB5783 10.9 |
2-151-2 |
2 |
24000637 |
4 |
Washer |
2-151-3 |
3 |
60233037 |
1 |
radiator |
2-151-4 |
4 |
13072795 |
1 |
Hermal Insulation Sponge |
2-151-5 |
5 |
13055126 |
1 |
rear sealing board assembly |
2-151-6 |
6 |
13055112 |
1 |
rear sealing sponge |
2-151-7 |
7 |
A210111000342 |
14 |
Bolt M8×16GB5783 10.9 |
2-151-8 |
8 |
24000633 |
14 |
Washer |
2-151-9 |
9 |
13072796 |
1 |
Hermal Insulation Sponge |
2-151-10 |
10 |
13055134 |
1 |
lower sealing plate assembly |
2-151-11 |
11 |
13055124 |
1 |
dust shelter sealing sponge |
2-151-12 |
12 |
13055109 |
1 |
radiater upper support |
2-151-13 |
13 |
13072794 |
1 |
Hermal Insulation Sponge |
2-151-14 |
14 |
13051116 |
1 |
water-in pipe SY35C1Y3WU.1.3.3 |
2-151-15 |
15 |
A229900001345 |
3 |
Clamp, hose |
2-151-16 |
16 |
13065196 |
1 |
front sealing board |
2-151-17 |
17 |
13064728 |
1 |
dust-proof net upper sealing |
2-151-18 |
18 |
13055141 |
1 |
upper sealing board assem |
2-151-19 |
19 |
13055110 |
1 |
upper sealing sponge |
2-151-20 |
20 |
A820606030367 |
2 |
Hose |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-153-21 |
21 |
60115933 |
1 |
Tank GP, reserve |
2-153-22 |
22 |
13206659 |
1 |
water-in tube SY35C2Y4WU.1.3.3 |
2-153-23 |
23 |
A210855000010 |
4 |
Hoop |
2-153-24 |
24 |
13055114 |
1 |
front sealing sponge |
2-153-25 |
25 |
13072799 |
1 |
Heat Insulation Plate Components |
2-153-26 |
26 |
13055115 |
1 |
lower sealing sponge |
2-153-27 |
27 |
13063067 |
1 |
down sealing sponge |
2-153-28 |
28 |
60149607 |
1 |
Clamp, harness |
2-153-29 |
29 |
13368178 |
1 |
upper sealing sponge |
2-153-30 |
30 |
21004575 |
1 |
Hose ring hoop |
2-153-31 |
31 |
13315725 |
1 |
lower sealing sponge |
2-153-32 |
32 |
13315724 |
1 |
lower sealing sponge |
2-153-33 |
33 |
13321235 |
1 |
sealing sponge |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

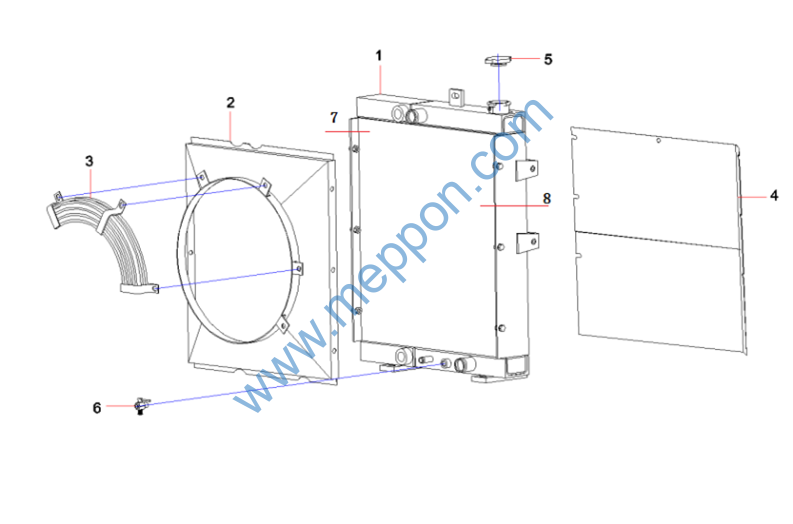

2-155-1 |
1 |
60243077 |
1 |
complex radiater |
2-155-2 |
2 |
60243078 |
1 |
wind lead cover |
2-155-3 |
3 |
60243079 |
1 |
guard net |
2-155-4 |
4 |
60243080 |
1 |
guard net |
2-155-5 |
5 |
60243081 |
1 |
radiater gap |
2-155-6 |
6 |
60243082 |
1 |
cooling-water switch |
2-155-7 |
7 |
60308395 |
1 |
hydraulic oil Radiator |
2-155-8 |
8 |
60308394 |
1 |
wanter Radiator |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

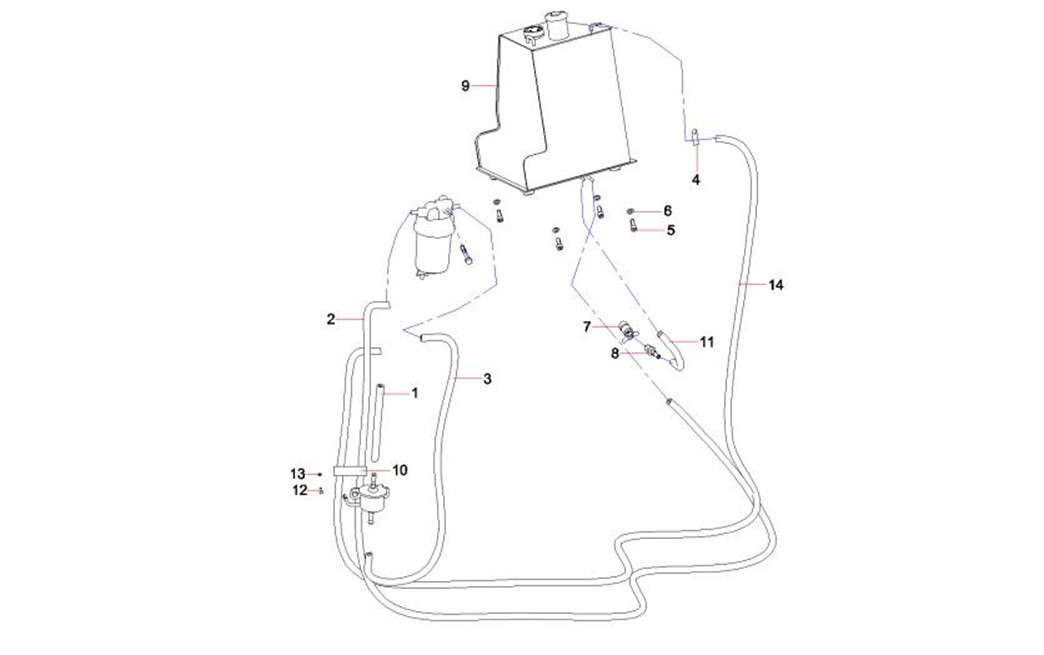

2-157-1 |
1 |
13057200 |
2 |
Oil-out pipe of pump |
2-157-2 |
2 |
13057189 |
2 |
Oil-out pipe of tank |
2-157-3 |
3 |
13057198 |
1 |
Oil-in-pipe of pump |
2-157-4 |
4 |
21053360 |
10 |
Hose ring hoop |
2-157-5 |
5 |
A210111000202 |
4 |
Bolt M12×30GB578310.9 |
2-157-6 |
6 |
24000639 |
4 |
Washer |
2-157-7 |
7 |
A229900000882 |
1 |
Valve |
2-157-8 |
8 |
13055186 |
1 |
Water_out_joint |
2-157-9 |
9 |
13058441 |
1 |
Fuel tank assembly |
2-157-10 |
10 |
60149607 |
1 |
Clamp, harness |
2-157-11 |
11 |
13494001 |
1 |
drainage tuble SY35C1Y3WU.1.3.4 |
2-157-12 |
12 |
A210204000129 |
1 |
Screw M6×12GB70.1 |
2-157-13 |
13 |
24000632 |
1 |
Washer |
2-157-14 |
14 |
13519685 |
1 |
OIL-OUT PIPE OF TANK |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

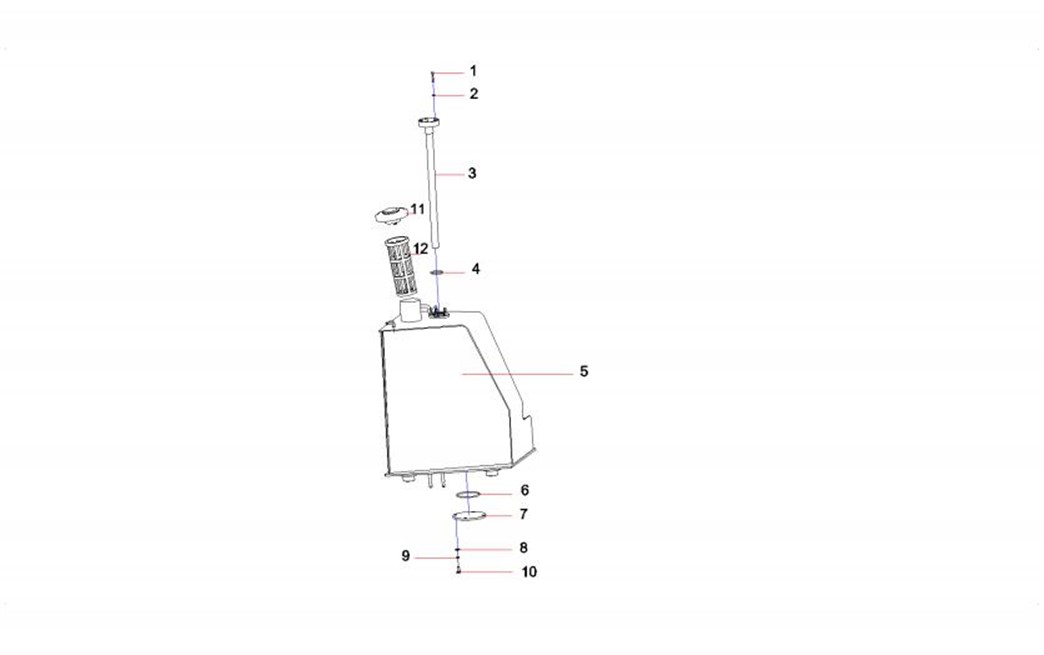

2-159-1 |
1 |
A210204000119 |
5 |
Screw |
2-159-2 |
2 |
A210405000005 |
5 |
Washer |
2-159-3 |
3 |
60223267 |
1 |
Fuel Sensor |
2-159-4 |
4 |
B230101000404 |
1 |
O-ring |
2-159-5 |
5 |
13058087 |
1 |
Fuel tank |
2-159-6 |
6 |
A210609000273 |
1 |
O-ring 75×5.3GB3452.1 |
2-159-7 |
7 |
12983058 |
1 |
cleaning flange |
2-159-8 |
8 |
A210405000007 |
4 |
Washer 8GB97.1 |
2-159-9 |
9 |
A210401000017 |
4 |
Washer 8GB93 |
2-159-10 |
10 |
A210111000088 |
4 |
Bolt M8×16GB5783 |
2-159-11 |
11 |
60304920 |
1 |
cover of fuel tank |
2-159-12 |
12 |
60304921 |
1 |
filter net |
