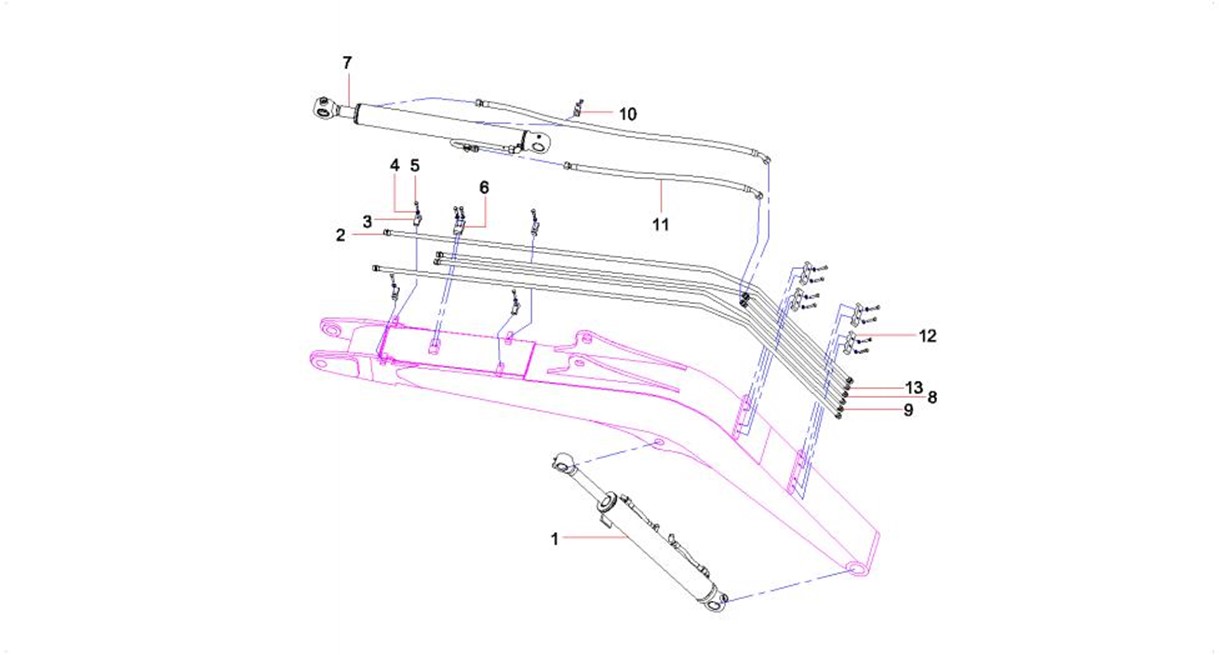

IC

INDEX

PART NUMBER

QTY

PART NAME

4-3-1

1

10574180

2

Shim

4-3-2

2

13070069

1

Work device hydraulic Tube

4-3-3

3

A230101000323

2

Ring, sealing

4-3-4

4

13064878

2

Shaft Sleeve

4-3-5

5

A210110000323

4

Bolt M12×90GB5782 10.9

4-3-6

6

13071065

1

Boom

4-3-7

7

13063812

1

Oil cylinder protecting board

4-3-8

8

A210307000031

22

Nut M12GB6170 10

4-3-9

9

13072971

1

Shaft

4-3-10

10

24000637

2

Washer

4-3-11

11

13063797

1

Shaft

4-3-12

12

13063776

1

Shaft

4-3-13

13

A210111000012

2

Bolt M10×20GB5783 10.9

4-3-14

14

13002021

1

Lamp Bracket

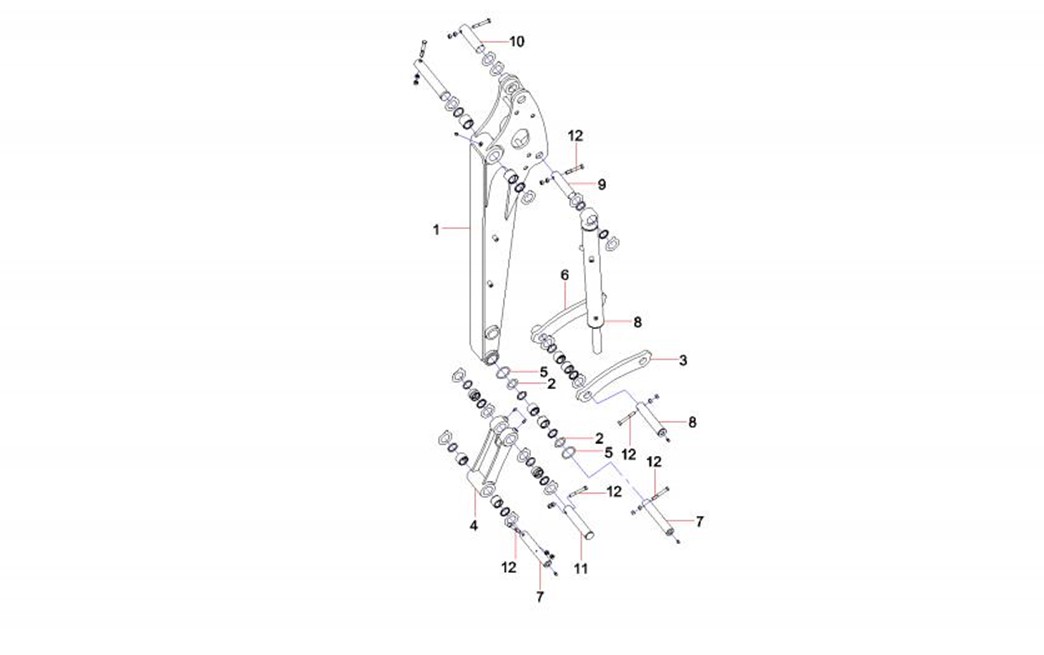

IC

INDEX

PART NUMBER

QTY

PART NAME

4-5-1

1

13070881

1

Arm

4-5-2

2

13085812

2

Spacer

4-5-3

3

13075351

1

Rocker

4-5-4

4

13075349

1

Connecting Rod

4-5-5

5

A210608000086

2

O-ring

4-5-6

6

13075352

1

Rocker

4-5-7

7

13072975

2

Shaft

4-5-8

8

13073232

1

Shaft

4-5-9

9

13072973

1

Shaft

4-5-10

10

13063799

1

Shaft

4-5-11

11

13072974

1

Shaft

4-5-12

12

A210111000127

5

Bolt M12×80GB5783

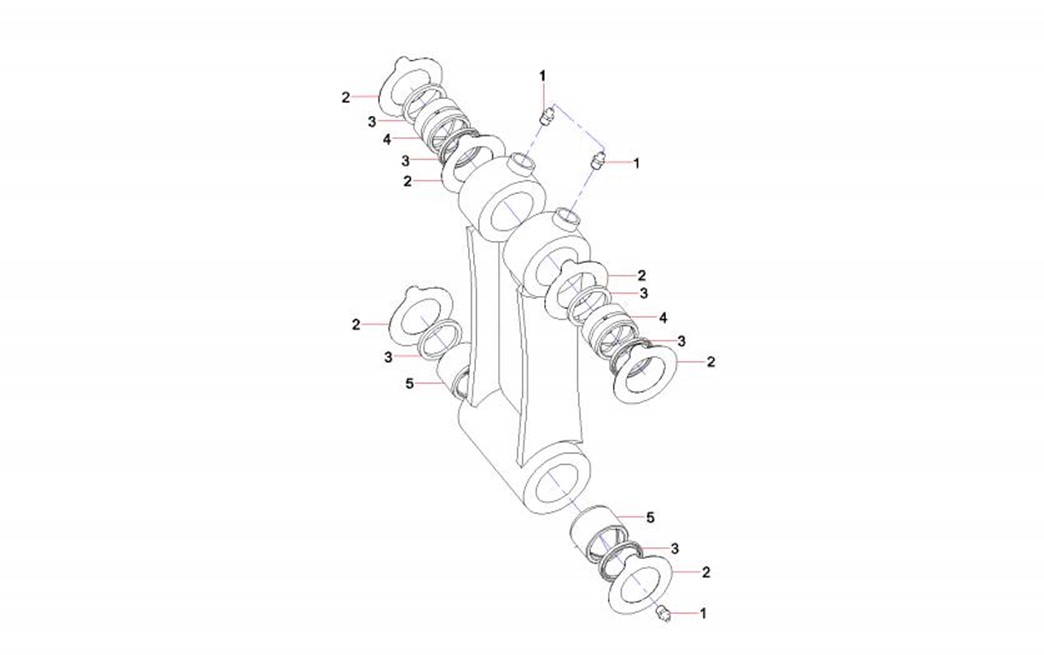

IC

INDEX

PART NUMBER

QTY

PART NAME

4-7-1

1

A210804000002

9

Cup, oil M10×1JB7940.1

4-7-2

2

13063804

24

Spacer

4-7-3

3

60176725

10

Dust Ring

4-7-4

4

13073008

2

Shaft Sleeve

4-7-5

5

13064724

6

Shaft Sleeve

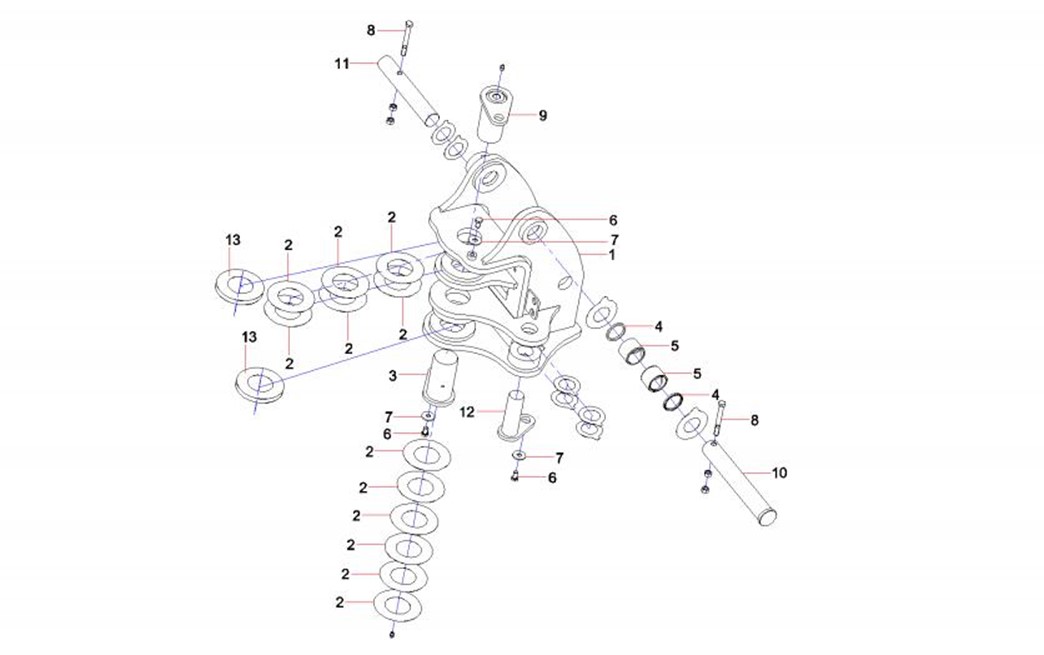

IC

INDEX

PART NUMBER

QTY

PART NAME

4-9-1

1

13072929

1

Support

4-9-2

2

A820102010793

12

Shim

4-9-3

3

13077579

1

Brace piece axial

4-9-4

4

B230101001119

2

DLI-ring, dustproof

4-9-5

5

10574181

2

Sleeve, shaft

4-9-6

6

A210111000199

3

Bolt M12×20GB5783 10.9

4-9-7

7

60060548

3

Washer 12GB96.1

4-9-8

8

A210110000384

2

Bolt M12×110GB5782 10.9

4-9-9

9

13077577

1

Brace piece axial pin

4-9-10

10

13063805

1

Shaft

4-9-11

11

13063806

1

Shaft

4-9-12

12

13072985

1

Brace piece axial pin

4-9-13

13

13529173

2

Spacer SY35C1Y3WU.3-24

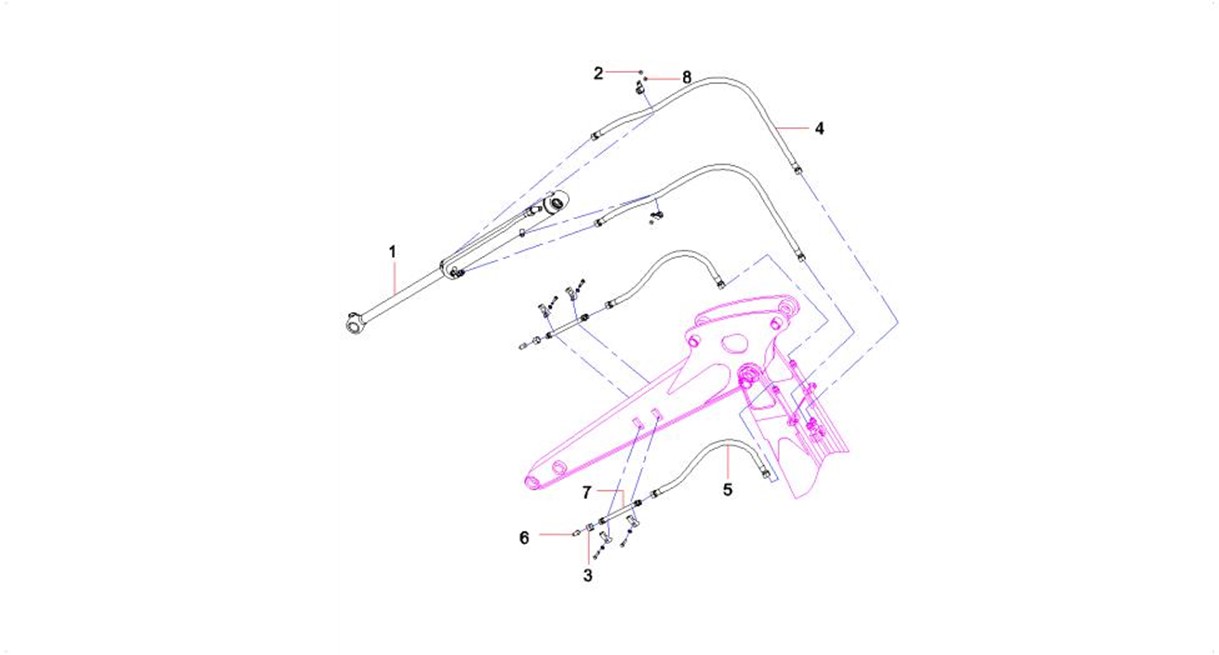

IC

INDEX

PART NUMBER

QTY

PART NAME

4-11-1

1

13019985

1

Oil

4-11-2

2

13054004

2

steel tube assembly

4-11-3

3

13060351

8

Pipe nip

4-11-4

4

A210405000007

18

Washer 8GB97.1

4-11-5

5

A210111000093

18

Bolt M8×40GB5783

4-11-6

6

13060309

1

Pipe nip

4-11-7

7

13048968

1

Arm cylinder

4-11-8

8

13053966

2

steel tube

4-11-9

9

13053604

1

steel tube

4-11-10

10

13335611

2

Clamp SY35C1Y3WU.3.1-5

4-11-11

11

B230103005316

2

Hose

4-11-12

12

13060281

4

Pipe nip

4-11-13

13

13053950

1

steel tube
