SANY SY60C SY60C9 SY60C9Y4R EXCAVATOR parts catalog 09

Meppon Co., Ltd Posted on by







IC

INDEX

PART NUMBER

QTY

PART NAME

2-71-21

21

60270115

1

rubber hose

2-71-22

22

B230103004802

1

Rubber hose

2-71-23

23

B230103001444

1

Hose

2-71-24

24

B230103004933

1

Rubber hose

2-71-25

25

B230103004378

1

Hose Assembly

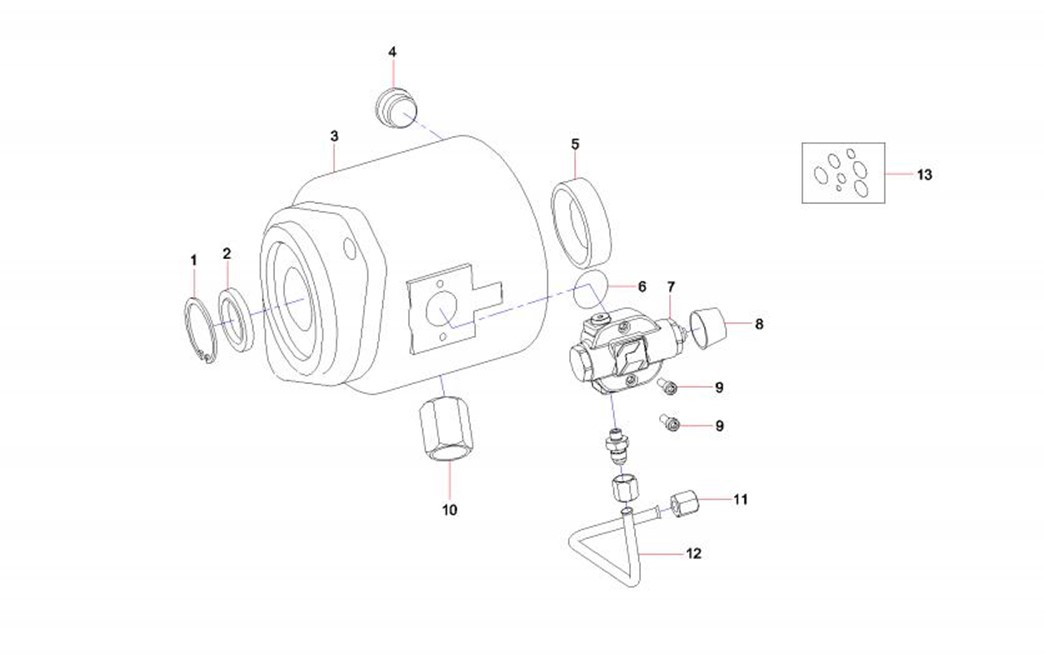

IC

INDEX

PART NUMBER

QTY

PART NAME

2-73-1

1

60038285

1

Ring, retaining

2-73-2

2

60038852

1

Ring, sealing

2-73-3

3

60038052

1

Housing, pump

2-73-4

4

60038478

1

Plug

2-73-5

5

60038127

1

Bearing, ball

2-73-6

6

60038818

1

O-ring

2-73-7

7

60038103

1

Valve, control

2-73-8

8

60038878

1

Valve, control

2-73-9

9

60038561

2

Bolt

2-73-10

10

60038425

1

Connector

2-73-11

11

60038372

2

Nut

2-73-12

12

60037977

1

Pipe

2-73-13

13

60042321

1

Repair kit,pump,main

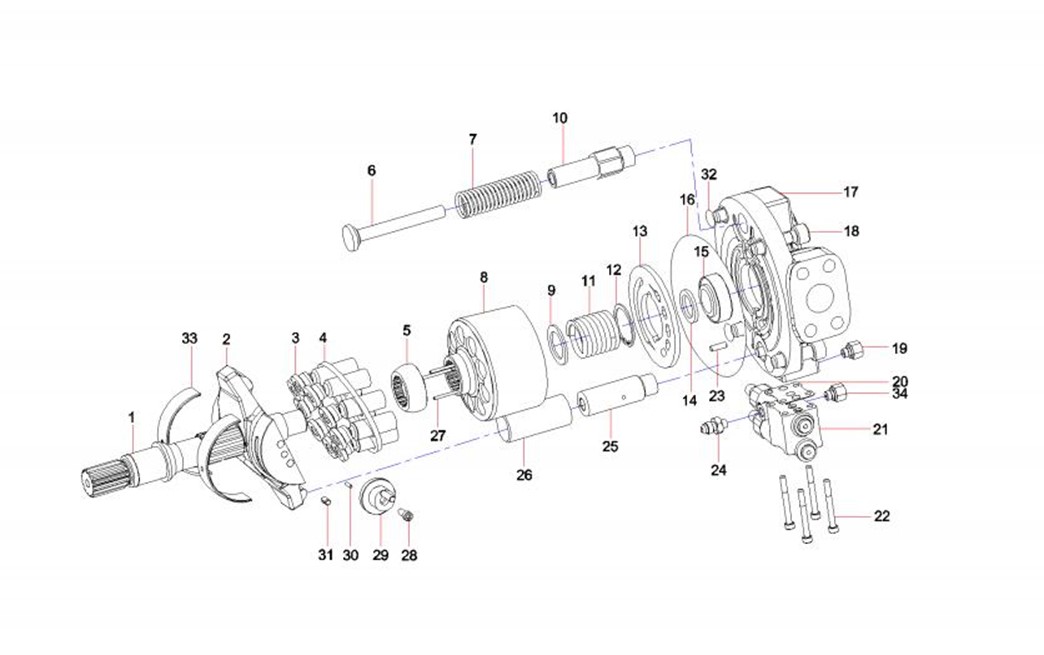

IC

INDEX

PART NUMBER

QTY

PART NAME

2-75-1

1

60038591

1

Shaft, drive

2-75-2

2

60038627

1

Plate, swash

2-75-3

3

60037999

1

Upper frame AS

2-75-4

4

60038366

1

Plate, fixing

2-75-5

5

60038587

1

Sleeve, spherical

2-75-6

6

60038352

1

Piston, reverse

2-75-7

7

60038214

1

Spring

2-75-8

8

60038357

1

Block, cylinder

2-75-9

9

60038657

1

Disk, supporting

2-75-10

10

60038403

1

Bushing, guide, piston

2-75-11

11

60038218

1

Spring

2-75-12

12

60038300

1

Ring, retaining

2-75-13

13

60038005

1

Board, control

2-75-14

14

60038331

1

Shim, adjusting

2-75-15

15

60038126

1

Bearing, ball

2-75-16

16

60038745

1

O-ring

2-75-17

17

60038439

1

Housing

2-75-18

18

60038554

4

Screw

2-75-19

19

60038477

2

Plug

2-75-20

20

60038534

1

Gasket, seal

















IC

INDEX

PART NUMBER

QTY

PART NAME

2-77-21

21

60038102

1

Valve, control

2-77-22

22

60038562

4

Bolt

2-77-23

23

60038640

1

Pin, cylinder

2-77-24

24

60038371

4

Connector

2-77-25

25

60038446

1

Piston, control

2-77-26

26

60038621

1

Block, cylinder

2-77-27

27

60038631

3

Pin, pressure

2-77-28

28

60038560

1

Bolt

2-77-29

29

60037944

1

Driven unit

2-77-30

30

60038182

1

Sleeve

2-77-31

31

60038183

1

Sleeve

2-77-32

32

60038741

4

O-ring

2-77-33

33

60038141

2

Bushing, bearing

2-77-34

34

60038423

1

Connector

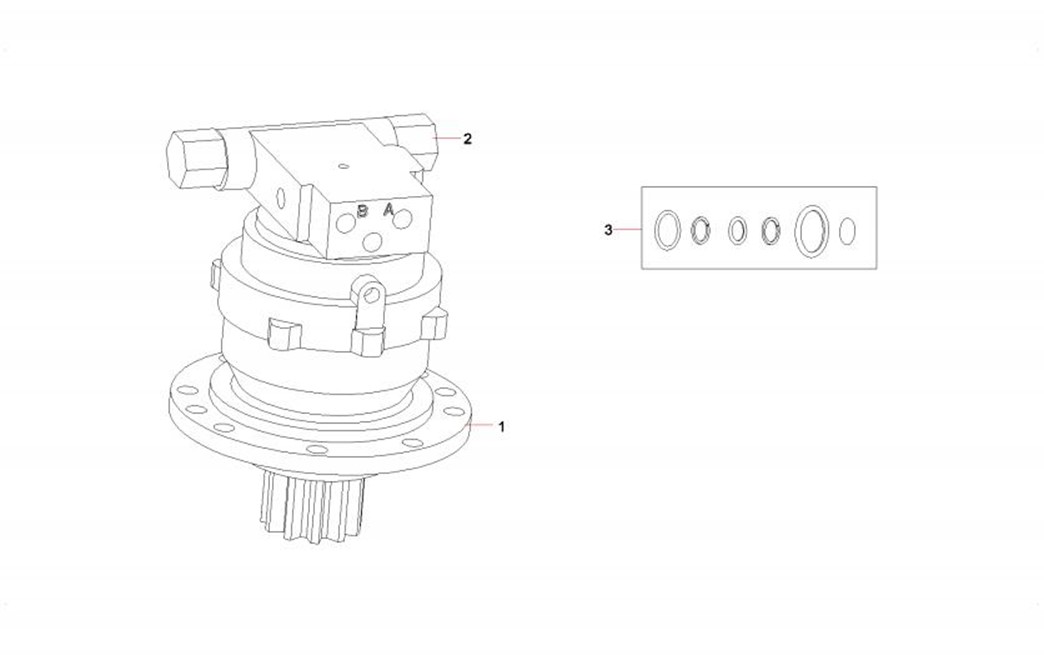

IC

INDEX

PART NUMBER

QTY

PART NAME

2-79-1

1

60164190

1

HYDRAULTC MOTOR GROUP

2-79-2

2

60255065

1

REDUCTION GEAR ASSEMBLY

2-79-3

3

60266025

1

Reducer assembly Repair kit
