IC

INDEX

PART NUMBER

QTY

PART NAME

2-141-1

1

60077849

1

Cap, filler

2-141-2

2

60348102

1

Radiator

2-141-3

3

60286419

1

Radiator

2-141-4

4

60331661

1

Discharging valve

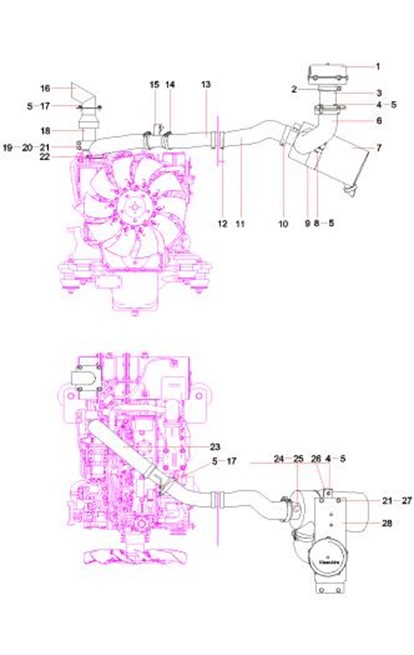

IC

INDEX

PART NUMBER

QTY

PART NAME

2-143-1

1

60269356

1

pre-separation

2-143-2

2

21004569

1

Clamp

2-143-3

3

10386841

1

Bracket, precleaner

2-143-4

4

A210111000343

6

Bolt

2-143-5

5

24000633

13

Washer

2-143-6

6

13073423

1

air intake rubber

2-143-7

7

60218893

1

Air cleaner

2-143-8

8

A210111000092

1

Bolt

2-143-9

9

10083933

1

Hoop, air cleaner

2-143-10

10

A229900003759

3

Clamp

2-143-11

11

13073422

1

air intake rubber

2-143-12

12

A229900002031

2

Clamp

2-143-13

13

13939695

1

air intake tube SY60C9Y4R.1.3.4-1

2-143-14

14

A229900003104

2

Clamp

2-143-15

15

13939661

1

ir intake steel tube

2-143-16

16

13833794

1

exhaust pipecover

2-143-17

17

A210111000342

6

Bolt M8x16

2-143-18

18

13943338

1

exhaust pipe SY60C9Y4R.1.3.4-3

2-143-19

19

13939772

1

Anchor Ear SY60C9Y4R.1.3.4.2

2-143-20

20

A210111000024

2

Bolt

IC

INDEX

PART NUMBER

QTY

PART NAME

2-145-21

21

24000637

6

Washer

2-145-22

22

B229900001059

1

T-type Clamp

2-145-23

23

13939696

1

air intake tube SY60C9Y4R.1.3.4-

2-145-24

24

60148482

1

Sensor, air cleaner

2-145-25

25

B229900003909

1

Connector, sensor,air filter

2-145-26

26

13073275

1

air filtering bracke

2-145-27

27

A210111000012

4

Bolt

2-145-28

28

13196707

1

mounting plate for air

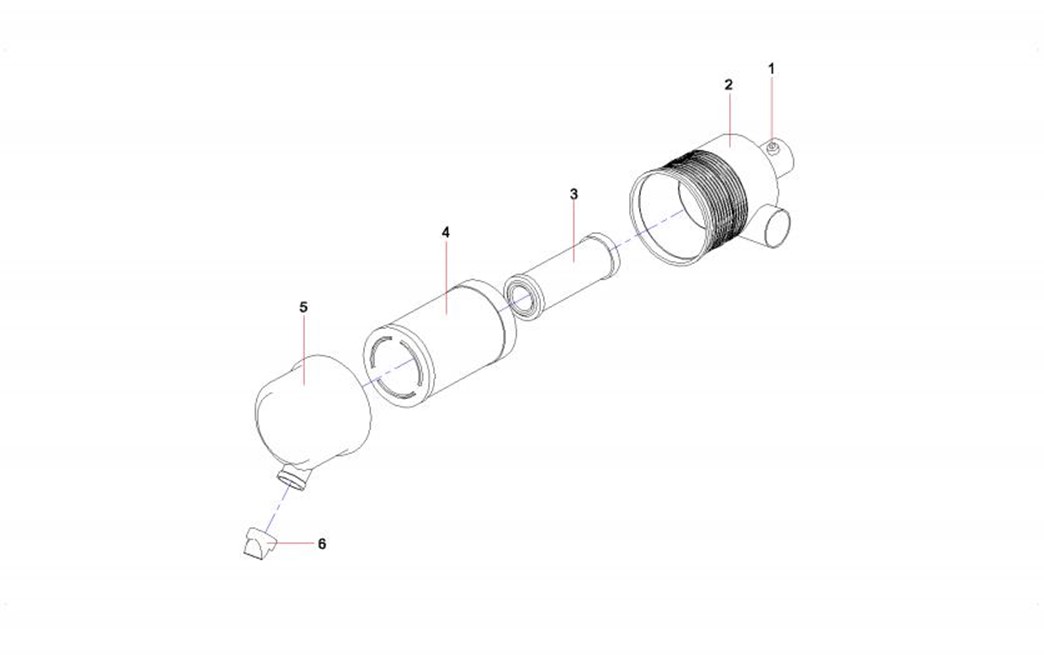

IC

INDEX

PART NUMBER

QTY

PART NAME

2-147-1

1

60180748

1

Plug

2-147-2

2

60229053

1

CASE ASSEMBLY

2-147-3

3

B222100000591

1

Filter core, air filter,safety

2-147-4

4

B222100000593

1

Filter core, air filter,main

2-147-5

5

60078237

1

Cover, end,GP

2-147-6

6

60078235

1

Valve,dust,exhaust

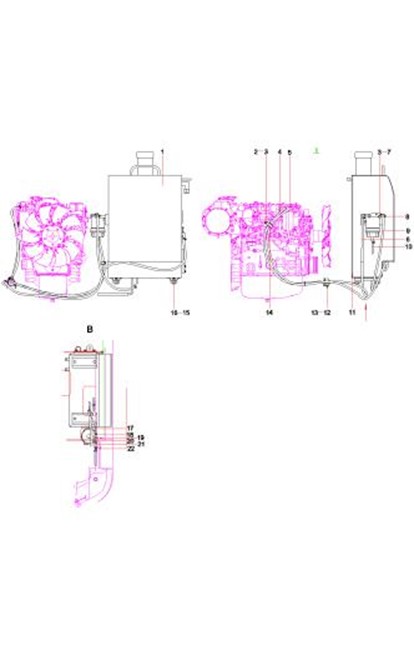

IC

INDEX

PART NUMBER

QTY

PART NAME

2-149-1

1

13940013

1

Fuel Tank Assy

2-149-2

2

A210111000342

1

Bolt M8x16

2-149-3

3

24000633

3

Washer

2-149-4

4

13614393

1

prefilter sucker SY55C9K4R.1.3.5-

2-149-5

5

13645743

1

fuel input tube SY95C9K4S.1.3.5-5

2-149-6

6

13614396

2

fuel pipe SY55C9K4R.1.3.5-2

2-149-7

7

A880801010074

2

Screw

2-149-8

8

60202895

12

Clamp, hose

2-149-9

9

13614412

1

fuel pipe SY55C9K4R.1.3.5-3

2-149-10

10

13943444

1

drainage tube SY60C9Y4R.1.3.5-1

2-149-11

11

11144769

1

Seal

2-149-12

12

A210204000131

2

Screw M6×20GB70.1

2-149-13

13

24000632

2

Washer

2-149-14

14

60086357

1

Harness clamp

2-149-15

15

A210111000202

4

Bolt

2-149-16

16

60060548

4

Washer 12GB96.1

2-149-17

17

13515834

2

drainage tube SY55C9I3R.1.3A.5-1

2-149-18

18

11251714

1

Adapter

2-149-19

19

A210307000028

1

Nut

2-149-20

20

24000642

2

Washer
