SANY SY60C SY60C9 SY60C9Y4R EXCAVATOR parts catalog 21
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-191-1 |
1 |
60023703 |
2 |
Speaker |
2-191-2 |
2 |
60023704 |
1 |
Antenna |
2-191-3 |
3 |
A210210000056 |
10 |
Screw M3×8GB818 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

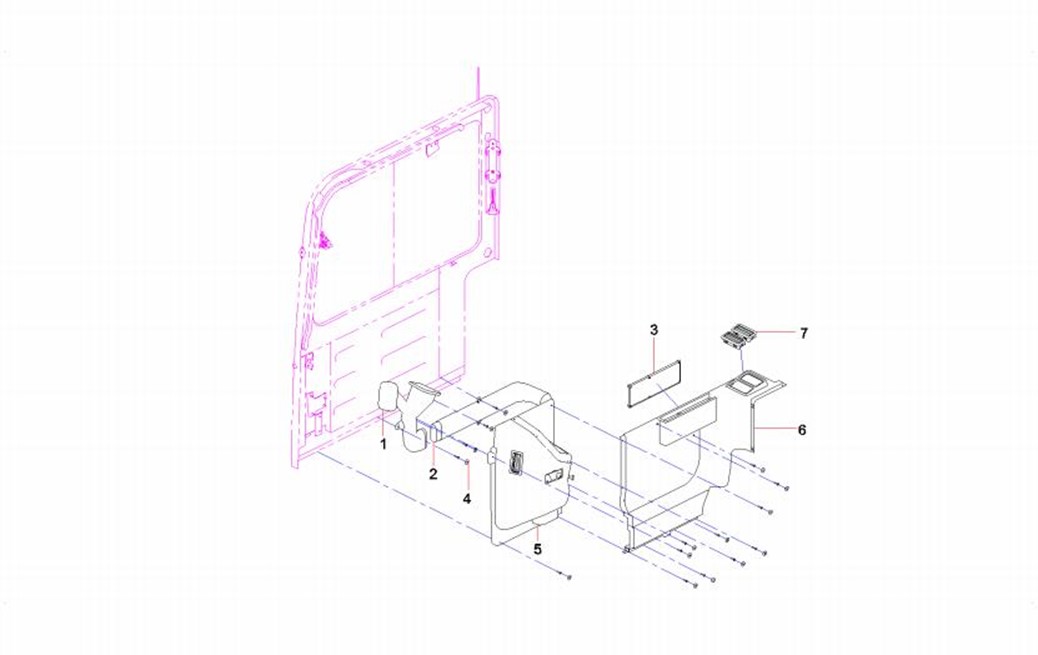

2-193-1 |
1 |
60080861 |
1 |
Pipe, air duct, front |
2-193-2 |
2 |
60080863 |
1 |
Pipe, air duct, middle |
2-193-3 |
3 |
60052630 |
1 |
Cover, side wall, right |
2-193-4 |
4 |
60052641 |
35 |
Cap, screw |
2-193-5 |
5 |
60052643 |
1 |
Seat, mounting, monitor |
2-193-6 |
6 |
60052628 |
1 |
Side wall, right |
2-193-7 |
7 |
60052635 |
5 |
Outlet, air |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

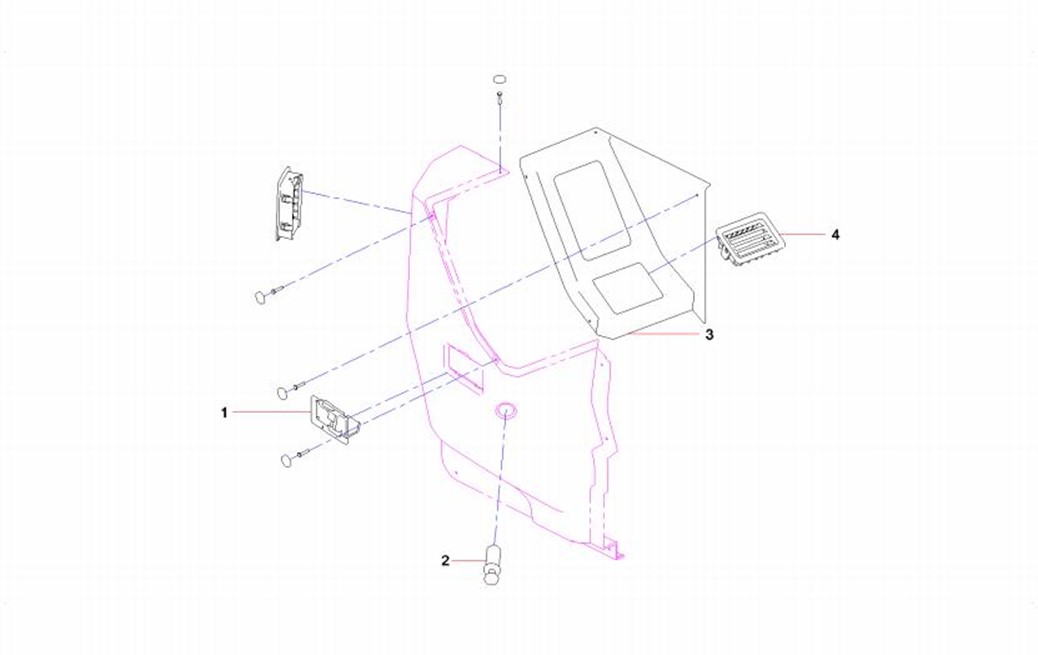

2-195-1 |
1 |
60052626 |
1 |
Tray, ash |
2-195-2 |
2 |
60264881 |
1 |
cigarette lighter |
2-195-3 |
3 |
60052664 |
1 |
Cover, mounting, monitor |
2-195-4 |
4 |
60052634 |
1 |
Air outlet |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

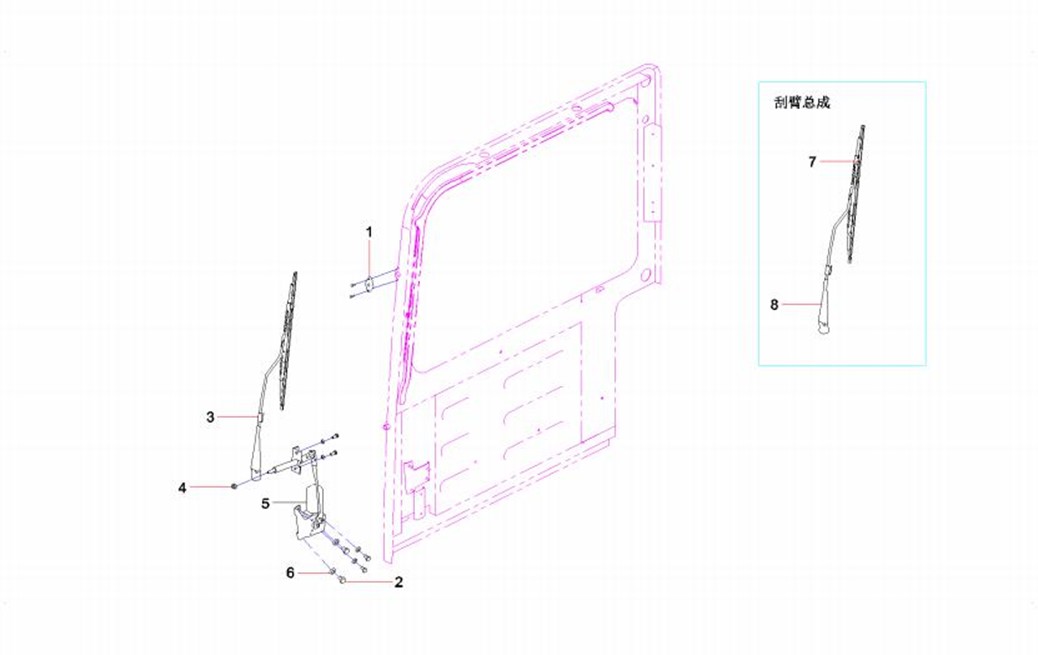

2-197-1 |
1 |
60052625 |
1 |
Nozzle |
2-197-2 |
2 |
A210111000125 |
6 |
Bolt |
2-197-3 |
3 |
60313164 |
1 |
wiper arm assembly |
2-197-4 |
4 |
60078169 |
1 |
Nut M8GB6177.1 |
2-197-5 |
5 |
60348059 |
1 |
Wiper motor |
2-197-6 |
6 |
A210405000011 |
6 |
Washer |
2-197-7 |
7 |
60313166 |
1 |
wiper blade |
2-197-8 |
8 |
60313165 |
1 |
wiper arm |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

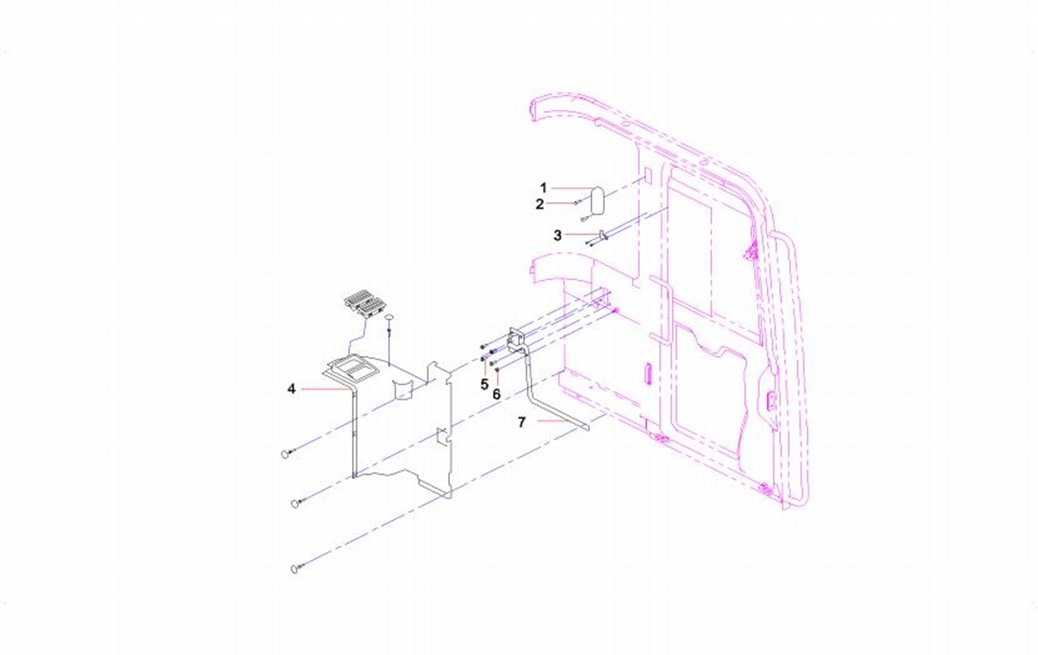

2-199-1 |
1 |
60325949 |
1 |
Trimming lamp |
2-199-2 |
2 |
A313180502003 |
4 |
Screw |
2-199-3 |
3 |
60031308 |
1 |
Hook, Coat-hat |
2-199-4 |
4 |
60052631 |
1 |
Side wall, left |
2-199-5 |
5 |
A210138000000 |
4 |
Bolt |
2-199-6 |
6 |
A210307000012 |
1 |
Nut |
2-199-7 |
7 |
60080860 |
1 |
Lock AS, cab door |
