SANY SY155C SY155C9 SY155C9I3K EXCAVATOR parts catalog 02
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
1-3-1 |
1 |
13595803 |
1 |
Slewing device SY155C9I3K.1 |
1-3-2 |
2 |
11609040 |
1 |
Travel device |
1-3-3 |
3 |
13586312 |
1 |
Working Device SY155C9I3K.3 |
1-3-4 |
4 |
13586622 |
1 |
Electrical system SY155C9I3K.5 |
1-3-5 |
5 |
13036455 |
1 |
Coating SY155C9I2K-TZ |
1-3-6 |
6 |
13569373 |
1 |
attached accessories SY135C9I3K |
Chapter 2

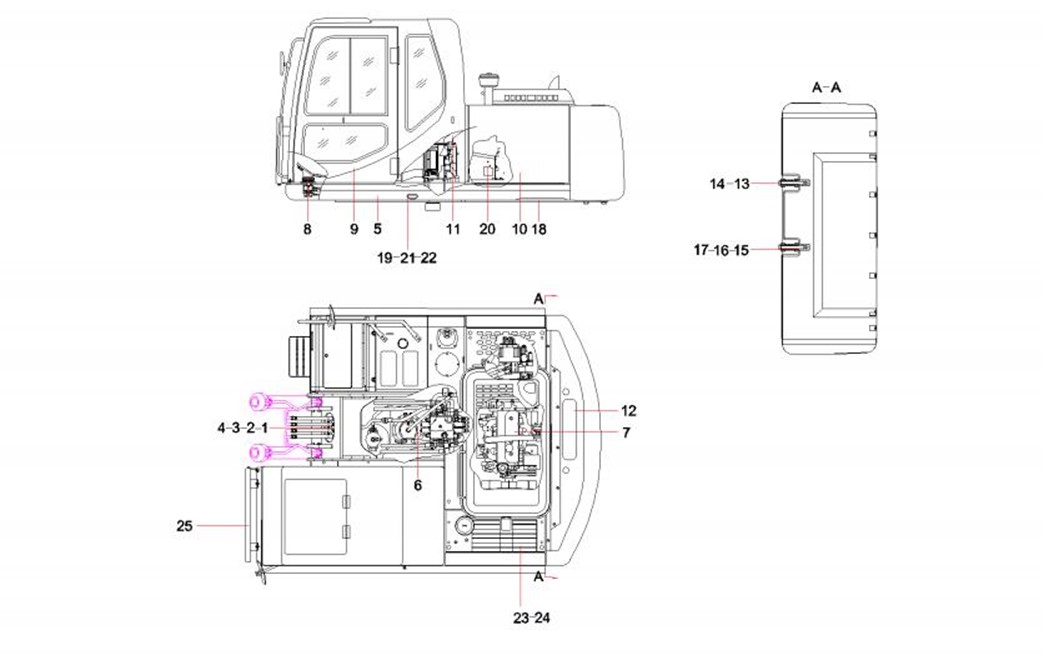

Slewing device SY155C9I3K.1
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-3-1 |
1 |
A820606030364 |
1 |
Gasket, seal |
2-3-2 |
2 |
A820101117871 |
1 |
Cover |
2-3-3 |
3 |
A210111000202 |
2 |
Bolt |
2-3-4 |
4 |
A210405000001 |
2 |
Washer |
2-3-5 |
5 |
13588235 |
1 |
revolving frame SY155C9I3K.1.1 |
2-3-6 |
6 |
13584654 |
1 |
hydraulic main pipeline |
2-3-7 |
7 |
13584331 |
1 |
Powertrain system |
2-3-8 |
8 |
13584622 |
1 |
pilot rube hose SY155C9I3K.1.4 |
2-3-9 |
9 |
13640579 |
1 |
cab SY155C9I3K.1.5 |
2-3-10 |
10 |
13592841 |
1 |
General assembly of covering parts |
2-3-11 |
11 |
13047416 |
1 |
air conditioning |
2-3-12 |
12 |
13593432 |
1 |
Counterweight assembly |
2-3-13 |
13 |
A210110000448 |
4 |
Bolt M27×240GB5782-00 10.9 |
2-3-14 |
14 |
A210444000004 |
4 |
Washer 27GB1230 |
2-3-15 |
15 |
A820101327187 |
2 |
Shim |
2-3-16 |
16 |
11664456 |
4 |
Shim, adjusting |
2-3-17 |
17 |
11664457 |
4 |
Shim, adjusting |
2-3-18 |
18 |
12731217 |
1 |
general assembly of bottom sealing |
2-3-19 |
19 |
11225691 |
2 |
Sheath |
2-3-20 |
20 |
12738050 |
4 |
Protective sleeveSY135C9M2K.1- |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-5-21 |
21 |
12738042 |
3 |
Protective sleeveSY135C9M2K.1- |
2-5-22 |
22 |
11133774 |
2 |
Sheath |
2-5-23 |
23 |
A820101210711 |
8 |
Gasket |
2-5-24 |
24 |
A820101210712 |
8 |
Gasket |
2-5-25 |
25 |
13173732 |
1 |
Guard mesh SY155C9I2K.1.2 |

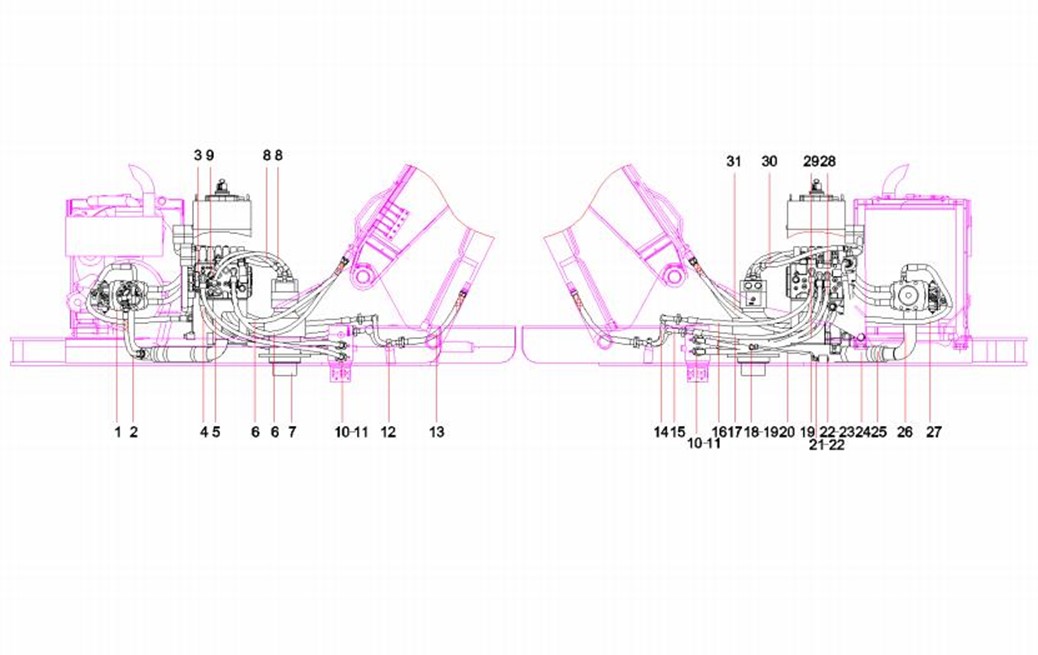

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-7-1 |
1 |
60291704 |
1 |
Plunger Pump |
2-7-2 |
2 |
B230103002256 |
1 |
Rubber Hose |
2-7-3 |
3 |
60251677 |
1 |
Multi-way valve |
2-7-4 |
4 |
60170667 |
1 |
Rubber Hose |
2-7-5 |
5 |
B230103006438 |
1 |
Hose |
2-7-6 |
6 |
B230103003627 |
2 |
Hose Assembly |
2-7-7 |
7 |
B229900002718 |
1 |
Reducer GP |
2-7-8 |
8 |
12753676 |
2 |
Rubber Hose4SP16-DKOL- |
2-7-9 |
9 |
B210780001310 |
3 |
Fitting, Elbow |
2-7-10 |
10 |
A210204000354 |
48 |
Screw |
2-7-11 |
11 |
B210780000696 |
20 |
Split flange |
2-7-12 |
12 |
A820101344841 |
2 |
Clamp, pipe |
2-7-13 |
13 |
B230103005717 |
4 |
Hose |
2-7-14 |
14 |
13283613 |
1 |
big cavity pipe of boom |
2-7-15 |
15 |
13283963 |
1 |
small cavity pipe of boom |
2-7-16 |
16 |
60266851 |
1 |
rubber hose |
2-7-17 |
17 |
60266852 |
1 |
rubber hose |
2-7-18 |
18 |
A820205002283 |
1 |
Connector |
2-7-19 |
19 |
B210780000024 |
2 |
Fitting, Elbow |
2-7-20 |
20 |
60281981 |
1 |
Rubber Hose |
