SANY SY155C SY155C9 SY155C9I3K EXCAVATOR parts catalog 20
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-179-8 |
8 |
B230103002263 |
1 |
Rubber hose |
2-179-10 |
10 |
A831211095000 |
3 |
Hose assembly |
2-179-17 |
17 |
21020054 |
2 |
Rubber hose |
2-179-18 |
18 |
10585261 |
1 |
Joystick AS, right |
2-179-19 |
19 |
10585259 |
1 |
Joystick AS, left |
2-179-20 |
20 |
60214001 |
2 |
Pilot-control Valve |
2-179-21 |
21 |
B230103000988 |
4 |
Hose |
2-179-22 |
22 |
A239900000065 |
6 |
Strap, nylon |
2-179-23 |
23 |
11243372 |
2 |
Plate, pressure |
2-179-24 |
24 |
A210111000348 |
10 |
Bolt |
2-179-25 |
25 |
24000511 |
10 |
Washer |
2-179-26 |
26 |
A820199000360 |
2 |
Block, PT |
2-179-27 |
27 |
21005186 |
4 |
Bolt |
2-179-28 |
28 |
11243374 |
2 |
Plate, pressure |
2-179-29 |
29 |
11243400 |
1 |
Plate, pressure |
2-179-30 |
30 |
B230103002291 |
1 |
Hose |
2-179-33 |
33 |
A230101000247 |
8 |
O-ring 10.9×2.3(JISB2401) |
2-179-38 |
38 |
B210780000418 |
2 |
Connector |
2-179-44 |
44 |
A820205000894 |
2 |
Connector |

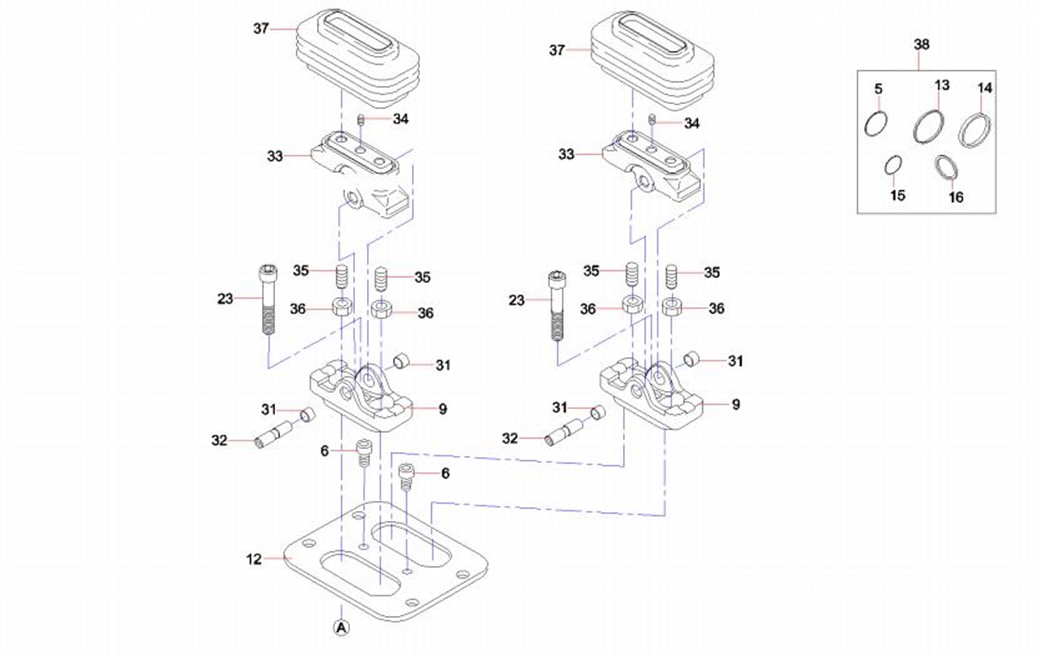

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-181-6 |
6 |
60237073 |
2 |
screw |
2-181-9 |
9 |
60237074 |
2 |
cover |
2-181-12 |
12 |
60237075 |
1 |
plate |
2-181-23 |
23 |
60237078 |
2 |
screw |
2-181-31 |
31 |
60008690 |
4 |
Sleeve,shaft |
2-181-32 |
32 |
60008585 |
2 |
Camshaft |
2-181-33 |
33 |
60008591 |
2 |
Plate, cam |
2-181-34 |
34 |
60237082 |
2 |
set screw |
2-181-35 |
35 |
60008592 |
4 |
Screw, adjusting |
2-181-36 |
36 |
60038480 |
4 |
Nut |
2-181-37 |
37 |
60237083 |
2 |
protective sleeve |
2-181-38 |
38 |
60331164 |
1 |
Maintenance kit |

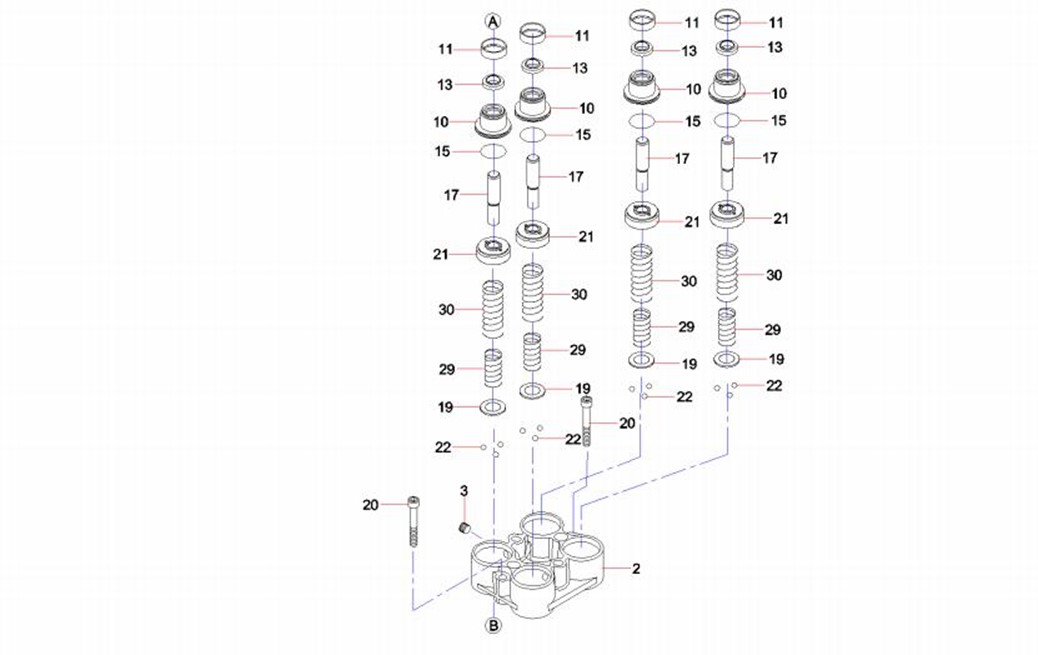

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-183-2 |
2 |
60237072 |
1 |
casing |
2-183-3 |
3 |
60008728 |
1 |
Setscrew |
2-183-10 |
10 |
60163768 |
4 |
PLUG |
2-183-11 |
11 |
60008754 |
4 |
Cover |
2-183-13 |
13 |
60163771 |
4 |
Ring, dust |
2-183-15 |
15 |
60038720 |
4 |
O-ring |
2-183-17 |
17 |
60273527 |
4 |
rod |
2-183-19 |
19 |
60008756 |
4 |
Seat, spring |
2-183-20 |
20 |
60038563 |
2 |
Bolt |
2-183-21 |
21 |
60008803 |
4 |
Piston |
2-183-22 |
22 |
60237077 |
12 |
roller |
2-183-29 |
29 |
60008766 |
4 |
Spring |
2-183-30 |
30 |
60008767 |
4 |
Spring |

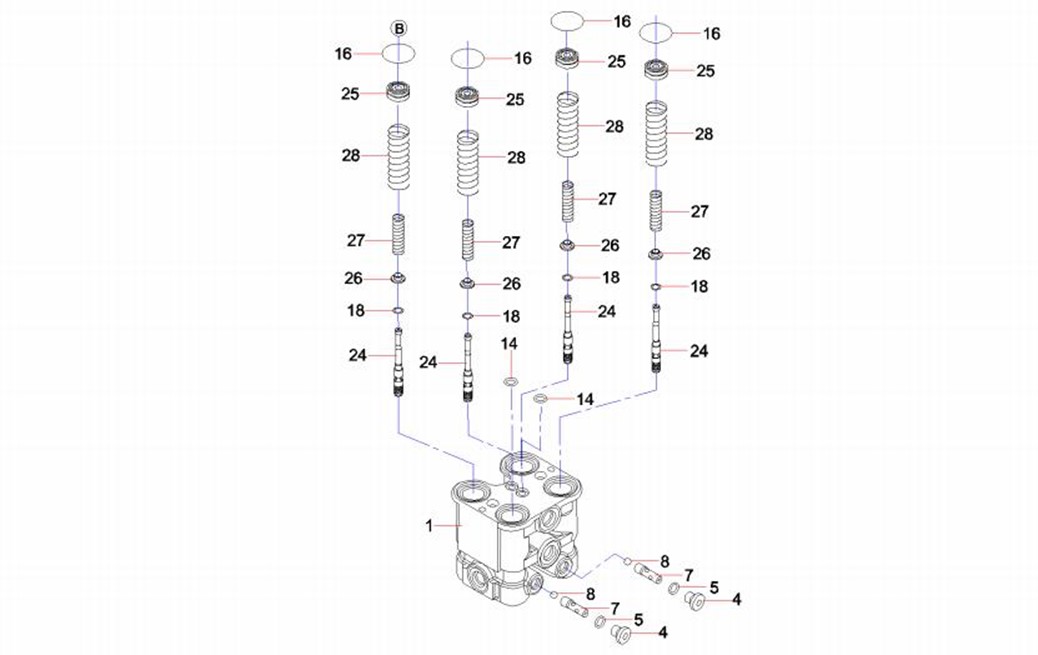

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-185-1 |
1 |
60273523 |
1 |
casing |
2-185-4 |
4 |
60273524 |
2 |
plug |
2-185-5 |
5 |
60221657 |
2 |
O-ring |
2-185-7 |
7 |
60273525 |
2 |
seat |
2-185-8 |
8 |
60273526 |
2 |
steel ball |
2-185-14 |
14 |
60038727 |
2 |
O-ring |
2-185-16 |
16 |
60038820 |
4 |
O-ring |
2-185-18 |
18 |
60008597 |
4 |
Washer |
2-185-24 |
24 |
60273528 |
4 |
spool |
2-185-25 |
25 |
60237080 |
4 |
spring seat |
2-185-26 |
26 |
60008589 |
4 |
Washer |
2-185-27 |
27 |
60008594 |
4 |
Spring |
2-185-28 |
28 |
60038221 |
4 |
Spring |

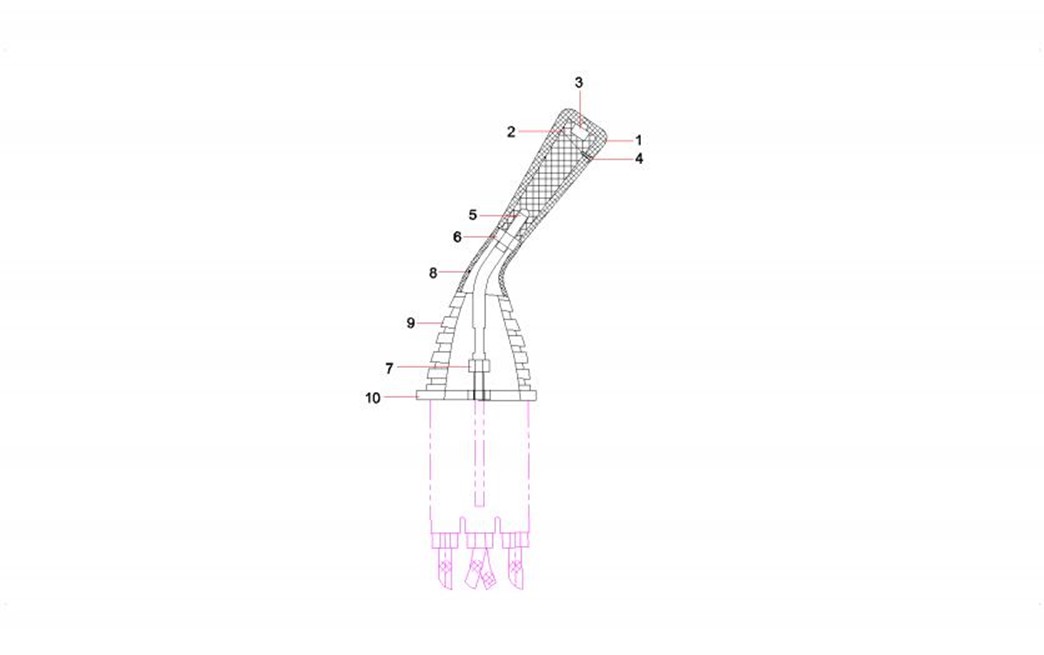

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-187-1 |
1 |
B229900001614 |
1 |
Joystick, right |
2-187-2 |
2 |
60116344 |
1 |
Insertion piece |
2-187-3 |
3 |
11742013 |
1 |
Harness, horn switch |
2-187-4 |
4 |
A210264000022 |
1 |
Screw, self-tapping |
2-187-5 |
5 |
11050165 |
1 |
Handle, grip |
2-187-6 |
6 |
A210308000006 |
1 |
Nut |
2-187-7 |
7 |
A210307000025 |
1 |
Nut |
2-187-8 |
8 |
A229900006446 |
1 |
Hood |
2-187-9 |
9 |
A229900001028 |
1 |
Hood |
2-187-10 |
10 |
A229900001027 |
1 |
Plate |
