SANY SY155C SY155C9 SY155C9I3K EXCAVATOR parts catalog 25
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-229-6 |
6 |
A210401000017 |
19 |
Washer |
2-229-62 |
62 |
A210401000016 |
20 |
Washer |
2-229-65 |
65 |
A222200000153 |
2 |
Lock AS, roof window |
2-229-66 |
66 |
60001290 |
1 |
Handhold, plastic |
2-229-67 |
67 |
A210111000089 |
8 |
Bolt |
2-229-68 |
68 |
10128857 |
2 |
Strut, roof window |
2-229-69 |
69 |
A210211000007 |
6 |
Screw |
2-229-70 |
70 |
A210404000005 |
20 |
Washer |
2-229-71 |
71 |
11141306 |
1 |
Strip, sealing, roof window |
2-229-72 |
72 |
11308294 |
2 |
Spacer,lock,skylight |

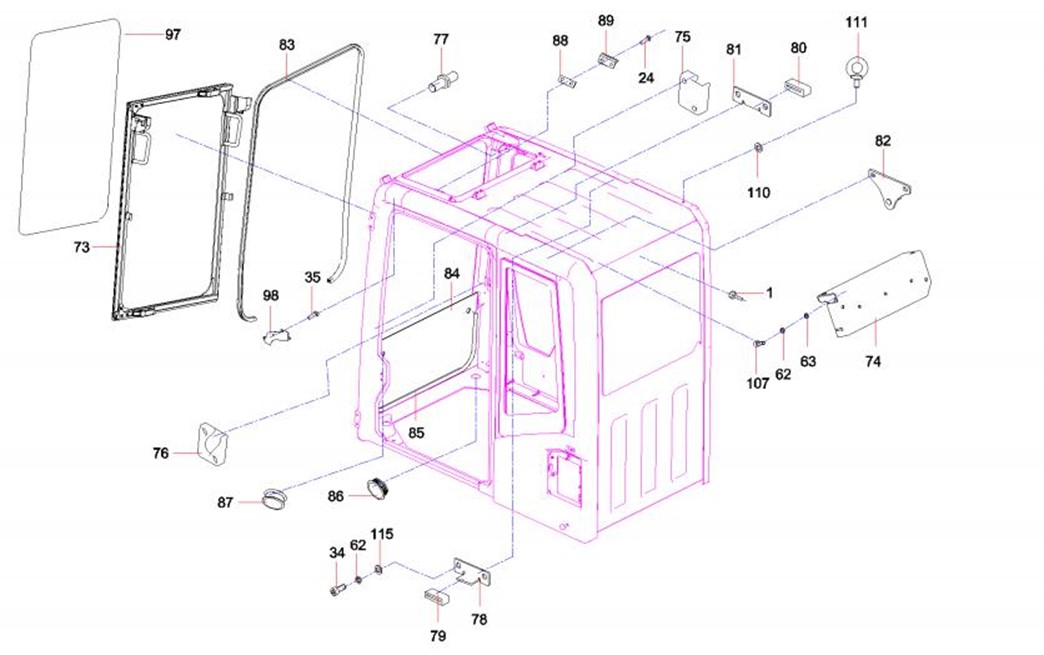

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-231-1 |
1 |
12768399 |
2 |
Stop, front window |
2-231-24 |
24 |
A210211000010 |
4 |
Screw |
2-231-34 |
34 |
A210111000080 |
4 |
Bolt |
2-231-35 |
35 |
A210210000027 |
2 |
Screw M6×30GB818 |
2-231-62 |
62 |
A210401000016 |
20 |
Washer |
2-231-63 |
63 |
A210405000006 |
11 |
Washer |
2-231-73 |
73 |
60235888 |
1 |
front window frame |
2-231-74 |
74 |
A229900008232 |
1 |
Balancer, spring |
2-231-75 |
75 |
A229900008235 |
1 |
Stopper, left, guide rail |
2-231-76 |
76 |
A229900008233 |
1 |
Stopper, right, guide rail |
2-231-77 |
77 |
10138035 |
2 |
Lock catch, front, front window |
2-231-78 |
78 |
11462329 |
1 |
Bumper block, right |
2-231-79 |
79 |
11593196 |
1 |
Fixed block right front window |
2-231-80 |
80 |
11462351 |
1 |
Block, cushioning, left |
2-231-81 |
81 |
11462138 |
1 |
Fixed block left front window |
2-231-82 |
82 |
A222200000150 |
2 |
Lock catch, rear, front window |
2-231-83 |
83 |
11141364 |
1 |
Strip, sealing, front window |
2-231-84 |
84 |
60235890 |
1 |
front lower glass |
2-231-85 |
85 |
11139289 |
1 |
Strip, sealing |
2-231-86 |
86 |
10144609 |
2 |
Cap, rubber |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-233-87 |
87 |
A229900008238 |
2 |
Handhold AS, lower front glass |
2-233-88 |
88 |
11324927 |
2 |
Plate,nut |
2-233-89 |
89 |
10138038 |
2 |
Lock catch, roof window |
2-233-97 |
97 |
60235889 |
5 |
front upper glass |
2-233-98 |
98 |
60090897 |
1 |
Corner, rotary |
2-233-107 |
107 |
A210210000008 |
37 |
Screw |
2-233-110 |
110 |
11308197 |
6 |
Slinger spacer |
2-233-111 |
111 |
A313251202803 |
4 |
Screw M12GB825 |
2-233-115 |
115 |
A210404000009 |
11 |
Washer |

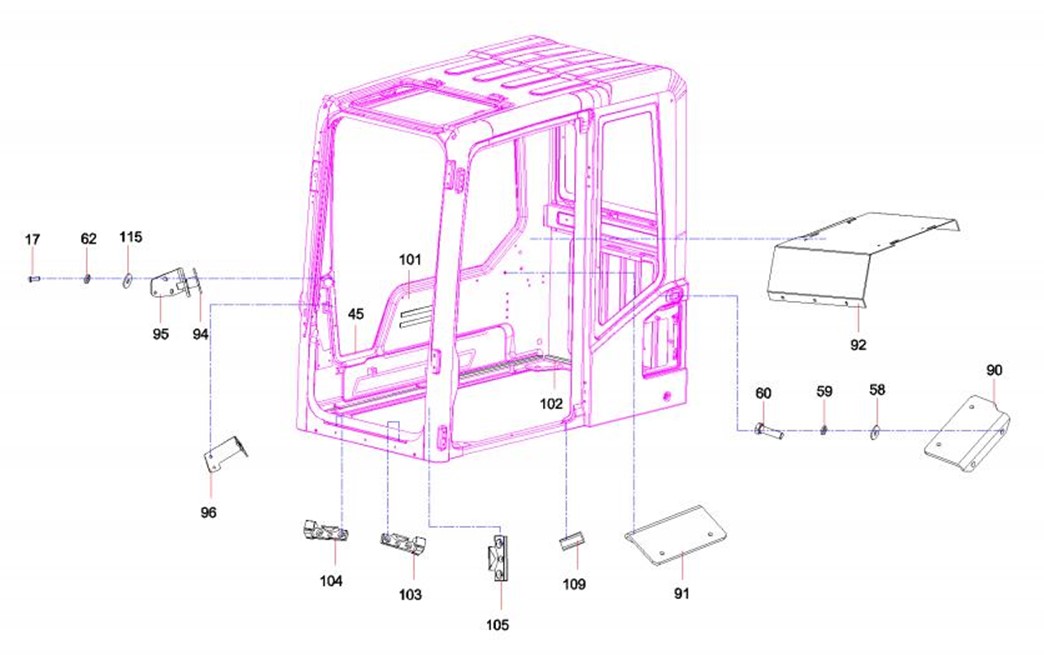

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-235-17 |
17 |
A210204000131 |
3 |
Screw M6×20GB70.1 |
2-235-45 |
45 |
60045595 |
1 |
Strip, decorative |
2-235-58 |
58 |
A210405000011 |
15 |
Washer |
2-235-59 |
59 |
A210401000001 |
13 |
Washer |
2-235-60 |
60 |
A210111000023 |
8 |
Bolt |
2-235-62 |
62 |
A210401000016 |
20 |
Washer |
2-235-90 |
90 |
10465291 |
1 |
Left bracket AS,air conditioner |
2-235-91 |
91 |
10465435 |
1 |
Right bracket GP, air conditioner |
2-235-92 |
92 |
11762934 |
1 |
Air conditioner cover GP |
2-235-94 |
94 |
12048863 |
1 |
Bracket monitor |
2-235-95 |
95 |
11648652 |
1 |
Mounting plate, monitor |
2-235-96 |
96 |
11764044 |
1 |
Bracket monitor display |
2-235-101 |
101 |
11277865 |
2 |
Wind protection sponge |
2-235-102 |
102 |
11277867 |
3 |
Wind protection sponge |
2-235-103 |
103 |
A229900008231 |
1 |
Block, fixing, lower left |
2-235-104 |
104 |
A229900008230 |
1 |
Block, fixing, lower right |
2-235-105 |
105 |
A229900008229 |
2 |
Block, fixed, side |
2-235-109 |
109 |
11574210 |
2 |
Plug,strip,seal |
2-235-115 |
115 |
A210404000009 |
11 |
Washer |

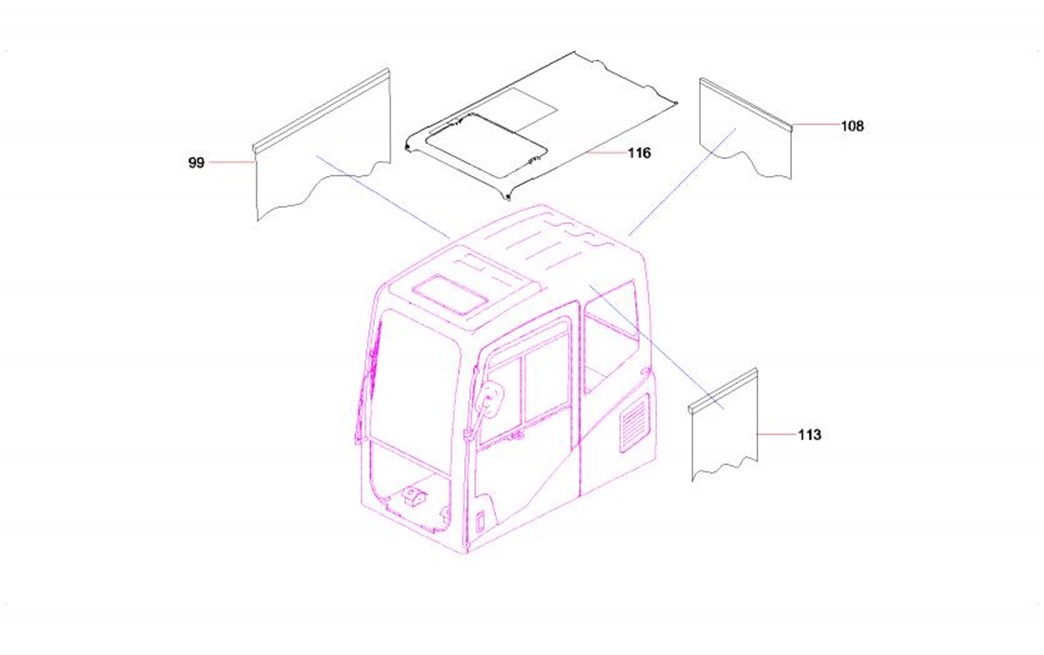

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-237-99 |
99 |
60237085 |
1 |
right curtain and rail |
2-237-108 |
108 |
60235892 |
1 |
rear curtain and rail |
2-237-113 |
113 |
60235893 |
1 |
left curtain and rail |
2-237-116 |
116 |
60235897 |
1 |
top inner plaque |
