SANY SY155C SY155C9 SY155C9I3K EXCAVATOR parts catalog 29

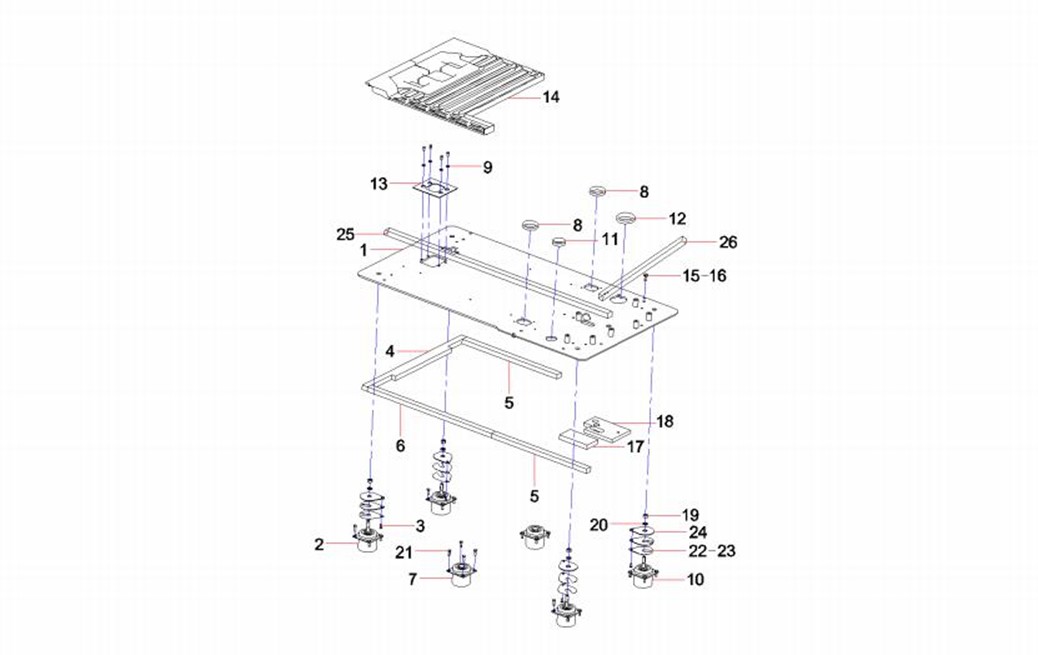

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-269-1 |
1 |
12653044 |
1 |
Base Plate SY135C9.1.5.6.1 |
2-269-2 |
2 |
B229900000244 |
2 |
Support, cab |
2-269-3 |
3 |
A210111000195 |
8 |
Bolt |
2-269-4 |
4 |
A820699000679 |
1 |
Sponge, bottom plate, cab |
2-269-5 |
5 |
A820699000678 |
2 |
Sponge, bottom plate, cab |
2-269-6 |
6 |
A820699000677 |
1 |
Sponge, bottom plate, cab |
2-269-7 |
7 |
60242011 |
2 |
Damper |
2-269-8 |
8 |
A820606030056 |
2 |
Grommet |
2-269-9 |
9 |
24000637 |
8 |
Washer |
2-269-10 |
10 |
B229900000245 |
2 |
Support, cab |
2-269-11 |
11 |
A820606030059 |
1 |
Grommet |
2-269-12 |
12 |
10898697 |
1 |
Grommet |
2-269-13 |
13 |
11937141 |
1 |
Gasket, foot valve |
2-269-14 |
14 |
11670604 |
1 |
Mat, floor |
2-269-15 |
15 |
24000639 |
5 |
Washer |
2-269-16 |
16 |
A210111000203 |
5 |
Bolt |
2-269-17 |
17 |
A820699000215 |
1 |
Foam, back |
2-269-18 |
18 |
11935737 |
1 |
Foam, sealing |
2-269-19 |
19 |
A210307000028 |
4 |
Nut |
2-269-20 |
20 |
24000642 |
4 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-271-21 |
21 |
A210111000024 |
24 |
Bolt |
2-271-22 |
22 |
11593942 |
4 |
Shim |
2-271-23 |
23 |
11594064 |
4 |
Shim |
2-271-24 |
24 |
11546613 |
4 |
Plate |
2-271-25 |
25 |
13874875 |
2 |
sealing sponge SY135C9.1.5.6-1 |
2-271-26 |
26 |
13874876 |
2 |
sealing sponge SY135C9.1.5.6-2 |

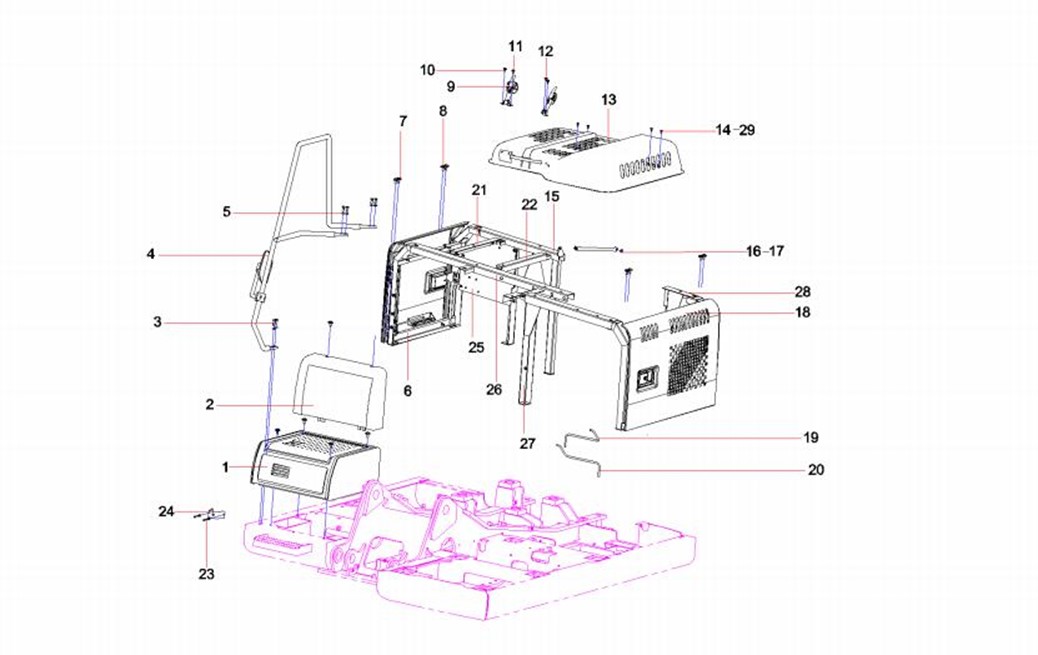

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-273-1 |
1 |
12239518 |
1 |
Hood AS, engine, front |
2-273-2 |
2 |
12236268 |
1 |
Cover, ornament |
2-273-3 |
3 |
A210111000203 |
2 |
Bolt |
2-273-4 |
4 |
A810599001056 |
1 |
Handhold |
2-273-5 |
5 |
24000639 |
15 |
Washer |
2-273-6 |
6 |
13828152 |
1 |
Right Door Assy. |
2-273-7 |
7 |
60060548 |
61 |
Washer 12GB96.1 |
2-273-8 |
8 |
A210111000202 |
72 |
Bolt |
2-273-9 |
9 |
A222200000065 |
2 |
Door lock |
2-273-10 |
10 |
A210111000342 |
4 |
Bolt M8x16 |
2-273-11 |
11 |
60060565 |
8 |
Washer |
2-273-12 |
12 |
A210111000343 |
4 |
Bolt |
2-273-13 |
13 |
13531517 |
1 |
bonnet assy SY135C9I3K.1.6.26 |
2-273-14 |
14 |
24000637 |
4 |
Washer |
2-273-15 |
15 |
13828158 |
1 |
right door frame |
2-273-16 |
16 |
13528739 |
1 |
stay rod assembly |
2-273-17 |
17 |
A210491000014 |
2 |
Pin |
2-273-18 |
18 |
13828119 |
1 |
Right Door Assy. |
2-273-19 |
19 |
13158666 |
1 |
front Spring |
2-273-20 |
20 |
13159343 |
1 |
rear spring |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-275-21 |
21 |
13828168 |
1 |
supporting plate |
2-275-22 |
22 |
13828172 |
1 |
supporting plate |
2-275-23 |
23 |
60060564 |
2 |
Washer |
2-275-24 |
24 |
A820101216763 |
1 |
Parts book, mounting bracket, |
2-275-25 |
25 |
13828183 |
1 |
fix board SY135C9I3K.1.6.31 |
2-275-26 |
26 |
13828162 |
1 |
front cross rail SY135C9I3K.1.6.28 |
2-275-27 |
27 |
13828132 |
1 |
right door frame |
2-275-28 |
28 |
13828145 |
1 |
right door frame |
2-275-29 |
29 |
A210111000012 |
4 |
Bolt |

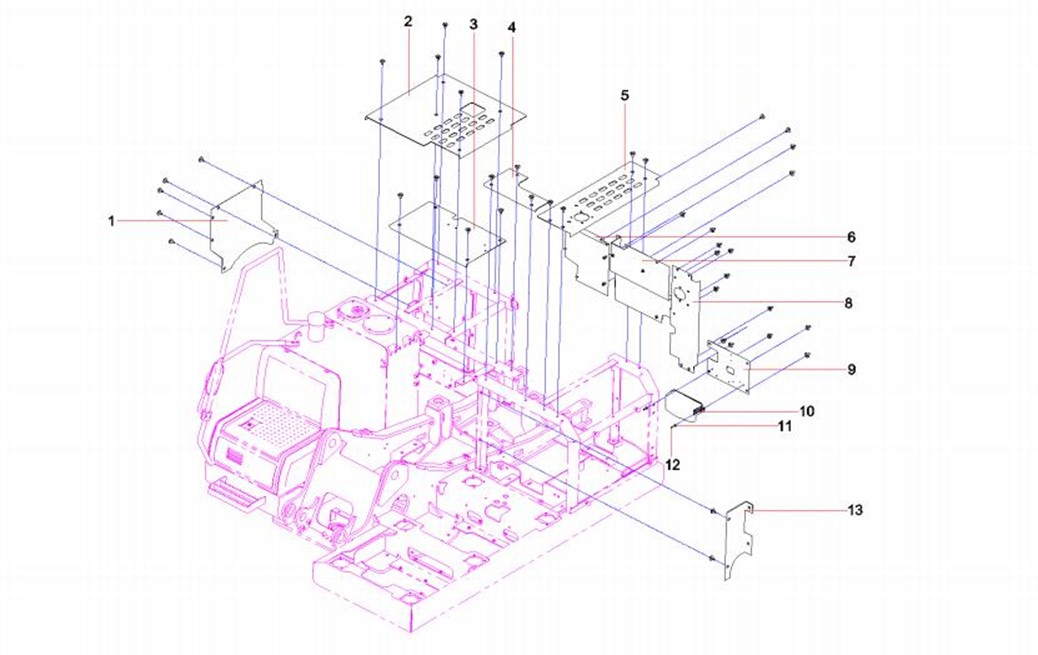

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-277-1 |
1 |
13039598 |
1 |
Rear distance piece |
2-277-2 |
2 |
13039579 |
1 |
Right upper rear cover plate |
2-277-3 |
3 |
13422882 |
1 |
Front cover plate |
2-277-4 |
4 |
13425181 |
1 |
Front cover plate SY135C9I3K.1.6- |
2-277-5 |
5 |
13528123 |
1 |
plate cover upper left |
2-277-6 |
6 |
13039597 |
1 |
Right partition plate |
2-277-7 |
7 |
13592799 |
1 |
Central partition plate |
2-277-8 |
8 |
13039593 |
1 |
Left spacing plate |
2-277-9 |
9 |
13828183 |
1 |
fix board SY135C9I3K.1.6.31 |
2-277-10 |
10 |
13011029 |
1 |
Electric boxSY135C9I2K.1.6-11 |
2-277-11 |
11 |
60238783 |
4 |
Washer |
2-277-12 |
12 |
A210204000130 |
4 |
Screw |
2-277-13 |
13 |
13587872 |
1 |
Side plate SY155C9I3K.1.6-5 |
