SANY SY155C SY155C9 SY155C9I3K EXCAVATOR parts catalog 31
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-289-1 |
1 |
11817247 |
4 |
Anchor, clamp |
2-289-2 |
2 |
A222200000012 |
1 |
Latch |
2-289-3 |
3 |
11817218 |
4 |
Nut |
2-289-4 |
4 |
13748065 |
1 |
left door SY135C9I3K.1.6.20.2 |
2-289-5 |
5 |
12735024 |
1 |
Gasket, rubber |
2-289-6 |
6 |
A810502019056 |
3 |
Setscrew |
2-289-7 |
7 |
A210307000036 |
3 |
Nut |
2-289-8 |
8 |
A210307000031 |
2 |
Nut M12GB6170 10 |
2-289-9 |
9 |
13801283 |
1 |
door-shaft seal SY135C9I3K.1.6.15 |
2-289-10 |
10 |
24000639 |
6 |
Washer |
2-289-11 |
11 |
A210111000202 |
6 |
Bolt |
2-289-12 |
12 |
13828122 |
1 |
right door frame |
2-289-13 |
13 |
12196084 |
1 |
Catch |
2-289-14 |
14 |
A210501000001 |
1 |
Pin |
2-289-15 |
15 |
13853862 |
2 |
Washer SY135C9I3K.1.6.21-1 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

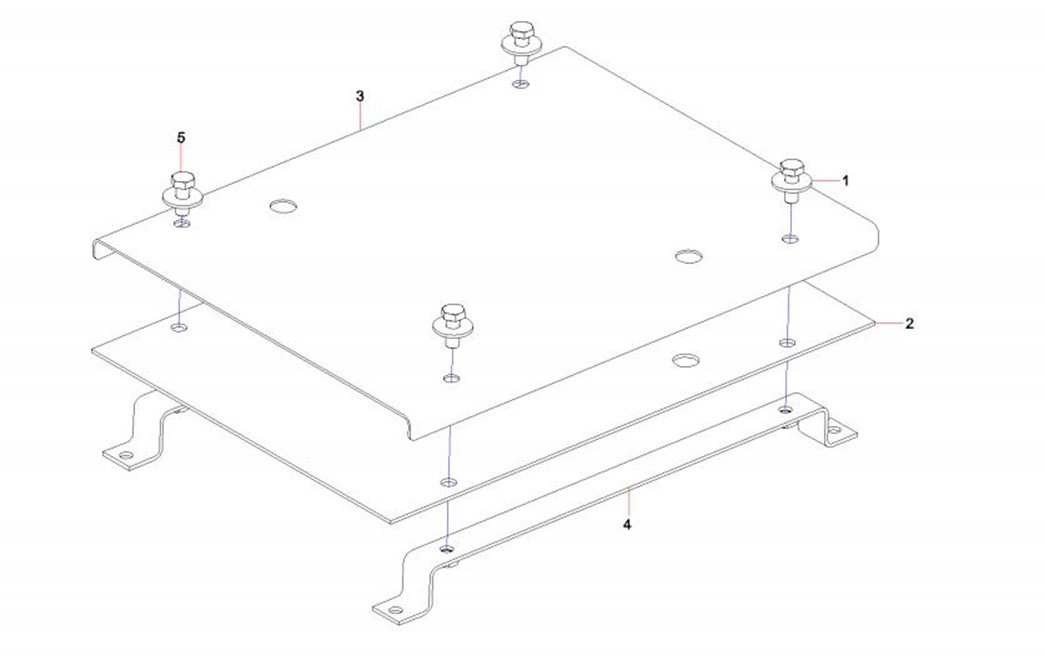

2-291-1 |
1 |
60060546 |
4 |
Washer 10GB96.1 |
2-291-2 |
2 |
11991709 |
1 |
Gasket, rubber |
2-291-3 |
3 |
11991708 |
1 |
Coverplate |
2-291-4 |
4 |
11991712 |
2 |
Bracket, coverplate |
2-291-5 |
5 |
A210111000012 |
4 |
Bolt |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

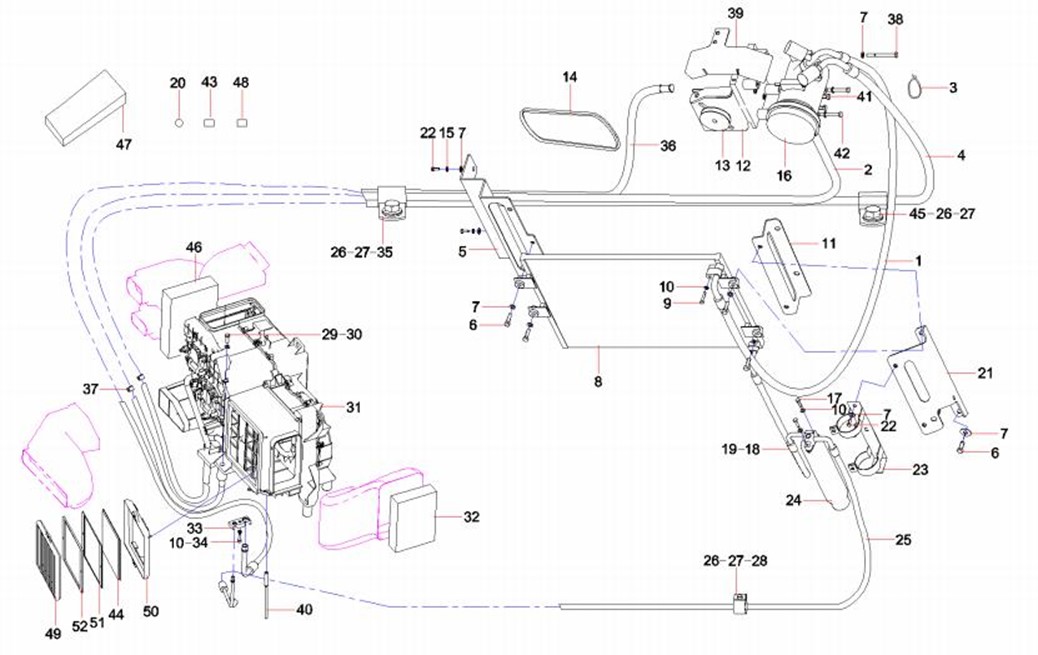

2-293-1 |
1 |
60306666 |
1 |
Exhaust hose |
2-293-2 |
2 |
10793331 |
1 |
Hose, rubber |
2-293-3 |
3 |
A239900000053 |
4 |
Tape, binding, nylon |
2-293-4 |
4 |
60306667 |
1 |
Suction hose |
2-293-5 |
5 |
10254231 |
1 |
Bracket, left |
2-293-6 |
6 |
A210111000293 |
4 |
Bolt |
2-293-7 |
7 |
24000633 |
20 |
Washer |
2-293-8 |
8 |
A220700000028 |
1 |
Assembly, condenser |
2-293-9 |
9 |
A210111000082 |
4 |
Bolt |
2-293-10 |
10 |
24000632 |
8 |
Washer |
2-293-11 |
11 |
10254232 |
1 |
Bracket, right |
2-293-12 |
12 |
10793597 |
1 |
Bracket, compressor |
2-293-13 |
13 |
60009582 |
1 |
Pulley, tension |
2-293-14 |
14 |
A230106000312 |
1 |
V-belt |
2-293-15 |
15 |
24000511 |
4 |
Washer |
2-293-16 |
16 |
B220203000007 |
1 |
Compressor |
2-293-17 |
17 |
A210111000081 |
2 |
Bolt |
2-293-18 |
18 |
60030341 |
1 |
Hose AS, condenser to dehydrator |
2-293-19 |
19 |
60086354 |
1 |
Clamp, harness |
2-293-20 |
20 |
B240600000334 |
1 |
Sensor, sunlight |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-295-21 |
21 |
12295713 |
1 |
drying bottle |
2-295-22 |
22 |
A210111000342 |
6 |
Bolt M8x16 |
2-295-23 |
23 |
A229900008784 |
1 |
Support, container, liquid storage |
2-295-24 |
24 |
B229900005141 |
1 |
Container, liquid storage |
2-295-25 |
25 |
60275557 |
1 |
Reservior-HVAC Hose |
2-295-26 |
26 |
A210111000199 |
5 |
Bolt |
2-295-27 |
27 |
24000639 |
5 |
Washer |
2-295-28 |
28 |
60083322 |
2 |
Wire Clamp |
2-295-29 |
29 |
A210204000164 |
7 |
Screw M8×30GB70.1 |
2-295-30 |
30 |
60060565 |
7 |
Washer |
2-295-31 |
31 |
60168171 |
1 |
Assembly, air conditioner unit |
2-295-32 |
32 |
60250669 |
1 |
Filter |
2-295-33 |
33 |
60250668 |
1 |
Connected plate |
2-295-34 |
34 |
A210204000131 |
1 |
Screw M6×20GB70.1 |
2-295-35 |
35 |
60149607 |
3 |
Clamp, harness |
2-295-36 |
36 |
11084197 |
1 |
Pipe, hot pipe, air conditioner |
2-295-37 |
37 |
60166393 |
4 |
Clamp, pipe |
2-295-38 |
38 |
A210111000097 |
4 |
Bolt |
2-295-39 |
39 |
11147611 |
1 |
Hood, compressor |
2-295-40 |
40 |
60213359 |
1 |
Drainage pipe |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-297-41 |
41 |
A210111000323 |
4 |
Bolt |
2-297-42 |
42 |
A210111000302 |
2 |
Bolt M8×55GB5783 |
2-297-43 |
43 |
B240700000473 |
1 |
Relay |
2-297-44 |
44 |
B222100000711 |
1 |
Filter, air, inner |
2-297-45 |
45 |
60086355 |
3 |
Clamp, harness |
2-297-46 |
46 |
13034851 |
2 |
sponge of air |
2-297-47 |
47 |
60240844 |
1 |
Panel control |
2-297-48 |
48 |
B240700000472 |
1 |
Relay |
2-297-49 |
49 |
13626490 |
1 |
front cover plate SY215C9.1.8.29-1 |
2-297-50 |
50 |
13626481 |
1 |
rear cover plate component |
2-297-51 |
51 |
11908118 |
1 |
Combined seal pad of Air filter core |
2-297-52 |
52 |
11907017 |
1 |
Filter core cover plate |
