SANY SY155C SY155C9 SY155C9I3K EXCAVATOR parts catalog 33
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-309-1 |
1 |
60060548 |
41 |
Washer 12GB96.1 |
2-309-2 |
2 |
A210111000202 |
41 |
Bolt |
2-309-3 |
3 |
12731218 |
1 |
Left central sealing board |
2-309-4 |
4 |
12058454 |
1 |
Plate, sealing, front middle |
2-309-5 |
5 |
12058458 |
1 |
Plate, sealing, cab rear |
2-309-6 |
6 |
12058459 |
1 |
Plate, sealing, cab middle |
2-309-7 |
7 |
12058460 |
1 |
Plate, sealing, cab front |
2-309-8 |
8 |
12108559 |
1 |
Plate, sealing, rear right |
2-309-9 |
9 |
12108521 |
1 |
Plate, sealing, rear middle |
2-309-10 |
10 |
12058461 |
1 |
Plate, sealing, oil tank |
Chapter 3
Travel device

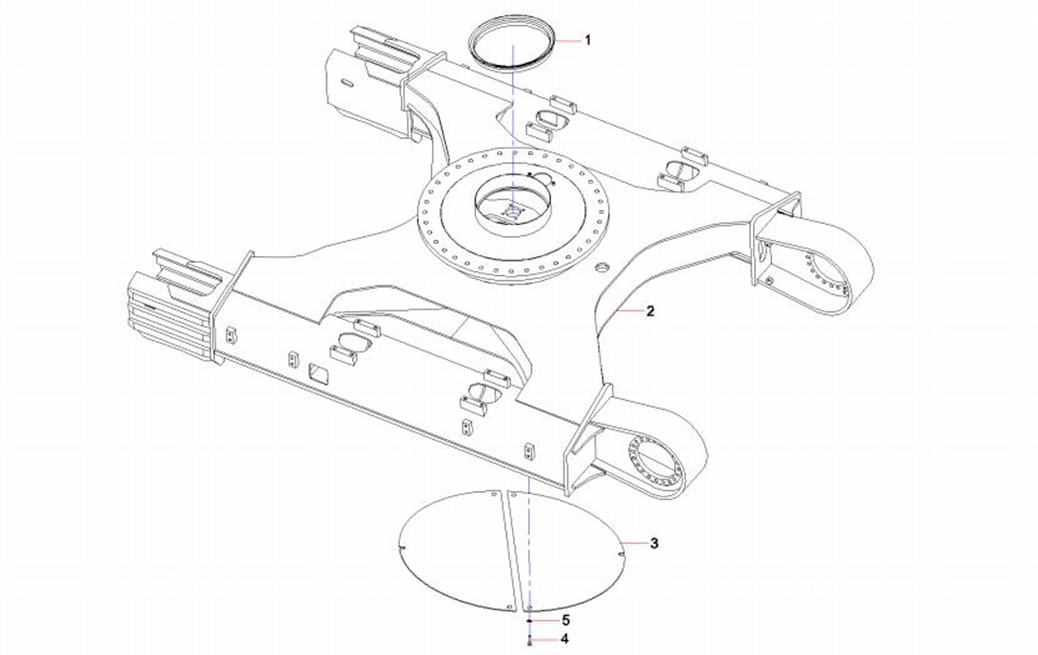

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-3-1 |
1 |
13829573 |
1 |
butter pool seal ring SY135C8I2K.2 |
3-3-2 |
2 |
11563391 |
1 |
Frame, lower |
3-3-3 |
3 |
11655950 |
2 |
Cover |
3-3-4 |
4 |
A210111000012 |
6 |
Bolt |
3-3-5 |
5 |
60060546 |
6 |
Washer 10GB96.1 |

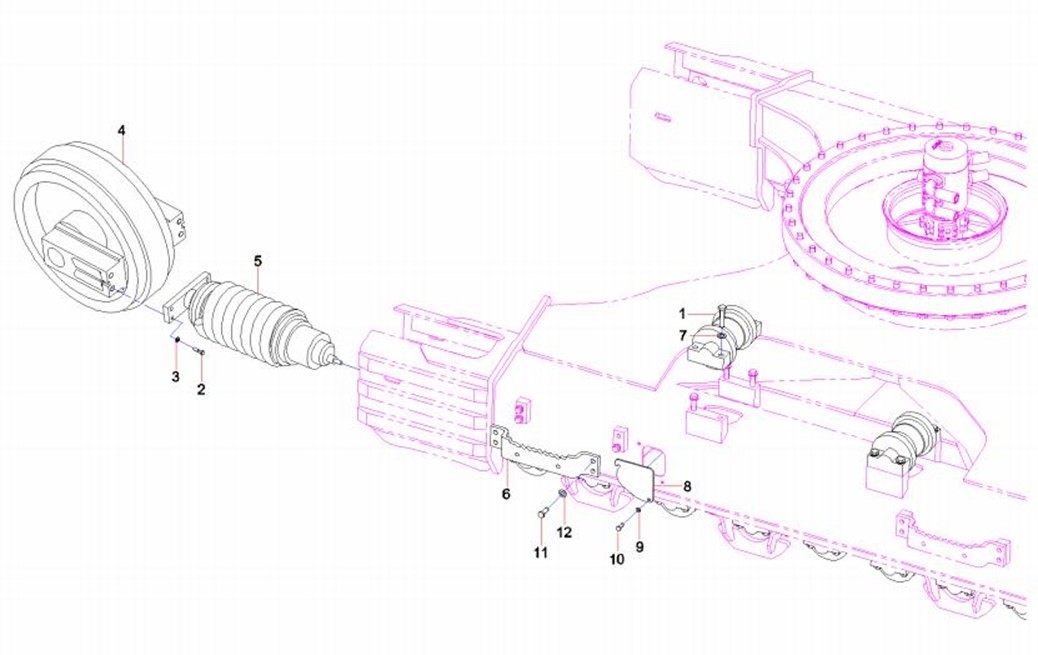

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-5-1 |
1 |
11632477 |
20 |
Thrust wheel GP |
3-5-2 |
2 |
A210110000346 |
8 |
Bolt M14×80GB5782-00 10.9 |
3-5-3 |
3 |
24000612 |
8 |
Washer 14GB93 |
3-5-4 |
4 |
Modification or other |
2 |
Wheel, idler |
3-5-5 |
5 |
A229900004679 |
2 |
Idler tensioner AS |
3-5-6 |
6 |
11655980 |
4 |
Pedal |
3-5-7 |
7 |
A210491000118 |
136 |
Washer |
3-5-8 |
8 |
10542624 |
2 |
Cover |
3-5-9 |
9 |
24000633 |
4 |
Washer |
3-5-10 |
10 |
A210111000342 |
4 |
Bolt M8x16 |
3-5-11 |
11 |
A210111000442 |
16 |
Bolt |
3-5-12 |
12 |
60238781 |
16 |
Washer |

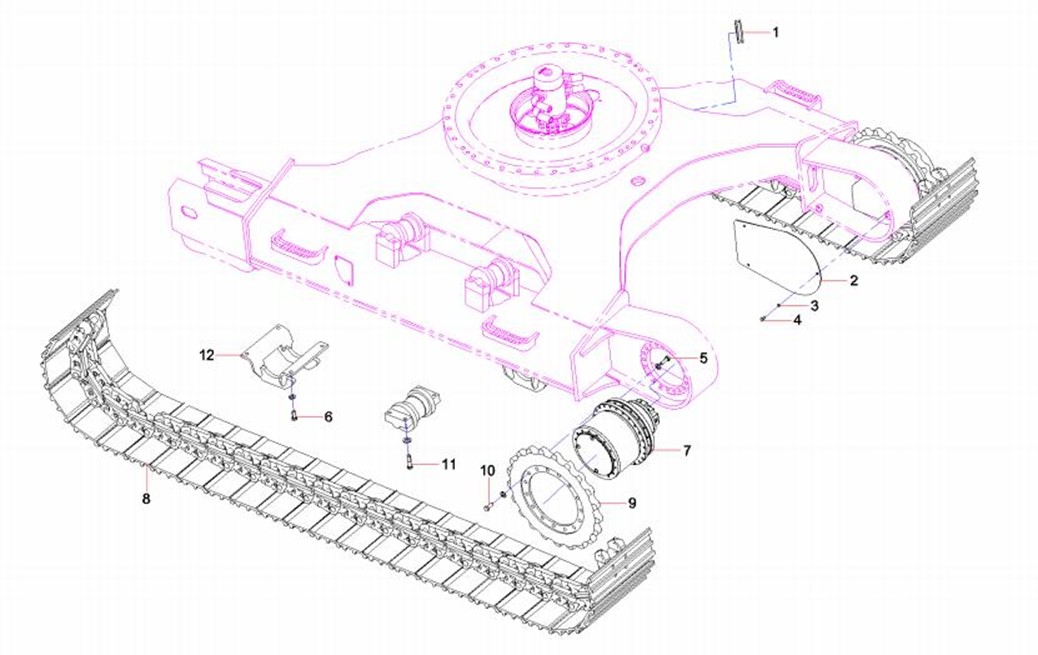

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-7-1 |
1 |
A820606030918 |
2 |
Sheath |
3-7-2 |
2 |
A820101344863 |
2 |
Cover, side |
3-7-3 |
3 |
24000637 |
6 |
Washer |
3-7-4 |
4 |
A210111000012 |
6 |
Bolt |
3-7-5 |
5 |
A210111000243 |
40 |
Bolt |
3-7-6 |
6 |
A210111000053 |
24 |
Bolt |
3-7-7 |
7 |
60101815 |
2 |
reducer assembly |
3-7-8 |
8 |
11620432 |
2 |
Track AS |
3-7-9 |
9 |
Modification or other |
2 |
Sprocket |
3-7-10 |
10 |
A210111000106 |
36 |
Bolt |
3-7-11 |
11 |
A210110000281 |
80 |
Bolt |
3-7-12 |
12 |
A810401990264 |
6 |
Plate, guard, track |
