SANY SY60C SY60C9 SY60C9Y4R EXCAVATOR parts catalog 31
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-17-1 |
1 |
10543250 |
1 |
Rod, connecting |
4-17-2 |
2 |
10542647 |
1 |
Rocker |
4-17-3 |
3 |
10543249 |
1 |
Rocker |
4-17-4 |
4 |
10574183 |
2 |
Sleeve, shaft |
4-17-5 |
5 |
10598011 |
1 |
Roll, pin |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

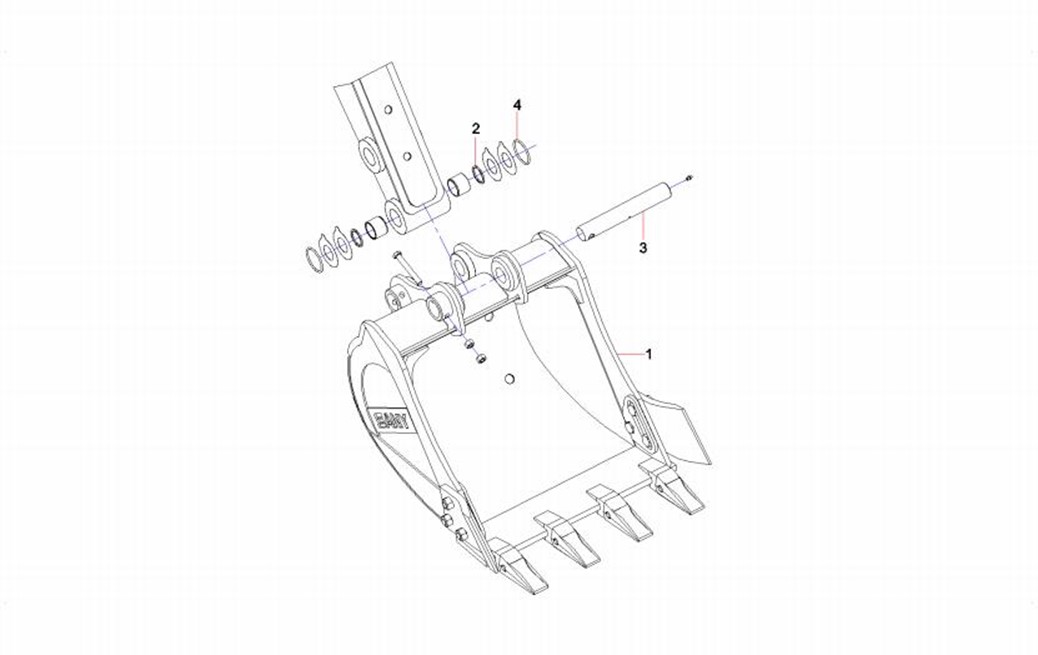

4-19-1 |
1 |
12158004 |
1 |
BucketSY55C9I2R.3.4 |
4-19-2 |
2 |
B230101001119 |
12 |
DLI dust ring |
4-19-3 |
3 |
10542631 |
2 |
Pin roll |
4-19-4 |
4 |
A880802010064 |
2 |
O-ring |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

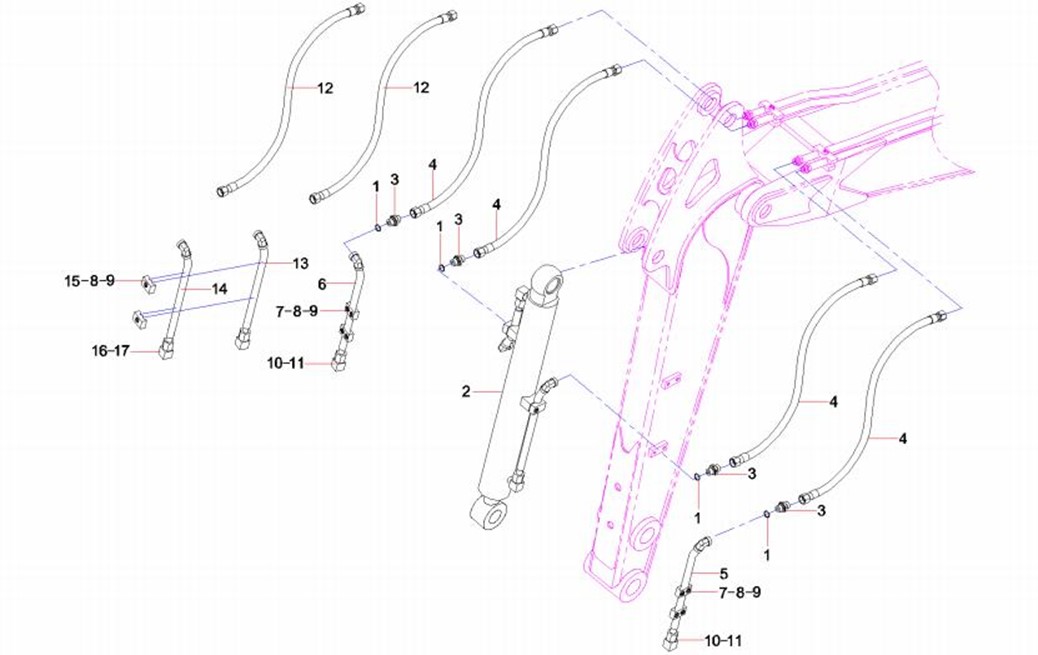

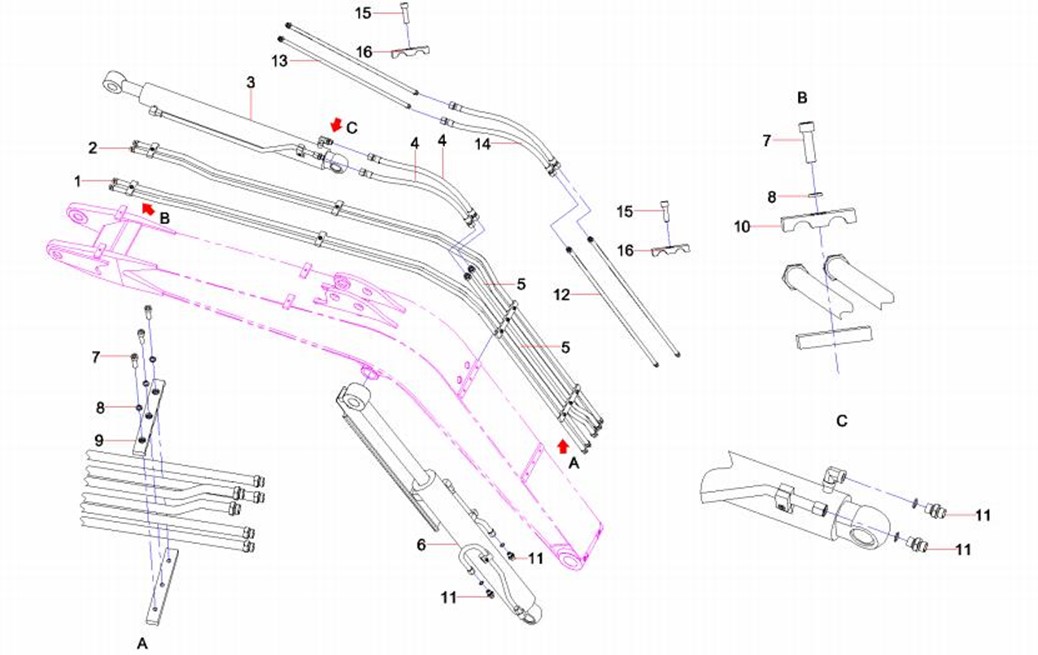

4-21-1 |
1 |
12945958 |
2 |
Steel Pipe Assy.SY55C.3.2.2C |
4-21-2 |
2 |
12945926 |
2 |
Steel Pipe Assy.SY55C.3.2.3C |
4-21-3 |
3 |
60199322 |
1 |
Cylinder, arm |
4-21-4 |
4 |
60157614 |
2 |
rubber hose |
4-21-5 |
5 |
11941185 |
2 |
Steel Pipe Assy. |
4-21-6 |
6 |
60199321 |
1 |
Cylinder, boom |
4-21-7 |
7 |
24000637 |
10 |
Washer |
4-21-8 |
8 |
A210204000364 |
6 |
Screw M10×45GB70.1 10.9 |
4-21-9 |
9 |
12615672 |
2 |
Upper tube clamp |
4-21-10 |
10 |
12085732 |
4 |
Upper tube clamp |
4-21-11 |
11 |
21002824 |
8 |
Pipe connector |
4-21-12 |
12 |
13315538 |
2 |
Steel pipe SY55C.3.2.4C |
4-21-13 |
13 |
13613128 |
2 |
Steel Pipe Assy. |
4-21-14 |
14 |
60246041 |
2 |
rubber hose |
4-21-15 |
15 |
A210204000336 |
3 |
Screw M10×65GB70.1 10.9 grade |
4-21-16 |
16 |
13908271 |
7 |
clamp SY55C9K4R.3.2-7 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-23-1 |
1 |
B230101000090 |
20 |
O-ring |
4-23-2 |
2 |
60199320 |
1 |
Cylinder, bucket |
4-23-3 |
3 |
21002822 |
12 |
Pipe connector |
4-23-4 |
4 |
60307057 |
4 |
rubber hose |
4-23-5 |
5 |
13720552 |
1 |
Steel Pipe Assy. |
4-23-6 |
6 |
13720556 |
1 |
Steel Pipe Assy. |
4-23-7 |
7 |
24000637 |
8 |
Washer |
4-23-8 |
8 |
A210204000163 |
10 |
Screw |
4-23-9 |
9 |
13908277 |
2 |
clamp SY55C9K4R.3.2-5 |
4-23-10 |
10 |
B210780000089 |
2 |
Plug |
4-23-11 |
11 |
B210334000012 |
2 |
Nut |
4-23-12 |
12 |
23001644 |
2 |
Hose,rubber |
4-23-13 |
13 |
13315653 |
1 |
Steel pipe SY55C.3.2.14 |
4-23-14 |
14 |
13315592 |
1 |
Steel pipe SY55C.3.2.13 |
4-23-15 |
15 |
24000637 |
2 |
Washer |
4-23-16 |
16 |
B210780000903 |
2 |
Plug, counterbore |
4-23-17 |
17 |
B210780000191 |
2 |
Connector |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

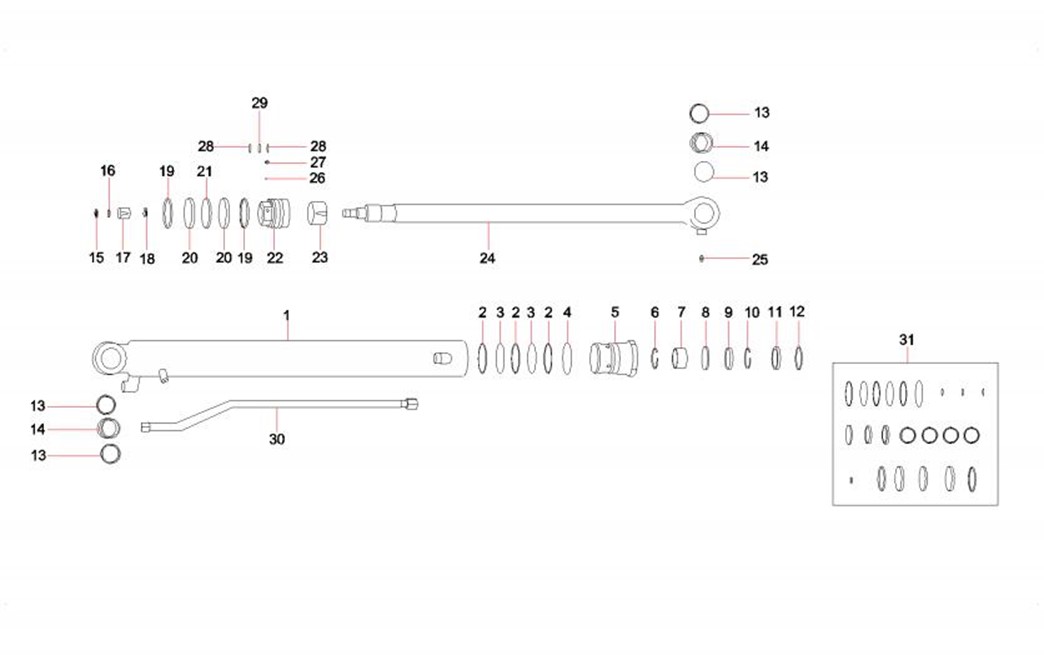

4-25-1 |
1 |
60080465 |
1 |
Block AS, cylinder |
4-25-2 |
2 |
60080410 |
3 |
Ring, retaining |
4-25-3 |
3 |
A210609000080 |
2 |
O-ring |
4-25-4 |
4 |
A210609000084 |
1 |
O-ring |
4-25-5 |
5 |
60208565 |
1 |
Sleeve, guide |
4-25-6 |
6 |
60080424 |
1 |
Ring, retaining |
4-25-7 |
7 |
60080474 |
1 |
Sleeve, sliding |
4-25-8 |
8 |
B230101002165 |
1 |
Ring, buffer |
4-25-9 |
9 |
60184741 |
1 |
Ring, seal |
4-25-10 |
10 |
60169596 |
1 |
Ring, retainer, switch |
4-25-11 |
11 |
B230101002164 |
1 |
Ring, dust |
4-25-12 |
12 |
60080438 |
1 |
Ring, retaining |
4-25-13 |
13 |
A880808070035 |
4 |
Ring, dust |
4-25-14 |
14 |
60072313 |
2 |
Sleeve, shaft |
4-25-15 |
15 |
60080436 |
1 |
Ring, retaining |
4-25-16 |
16 |
60080477 |
1 |
Ring, buffer |
4-25-17 |
17 |
60080468 |
1 |
Sleeve, buffer, rear |
4-25-18 |
18 |
60080510 |
1 |
Ring, retainer |
4-25-19 |
19 |
60080528 |
2 |
Ring, contaminant |
4-25-20 |
20 |
60080416 |
2 |
Ring, guide |
