SANY SY75C SY75C9 SY75C9I4R EXCAVATOR parts catalog 02
Chapter 2
Slewing device SY75C9I4R.1
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

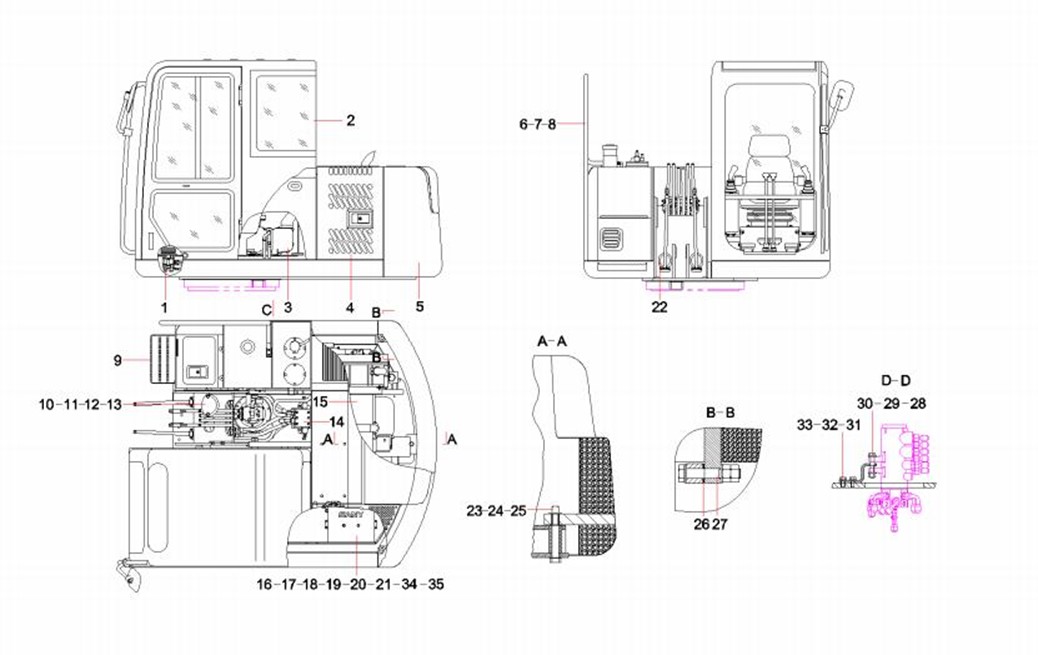

2-3-1 |
1 |
13312078 |
1 |
Pilot pipeline SY75C9I4R.1.4 |
2-3-2 |
2 |
13317173 |
1 |
cab SY75C9I4R.1.5 |
2-3-3 |
3 |
13300670 |
1 |
Air conditioning SY75C9I4R.1.8 |
2-3-4 |
4 |
13316855 |
1 |
General assembly of covering parts |
2-3-5 |
5 |
13316907 |
1 |
Counterweight assembly |
2-3-6 |
6 |
10839097 |
1 |
Handhold |
2-3-7 |
7 |
A210111000202 |
5 |
Bolt M12×30GB578310.9 |
2-3-8 |
8 |
A210491000121 |
5 |
Washer 12GB1230 |
2-3-9 |
9 |
13315375 |
1 |
Revolving Frame SY75C9I4R.1.1 |
2-3-10 |
10 |
A820101117871 |
1 |
Cover |
2-3-11 |
11 |
A820606030364 |
1 |
Gasket, seal |
2-3-12 |
12 |
A210111000018 |
40 |
Bolt |
2-3-13 |
13 |
A210404000003 |
40 |
Washer |
2-3-14 |
14 |
13312077 |
1 |
Hydraulic main pipeline |
2-3-15 |
15 |
13275621 |
1 |
power system SY75C9I4R.1.3 |
2-3-16 |
16 |
10839083 |
2 |
Cushion, battery |
2-3-17 |
17 |
12826996 |
1 |
boardSY75C3.1-12 |
2-3-18 |
18 |
A820301015908 |
4 |
Stud |
2-3-19 |
19 |
A210307000036 |
4 |
Nut |
2-3-20 |
20 |
11685533 |
1 |
Cover, battery |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-5-21 |
21 |
A210111000092 |
2 |
Bolt |
2-5-22 |
22 |
12158298 |
2 |
Sheath |
2-5-23 |
23 |
A210110000450 |
1 |
Screw |
2-5-24 |
24 |
A210444000003 |
8 |
Washer 30GB1230 |
2-5-25 |
25 |
A210307000009 |
4 |
Nut M30GB6170 10 |
2-5-26 |
26 |
A820101327187 |
10 |
Shim |
2-5-27 |
27 |
A210110000435 |
2 |
Bolt M30×170(GB5782) 10.9 |
2-5-28 |
28 |
A210307000028 |
1 |
Nut |
2-5-29 |
29 |
A210491000118 |
25 |
Washer 16GB1230 |
2-5-30 |
30 |
A311141609016 |
25 |
Bolt M16×90GB5782 Grade 10.9 |
2-5-31 |
31 |
A210405000002 |
2 |
Washer |
2-5-32 |
32 |
A210111000205 |
2 |
Bolt M14×30GB5783 10.9 |
2-5-33 |
33 |
A820101343538 |
1 |
Plate, retaining |
2-5-34 |
34 |
A820606030643 |
4 |
Cushion, battery |
2-5-35 |
35 |
60060565 |
2 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

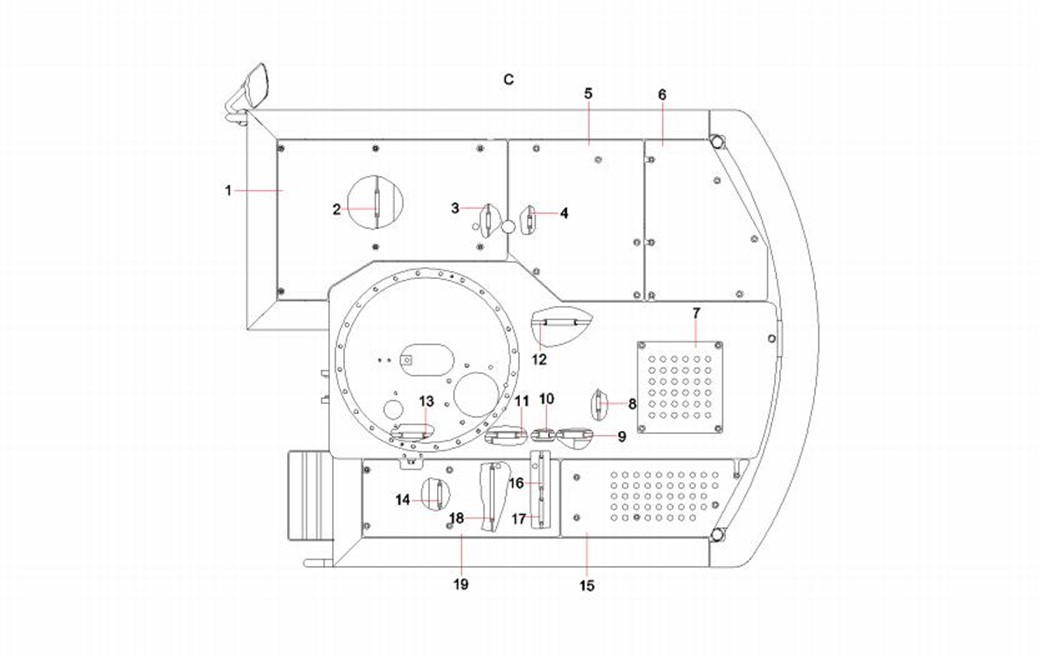

2-7-1 |
1 |
13143917 |
1 |
left front sealing board |
2-7-2 |
2 |
11133761 |
1 |
Sheath |
2-7-3 |
3 |
11133754 |
2 |
Sheath |
2-7-4 |
4 |
11133760 |
1 |
Sheath |
2-7-5 |
5 |
13143918 |
1 |
left central sealing board |
2-7-6 |
6 |
13143919 |
1 |
left rear sealing board |
2-7-7 |
7 |
13143923 |
1 |
central rear sealing |
2-7-8 |
8 |
11133774 |
2 |
Sheath |
2-7-9 |
9 |
11133784 |
1 |
Sheath |
2-7-10 |
10 |
11133788 |
1 |
Sheath |
2-7-11 |
11 |
11133798 |
1 |
Sheath |
2-7-12 |
12 |
11133779 |
1 |
Sheath |
2-7-13 |
13 |
11133805 |
1 |
Sheath |
2-7-14 |
14 |
11133736 |
4 |
Sheath |
2-7-15 |
15 |
13719315 |
1 |
right rear sealing board |
2-7-16 |
16 |
11133753 |
6 |
Sheath |
2-7-17 |
17 |
11133751 |
1 |
Sheath |
2-7-18 |
18 |
11133748 |
2 |
Sheath |
2-7-19 |
19 |
13143920 |
1 |
right front sealing board |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

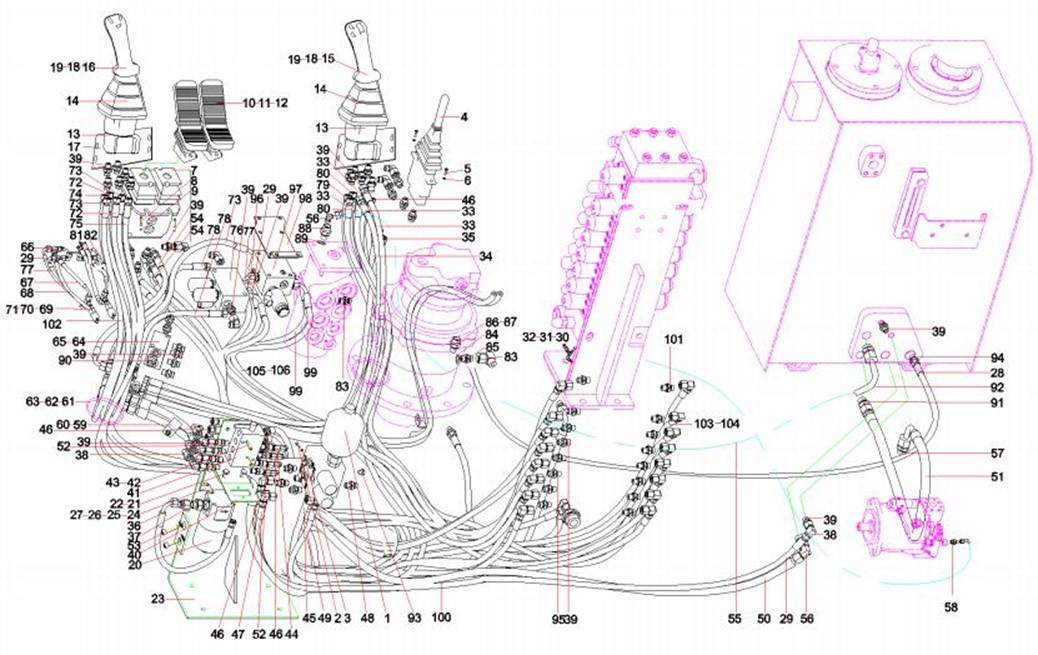

2-9-1 |
1 |
B220400000388 |
1 |
Valve, oil source control |
2-9-2 |
2 |
A210111000342 |
2 |
Bolt M8×16GB5783 10.9 |
2-9-3 |
3 |
24000511 |
6 |
Washer |
2-9-4 |
4 |
B229900001009 |
1 |
Valve, pilot |
2-9-5 |
5 |
A210204000130 |
10 |
Screw M6×16GB70.1 |
2-9-6 |
6 |
60060564 |
16 |
Washer |
2-9-7 |
7 |
60227366 |
1 |
Pilot-control Valve |
2-9-8 |
8 |
A210204000196 |
8 |
Screw |
2-9-9 |
9 |
24000512 |
12 |
Washer |
2-9-10 |
10 |
10171195 |
2 |
Foot rest |
2-9-11 |
11 |
10171205 |
2 |
Block, cushion |
2-9-12 |
12 |
10171197 |
2 |
Pad, foot rest |
2-9-13 |
13 |
60225750 |
2 |
Pilot-control Valve |
2-9-14 |
14 |
13269044 |
2 |
Handle Guard |
2-9-15 |
15 |
60137563 |
1 |
Right handle |
2-9-16 |
16 |
60137564 |
1 |
Left handle |
2-9-17 |
17 |
A229900001027 |
2 |
Plate |
2-9-18 |
18 |
60108575 |
2 |
Nut |
2-9-19 |
19 |
B210780000016 |
1 |
Fitting, Tee |
2-9-20 |
20 |
60211330 |
1 |
Filter |
