识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-7-1

1

A820606030361

2

护套

Sheath

3-7-2

2

60197801

60

螺栓M16×60DIN931 12.9级

Bolt

3-7-3

3

60052677

60

螺栓

Bolt

3-7-4

4

A210110000307

56

螺栓

Bolt

3-7-5

5

A210491000144

56

垫圈

Washer 18(GB1230)

3-7-6

6

A820101116020

2

马达盖板

Coverplate, motor

3-7-7

7

60246652

2

行走马达

PISTON MOTOR

3-7-8

8

12555670

2

履带总成

Track GP

3-7-9

9

11221884

2

驱动轮

Sprocket

3-7-10

10

A810401990037

2

护板

Board, guard

3-7-11

11

13289079

14

190A支重轮压接版 190A支重轮压

track roller SWZ190AY 190A支重

3-7-12

12

A210111000221

8

螺栓M20×50GB5783 10.9级

Bolt M20×50GB5783 10.9

3-7-13

13

21001338

60

垫圈

Washer 16GB97.1

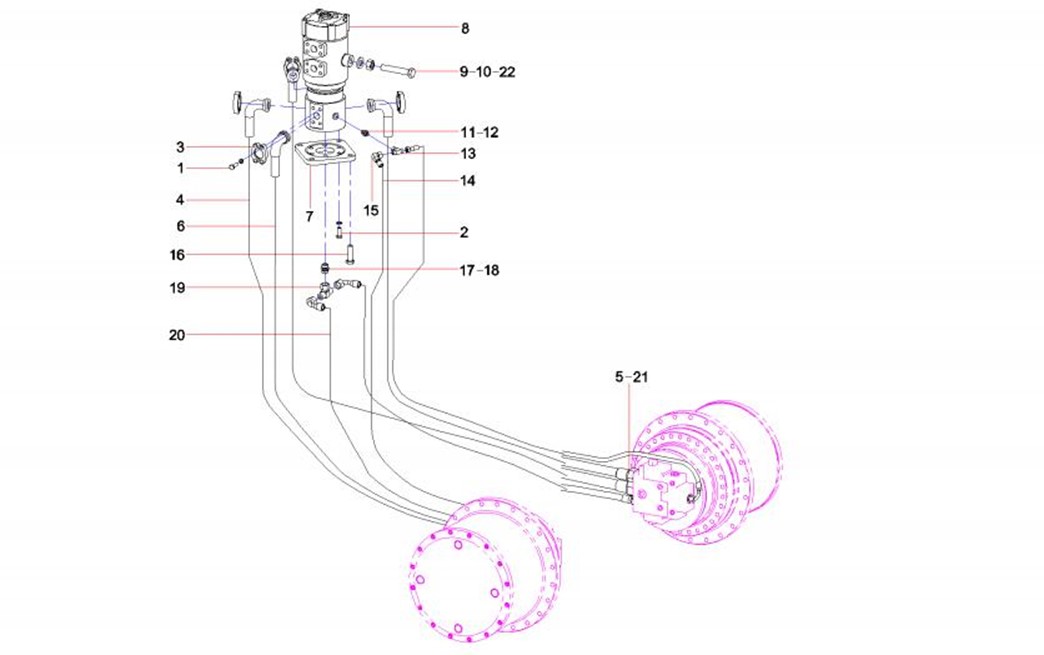

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-9-1

1

A210204000354

16

螺钉 M10×30GB70.1 10.9级

Screw M10×30GB70.1 10.9

3-9-2

2

A210111000203

6

螺栓

Bolt M12×35GB5783 10.9

3-9-3

3

B210780000244

8

对开法兰

Flange, Split

3-9-4

4

B230103002701

2

胶管

Hose

3-9-5

5

B230101000050

4

O形圈

O-ring 28.7×3.5JISB2401

3-9-6

6

B230103002702

2

胶管

Hose

3-9-7

7

A820101212141

1

过渡板

Plate, transition

3-9-8

8

60243991

1

中央回转接头

Center Swivel Joint

3-9-9

9

A210110000233

1

螺栓 M20×110GB5782 10.9级

Bolt M20×110GB5782 10.9

3-9-10

10

A210491000132

8

垫圈

Washer 20GB1230

3-9-11

11

A820205000843

3

接头

Connector

3-9-12

12

B230101000090

3

O形圈

O-ring 17.8×2.4JISB2401

3-9-13

13

B210780000413

1

管接头

Connector, pipe

3-9-14

14

B230103002695

2

胶管

Hose

3-9-15

15

B210780000418

1

管接头

Connector, pipe

3-9-16

16

A210111000212

4

螺栓M16×35GB5783 10.9级

Bolt M16×35GB5783 10.9

3-9-17

17

A820205000844

3

接头

Connector

3-9-18

18

B230101000047

2

O形圈

O-ring

3-9-19

19

B210780000172

1

管接头

Connector, pipe

3-9-20

20

B230103000284

2

胶管

Hose, rubber

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-11-21

21

A820205000834

4

G1-M36接头

Connector

3-11-22

22

A210307000029

1

螺母M20GB6170 10级

Nut M20GB6170 10

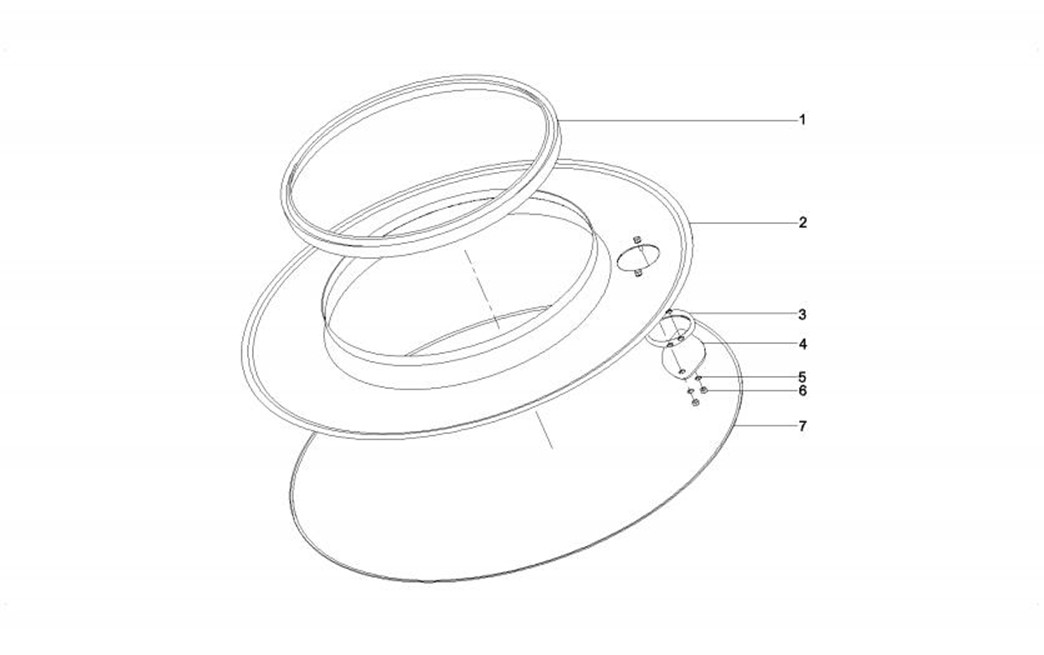

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-13-1

1

A820606020168

1

上密封圈

Ring, sealing

3-13-2

2

A810410990020

1

护圈

Ring, protective

3-13-3

3

A820606020170

1

胶垫

Block, rubber

3-13-4

4

A820101210192

1

密封板

Plate, sealing

3-13-5

5

A210405000011

2

垫圈

Washer 10GB97.1

3-13-6

6

A210307000017

2

螺母

Nut M10GB6170

3-13-7

7

A820606020169

1

下密封圈

Ring, sealing

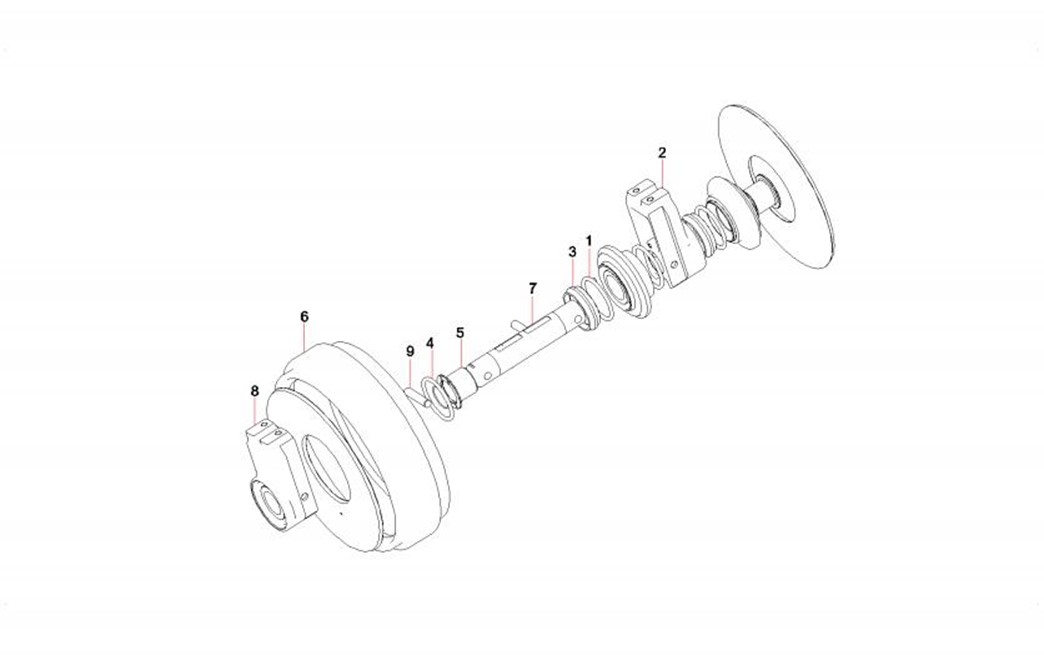

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-15-1

1

60027515

1

闷头螺塞

Plug, screw

3-15-2

2

11744340

1

右支座

Right-Support Abutment

3-15-3

3

60047793

2

支浮动油封

Seal, oil

3-15-4

4

A210608000081

2

O形圈

O-ring

3-15-5

5

60102940

2

衬套72×65×64.5 法兰

Bushing

3-15-6

6

11744348

1

引导轮轮体总成

Leading wheel body assembly

3-15-7

7

11744338

1

轴

shaft

3-15-8

8

11744339

1

左支座

Lelt-Support Abutment

3-15-9

9

60102942

2

销

Pin,cylindrical
