识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-17-1

1

12856050

1

大弧板

Large arc plate SY205C.3.4F.1-1

4-17-2

2

12856053

1

刃板

Blade plate SY205C.3.4F.1-4

4-17-3

3

12856058

1

支座总成

Support Abutment Assy

4-17-4

4

12070801

1

左侧板组件

Left side plate assembled

4-17-5

5

12070802

1

右侧板组件

Right side plate assembled

4-17-6

6

11039666

1

中底板

Middle bottom board

4-17-7

7

12856052

1

右底板

Right bottom board

4-17-8

8

12856051

1

左底板

Left bottom board SY205C.3.4F.1

4-17-9

9

A820101327142

2

弯加强板

Bent stiffening plate

4-17-10

10

A820101320465

2

前角加强板

Plate, stiffening

4-17-11

11

12657353

5

齿座

base of toothSY215C.3.4.1-13

4-17-12

12

A820101034992

2

加强板

Reinforcement Plate

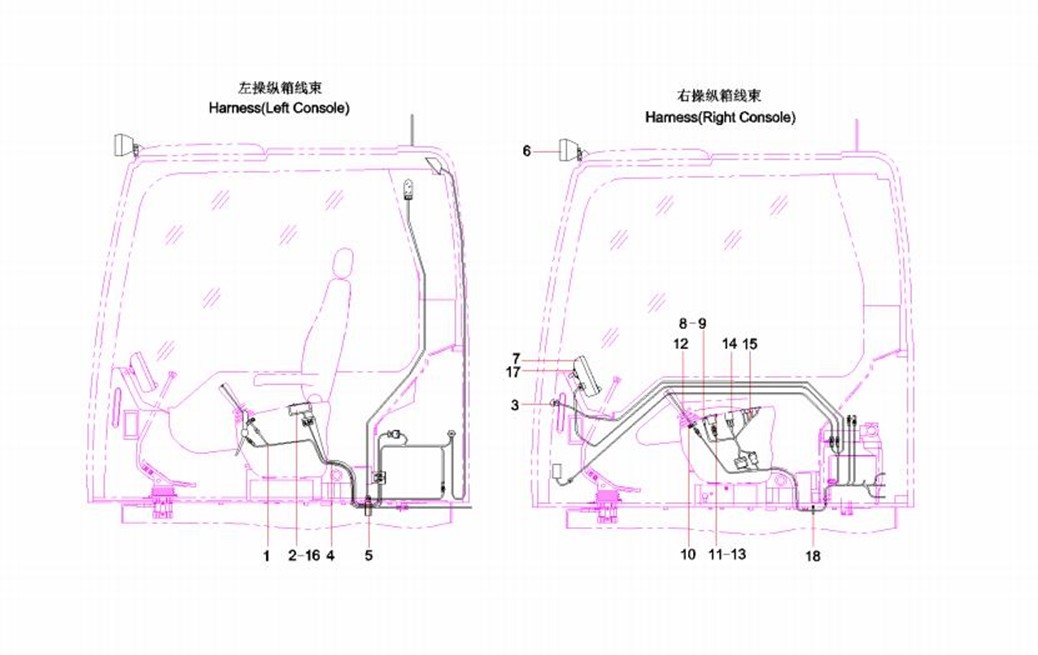

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-3-1

1

13466241

1

驾驶室线束

Driver’s Cab Harness

5-3-2

2

60205002

1

收音机

Radio

5-3-3

3

A210204000115

6

螺钉

Screw M5×12GB70.1

5-3-4

4

60060300

1

天线延长线

Extension, antenna

5-3-5

5

A210204000340

4

螺钉M8×16GB70.1 10.9级

Screw M8×16GB70.1 10.9

5-3-6

6

B241100000391

2

工作灯70-24-P1 长方

Lamp, working

5-3-7

7

12401565

1

三一显示屏

Sany Encourage Control Display

5-3-8

8

60212474

2

车用指示灯AD11-10W-A LED红

LED Indicator lamp

5-3-9

9

60212475

1

车用指示灯AD11-10W-A LED黄

LED Indicator lamp

5-3-10

10

A230200000170

2

线夹

Clamp

5-3-11

11

13400087

1

喇叭开关中转线束

horn switch tansfer harness

5-3-12

12

60117463

1

旋钮开关

Switch, fuel control

5-3-13

13

60060562

5

垫圈4GB97.1 达克锈

Washer

5-3-14

14

A241200001217

1

启动开关

Switch, ignition

5-3-15

15

13466262

1

控制开关线束

Control Switch Harness

5-3-16

16

24000509

2

垫圈5GB93 达克锈

Washer

5-3-17

17

A210404000010

4

垫圈

Washer 5GB96.1

5-3-18

18

60260292

1

尼龙扎带20×179 带φ12.5固定孔

Nylon belting

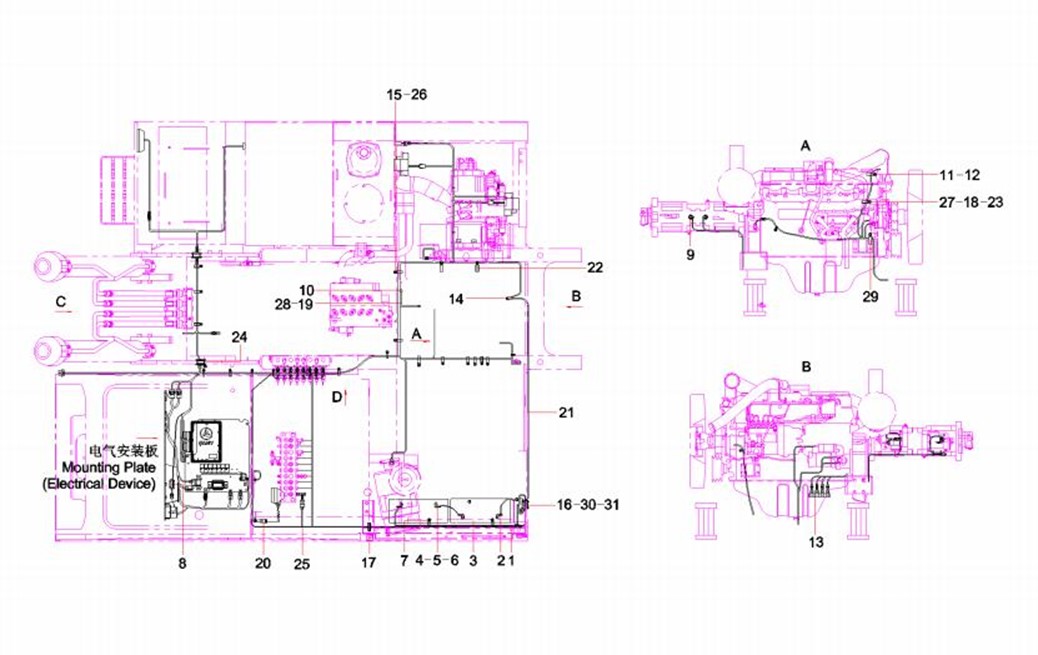

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-5-1

1

13654121

1

电源线

Power Supply Line DYX900-60-10

5-5-2

2

12537763

1

电源线

power lineSY60.5C.8

5-5-3

3

60190637

2

蓄电池

Battery

5-5-4

4

60012793

1

电源线

Line, power

5-5-5

5

60013322

2

A型蓄电池正极接头总成

Terminal Group, Battery Postive

5-5-6

6

60013321

2

A型蓄电池负极接头总成

Terminal Group, Battery Negative

5-5-7

7

A210111000323

2

螺栓M8×25GB5783 10.9级

Bolt M8×25GB5783 10.9

5-5-8

8

23000169

4

螺母M6GB6170 10级

Nut

5-5-9

9

60217140

2

压力传感器

Pressure Sensor

5-5-10

10

24000633

10

垫圈8GB97.1 达克锈

Washer

5-5-11

11

60086354

8

线束固定夹

Clamp, harness

5-5-12

12

A210111000199

21

螺栓M12×20GB5783 10.9级

Bolt M12×20GB5783 10.9

5-5-13

13

13364963

1

支架总成

Support assembly

5-5-14

14

60060565

2

垫圈8GB96.1 达克锈

Washer

5-5-15

15

A210111000012

3

螺栓 M10×20GB5783 10.9级

Bolt M10×20GB5783 10.9

5-5-16

16

60133547

1

继电器

Switch, power supply

5-5-17

17

A820606030059

1

护孔环

Grommet

5-5-18

18

A210111000342

1

螺栓M8×16GB5783 10.9级

Bolt M8×16GB5783 10.9

5-5-19

19

A810201058132

1

电源线

Wire, power supply

5-5-20

20

B241000000022

1

2芯直流插座

Socket, two-wire

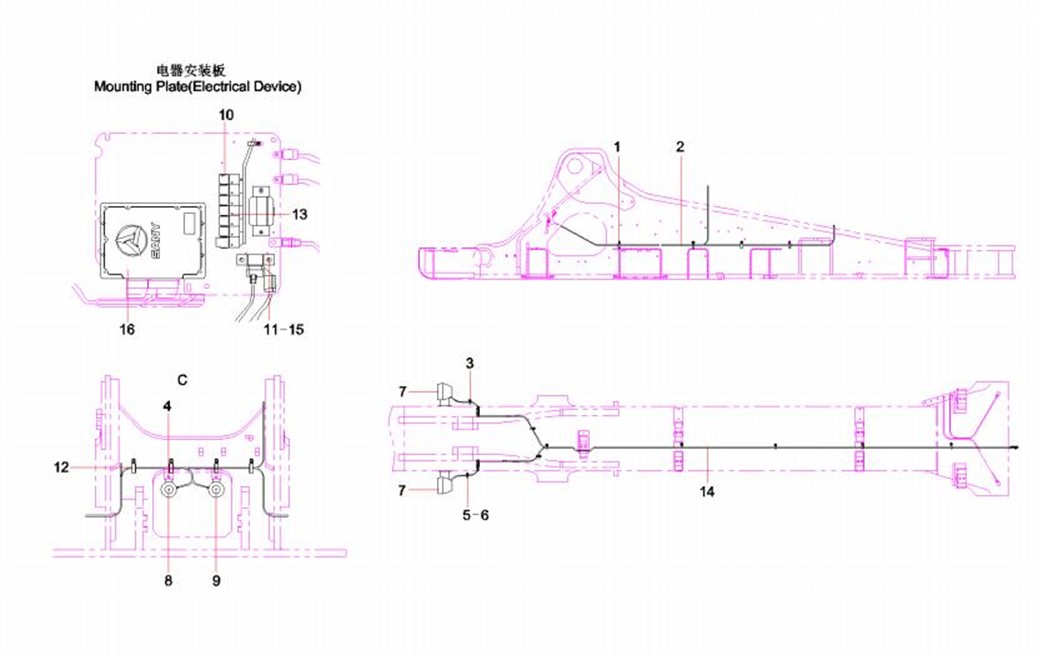

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-7-21

21

60173565

1

电源线

Wire, power supply

5-7-22

22

60260292

6

尼龙扎带20×179 带φ12.5固定孔

Nylon belting

5-7-23

23

A210204000130

1

螺钉

Screw M6×16GB70.1

5-7-24

24

11779657

2

胶套

Sleeve, rubber

5-7-25

25

60217141

9

压力传感器

Pressure Sensor

5-7-26

26

24000639

21

垫圈12GB97.1 达克锈

Washer

5-7-27

27

A210111000079

1

螺栓

Bolt M6×16GB5783

5-7-28

28

A230200000021

1

PVC电气胶带

Tape, electric, PVC

5-7-29

29

11420499

1

凌星电装接插件固定夹

Clamp, holding, connector

5-7-30

30

60238783

2

垫圈6GB96.1 达克锈

Washer

5-7-31

31

A210204000132

2

螺钉

Screw M6×25GB70.1
