SANY SY245C SY245C9 SY245C9M3KH EXCAVATOR parts catalog 19
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-157-1 |
1 |
10472127 |
1 |
蒸汽胶管 |
Hose, steam |
2-157-2 |
2 |
60166393 |
4 |
单联管夹 |
Clamp, pipe |
2-157-3 |
3 |
10453599 |
2 |
管接头 |
Connector |
2-157-4 |
4 |
10472124 |
1 |
蒸汽胶管 |
Hose, steam |
2-157-5 |
5 |
A210111000199 |
23 |
螺栓M12×20GB5783 10.9级 |
Bolt M12×20GB5783 10.9 |
2-157-6 |
6 |
24000639 |
23 |
垫圈12GB97.1 达克锈 |
Washer |
2-157-7 |
7 |
60119587 |
3 |
线束固定夹 |
Clamp, harness |
2-157-8 |
8 |
A239900000066 |
14 |
尼龙扎带 |
Strap, nylon (black) |
2-157-9 |
9 |
60001239 |
1 |
液体胶管 |
Hose, rubber, liquid |
2-157-10 |
10 |
60001235 |
1 |
吸气胶管 |
Hose, air intake |
2-157-11 |
11 |
A210111000081 |
4 |
螺栓 |
Bolt M6×25GB5783 |
2-157-12 |
12 |
变更或见其他配置 |
4 |
垫圈 |
Washer 10GB1230 |
2-157-13 |
13 |
60009582 |
1 |
张紧轮 |
Pulley, tension |
2-157-14 |
14 |
12632783 |
1 |
压缩机支架 |
CompressorBracketSY265C9M2K. |
2-157-15 |
15 |
60086355 |
3 |
线束固定夹 |
Clamp, harness |
2-157-16 |
16 |
A230106000321 |
1 |
V带 |
V-belt |
2-157-17 |
17 |
B220203000007 |
1 |
压缩机 |
Compressor |
2-157-18 |
18 |
24000633 |
6 |
垫圈8GB97.1 达克锈 |
Washer |
2-157-19 |
19 |
13521609 |
1 |
支架 |
nog SY245C9.1.8.7 |
2-157-20 |
20 |
24000632 |
7 |
垫圈6GB97.1 达克锈 |
Washer |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-159-21 |
21 |
A210111000082 |
2 |
螺栓 |
Bolt |
2-159-22 |
22 |
60167256 |
1 |
液体胶管(冷—储) |
Liquid rubber hose |
2-159-23 |
23 |
60149606 |
1 |
线束固定夹 |
Harness clamp |
2-159-24 |
24 |
60060546 |
4 |
垫圈10GB96.1 达克锈 |
Washer 10GB96.1 |
2-159-25 |
25 |
A210111000012 |
4 |
螺栓 M10×20GB5783 10.9级 |
Bolt M10×20GB5783 10.9 |
2-159-26 |
26 |
A229900008784 |
1 |
储液器支架 |
Support, container, liquid storage |
2-159-27 |
27 |
11779657 |
2 |
胶套 |
Sleeve, rubber |
2-159-28 |
28 |
B229900005141 |
1 |
储液器 |
Container, liquid storage |
2-159-29 |
29 |
13356155 |
1 |
右支架 |
right bracket SY245C9.1.8.6 |
2-159-30 |
30 |
60001233 |
1 |
排气胶管 |
Hose, exhaust |
2-159-31 |
31 |
A220700000028 |
1 |
冷凝器总成 |
Assembly, condenser |
2-159-32 |
32 |
A210111000092 |
4 |
螺栓 |
Bolt M8×35GB5783 |
2-159-33 |
33 |
60060565 |
4 |
垫圈8GB96.1 达克锈 |
Washer |
2-159-34 |
34 |
13356163 |
1 |
左支架 |
left bracket SY245C9.1.8.5 |
2-159-35 |
35 |
60250669 |
1 |
外气过滤器 |
Filter |
2-159-36 |
36 |
60168171 |
1 |
空调单元总成 |
Assembly, air conditioner unit |
2-159-37 |
37 |
A229900009481 |
1 |
排水管 |
Pipe, drainage |
2-159-38 |
38 |
A210204000132 |
1 |
螺钉 |
Screw M6×25GB70.1 |
2-159-39 |
39 |
60250668 |
1 |
压板接头 |
Connected plate |
2-159-40 |
40 |
A210111000323 |
7 |
螺栓M8×25GB5783 10.9级 |
Bolt M8×25GB5783 10.9 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-161-41 |
41 |
B222100000711 |
1 |
内气过滤器 |
Filter, air, inner |
2-161-42 |
42 |
10473304 |
1 |
空调电气系统 |
Electrical system, air conditioner |
2-161-43 |
43 |
A210111000342 |
1 |
螺栓M8×16GB5783 10.9级 |
Bolt M8×16GB5783 10.9 |
2-161-44 |
44 |
13626490 |
1 |
前盖板 |
front cover plate SY215C9.1.8.29- |
2-161-45 |
45 |
13626481 |
1 |
后盖板组件 |
rear cover plate component |
2-161-46 |
46 |
11908118 |
1 |
内气滤芯密封垫 |
Combined seal pad of Air filter core |
2-161-47 |
47 |
11907017 |
1 |
内气滤芯压盖 |
Filter core cover plate |
2-161-48 |
48 |
12876535 |
1 |
管接头 |
Pipe joint SY215C9M2K.1.8-10 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

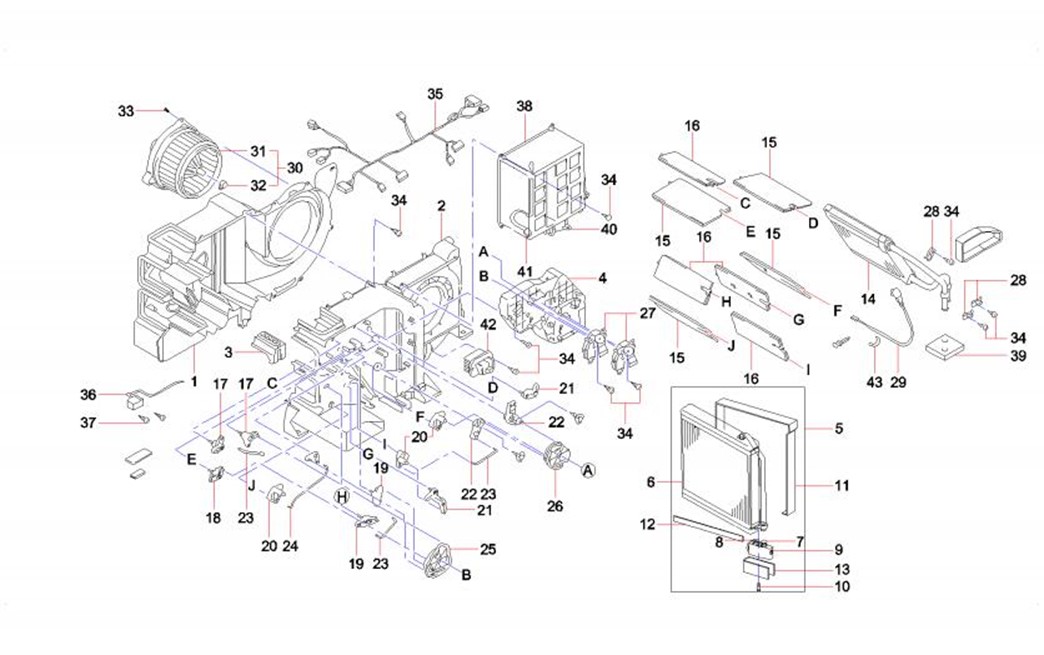

2-163-1 |
1 |
60153212 |
1 |
冷却机组外壳 |
Outer shell, cooling motor group |
2-163-2 |
2 |
60153213 |
1 |
冷却机组外壳 |
Outer shell, cooling motor group |
2-163-3 |
3 |
60153195 |
1 |
片 |
Plate |
2-163-4 |
4 |
60153196 |
1 |
片 |
Plate |
2-163-5 |
5 |
60153202 |
1 |
带部件蒸发器总成 |
Evaporator assembly with parts |
2-163-6 |
6 |
60153218 |
1 |
蒸发器分总成 |
Evaporator sub-assembly |
2-163-7 |
7 |
60153192 |
1 |
O型环 |
O-type ring |
2-163-8 |
8 |
60153193 |
1 |
O型环 |
O-type ring |
2-163-9 |
9 |
60153197 |
1 |
膨胀阀 |
Valve, expansion |
2-163-10 |
10 |
60153215 |
2 |
螺栓 |
Bolt |
2-163-11 |
11 |
60153203 |
1 |
隔热密封垫 |
Seal, insulation |
2-163-12 |
12 |
60153205 |
3 |
隔热密封垫 |
Seal, insulation |
2-163-13 |
13 |
60153204 |
1 |
隔热密封垫 |
Seal, insulation |
2-163-14 |
14 |
60153242 |
1 |
加热器芯分总成 |
Core SUB, heater |
2-163-15 |
15 |
60049962 |
4 |
门分总成 |
Door SUB |
2-163-16 |
16 |
60153216 |
4 |
门分总成 |
Door SUB |
2-163-17 |
17 |
60049956 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-163-18 |
18 |
60049957 |
1 |
连杆分总成 |
Rod SUB, connecting |
2-163-19 |
19 |
60049958 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-163-20 |
20 |
60049959 |
3 |
连杆分总成 |
Rod SUB, connecting |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-165-21 |
21 |
60049941 |
2 |
杆 |
Rod |
2-165-22 |
22 |
60049960 |
2 |
连杆分总成 |
Rod sub-assembly, connecting |
2-165-23 |
23 |
60049963 |
3 |
轴 |
Shaft |
2-165-24 |
24 |
60049964 |
1 |
轴 |
Shaft |
2-165-25 |
25 |
60049943 |
1 |
片 |
Plate |
2-165-26 |
26 |
60049944 |
1 |
片 |
Plate |
2-165-27 |
27 |
60049947 |
2 |
伺服电机总成 |
Motor AS, servo |
2-165-28 |
28 |
60049955 |
3 |
夹具 |
Clamp |
2-165-29 |
29 |
60033039 |
1 |
水温传感器 |
Sensor, water temperature |
2-165-30 |
30 |
60153199 |
1 |
带风扇电机总成 |
Motor As, with fan |
2-165-31 |
31 |
60049951 |
1 |
风扇叶 |
Blade, fan |
2-165-32 |
32 |
60049954 |
1 |
夹具 |
Clamp |
2-165-33 |
33 |
60049950 |
3 |
带垫圈自攻螺钉 |
Screw, tapping, with washer |
2-165-34 |
34 |
60049965 |
32 |
自攻螺钉 |
Screw, self-tapping |
2-165-35 |
35 |
60049948 |
1 |
空调机电束总成 |
Harness AS, air conditioner |
2-165-36 |
36 |
60049966 |
1 |
防结霜传感器 |
Sensor, anti-frost |
2-165-37 |
37 |
60049949 |
2 |
带垫圈螺钉 |
Screw, with washer |
2-165-38 |
38 |
60049942 |
1 |
盒分总成 |
Box, SUB |
2-165-39 |
39 |
60049953 |
1 |
隔热密封垫 |
Seal, insulation |
2-165-40 |
40 |
60049945 |
1 |
带附件伺服电机总成 |
Motor AS, servo |
