识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-277-1

1

60067381

1

右侧内装饰件(前)

Decoration, interior, right

2-277-2

2

60067382

1

右侧内装饰件(中)

Decoration, interior, right

2-277-3

3

60067380

1

右侧内装饰件(后)

Decoration, interior, right

2-277-4

4

60067994

1

顶内装饰件

Trim, top

2-277-5

5

60067995

1

后内装饰件

Decoration, rear, inner

2-277-6

6

60067996

1

左侧装饰件

Trimming, left

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

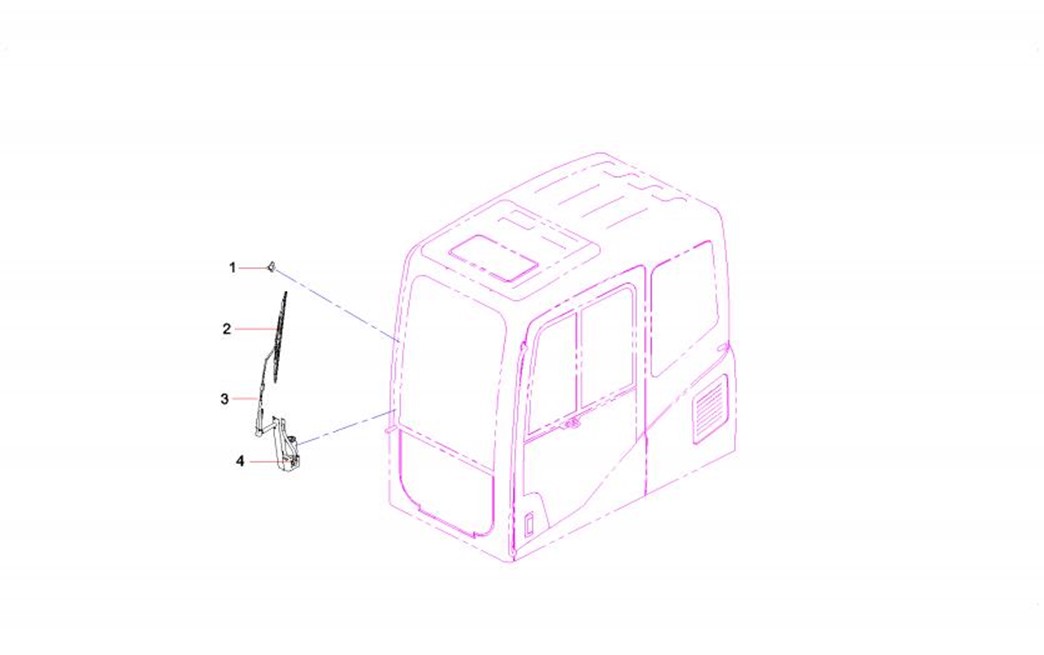

2-279-1

1

A229900004761

1

雨刮器喷嘴

Nozzle, washer

2-279-2

2

60042511

1

雨刮器刮片

Blade,wiper

2-279-3

3

60042510

1

雨刮器刮杆

Rod,wiper

2-279-4

4

A229900003761

1

刮水器总成

Wiper GP

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

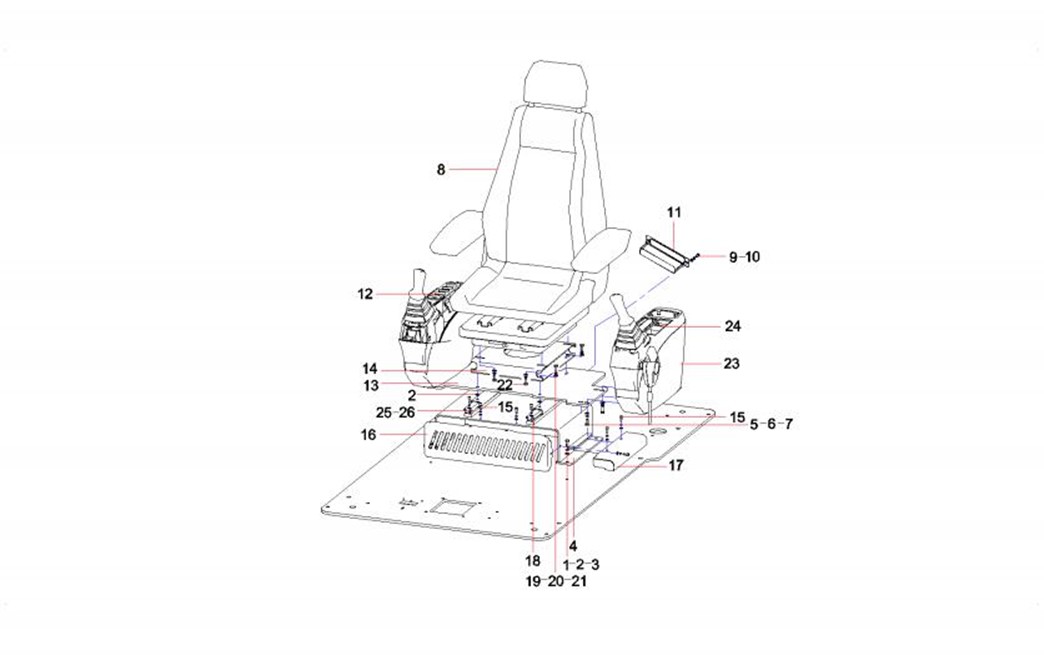

2-281-1

1

A210111000090

4

螺栓

Bolt M8×25GB5783

2-281-2

2

60060565

8

垫圈8GB96.1 达克锈

Washer

2-281-3

3

24000511

12

垫圈8GB93 达克锈

Washer

2-281-4

4

10428097

1

座椅下底座架

Bracket, lower base, seat

2-281-5

5

A210111000197

8

螺栓

Bolt M10×25GB5783 10.9

2-281-6

6

24000637

8

垫圈10GB97.1 达克锈

Washer

2-281-7

7

24000512

8

垫圈10GB93 达克锈

Washer

2-281-8

8

B229900000265

1

机械悬浮式驾驶座椅

Seat, cab, mechanical suspension

2-281-9

9

A210204000130

2

螺钉

Screw M6×16GB70.1

2-281-10

10

24000632

2

垫圈6GB97.1 达克锈

Washer

2-281-11

11

10241175

1

风道连接法兰

Flange, coupling, air duct

2-281-12

12

60204190

1

右扶手箱总成

Armrest GP, right

2-281-13

13

10115283

1

支撑平板

Plate, supporting

2-281-14

14

10115295

1

座椅上底座架

Bracket, upper base, seat

2-281-15

15

A210204000129

6

螺钉

Screw M6×12GB70.1

2-281-16

16

10140450

1

电装底座架前盖

Cover, seat bracket, front

2-281-17

17

10344193

1

外护罩

Hood, outer

2-281-18

18

60033205

1

座椅左导轨

Guide rail, seat, left

2-281-19

19

A210307000012

8

螺母

Nut M8GB6170

2-281-20

20

24000633

8

垫圈8GB97.1 达克锈

Washer

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-283-21

21

A210204000164

4

螺钉

Screw M8×30GB70.1

2-283-22

22

A210111000343

4

螺栓M8×20GB5783 10.9级

Bolt M8×20GB5783 10.9

2-283-23

23

60204189

1

扶手箱总成

Armrest AS, left

2-283-24

24

60240844

1

控制面板

Panel control

2-283-25

25

60033517

1

座椅右导轨

Guide rail, seat, right

2-283-26

26

B229900000494

1

座椅拉杆

Pull rod, seat

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

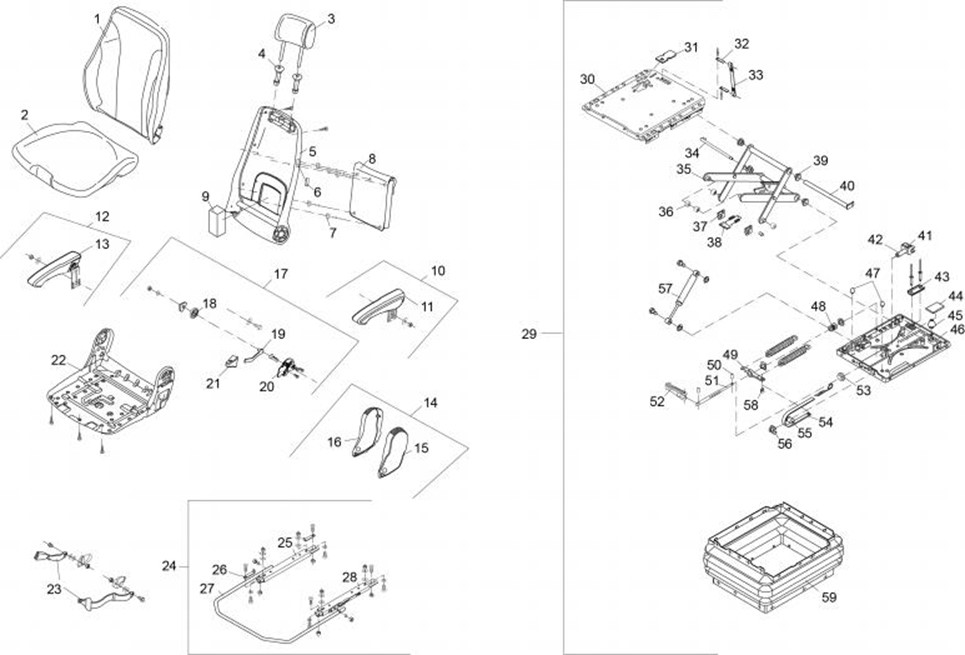

2-285-1

1

60153633

1

靠垫

Cushion, back

2-285-2

2

60153810

1

1 垫

Cushion, seat

2-285-3

3

60153648

1

头枕

Headrest

2-285-4

4

60153704

1

衬套

Bushing

2-285-5

5

60153632

1

靠背

Backrest

2-285-6

6

60153625

1

黑色盖子

Cover, black

2-285-7

7

60153669

1

套环

Ring

2-285-8

8

60153650

1

文件袋

Bag, document

2-285-9

9

60153643

1

泡沫块

Foam

2-285-10

10

60153808

1

左扶手装置

Armrest AS (LH)

2-285-11

11

60153807

1

左扶手

Armrest (LH)

2-285-12

12

60153795

1

右扶手装置

Armrest AS (RH)

2-285-13

13

60153794

1

右扶手

Armrest (RH)

2-285-14

14

60153754

1

铰链封盖装置

Cover AS, hinge

2-285-15

15

60153664

1

左封盖

Cover LH

2-285-16

16

60153653

1

右封盖

Cover RH

2-285-17

17

60153756

1

靠背角度调节装置

Adjuster, backrest angle

2-285-18

18

60153711

1

弹簧支柱

Pillar, spring

2-285-19

19

60153831

1

左杠杆

Lever, left

2-285-20

20

60153626

1

活动板

Plate, movable

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-287-21

21

60153751

1

角度调节手柄

Handle, angle adjustment

2-287-22

22

60153812

1

座椅骨架

Framework, seat

2-287-23

23

60153695

1

安全带

Seat belt

2-287-24

24

60153746

1

滑轨装置

Rail AS

2-287-25

25

60153796

1

右滑轨

Rail, right

2-287-26

26

60153752

1

角支座

Support, angle

2-287-27

27

60153651

1

限位弯杆

Bar, limit

2-287-28

28

60153809

1

左滑轨

Rail, left

2-287-29

29

60153814

1

座椅悬挂总成

Suspension AS, seat

2-287-30

30

60153811

1

座垫固定板

Plate, seat-holding

2-287-31

31

60153656

1

整齐嵌板

Panel

2-287-32

32

60153646

1

嵌板

Panel

2-287-33

33

60153696

1

安全带短带

Belt, safety, short

2-287-34

34

60153701

1

插销

Pin

2-287-35

35

60153790

1

摇臂总成

Rocker AS

2-287-36

36

60153739

1

滚筒

Roll

2-287-37

37

60153733

1

隔板

Separator

2-287-38

38

60153647

1

条板

Strip

2-287-39

39

60153822

1

套筒

Sleeve

2-287-40

40

60153700

1

插销

Pin
