SANY SY385C SY385C2M2KS EXCAVATOR parts catalog 32
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-349-41 |
41 |
A210111000089 |
5 |
螺栓 |
Bolt M8×20GB5783 |
2-349-42 |
42 |
10764847 |
1 |
板 |
Plate |
2-349-43 |
43 |
10764848 |
1 |
护套 |
Sheath |
2-349-44 |
44 |
A210111000054 |
2 |
螺栓M16×55GB5783 10.9级 |
Bolt M16×55GB5783 10.9 |
2-349-45 |
45 |
A210405000003 |
2 |
垫圈 |
Washer 16GB97.1 |
2-349-46 |
46 |
11160718 |
1 |
支架板 |
Plate, bracket |
2-349-47 |
47 |
10228832 |
3 |
衬套 |
Sleeve |
2-349-48 |
48 |
11143937 |
1 |
蒸汽胶管 |
Hose, rubber |
2-349-49 |
49 |
A210111000080 |
1 |
螺栓 |
Bolt M6×20GB5783 |
2-349-50 |
50 |
A239900000065 |
4 |
尼龙扎带 |
Strap, nylon |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

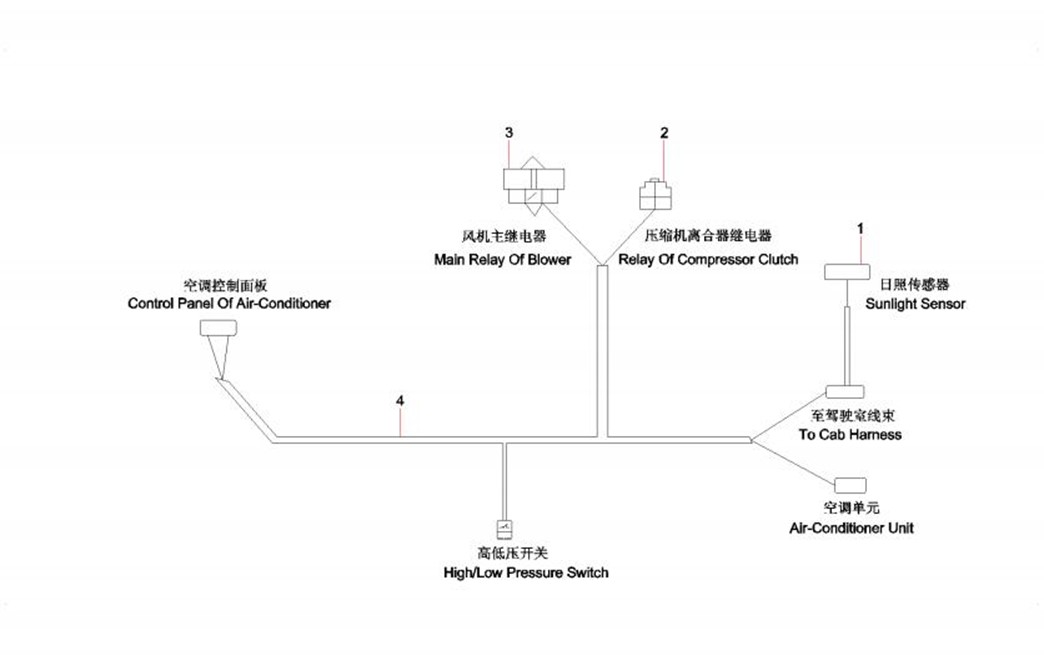

2-351-1 |
1 |
B240600000334 |
1 |
日照传感器 |
Sensor, sunlight |
2-351-2 |
2 |
B240700000473 |
1 |
继电器 |
Relay |
2-351-3 |
3 |
B240700000472 |
1 |
继电器 |
Relay |
2-351-4 |
4 |
10448933 |
1 |
空调连接线 |
Wire, connecting, air conditioner |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

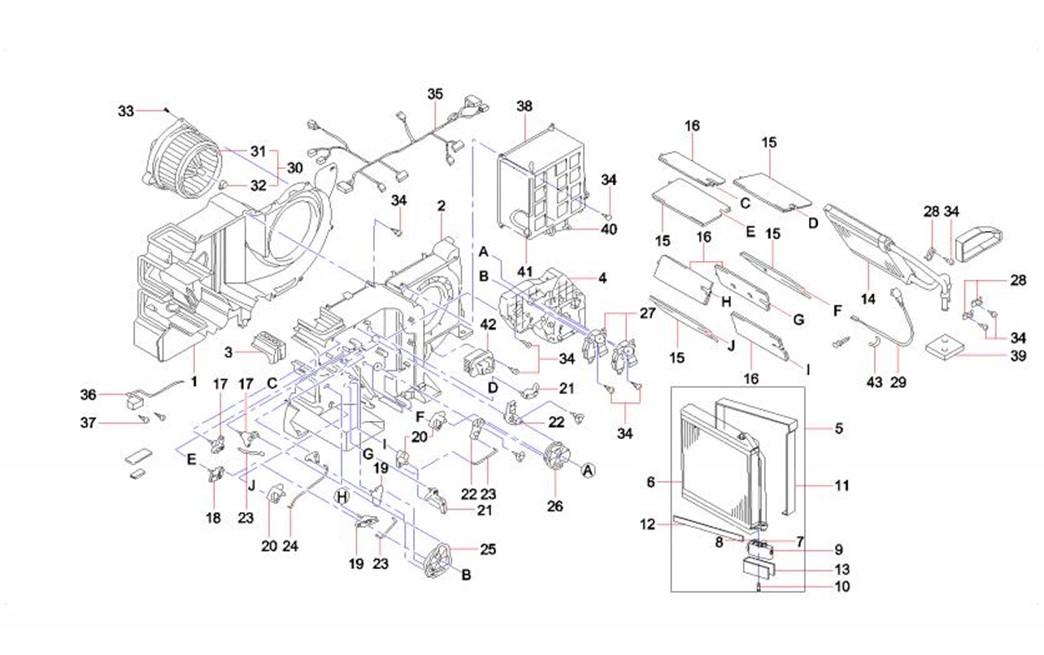

2-353-1 |
1 |
60153212 |
1 |
冷却机组外壳 |
Outer shell, cooling motor group |
2-353-2 |
2 |
60153213 |
1 |
冷却机组外壳 |
Outer shell, cooling motor group |
2-353-3 |
3 |
60153195 |
1 |
片 |
Plate |
2-353-4 |
4 |
60153196 |
1 |
片 |
Plate |
2-353-5 |
5 |
60153202 |
1 |
带部件蒸发器总成 |
Evaporator assembly with parts |
2-353-6 |
6 |
60153218 |
1 |
蒸发器分总成 |
Evaporator sub-assembly |
2-353-7 |
7 |
60153192 |
1 |
O型环 |
O-type ring |
2-353-8 |
8 |
60153193 |
1 |
O型环 |
O-type ring |
2-353-9 |
9 |
60153197 |
1 |
膨胀阀 |
Valve, expansion |
2-353-10 |
10 |
60153215 |
2 |
螺栓 |
Bolt |
2-353-11 |
11 |
60153203 |
1 |
隔热密封垫 |
Seal, insulation |
2-353-12 |
12 |
60153205 |
3 |
隔热密封垫 |
Seal, insulation |
2-353-13 |
13 |
60153204 |
1 |
隔热密封垫 |
Seal, insulation |
2-353-14 |
14 |
60153242 |
1 |
加热器芯分总成 |
Core SUB, heater |
2-353-15 |
15 |
60049962 |
4 |
门分总成 |
Door SUB |
2-353-16 |
16 |
60153216 |
4 |
门分总成 |
Door SUB |
2-353-17 |
17 |
60049956 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-353-18 |
18 |
60049957 |
1 |
连杆分总成 |
Rod SUB, connecting |
2-353-19 |
19 |
60049958 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-353-20 |
20 |
60049959 |
3 |
连杆分总成 |
Rod SUB, connecting |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-355-21 |
21 |
60049941 |
2 |
杆 |
Rod |
2-355-22 |
22 |
60049960 |
2 |
连杆分总成 |
Rod sub-assembly, connecting |
2-355-23 |
23 |
60049963 |
3 |
轴 |
Shaft |
2-355-24 |
24 |
60049964 |
1 |
轴 |
Shaft |
2-355-25 |
25 |
60049943 |
1 |
片 |
Plate |
2-355-26 |
26 |
60049944 |
1 |
片 |
Plate |
2-355-27 |
27 |
60049947 |
2 |
伺服电机总成 |
Motor AS, servo |
2-355-28 |
28 |
60049955 |
3 |
夹具 |
Clamp |
2-355-29 |
29 |
60033039 |
1 |
水温传感器 |
Sensor, water temperature |
2-355-30 |
30 |
60153199 |
1 |
带风扇电机总成 |
Motor As, with fan |
2-355-31 |
31 |
60049951 |
1 |
风扇叶 |
Blade, fan |
2-355-32 |
32 |
60049954 |
1 |
夹具 |
Clamp |
2-355-33 |
33 |
60049950 |
3 |
带垫圈自攻螺钉 |
Screw, tapping, with washer |
2-355-34 |
34 |
60049965 |
32 |
自攻螺钉 |
Screw, self-tapping |
2-355-35 |
35 |
60049948 |
1 |
空调机电束总成 |
Harness AS, air conditioner |
2-355-36 |
36 |
60049966 |
1 |
防结霜传感器 |
Sensor, anti-frost |
2-355-37 |
37 |
60049949 |
2 |
带垫圈螺钉 |
Screw, with washer |
2-355-38 |
38 |
60049942 |
1 |
盒分总成 |
Box, SUB |
2-355-39 |
39 |
60049953 |
1 |
隔热密封垫 |
Seal, insulation |
2-355-40 |
40 |
60049945 |
1 |
带附件伺服电机总成 |
Motor AS, servo |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-357-41 |
41 |
60153240 |
1 |
热敏电阻总成 |
Thermistor AS |
2-357-42 |
42 |
60049968 |
1 |
空调功率晶体管总成 |
Transistor AS, air conditioner |
2-357-43 |
43 |
60049952 |
1 |
感温包零件支架 |
Bracket, thermo-bulb parts |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

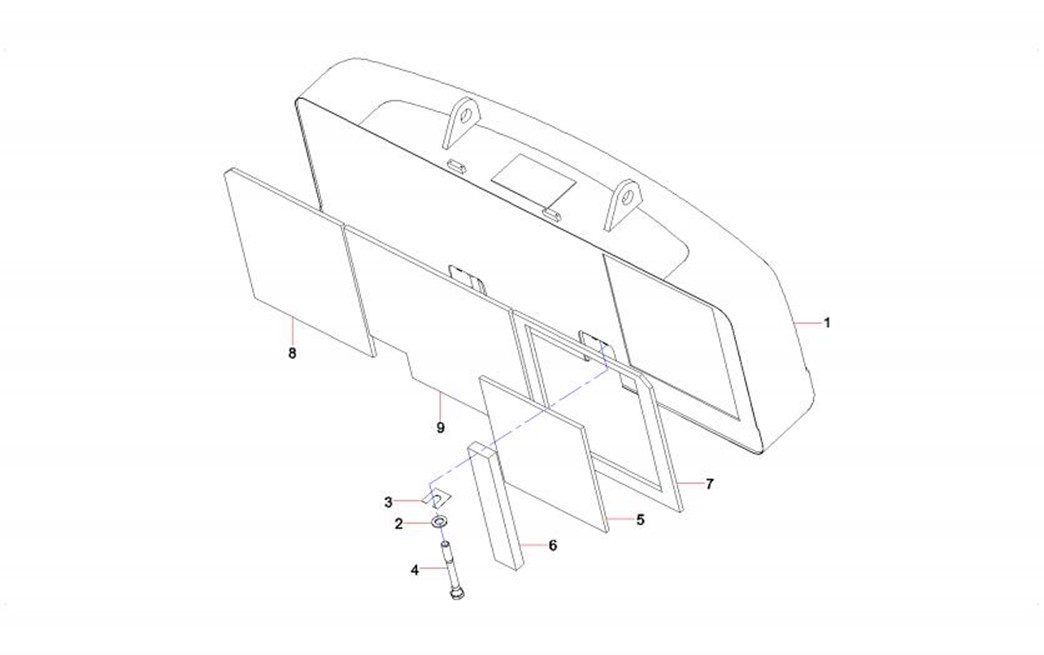

2-359-1 |
1 |
11493972 |
1 |
配重主体 |
Body, counterweight |
2-359-2 |
2 |
A820101336000 |
4 |
垫片 |
Gasket |
2-359-3 |
3 |
A820101335700 |
8 |
垫片 |
Gasket |
2-359-4 |
4 |
10764952 |
4 |
配重螺栓 |
Bolt, counterweight |
2-359-5 |
5 |
11169687 |
1 |
槽海绵 |
Sponge, groove |
2-359-6 |
6 |
11169688 |
1 |
隔风海绵 |
Sponge, wind guard |
2-359-7 |
7 |
11169689 |
1 |
左部海绵 |
Sponge, left |
2-359-8 |
8 |
11169690 |
1 |
右部海绵 |
Sponge, right |
2-359-9 |
9 |
11169691 |
1 |
中部海绵 |
Sponge, middle |
