SANY SR250 WITH SY420R UNDERCARRIAGE ROTARY DRILLING RIG parts catalog 06
主横梁MAIN CROSSBEAM
|
序号 NO. |
代码 CODE |
图号 DRAWING NO. |
名称 NAME |
数量 QTY |
|
1 |
A810502014135 |
——— |
横梁 (CROSSBEAM) |
1 |
|
2 |
A210111000038 |
——— |
螺栓 M12×30GB5783 (BOLT) |
6 |
|
3 |
A210405000001 |
——— |
垫圈 12GB97.1-02 (WASHER) |
6 |
|
4 |
A810502014134 |
——— |
横梁 (CROSSBEAM) |
1 |
|
5 |
A810502015308 |
——— |
横梁 (CROSSBEAM) |
1 |
|
6 |
A810502015307 |
——— |
横梁 (CROSSBEAM) |
1 |

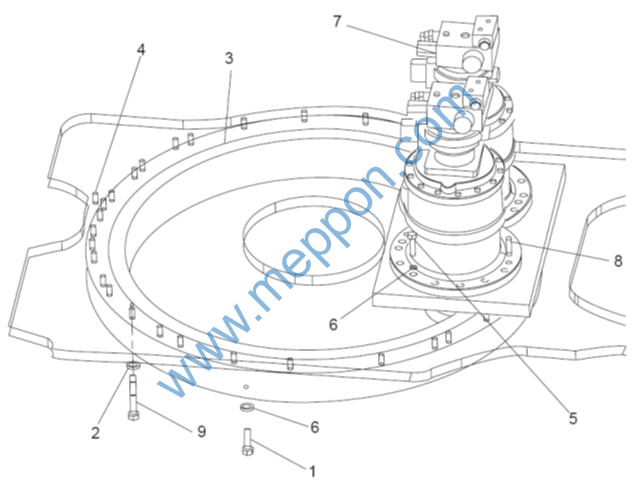

回转机构 SWING MECHANISM
回转机构 SWING MECHANISM
|
序号 NO. |
代码 CODE |
图号 DRAWING NO. |
名称 NAME |
数量 QTY |
|
1 |
A210111000321 |
——— |
螺栓 (BOLT) |
40 |
|
2 |
A210491000122 |
——— |
垫圈 (WASHER) |
75 |
|
3 |
B229900002356 |
——— |
回转支承 (SWING BEARING) |
1 |
|
4 |
A820301016458 |
——— |
定位销 (LOCATING PIN) |
2 |
|
5 |
A210111000222 |
——— |
螺栓 (BOLT) |
22 |
|
6 |
A210491000132 |
——— |
垫圈 (WASHER) |
22 |
|
7 |
B220501000246 |
——— |
回转马达 (SWING MOTOR) |
2 |
|
8 |
A820301016459 |
——— |
定位销 (LOCATING PIN) |
2 |
|
9 |
A210110000302 |
——— |
螺栓 (BOLT) |
35 |

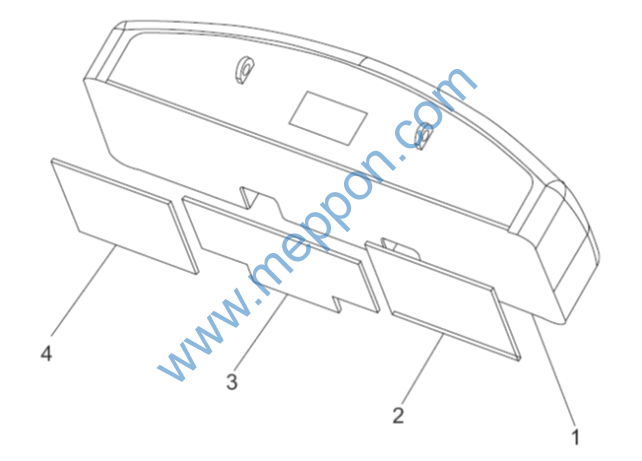

配重总成 COUNTERWEIGHT GP
配重总成 COUNTERWEIGHT GP
|
序号 NO. |
代码 CODE |
图号 DRAWING NO. |
名称 NAME |
数量 QTY |
|
1 |
A810501000170 |
——— |
配重 (COUNTERWEIGHT) |
1 |
|
2 |
A820699000704 |
——— |
左部海绵 (LEFT SPONGE) |
1 |
|
3 |
A820699001152 |
——— |
中部海绵 (MIDDLE SPONGE) |
1 |
|
4 |
A820699000706 |
——— |
右部海绵 (RIGHT SPONGE) |
1 |

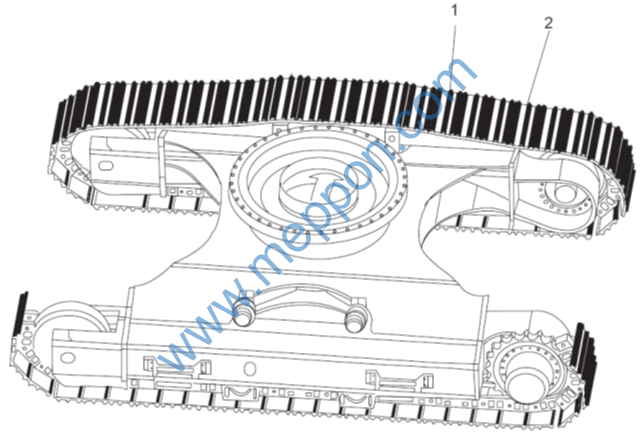

行走装置 TRAVEL MECHANISM
行走装置 TRAVEL EQUIPMENT
|
序号 NO. |
代码 CODE |
图号 DRAWING NO. |
名称 NAME |
数量 QTY |
|
1 |
A810401011453 |
——— |
行走架 (TRAVEL FRAME) |
1 |
|
2 |
B229900002251 |
——— |
履带总成 (CRAWLER GP) |
2 |

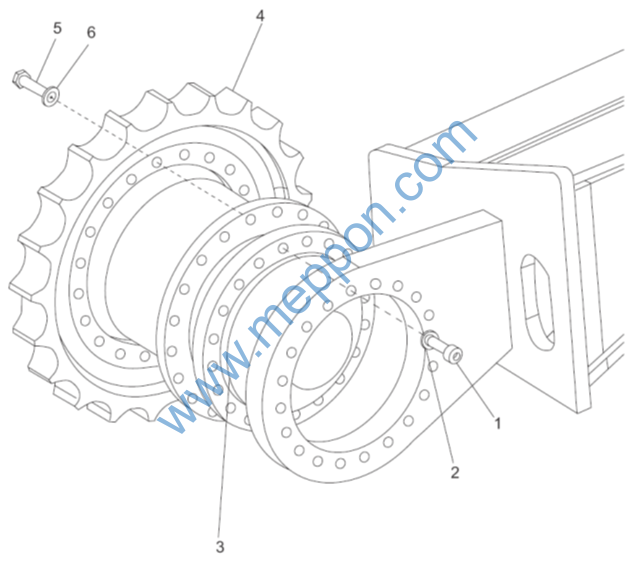

行走马达 TRAVEL MOTOR
行走马达 TRAVEL MOTOR
|
序号 NO. |
代码 CODE |
图号 DRAWING NO. |
名称 NAME |
数量 QTY |
|
1 |
A210110000427 |
——— |
螺栓 (BOLT) |
40 |
|
2 |
A210491000122 |
——— |
垫圈 (WASHER) |
40 |
|
3 |
B220501000235 |
——— |
行走马达 (TRAVEL MOTOR) |
2 |
|
4 |
A820403000744 |
——— |
驱动轮 (DRIVE WHEEL) |
2 |
|
5 |
A210111000222 |
——— |
螺栓 (BOLT) |
56 |
|
6 |
A210491000132 |
——— |
垫圈 (WASHER) |
56 |

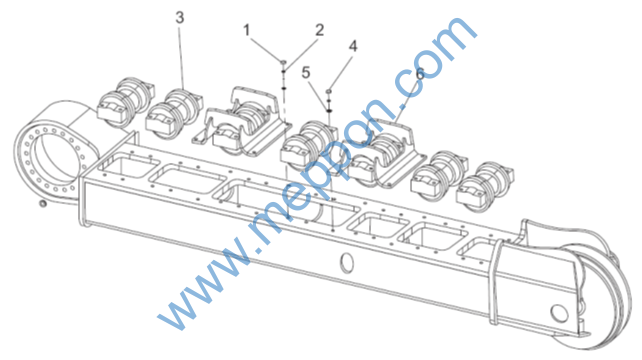

支重轮 SUPPORTING WHEEL
支重轮 SUPPORTING WHEEL
|
序号 NO. |
代码 CODE |
图号 DRAWING NO. |
名称 NAME |
数量 QTY |
|
1 |
A210111000200 |
——— |
螺栓 (BOLT) |
16 |
|
2 |
A210491000122 |
——— |
垫圈 (WASHER) |
16 |
|
3 |
B229900001984 |
——— |
支重轮总成 (SUPPORTING WHEEL GP) |
14 |
|
4 |
A210110000434 |
——— |
螺栓 (BOLT) |
56 |
|
5 |
A210444400002 |
——— |
垫圈 (WASHER) |
56 |
|
6 |
A810401019076 |
——— |
履带护板 (CRAWLER GUARD BOARD) |
4 |

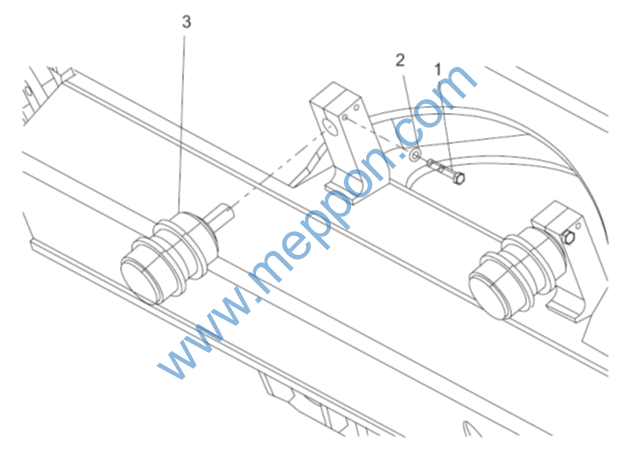

托链轮 CHAIN WHEEL
托链轮 CHAIN WHEEL
|
序号 NO. |
代码 CODE |
图号 DRAWING NO. |
名称 NAME |
数量 QTY |
|
1 |
B229900001985 |
——— |
拖链轮总成 (CHAIN WHEEL GP) |
4 |
|
2 |
A210110000304 |
——— |
螺栓 (BOLT) |
8 |
|
3 |
A210491000132 |
——— |
垫圈 (WASHER) |
8 |

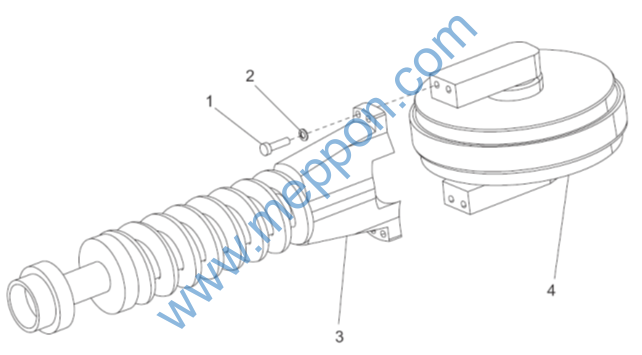

张紧装置 TENSIONER
张紧装置 TENSIONER
|
序号 NO. |
代码 CODE |
图号 DRAWING NO. |
名称 NAME |
数量 QTY |
|
1 |
A210111000321 |
——— |
螺栓 (BOLT) |
8 |
|
2 |
A210491000122 |
——— |
垫圈 (WASHER) |
8 |
|
3 |
B229900001983 |
——— |
张紧装置 (TENSIONER) |
2 |
|
4 |
B229900001982 |
——— |
引导轮总成 (PILOT WHEEL GP) |
2 |
