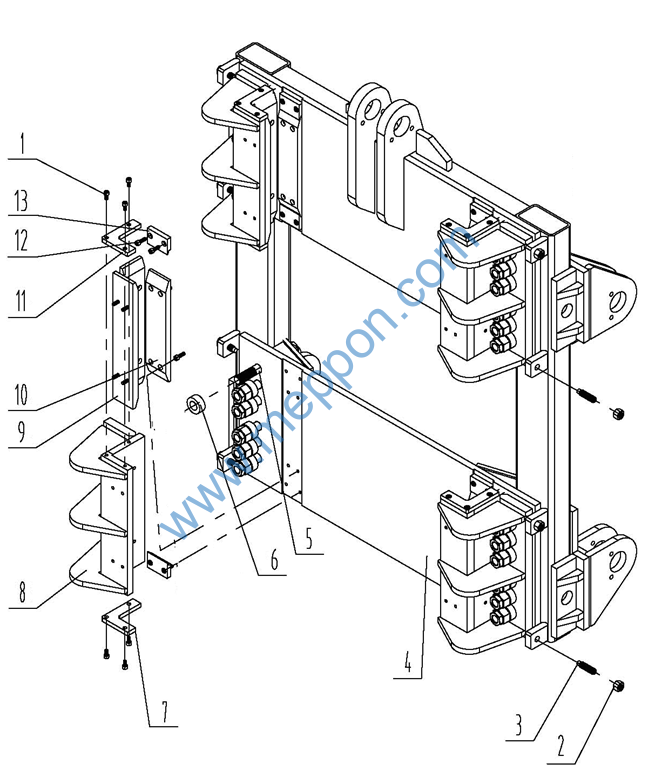

序号

NO.

代码

CODE

图号

DRAWING NO.

名称

NAME

数量

QTY

1

A210204000146

―――

螺钉M8×16 (BOLT-SOCKET HEAD)

24

2

A210307000040

―――

螺母M16 (NUT)

8

3

A210208000011

―――

螺钉M16×60 (BOLT)

8

4

10055360

SR220C.5A.3.1.1

滑架 (SLIDE FRAME)

1

5

A210113000051

―――

螺栓M24×100 (BOLT)

24

6

10055359

SR220C.5.3A.1-1

厚垫圈 (THICK WASHER)

24

7

10004555

SR220C.5.3.1-06

左挡板 (LEFT CHECK PLATE)

4

8

10004549

SR220C.5.3.1.3

压板 (HOLD PLATE-WELD)

4

9

10004554

SR220C.5.3.1-01

长滑板 (LONG SLIDE-BLOCK)

8

10

10004558

SR220C.5.3.1-09

短滑板 (SHORT SLIDE-BLOCK)

4

11

10004556

SR220C.5.3.1-07

右挡板 (RIGHT CHECK PLATE)

4

12

23002290

―――

螺钉M8×25 (BOLT-SOCKET HEAD)

64

13

10004557

SR220C.5.3.1-08

滑块压板 (HOLD PLATE OF SLIDE BLOCK)

8

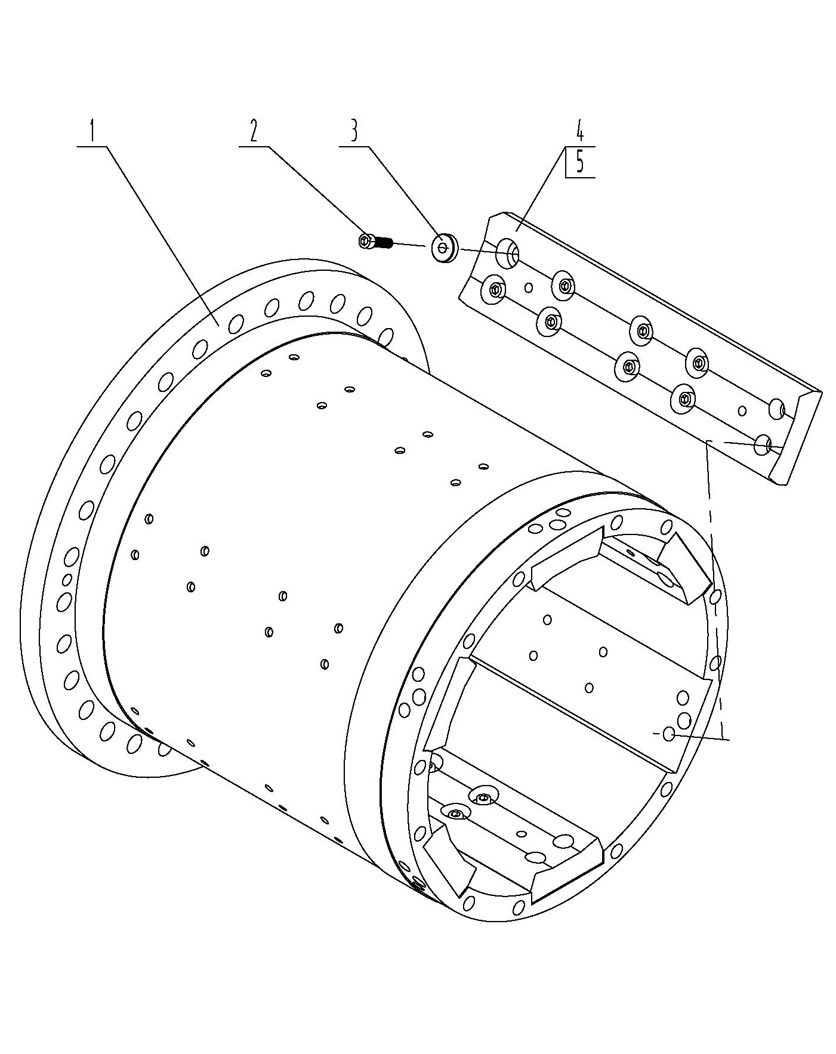

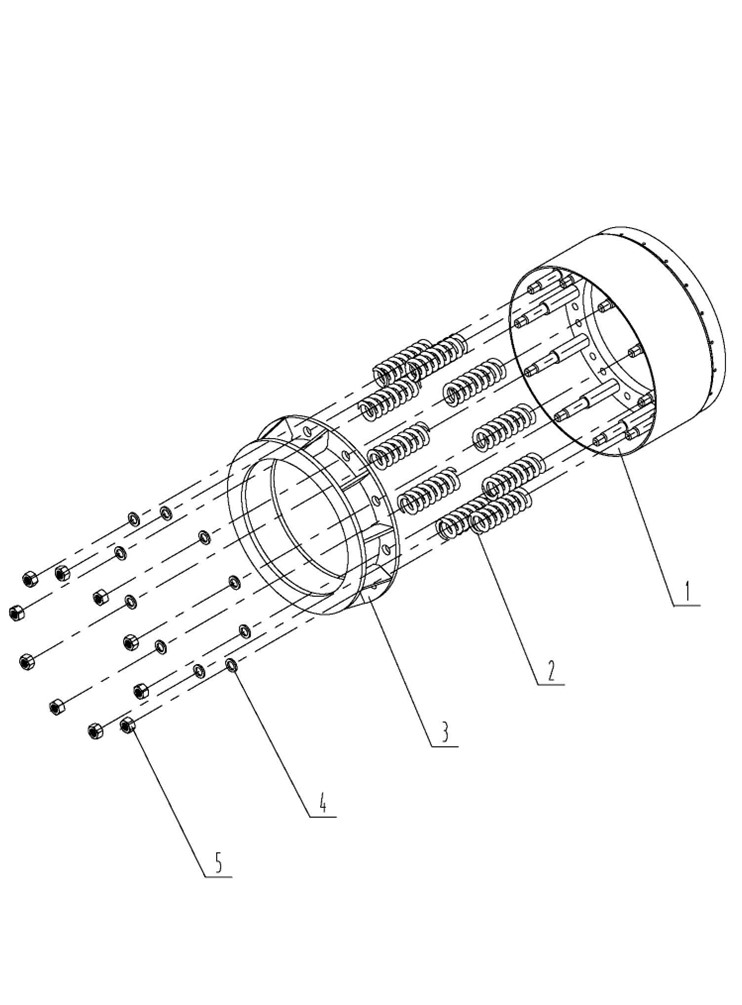

序号

NO.

代码

CODE

图号

DRAWING NO.

名称

NAME

数量

QTY

1

10073399

SR220C.5.3A.2.2

筒焊合 (CARTRIDGE WELD)

1

2

10004590

SR220C.5.3.2-02

弹簧 (SPRING)

10

3

10073394

SR220C.5.3A.2.1

缓冲压板焊合 (BUFFER PLATE)

1

4

10004589

SR220C.5.3.2-01

垫片 (WASHER)

10

5

A210301000011

―――

螺母M30 (NUT)

10

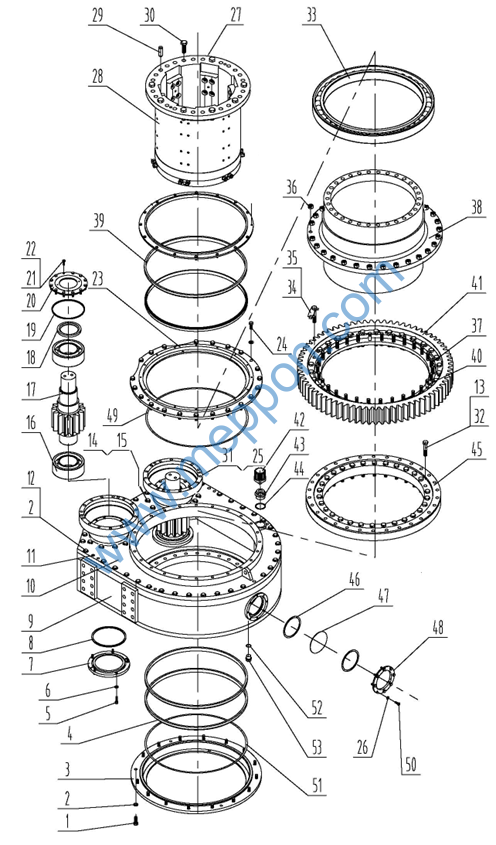

序号

代码

CODE

图号

DRAWING NO.

名称

NAME

数量

QTY

1

A210114000052

―――

螺栓M16×50 (BOLT)

16

2

A210401000004

―――

垫圈16 (SPRING WASHER)

96

3

10004649

SR220C.5.3.5B-05

输出轴下盖

(LOWER GLAND OF EXPORT SHAFT)

1

4

23000023

―――

油封670×720×25 (OIL SEAL)

3

5

A210110000164

―――

螺栓M12×40 (BOLT)

10

6

A210401000002

―――

垫圈12 (WASHER)

10

7

10004614

SR220C.5.3.5-12

输入轴下盖

(LOWER GLAND OF INPUT SHAFT)

2

8

A210609000028

―――

O形密封圈212×7 (SEAL-O-RING)

2

9

10055385

SR220C.5.3A.5.1

箱体 (BOX BODY)

1

10

10181721

SR220C.5.3A.5.3A

箱盖 (BOX COVER)

1

11

23000079

―――

销20×50 (PIN)

3

12

A210111000281

―――

螺栓M16×60 (BOLT)

24

13

24002832

―――

防松串接铁丝Ф2.5 (STEEL LOCK WIRE)

16m

14

A210307000040

―――

螺母M16 (NUT)

30

15

24003117

―――

螺钉M16×60 (SCREW)

30

16

23000017

―――

轴承120×215×76 (BEARING)

4

17

23904602

SR250.5.3.5-01

输入轴 (INPUT SHAFT)

2

18

A210609000112

―――

O形密封圈212×5.3 (SEAL-O-RING)

2

19

23000190

―――

油封120×160×14 (OIL SEAL)

2

20

10179514

SR220C.5.3A.5-9

输入轴上盖

(UPPER GLAND OF INPUT SHAFT)

2

21

A210102000001

―――

螺栓M10×30 (BOLT)

24

22

23000100

―――

防松串接铁丝Ф2 (STEEL LOCK WIRE)

4m

23

10073858

SR220C.5.3A.5-6

输出轴上盖

(UPPER GLAND OF EXPORT SHAFT)

1

24

A210111000112

―――

螺栓M16×40 (BOLT)

22

25

A230101000586

―――

O形圈265×3.55

2

26

A210401000017

―――

垫圈8 (SPRING WASHER)

6

27

10073916

SR220C.5.3A.5.2

键套 (KEY SHEATH)

16

28

10220976

SR220C.5.3A.5.4A

键套 (KEY SHEATH)

1

29

23000080

―――

圆柱销25×70 (PIN)

3

30

A210114000027

―――

螺栓M24×70 (BOLT)

17

31

10179739

SR250.5.3A.5.5

减速机座 (PEDESTAL OF GEARBOX)

2

32

23904828

―――

螺栓M20×100 (BOLT)

30

33

23000004

―――

轴承670×820×69 (BEARING)

1

34

A210110000233

―――

螺栓M20×110 (BOLT)

30

35

10004613

SR220C.5.3.5-10

齿轮防松垫片 (GEAR CHECK PLATE)

15

36

23000027

―――

防松螺母M20 (NUT)

30

37

A210110000202

―――

螺栓M20×80 (BOLT)

27

38

10237004

SR220C.5.3A.5.6

套筒 (SLEEVE)

1

39

10009655

SR220C.5.3.5B-11A

防尘圈 (DUSTPROOF RING)

1

40

10004648

SR220C.5.3.5B-04

锥销 (PIN)

3

41

10004616

SR220C.5.3.5A-02

从动齿轮 (DRIVEN GEAR)

1

42

A222100000180

―――

预压式空气滤清器3/4＂

(PRE-PRESS AIR CLEANER 3/4＂)

1

43

10004615

SR220C.5.3.5-13

加油口螺塞 (OIL FILLING PLUG)

1

44

23000238

―――

密封垫圈60 (JOINT WASHER)

1

45

23000294

―――

回转支撑 (SWING BEARING)

1

46

10004655

SR220C.5.3.5B-17

油标密封垫 (OIL LEVEL JOINT WASHER)

1

47

10004654

SR220C.5.3.5B-16

油标玻璃 (OIL LEVEL GLASS)

1

48

10004653

SR220C.5.3.5B-15

油标盖 (OIL LEVEL GLAND)

1

49

23002835

―――

O形密封圈805×5.33 (SEAL-O-RING)

1

50

A210111000089

―――

螺栓M8×20 (BOLT)

6

51

23002834

―――

O形密封圈742×7 (SEAL-O-RING)

1

52

A210441000003

―――

密封垫圈22 (JOINT WASHER)

1

53

A210332000003

―――

外六角螺塞M22×1.5 (HEXAGONAL PLUG)

1
