860111712 CONNECTING ROND

860506863 PISTON AND CONNECTING ROD GROUP

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860124340    1    COPPER SLEEVE

2 860153278    1    CONNECTING ROD BODY

3 860112014    1    CONNECTING ROD CAP

4 860147074    2    CONNECTING SCREW

860167783 CYLINDER HEAD SUBASSEMBLY

9

12

10

8

7    11

6

1

5    3    2

4

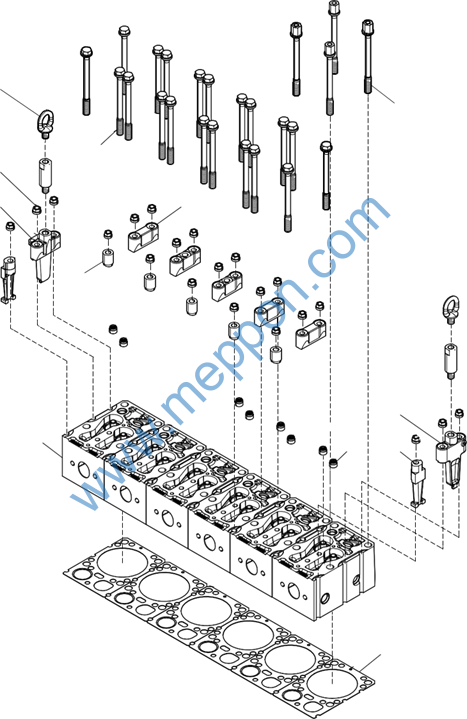

860167783 CYLINDER HEAD SUBASSEMBLY

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860131344    1    RING CLAMP BLOCK

2 860131548    2    BLOCK

3 860111997    12 VALVE STEM SEALING SLEEVE

4 860162683    6    CYLINDER HEAD SHIM

5 860123946    6    CYLINDER HEAD SUBASSEMBLY    170

6 860131547    5    BLOCK

7 860131345    1    RING CLAMP BLOCK

8 860113054    21 NUT

9 860131347    2    LIFTING EYE BOLT

10 860125043    20 MAIN BOLT

11 860131549    3    BLOCK

12 860131900    4    MAIN BOLT

860123946 CYLINDER HEAD SUBASSEMBLY

10

1

9    2

8

7    3

6

5

4

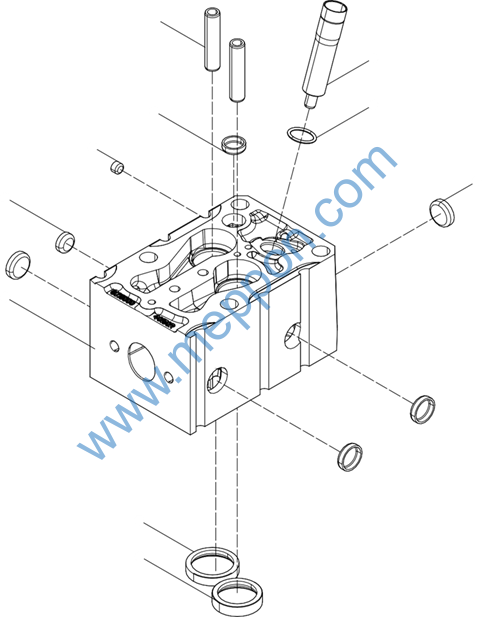

860123946 CYLINDER HEAD SUBASSEMBLY

860167783 CYLINDER HEAD SUBASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860125047    1    INJECTOR BUSHING

2 860131468    1    RUBBER SEALING O-RING

3 860113217    4    CUP PLUG

4 860125230    1    EXHAUST VALVE GUIDE

5 860125232    1    EXHAUST VALVE SEAT

6 860167786    1    COVER

7 860113216    1    CUP PLUG

8 860113215    1    CUP PLUG

9 860123378    1    CUP PLUG

10 860111986    2    VALVE GUIDE PIPE

860167856 CYLINDER HEAD COVER GROUP

1

5

2

3

4

860167856 CYLINDER HEAD COVER GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860167787    1    BRACKET CUSION

2 860118711    1    WASHER

3 860112012    1    CYLINDER HEAD COVER

4 860154703    1    CYLINDER HEAD COVER SHIM

5 860505199    1    HEXAGON FLANGE BOLT

860167855 VALVE TRAIN GROUP

25    1

24

23

22

21

20    2

19    18

17    3

16

15    4

14

13

5

12

11

10    6

7

8

9

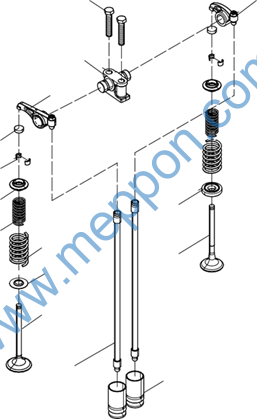

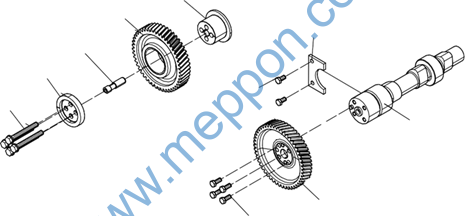

860167855 VALVE TRAIN GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860123944    6    EXHAUST ROCKER ARM SET    176

2 860111923    6    EXHAUST VALVE SPRING BOTTOM RETAINER

3 860125229    6    VALVE

4 860111924    12 VALVE TAPPET

5 860132122    1    CAMSHAFT THRUST PLATE

6 860131729    2    HEXAGON BOLT

7 860111990    1    CAMSHAFT ASSY    178

8 860111878    1    CAMSHAFT TIMING GEAR

9 860131705    4    HEXAGON BOLT

10 860131720    4    HEXAGON BOLT

11 860131337    1    NYLON BASE

12 860132315    1    IDLER GEAR SHAFT

13 860111884    1    IDLER GEAR ASSEMBLY

14 860132302    1    IDLER GEAR SHAFT

15 860123945    12 PUSHING BAR

16 860125231    6    INTAKE VALVE

17 860111873    6    INTAKE VALVE SPRING BOTTOM RETAINER

18 860111971    12 OUTER VALVE SPRING

19 860111972    12 VALVE INNER SPRING

20 860131915    12 VALVE SPRING UPPER SEAT

21 860125277    24 VALVE COLLET

22 860111993    12 VALVE CAP

23 860123943    6    INTAKE ROCKER ARM ASSY    180

24 860111885    6    ROCKER ARM BRACKET ASSEMBLY

25 860131743    12 HEXAGON BOLT

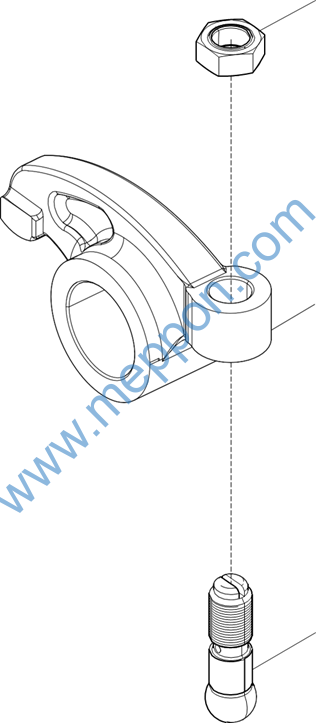

860123944 EXHAUST ROCKER ARM SET

1

2

3
