860500833 ENGINE OIL COOLER COVER GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860157755    16 HEXAGON FLANGE NUT

2 860118711    5    WASHER

3 860132290    1    BRACKET CUSION

4 860131388    1    DRAIN VALVE ASSEMBLY

5 860157703    5    HEXAGON FLANGE BOLT

6 860571637    2    HEXAGON FLANGE BOLT

7 860131520    1    ENGINE OIL COOLER COVER

8 860139927    1    ENGINE OIL COOLER COVER SHIM

9 860131796    4    INNER-HEXAGON SCREW

10 860117817    1    ENGINE OIL COOLER

11 860113220    2    OIL COOLER CORE GASKET

860500834 ENGINE OIL FILTER ASSY

1

2    4

8    3

7

6

5

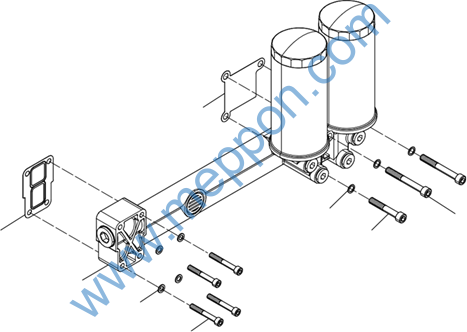

860500834 ENGINE OIL FILTER ASSY

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860569243    1    SPACER

2 860118534    3    WASHER

3 860571635    1    INNER-HEXAGON SCREW

4 860571636    2    INNER-HEXAGON SCREW

5 860137520    4    INNER-HEXAGON SCREW

6 860118711    4    WASHER

7 860153311    1    FILTER    202

8 860131535    1    OIL FILTER SEAT GASKET

860153311 FILTER

4

3    5

6

2

1

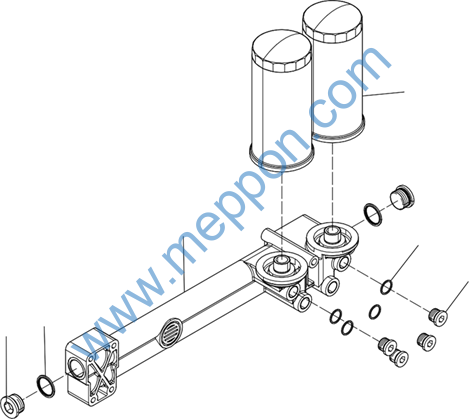

860153311 FILTER

860500834 ENGINE OIL FILTER ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860131788    2    HEXAGON SOCKET HEAD PLUG

2 860131435    2    GASKET

3 860153312    1    ENGINE OIL FILTER SEAT ASSY

4 860133763    2    FILTER

5 860153313    4    SEAL WASHER

6 860153314    4    HEXAGON SOCKET HEAD PLUG

860167847 OIL FILLING TUBE GROUP

1

2

860167847 OIL FILLING TUBE GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860157641    4    HEXAGON FLANGE BOLT

2 860167789    1    OIL FILLING TUBE ASSY

860507353 OIL-GAS SEPARATOR GROUP

10

11 12    1

23

4

9

8

7    5

6

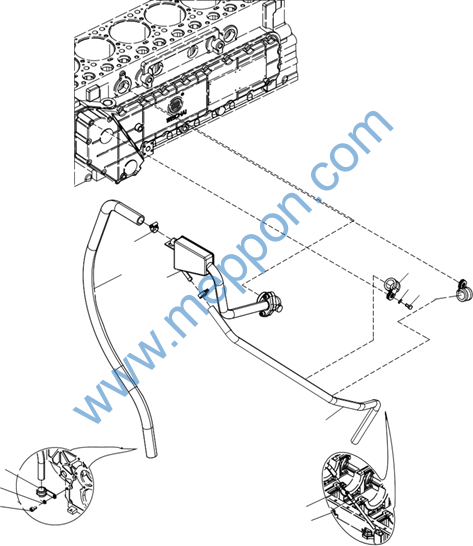

860507353 OIL-GAS SEPARATOR GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860137917    2    CLAMP ASSEMBLY

2 860118711    1    WASHER

3 860131730    1    HEXAGON BOLT

4 860126535    1    RUBBER

5 860132007    2    HOSE CLAMP13-16

6 860131473    1    RETURN OIL CONNECTOR

7 860131800    1    INNER-HEXAGON SCREW

8 860118534    1    WASHER

9 860131290    1    CLAMP ASSEMBLY

10 860132009    1    HOSE CLAMP19-29

11 860132232    1    OIL FILTER MOUNTING PLATE

12 860139399    1    SEPARATOR    208

860139399 SEPARATOR

1

3    2

4

5

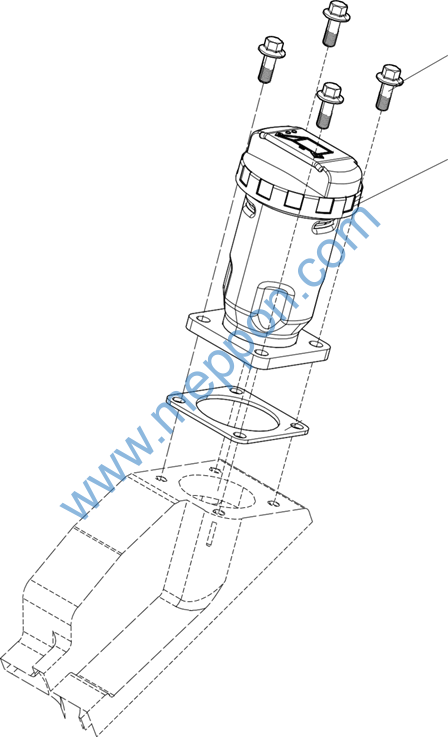

860139399 SEPARATOR

860507353 OIL-GAS SEPARATOR GROUP

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860111934    1    VENTILATION PIPE BENDING

2 860131341    1    NYLON BASE

3 860144991    1    SEPARATOR

4 860118711    2    WASHER

5 860131797    2    INNER-HEXAGON SCREW
