XCMG LW550FN WHEEL LOADER PARTS MANUAL 20
|

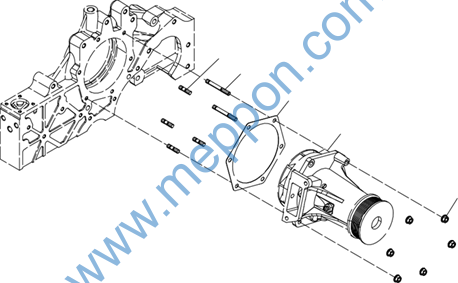

860167791 WATER PUMP GROUP |
|
3 4
5 |
|
860167791 WATER PUMP GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860132051 4 SCREW NOT |
|
2 860132054 2 SCREW NOT |
|
3 860125291 1 WATER PUMP SEALING GASKET |
|
4 860121366 1 PUMP |
|
5 860137235 6 HEXAGON FLANGE LOCKING NUT |
|

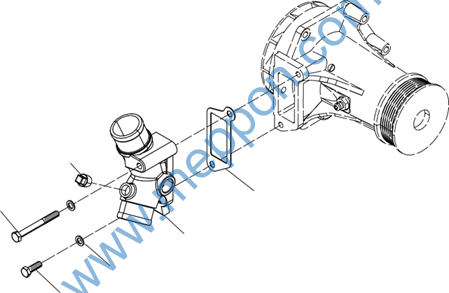

860167792 WATER PIPE CONNECTOR GROUP |
|
5 1 2 3 4 |
|
860167792 WATER PIPE CONNECTOR GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860164336 1 SPACER |
|
2 860132089 1 CONNECTION |
|
3 860118711 2 WASHER |
|
4 860131731 1 HEXAGON BOLT |
|
5 860131724 1 HEXAGON BOLT |
|
6 860153320 1 SQUARE TAPER SCREW PLUG |
|

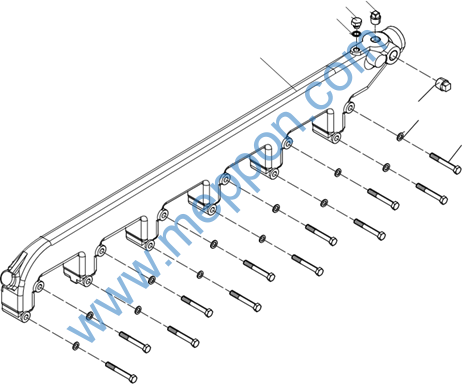

860167793 WATER OUTLET PIPE GROUP |
|
2 3 4
7 6 5 |
|
860167793 WATER OUTLET PIPE GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860126536 1 DISCHARGING TUBE |
|
2 860157676 1 WASHER |
|
3 860131692 1 HEX SCREW PLUG |
|
4 860153320 1 SQUARE TAPER SCREW PLUG |
|
5 860131723 12 HEXAGON BOLT |
|
6 860118711 12 WASHER |
|
7 860153326 1 SQUARE TAPER SCREW PLUG |
|

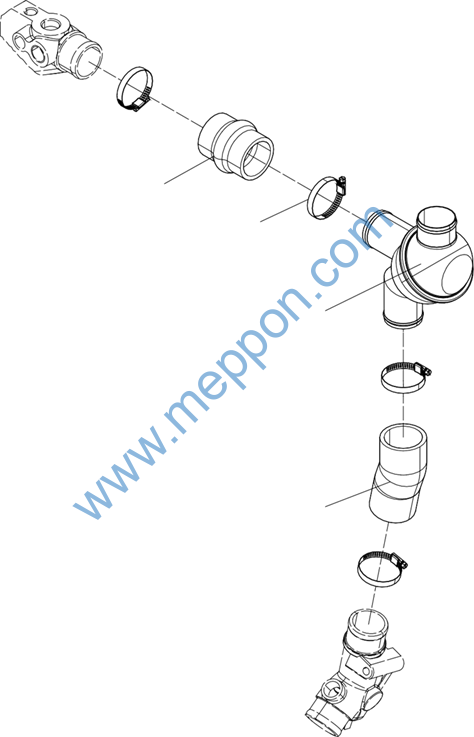

860507354 THERMOSTAT GROUP |
|
2
3
4 |
|
860507354 THERMOSTAT GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860125042 1 COOLANT CONNECTION HOSE |
|
2 860148108 4 HOOP |
|
3 860117593 1 THERMOSTAT |
|
4 860126537 1 COOLANT CONNECTION HOSE |
|

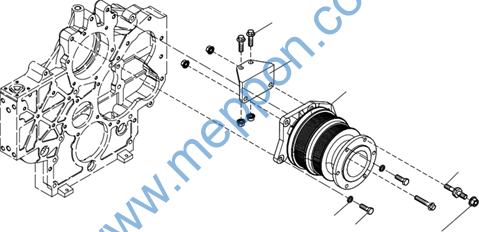

860167794 FAN BRACKET GROUP |
|
2 3
4
7 6 5 |
|
860167794 FAN BRACKET GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860153419 2 HEX BOLT |
|
2 860132294 1 BRACKET |
|
3 860131432 1 FAN BRACKET ASSEMBLY |
|
4 860137117 1 SLEEVE,SCREW,&NUT SUB-ASSY METRIC |
|
5 860569508 1 HEXAGON FLANGE LOCKING NUT |
|
6 860118687 2 HEXAGON BOLT |
|
7 860118534 2 WASHER |
|

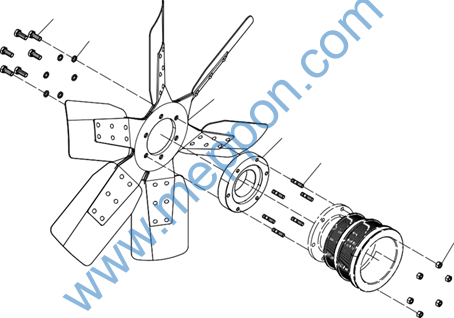

860167795 FAN AND HUB GROUP |
|
2
3 4 5
6 |
