860167803 CUMMINS FILTRATION

1

2

860167803 CUMMINS FILTRATION

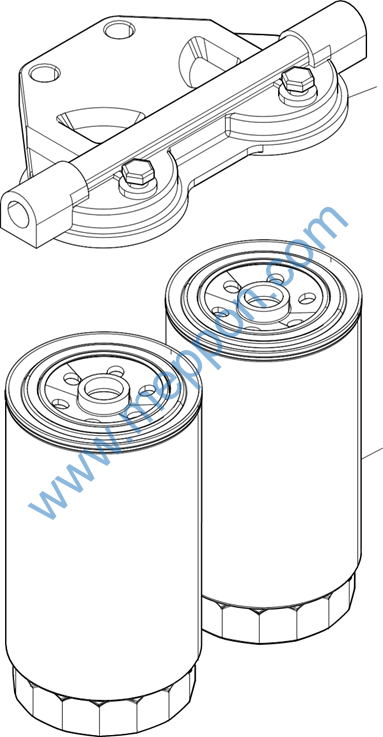

860167801 FUEL FILTER GROUP

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860148105    1    COVER

2 860133745    2    FUEL FINE FILTER ELEMENT

860167810 HIGH PRESSURE FUEL PIPE GROUP

1

860167810 HIGH PRESSURE FUEL PIPE GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860122468    1    HIGH PRESSURE OIL PIPE ASSEMBLY    236

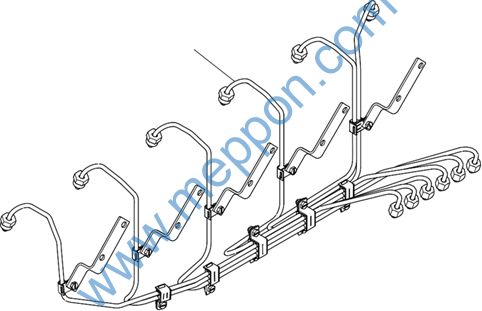

860122468 HIGH PRESSURE OIL PIPE ASSEMBLY

6

5

4    7

3

2

1

860122468 HIGH PRESSURE OIL PIPE ASSEMBLY

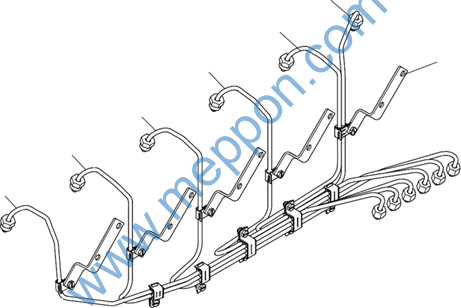

860167810 HIGH PRESSURE FUEL PIPE GROUP

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860167804    1    HIGH PRESSURE PIPE ASSY(CYLINDER 6)

2 860167805    1    HIGH PRESSURE PIPE ASSY(CYLINDER 5)

3 860167806    1    HIGH PRESSURE PIPE ASSY(CYLINDER 4)

4 860167807    1    HIGH PRESSURE PIPE ASSY(CYLINDER 3)

5 860167808    1    HIGH PRESSURE PIPE ASSY(CYLINDER 2)

6 860167809    1    HIGH PRESSURE PIPE ASSY(CYLINDER 1)

7 860118548    4    BASEPLATE

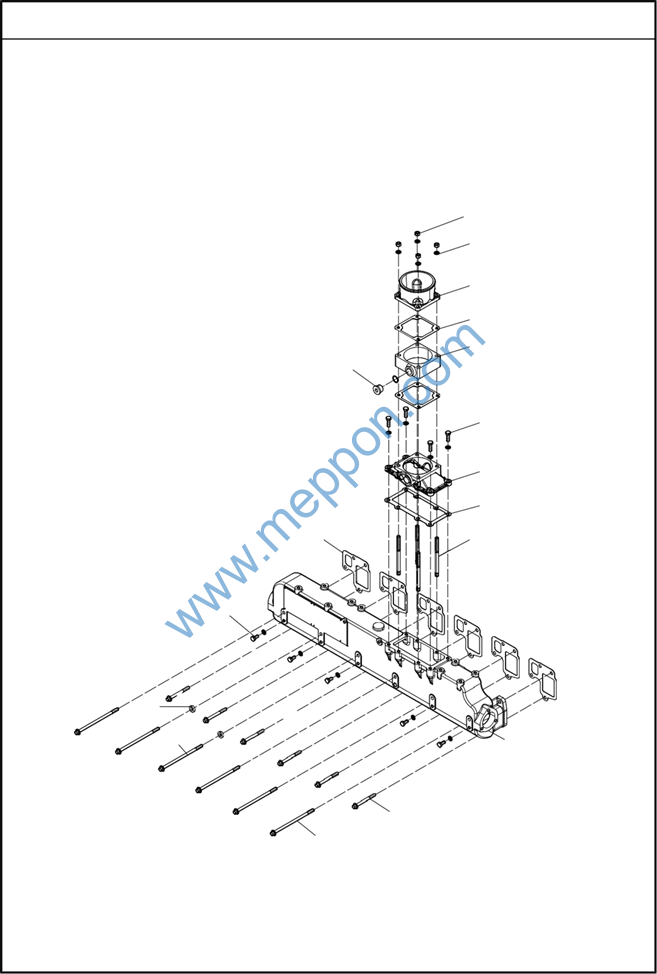

860507360 INTAKE MANIFOLD GROUP

800157618 ENGINE

No.

PART NUMBER

QTY

NAME

NOTE

PAGE

1

860118696

4

NUT

2

860118711

13

WASHER

3

860507361

1

INTAKE CONNECTING PIPE

4

860131335

2

NYLON BASE

5

860507362

1

TUBE

6

860131731

4

HEXAGON BOLT

7

860149135

1

INTAKE CONNECTING PIPE

8

860139938

1

SPACER

9

860149138

4

SCREW

10

860507363

1

INTAKE PIPE ASSEMBLY

11

860139871

6

HEXAGON FLANGE BOLT

12

860144661

4

HEXAGON FLANGE BOLT

13

860507364

2

HEXAGON FLANGE BOLT

14

860118709

5

HEXAGON BOLT

15

860159385

6

INTAKE PIPE SHIM

16

860131697

1

HEXAGON HEAD SCREW PLUG

17

860131349

2

ADJUSTING WASHER

860507365 TURBOCHARGER GROUP

1

2

3

4

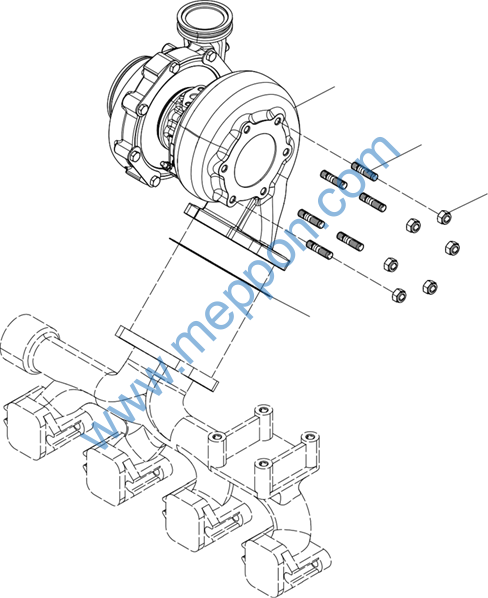

860507365 TURBOCHARGER GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860158842    1    TURBOCHARGER PLUMBING

2 860125045    6    SCREW

3 860131206    6    NUT

4 860111755    1    TURBOCHARGER SHIM

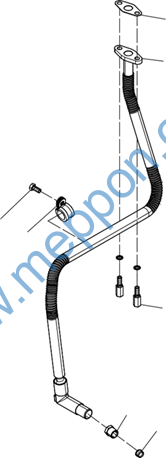

860167812 TURBOCHARGER OIL PIPE GROUP

1

2

3

4

5

6

9    8

7

11

10
