860167812 TURBOCHARGER OIL PIPE GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860131797    2    INNER-HEXAGON SCREW

2 860132334    4    SELF-LOCKING WASHER

3 860167814    1    TURBOCHARGER OIL PIPE ASSEMBLY

4 860139771    1    TURBOCHARGER OIL INLET PIPE SHIM

5 860131472    1    TURBOCHARGER OIL RETURN PIPE SHIM

6 860167815    1    TURBOCHARGER OIL PIPE ASSEMBLY

7 860131474    2    RETURN TUBING BOLT

8 860137917    1    CLAMP ASSEMBLY

9 860131730    1    HEXAGON BOLT

10 860153368    1    FERRULE

11 860131457    1    TUBE CONNECTOR NUT

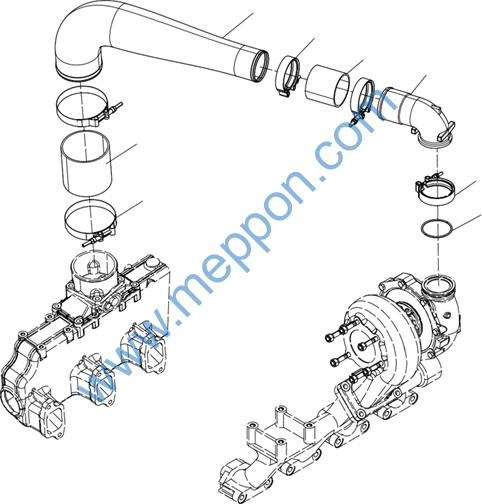

860507366 COMPRESSOR PIPE GROUP

1

2

3

4

8

5

7    6

860507366 COMPRESSOR PIPE GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860507370    1    EXHAUST CONNECTING PIPE

2 860139398    2    HOOP

3 860507371    1    AIR PIPELINE CONNECTING HOSE

4 860112038    1    TRANSITION PIPE

5 860131551    1    CLAMP

6 860131777    1    SEAL RING

7 860507373    2    HOOP

8 860507372    1    AIR PIPELINE CONNECTING HOSE

860507367 AIR FILTER BRACKET ASSY

1

2

3

4

5

6

860507367 AIR FILTER BRACKET ASSY

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 800164096    4    HEXAGON FLANGE NUT

2 860153373    1    AIR CLEANER BRACKET

3 860137496    3    HEXAGON FLANGE BOLT

4 860157586    3    HEXAGON FLANGE BOLT

5 860507374    1    AIR CLEANER BRACKET

6 860507375    3    SLEEVE,SCREW,&NUT SUB-ASSY METRIC

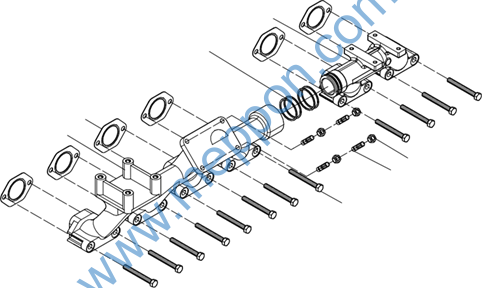

860507388 EXHAUST MANIFOLD GROUP

4

3

2

1

6 5

7

860507388 EXHAUST MANIFOLD GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860507376    1    EXHAUST MANIFOLD

2 860139867    6    SPACER

3 860111913    4    LAMINATED SEALING RING

4 860167822    1    REAR EXHAUST MANIFOLD

5 860131206    4    NUT

6 860139773    4    TURBOCHARGER TURBINE HOUSING STUD

7 860139868    12 EXHAUST PIPE BOLT

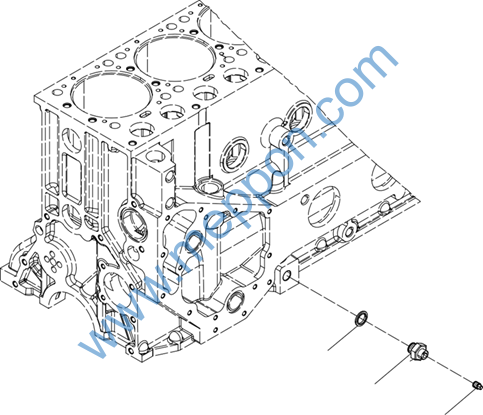

860167823 GENERAL-USE WIRE AND SENSOR GROUP

1

2

3

860167823 GENERAL-USE WIRE AND SENSOR GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860139937    1    SEAL WASHER

2 860111757    1    PRESSRUE SENSOR CONNECTOR

3 860131759    1    SCREW PLUG

860507389 SILENCER GROUP

1

2

4    3

860507389 SILENCER GROUP

800157618 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860118536    4    SLEEVE,SCREW,&NUT SUB-ASSY METRIC

2 860507390    1    MUFFLER BRACKET

3 860507391    3    SLEEVE,SCREW,&NUT SUB-ASSY METRIC

4 860507393    1    BRACKET CUSION
