XCMG LW550FN WHEEL LOADER PARTS MANUAL 24
|

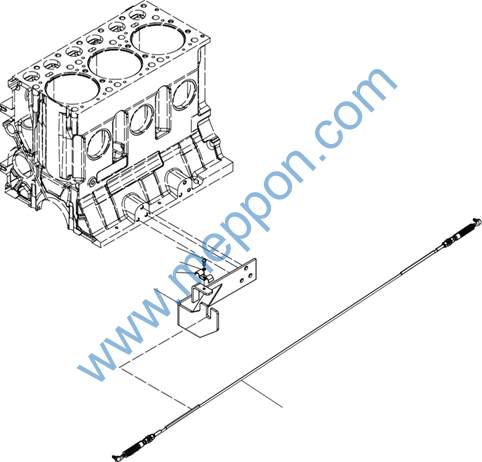

860507394 ACCELERATOR SOFT SHAFT GROUP |
|
3 1 2
5 |
|
860507394 ACCELERATOR SOFT SHAFT GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860132012 1 SOFT SHAFT BRACKET |
|
2 860507398 1 PIPE CLIP |
|
3 860507399 1 HEXAGON HEAD BOLT FULL THREAD |
|
4 860507400 1 SPRING WASHER |
|
5 860132229 1 THROTTLE SHAFT |
|

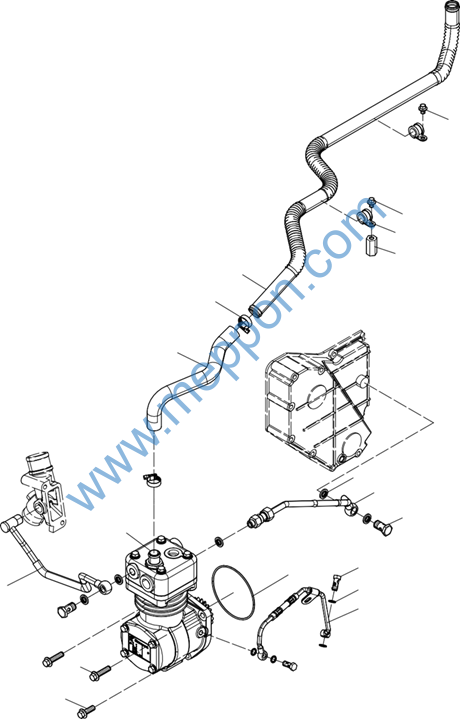

860507401 AIR COMPRESSOR GROUP |
|
1
2 3
6 7
8 9 18 10 11 12 17 13 14
16 15 |
|
860507401 AIR COMPRESSOR GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860137496 1 HEXAGON FLANGE BOLT |
|
2 860167831 1 HEX BOLT |
|
3 860507402 2 CLAMP ASSEMBLY |
|
4 860507403 1 BRACKET CUSION |
|
5 860507404 1 AIR COMPRESSOR AIR INLET PIPE |
|
6 860132009 2 HOSE CLAMP19-29 |
|
7 860507405 1 AIR PIPELINE CONNECTING HOSE |
|
8 860132336 5 SAEL RING |
|
9 860125298 1 WATER TUBE ASSEMBLY |
|
10 860131630 2 BOLT |
|
11 860131779 1 SEAL RING |
|
12 860131628 2 BOLT |
|
13 860157676 4 WASHER |
|
14 860131654 1 LUBRICATING PIPE |
|
15 860507406 1 HEX BOLT |
|
16 860507407 2 HEX BOLT |
|
17 860131643 1 AIR COMPRESSOR WATER PIPE |
|
18 860125437 1 AIR COMPRESSOR |
|

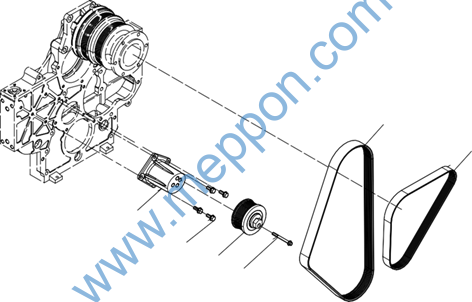

860167836 TENSIONER AND BELT GROUP |
|
1 2
5 4 3 |
|
860167836 TENSIONER AND BELT GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860120036 1 POLY V-BELT |
|
2 860121134 1 POLY V-BELT |
|
3 860131687 1 HEXAGON FLANGE BOLT |
|
4 860125273 1 TENSION WHEEL |
|
5 860118696 4 NUT |
|
6 860123352 4 SPRING WASHER |
|

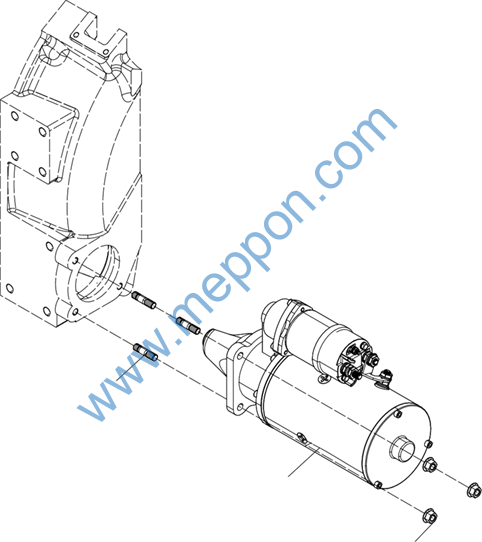

860167837 STARTER MOTOR GROUP |
|
2
1 |
|
860167837 STARTER MOTOR GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860137504 3 HEXAGON FLANGE NUT |
|
2 860111853 1 MOTOR STARTING |
|
3 860132055 3 SCREW |
|

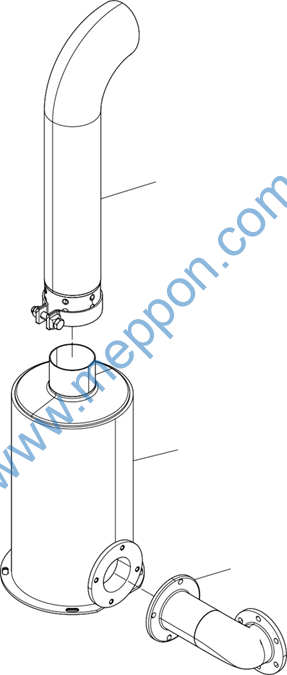

860507408 PACKING BOX CHASSIS PARTS GROUP |
|
2
3 |
|
860507408 PACKING BOX CHASSIS PARTS GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
2 860507409 1 MUFFLER |
|
3 860507421 1 EXHAUST CONNECTING PIPE |
|
4 860148278 1 AIR PIPELINE CONNECTING HOSE |
|
5 860153390 1 AIR CONDITIONER COMPRESSOR SUPPORT |

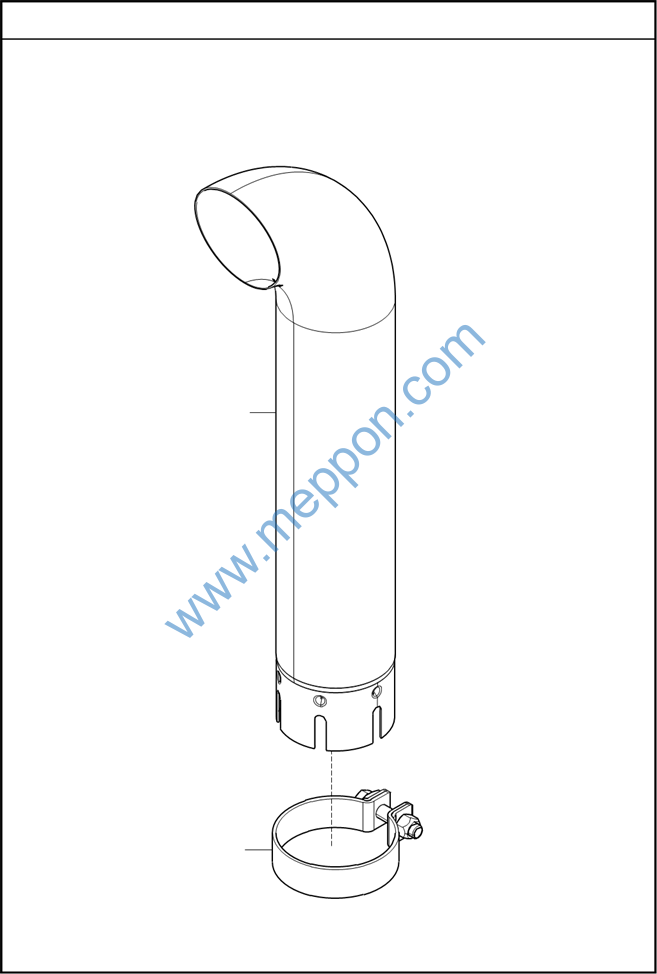

860137031 EXHAUST TAIL PIPE ASSEMBLY
1
2
