251811108 EVAPORATOR ASSY

251811438 AIR CONDITIONING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803595575    1    EVAPORATOR    310

2 805004717    8    BOLT M8×25    GB/T16674.1-2004

3 253200690    1    RUBBER COVER

803595575 EVAPORATOR

6

7

1

8    2

4

5

3

1

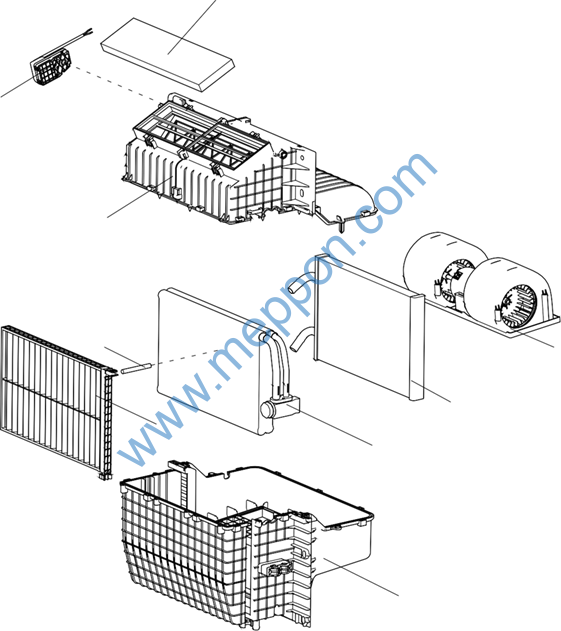

803595575 EVAPORATOR

251811108 EVAPORATOR ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803597337    1    ASSEMBLY OF SHELL    312

2 803595378    1    EVAPORATING MACHINE

3 803595374    1    EVAPORATIVE CORE

4 803595367    1    THE HEATER CORE BODY

5 803595372    1    FILTER

6 803595384    1    AIR FILTER

7 803597342    1    ACTUATOR

8 803597340    1    TEMPERATURE SENSOR

803597337 ASSEMBLY OF SHELL

5

6

2

1

4

3

7

8

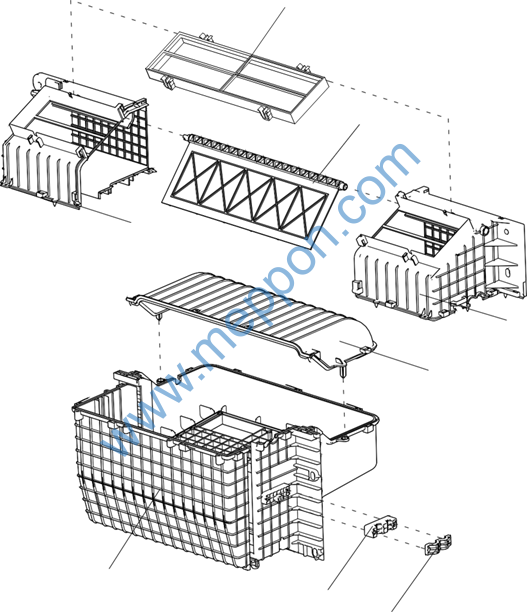

803597337 ASSEMBLY OF SHELL

803595575 EVAPORATOR

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803597348    1    LEFT WIND CHAMBER

2 803597350    1    RIGHT WIND CHAMBER

3 803597347    1    SHELL

4 803597346    1    PLATE

5 803597345    1    FILTER FRAME

6 803597343    1    AIR DOOR

7 803597344    1    BUCKLE

8 803597341    1    BUCKLE

251811107 CONDENSER SUBASSEMBLY

5    2

4

3

1

251811107 CONDENSER SUBASSEMBLY

251811438 AIR CONDITIONING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251811055    1    GUARD PLATE ASSEMBLY

2 251811062    1    CONDENSER BRACKET

3 803596239    1    CONDENSOR    316

4 805047999    4    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M8×40    GB/T16674.1-2004

5 805004770    4    BOLT M10×20(DACROMET)    GB/T16674.1-2004

803596239 CONDENSOR

1

2

3

803596239 CONDENSOR

251811107 CONDENSER SUBASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803598217    1    CORE

2 803598215    1    CONDENSER BRACKET

3 803598216    1    CONDENSER FAN

251811432 JOINT AND PIPE

19

17    18    20

14    15 16

8    7

1

9

4    3    2

10

11    5

13    12    6

251811432 JOINT AND PIPE

251811438 AIR CONDITIONING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252913840    1    BRACKET

2 805049283    1    BOLT M14×1.5×30(DACROMET)    GB/T5786-2000

3 805300144    1    GASKET 14    GB/T97.1-2002

4 805004756    4    BOLT M8×20 (DACROMET)    GB/T16674.1-2004

5 803300795    4    FERRULE Φ45    TJBC

6 803596242    1    STEAM-PRESSING-2500-BENDING-180

7 252913750    1    BRACKET

8 805048032    2    BOLT M16×25 (DACROMET)    GB/T16674.1-2004

9 805238400    3    NUT M8    GB/T6177.1-2000

10 252915684    1    BRACKET

11 803596241    1    PRESSOR-COOLER-2500-BENT-180

12 252911142    1    THERMAL INSULATION WATER PIPE

13 250400402    1    SPLICE

14 252911143    1    THERMAL INSULATION WATER PIPEL=3300

15 801968904    4    HOOP B14-27    QC/T619-1999

16 800787655    1    WATER VALVE SWITCH (REVERSING)

17 805004755    1    BOLT M8×16 (DACROMET)    GB/T16674.1-2004

18 801902724    7    NYLON    NZ-4×200-2

19 803596240    1    COOERL-EVAPORATOR-950-BENT-180

20 251708549    2    WEAR-RESISTANT SHEATH
