252115507 ENGINE-GEARBOX BUTT ASSY

252115353 TRANSMISSION AND TORQUE CONVERTER SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 272200753    1    ZL50 TRANSMISSION ASSEMBLY    82

2 250200162    1    GASKET

3 805002236    12 SCREW AM10×1×20    GB/T899-1988

4 805300014    12 SPRING WASHER 10    GB/T93-1987

5 805200090    12 NUT M10×1    GB/T6171-2000

6 805048019    12 BOLT M12×55    GB/T16674.1-2004

8

7

6

9

5

3    4

2

1

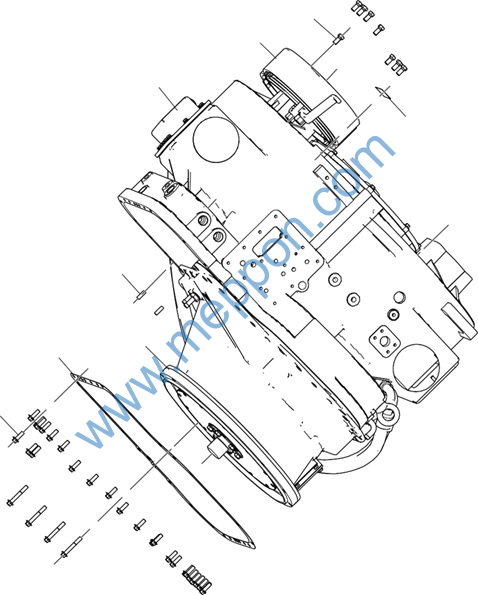

272200753 ZL50 TRANSMISSION ASSEMBLY

252115507 ENGINE-GEARBOX BUTT ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 805048012    5    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×70    GB/T16674.1-2004

2 805048006    26 BOLT M10×30    GB/T16674.1-2004

3 250200229    1    ID SEAL

4 272200758    1    HYDRAULIC TORQUE CONVERTER    84

5 805601564    2    PIN 10U8×30    GB/T119.1-2000

6 272200165    1    TRANSMISSION ASSEMBLY    90

7 250202028    1    CURVED HANDLE BRAKE    110

8 805002139    8    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M12×1.25×25    GB/T5786-2000

9 272200766    1    NAMEPLATE

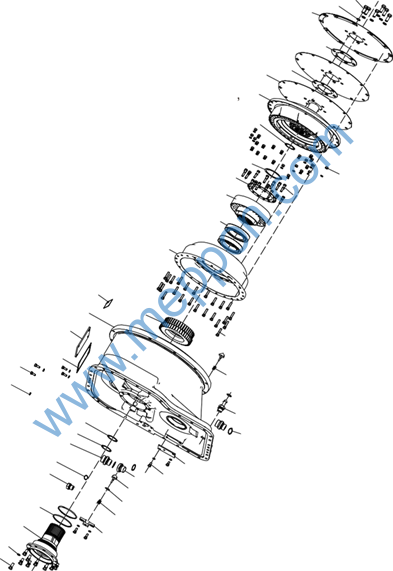

272200758 HYDRAULIC TORQUE CONVERTER

29

27 28

26

24 25

23 43

22

21

20    30

19    31

18

17

15

14    16

13

12    32

11

10    33

89    34

7    35

6    36

5    38 37

4    39

40

3    41

2    42

1

272200758 HYDRAULIC TORQUE CONVERTER

272200753 ZL50 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 805011330    9    BOLT M10×25(DACROMET)    GB/T5783-2000

2 805338260    9    WASHER 10    GB/T93-1987

3 272200304    1    SUPPORT-STATOR

4 272200303    2    LAP SEAL RING

5 272200818    1    TYPE FEMAL

6 803400948    2    EDSEAL RING    DIN3869-22-NBR

7 272200820    2    END STRAIGHT CONNECTOR

8 272200343    1    ADJUSTING GASKET

9 272200344    1    ADJUSTING GASKET

10 805338259    46 SPRING WASHER 8    GB/T93-1987

11 805046508    6    BOLT M8×20 (DACROMET)    GB/T5783-2000

12 272200315    1    PAPER WASHER

13 272200314    1    COVER

14 272200290    1    HOUSING BODY

15 272200757    1    NAMEPLATE

16 272200691    1    TRANSFER GEAR

17 272200759    1    PUMP IMPELLER

18 800514854    2    BEARING 6017/C3    GB/T276-1994

19 272200756    1    IDLER PULLEY

20 272200300    1    BASE PLATE

21 805400092    1    SEPARATE BUSH 85    GB/T894.1-1986

22 272200296    1    ADJUSTING GASKET

23 860142945    1    TURBINE ASSY    88

24 272200293    2    PLATE

25 272200341    1    ROUND PAD

26 272200291    1    ROUND PAD

27 272200294    1    PLATE

28 805338261    6    WASHER 12    GB/T93-1987

272200758 HYDRAULIC TORQUE CONVERTER

29

27 28

26

24 25

23 43

22

21

20    30

19    31

18

17

15

14    16

13

12    32

11

10    33

89    34

7    35

6    36

5    38 37

4    39

40

3    41

2    42

1

272200758 HYDRAULIC TORQUE CONVERTER

272200753 ZL50 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

29 805006412    6    BOLT M12×30    GB/T5783-2000

30 805046477    24 NUT M8    GB/T6170-2000

31 805004593    14 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M8×35    GB/T5782-2000

32 805046512    24 BOLT M8×35    GB/T5783-2000

33 272200313    1    SPRING

34 272200817    1    LEAKING OIL TUBE CONNECTOR

35 272200816    3    EDSEAL RING

36 272200312    1    VALVE CAP

37 805046893    2    BOLT M8×15 (DACROMET)    GB/T5783-2000

38 272200814    1    END CAP

39 272200309    2    VALVE ROD

40 272200345    1    SPACER

41 272200311    1    SPRING

42 272200307    1    VALVE CAP

860142945 TURBINE ASSY

1

3

2

860142945 TURBINE ASSY

272200758 HYDRAULIC TORQUE CONVERTER

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860114857    1    COVER

2 800514853    1    BEARING 6013/C3    GB/T276-1994

3 800514852    1    BEARING 6210/C3    GB/T276-1994

4 272200712    1    SEPARATE BUSH52

272200165 TRANSMISSION ASSEMBLY

16

17

18

14    19

13

15    20

21

12    24    22

23

11    25

26

9    10    27

28

3    8    29

3031

7

34

2    5    6    35    33

4    32

1

36

37

38
