XCMG ZL50GN WHEEL LOADER PARTS MANUAL 16
|
252910961 CAB FIXING ASSY 252116697 REAR FRAME SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252900306 4 SHOCK ABSORBER ASSY |
|
2 252900305 4 BAFFLE PLATE |
|
3 805338293 7 WASHER 30 (DACROMET) GB/T97.1-2002 |
|
4 805048813 4 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M30×2×160 GB/T5786-2000 |
|
5 805200242 3 NUT M30×2 GB/T6171-2000 |
|
252118038 FIXED ROD ASSEMBLY 252116697 REAR FRAME SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252101576 1 DEAD LEVER |
|
2 805601625 2 PIN 32×100 GB/T882-2008 |
|
3 251500108 2 ELASTIC RETAINING SPRING |
|

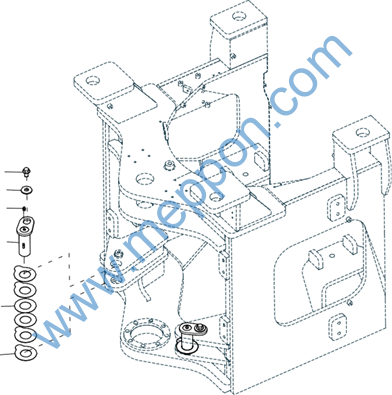

252910960 FIXED STEERING PIN ASSY |
|
2 3 4
5
6 |
|
252910960 FIXED STEERING PIN ASSY 252116697 REAR FRAME SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 805048032 2 BOLT M16×25 (DACROMET) GB/T16674.1-2004 |
|
2 253102301 2 SPACER |
|
3 801103215 2 OIL CUP M10×1 JB/T7940.1-1995 |
|
4 252112982 2 KING PIN |
|
5 252910533 4 SPACER |
|
6 269900185 8 ADJUSTING GASKET |
|

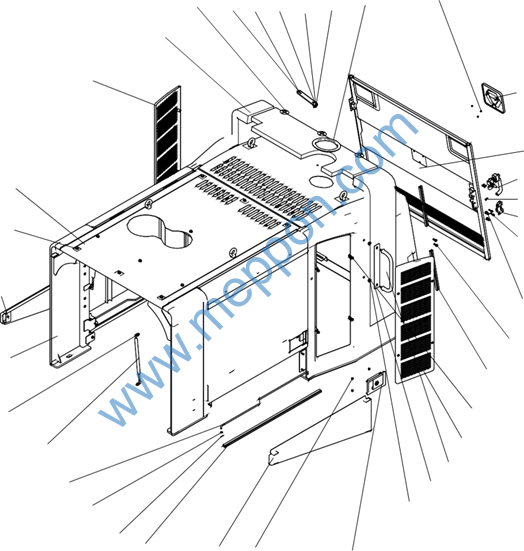

252116682 ENGINE HOOD ASSEMBLY |
|
8 14 15 13 11 12 2 21 7
9 31 16 22 10 17 23 33 24 25 18 19 1 27 28 29 35 4 5 36 6 37 3 32 26 34 |
|
252116682 ENGINE HOOD ASSEMBLY 252116885 50GNV(I) WHEEL LOADER |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 805203166 8 NUT M8 GB/T6177.1-2000 |
|
2 251806323 1 RUBBER SLEEVE |
|
3 252909902 2 JT-03DMOULDING1M |
|
4 251806269 2 REINFORCED PLATE |
|
5 252913123 2 BANISTERS |
|
6 805238533 4 NUT 10 GB/T6177.1-2000 |
|
7 252116675 1 NOISE REDUCTION MATERIAL |
|
8 252609564 3 CAP NUT |
|
9 252911567 1 REAR SHIELD |
|
10 805004770 14 BOLT M10×20(DACROMET) GB/T16674.1-2004 |
|
11 802149569 1 LIMIT ROD |
|
12 805600159 1 PIN 3.2×16 GB/T91-2000 |
|
13 805338267 1 WASHER 10 GB/T96.1-2002 |
|
14 805601611 1 PIN 8×16 GB/T882-2008 |
|
15 805600022 1 PIN 1.6×20 GB/T91-2000 |
|
16 400403667 1 LEFT DOOR LOCK ASSY |
|
17 802141509 1 RETAINER |
|
18 805100441 2 SCREW M8×20 GB/T818-2000 |
|
19 251707841 2 JT-03DRUBBER BAR0.35M |
|
20 250902143 1 XCMG LOGO |
|
21 805200046 3 NUT M5 GB/T6170-2000 |
|
22 805100061 3 SCREW M6×16 GB/T819.1-2000 |
|
23 805047993 2 BOLT M6×25 (DACROMET) GB/T16674.1-2004 |
|
24 805004756 8 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|
26 805135720 8 NUT M6(DACROMET) GB/T6177.1-2000 |
|
27 805047998 8 BOLT M8×35 GB/T16674.1-2004 |
|
28 801701502 4 GAS SPRING |
|
252116682 ENGINE HOOD ASSEMBLY |
|
8 14 15 13 11 12 2 21 7
9 31 16 22 10 17 23 33 24 25 18 19 1 27 28 29 35 4 5 36 6 37 3 32 26 34 |
|
252116682 ENGINE HOOD ASSEMBLY 252116885 50GNV(I) WHEEL LOADER |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
29 251810336 1 LEFT SMALL DOOR |
|
30 251810331 1 RIGHT SMALL DOOR |
|
31 252116671 1 TOP COVER |
|
32 252916509 1 LEFT LOWER DOOR WELDMENT |
|
33 252916512 1 RIGHT LOWER DOOR WELDMENT |
|
34 803074424 2 GATE LOCK |
|
35 803074410 2 BAR |
|
36 805300069 4 GASKET 8 GB/T97.1-2002 |
|
37 805600085 4 PIN 2×20 GB/T91-2000 |
|

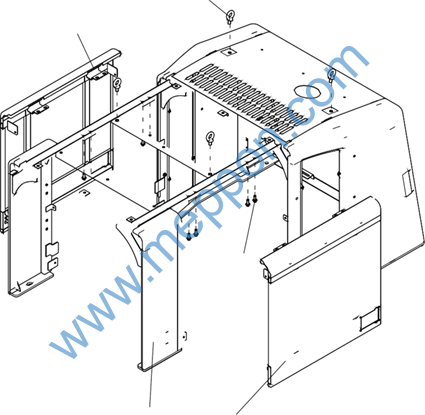

252116686 ENGINE HOOD ASSEMBLY (BEFOR PAINTED) |
|
4
3
5 1 |
