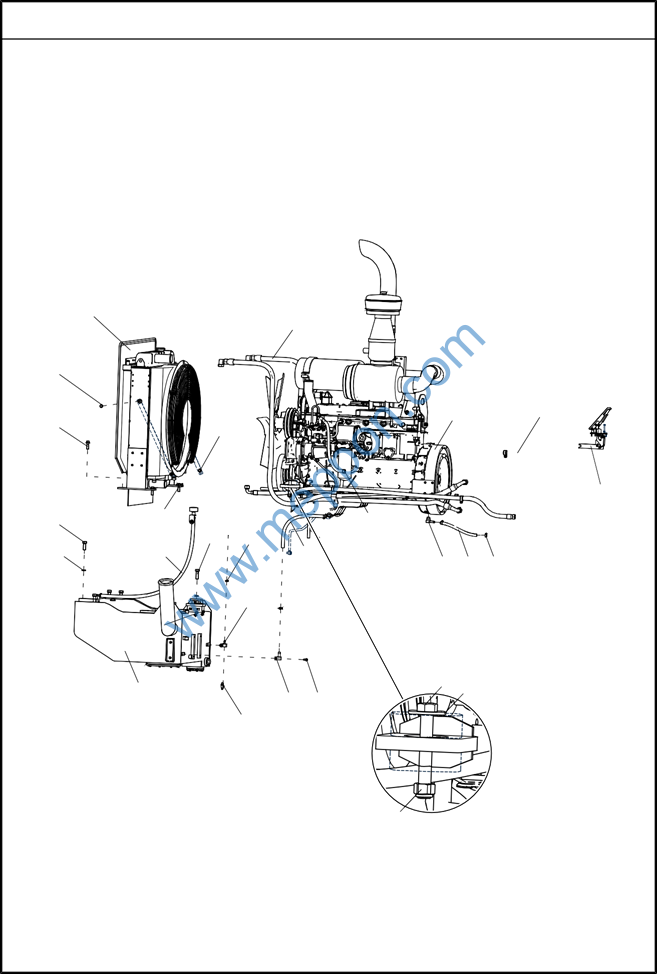

252114040 ENGINE ASSEMBLY

252116885 50GNV(I) WHEEL LOADER

No.

PART NUMBER

QTY

NAME

NOTE

PAGE

1

252908652

1

HYDRAULIC OIL RADIATOR PIPELINE

166

2

800152539

1

ENGINE

168

3

252114041

1

DOUBLE VARIABLE OIL DISPERSION LINE

292

4

803163989

1

HOSE B10×800

5

805004699

2

BOLT M12×30

GB/T16674.1-2004

6

800354551

1

RADIATOR ASSEMBLY

7

805004764

2

BOLT M12×25 (DACROMET)

GB/T16674.1-2004

8

805048035

4

BOLT M16×50

GB/T16674.1-2004

9

805048812

4

SLEEVE,SCREW,&NUT SUB-ASSY METRIC M20×1.5×55

GB/T5786-2000

10

805300023

6

WASHER 20

GB/T93-1987

11

803199326

2

FERRULE Φ18

TJBC

12

805047997

2

BOLT M8×12(DACROMET)

GB/T16674.1-2004

13

252909566

1

FUEL TANK ASSY

294

14

252900318

1

SPLICE

15

803163995

1

HOSE B16×1400

16

805048072

2

SLEEVE,SCREW,&NUT SUB-ASSY METRIC M20×1.5×65

GB/T5786-2000

17

801902705

2

HOSE CLAMP C13-19

QC/T619-1999

18

803166675

1

HOSE B16×750

19

252107984

1

SPLICE

20

805048005

2

BOLT M10×16(DACROMET)

GB/T16674.1-2004

21

800788034

1

R1/4 BALL VALVE

22

252101604

1

SPLICE

23

805004770

2

BOLT M10×20(DACROMET)

GB/T16674.1-2004

24

805201501

2

NUT M20

GB/T889.1-2000

25

805338322

2

SPRING WASHER 20

GB/T96.1-2002

26

805046676

2

SLEEVE,SCREW,&NUT SUB-ASSY METRIC M20×140

GB/T5782-2000

27

252906006

2

WASHER

28

252908676

1

COMPRESSOR AIR OUTLET PIPE

252114040 ENGINE ASSEMBLY

252116885 50GNV(I) WHEEL LOADER

No. PART NUMBER QTY NAME    NOTE    PAGE

29 250400122    1    STRAIGHT COUPLING

30 250400125    1    HOSE B13×340

31 801968904    4    HOOP B14-27    QC/T619-1999

32 252100842    1    ACCELERATOR CONTROL    296

1

2, 3

4

5

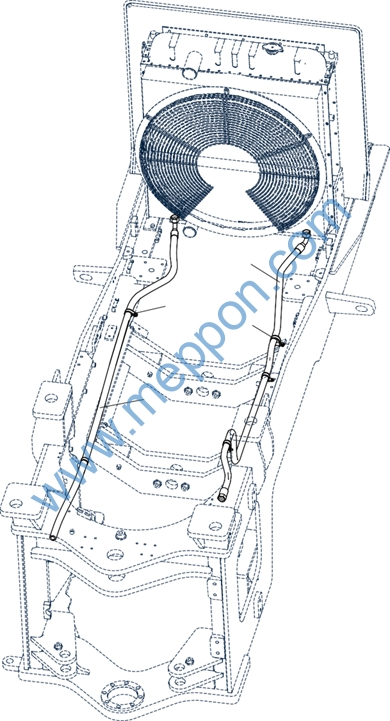

252908652 HYDRAULIC OIL RADIATOR PIPELINE

252114040 ENGINE ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 253003403    1    HOSE ASSEMBLY

2 803199329    4    FERRULE Φ26    TJBC

3 805047997    6    BOLT M8×12(DACROMET)    GB/T16674.1-2004

4 803300172    2    FERRULE Φ30    TJBC

5 252908319    1    HOSE ASSEMBLY

800152539 ENGINE

252114040 ENGINE ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860523057    1    COVER BOARD PART    174

2 860522706    1    MACHINE BODY PART    176

3 860523156    1    CYLINDER HEAD HOUSING PARTS    178

4 860523157    1    TIGHTENING PART    180

5 860523158    1    COVER    182

6 860523159    1    COVER BOARD PASSY    184

7 860523160    1    CAP PART    186

8 860523161    1    HOIST PART    188

9 860523162    1    VENTILATION PIPE ASSY    190

10 860523163    1    PISTON AND ROD GROUP    192

11 860523164    1    CRANKSHAFT    194

12 860523165    1    BELT PART    196

13 860523166    1    OIL SEALING PART    198

14 860523167    1    FLYWHEEL    200

15 860523168    1    GEAR PART    202

16 860523169    1    SUPPORT PART    204

17 860523170    1    HOUSING PART    206

18 860523171    1    COVER PART    208

19 860523173    1    TIGHTENING PART    210

20 860523174    1    SEAT PART(EAR SHAFT)    212

21 860523175    1    FLYWHEEL HOUSING GROUP    214

22 860523176    1    SUPPORT PART    216

23 860523177    1    EXHAUST PIPE ASSY    218

24 860523178    1    TIGHTENING PART    220

25 860523179    1    TURBOCHARGER SET    222

26 860523180    1    INLET PIPE PARTS    224

27 860523181    1    OIL PIPE PART    226

28 860523182    1    INLET PIPE PARTS    228
