XCMG ZL50GN WHEEL LOADER PARTS MANUAL 47
|
252911069 FLANGE 252913180 UNLOADING VALVE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803164234 1 FLANGE |
|
2 805048006 4 BOLT M10×30 GB/T16674.1-2004 |
|
3 803401127 1 ORING32.92×3.53 219N552-90 |
|
253007972 CLAMP ✂40 ASSY’ |
|
1
2 4 |
|
253007972 CLAMP ✂40 ASSY’ 252115450 WORKING HYDRAULIC SYSTEM (2) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252911510 1 BRACKET |
|
2 803300794 2 FERRULE Φ35 TJBC |
|
3 805004755 2 BOLT M8×16 (DACROMET) GB/T16674.1-2004 |
|
4 805238400 2 NUT M8 GB/T6177.1-2000 |
|

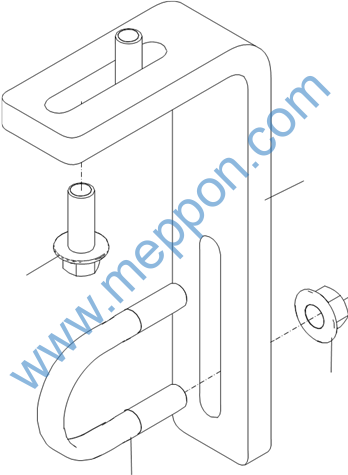

252910618 BOOM STEEL PIPE FIXING ASSY |
|
1
4
2 |
|
252910618 BOOM STEEL PIPE FIXING ASSY 252115450 WORKING HYDRAULIC SYSTEM (2) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252910676 1 BRACKET |
|
2 252908091 1 U-BOLT |
|
3 805004763 2 BOLT M10×25(DACROMET) GB/T16674.1-2004 |
|
4 805238533 2 NUT 10 GB/T6177.1-2000 |
|

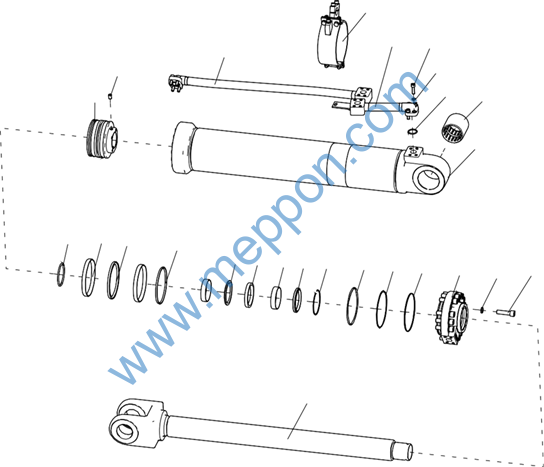

803078310 RIGHT BOOM CYLINDER |
|
20 19 21 22 18 23
26
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
1 |
|
803078310 RIGHT BOOM CYLINDER 252115450 WORKING HYDRAULIC SYSTEM (2) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 910603697 1 PISTON POLE |
|
2 805100300 16 SCREW M16×60 GB/T70.1-2008 |
|
3 805300011 16 GASKET 16 GB/T93-1987 |
|
4 910604111 1 SLEEVE GUIDE |
|
5 803196328 1 ORING 160×3.1 |
|
6 803197202 1 SEPARATE BUSH 153×162×2 |
|
7 803195721 1 ORING 160×5.7 |
|
8 910604129 1 SEPARATE BUSH |
|
9 803195324 1 DUSTPROOF WASHER 90×104×8×11 |
|
10 803197796 2 SUPPORT RING 95×90×20 |
|
11 803197183 1 SHAFT SEAL |
|
12 803197184 1 CUSHION RING |
|
13 803303520 1 ANTI-POLLUTION RING 152×160×6.2 |
|
14 803197702 1 GRAY CIRLE 160×8.1 |
|
15 803197186 2 SUPPORT RING 160×154×15 |
|
16 803307612 1 O-RING 100×5.7 |
|
17 910603696 1 PISTON |
|
18 805104478 2 SCREW M12×20 GB/T78-2007 |
|
19 926120915 1 OIL PIPE ASSYI |
|
20 910604283 1 PIPE CLAMP ASSY |
|
21 926111642 1 OIL PIPE ASSYⅡ |
|
22 805100505 8 SCREW M10×35 GB/T70.1-2008 |
|
23 805300014 8 SPRING WASHER 10 GB/T93-1987 |
|
24 803452363 1 O-RING 2-219 |
|
25 910601167 1 BEARING |
|
26 910604010 1 CYLINDER |
|
INCLUDING5、6、7、 910604114 1 SEALING PACKAGE 9、10、11、12、13、 14、15、16、24 |
|

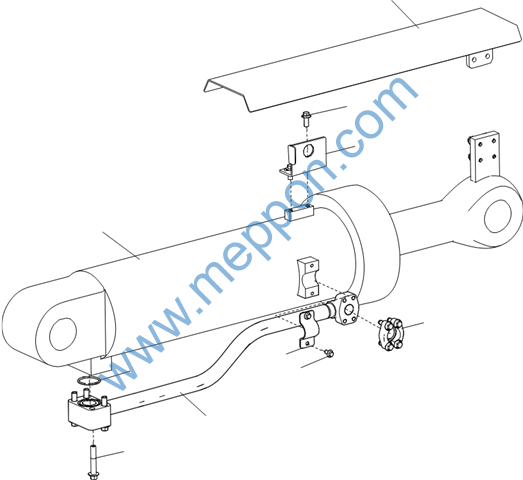

252115449 XGYG01-137BUCKET CYLINDER ASSY |
|
2
5 4
10 7 6 9 3 8 |
|
252115449 XGYG01-137BUCKET CYLINDER ASSY 252115450 WORKING HYDRAULIC SYSTEM (2) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
2 253000349 1 PROTECTIVE COVER |
|
3 252909532 1 BUCKET CYLINDER REAR CHAMBER STEEL PIPE |
|
4 253500981 1 SENSOR BRACKET |
|
5 805004763 6 BOLT M10×25(DACROMET) GB/T16674.1-2004 |
|
6 252909611 1 DUMPER CYLINDER LARGE CAVITY STEEL TUBE PRESS |
|
7 803401133 1 ORING47.22×3.53 225N552-90 |
|
8 805048023 4 BOLT M12×70 GB/T16674.1-2004 |
|
9 805004755 2 BOLT M8×16 (DACROMET) GB/T16674.1-2004 |
|

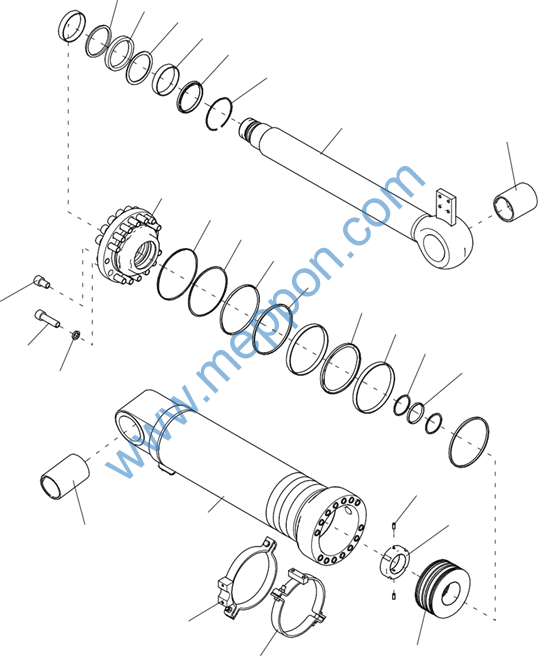

803004341 BUCKET CYLINDER |
|
6 5 4 3 2 1
9 10 11 12 13 27 14 15 16 26 17 25
20 24 23 19
22 21 18 |
