251811243 BZZ-100STEERING GEAR ASSY

252911914 STEERING HYDRAULIC SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803089848    1    STEERING GEAR

2 803201514    4    SPLICE

3 805004763    4    BOLT M10×25(DACROMET)    GB/T16674.1-2004

4 252909963    1    STEERING GEAR SEALING GASKET

252911913 FLOW AMPLIFYING VALVE ASSY

7

1

5

2

8

6    4    3    9

252911913 FLOW AMPLIFYING VALVE ASSY

252911914 STEERING HYDRAULIC SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252300148    1    FLOW AMPLIFICATION VALV    484

2 803401130    2    ORING37.69×3.53    222N552-90

3 803198806    1    FLANGE

4 252911069    2    FLANGE    486

5 805048027    3    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M12×100    GB/T16674.1-2004

6 253006362    1    FLOW AMPLIFYING VALVE OIL RETURN BLOCK

7 805002295    2    SPLICE

8 805048021    4    BOLT M12×55    GB/T16674.1-2004

9 805004699    4    BOLT M12×30    GB/T16674.1-2004

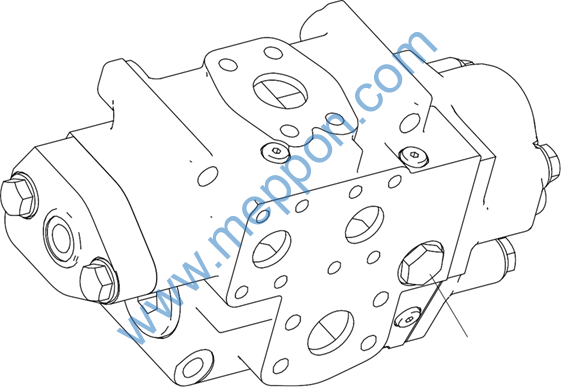

252300148 FLOW AMPLIFICATION VALV

1

252300148 FLOW AMPLIFICATION VALV

252911913 FLOW AMPLIFYING VALVE ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860160517    1    SHUTTLE VALVE

252911069 FLANGE

2

1

3

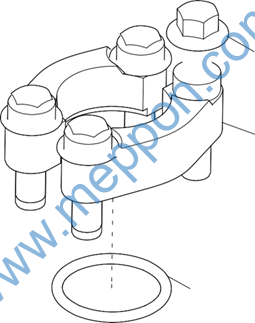

252911069 FLANGE

252913180 UNLOADING VALVE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803164234    1    FLANGE

2 805048006    4    BOLT M10×30    GB/T16674.1-2004

3 803401127    1    ORING32.92×3.53    219N552-90

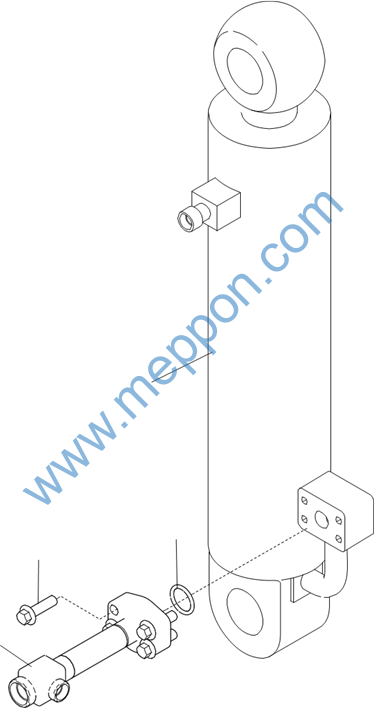

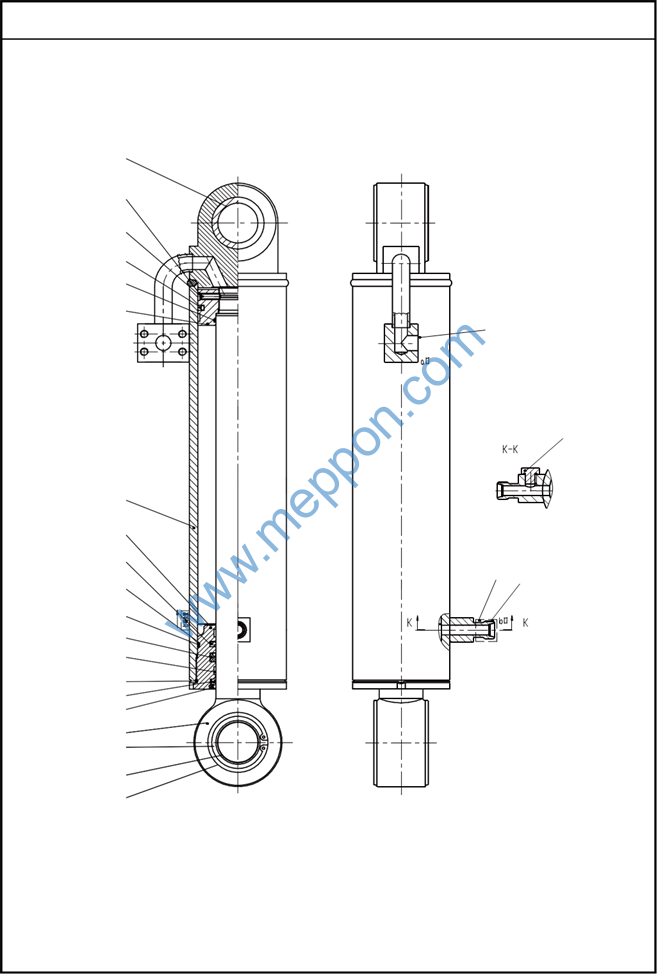

252911078 RIGHT STEERING CYLINDER ASSY

1

3

4

2

252911078 RIGHT STEERING CYLINDER ASSY

252911914 STEERING HYDRAULIC SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803082926    1    RIGHT STEERING CYLINDER    490

2 253006367    1    T-JOINT

3 803401122    1    ORING24.99×3.53

4 805048007    4    BOLT M10×35    GB/T16674.1-2004
