XCMG ZL50GN WHEEL LOADER PARTS MANUAL 51
|
253007928 RIGHT LIMIT VALVE ASSY 252911914 STEERING HYDRAULIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803004042 1 LIMIT VALVE |
|
2 803103341 2 SPLICE |
|
3 803182561 1 SPLICE |
|
4 803164274 1 SPLICE |
|
5 805004715 4 BOLT M10×55 GB/T16674.1-2004 |
|
252909536 STEERING LIMIT BAR ASSY |
|
4
1
3 |
|
252909536 STEERING LIMIT BAR ASSY 252911914 STEERING HYDRAULIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252900291 1 LIMIT ROD SUPPORT |
|
2 252100501 1 LIMIT ROD |
|
3 805004763 2 BOLT M10×25(DACROMET) GB/T16674.1-2004 |
|
4 805200069 1 NUT M12 GB/T6172.1-2000 |
|
252909539 FLOW AMPLIFYING VALVE HOSE FIXING ASSY |
|
2
1
4 |
|
252909539 FLOW AMPLIFYING VALVE HOSE FIXING ASSY 252911914 STEERING HYDRAULIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252909561 1 BRACKET |
|
2 803199325 2 FERRULE Φ16 TJBC |
|
3 805004756 1 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|
4 805004770 1 BOLT M10×20(DACROMET) GB/T16674.1-2004 |
|

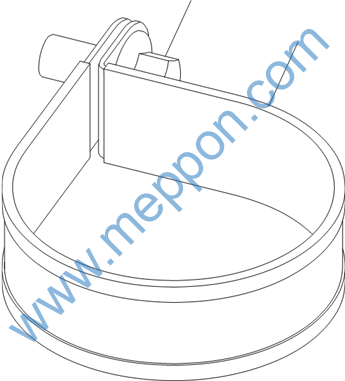

252911912 CUTTING FERRULE 252911914 STEERING HYDRAULIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803199332 1 FERRULE Φ60 TJBC |
|
2 805004755 1 BOLT M8×16 (DACROMET) GB/T16674.1-2004 |
|
252113931 STEERING GEAR HOSE FIXING ASSY |
|
1
4
2 |
|
252113931 STEERING GEAR HOSE FIXING ASSY 252911914 STEERING HYDRAULIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252113942 1 BRACKET |
|
2 803199325 3 FERRULE Φ16 TJBC |
|
3 805004756 2 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|
4 805004770 1 BOLT M10×20(DACROMET) GB/T16674.1-2004 |
