453527048 BRAKE PART………………………………………………………………………………………230
453527873 DRIVING MANEUVERING SYSTEM CONFIGURATION…………………….232
453527872 DRIVING MANEUVERING SYSTEM ……………………………………………234
453527871 AIR STORAGE SYSTEM …………………………………………………………………….236
453527037 XGA35DFWD12-12200 ………………………………………………………………..238
453524954 AIR STORAGE SYSTEM ……………………………………………………………..240
453524950 AIR STORAGE SYSTEM ……………………………………………………………..242
453524941 AIR STORAGE SYSTEM ……………………………………………………………..244
453523079 CLAMP ASSEMBLY……………………………………………………………………..246
453527874 FRONT AXLE BRAKE SYSTEM CONFIGURATION……………………………248
453527623 FRONT AXLE BRAKE SYSTEM …………………………………………………..250
453527869 PARKING BRACK SYSTEM CONFIGURATION …………………………………252
453527718 PARKING BRAKE SYSTEM …………………………………………………………254
453527025 FRONT AXLE BRAKE SYSTEM CONFIGURATION……………………………256
453527021 XGA35DFWD12-01100 ………………………………………………………………..258
453527875 AUXILIARY BRAKING SYSTEM CONFIGURATION …………………………..260
453527719 XGA35DFWD15-11100 ………………………………………………………………..262
453527721 XGA35DFWD15-11200 ………………………………………………………………..264
453527022 AXLE BRAKE SYSTEM CONFIGURATION ………………………………………..266
453527016 XGA35DFWD12-02100 ………………………………………………………………..268
453527018 PUMP TUBE SYSTEM DRAWING ………………………………………………………270
453527044 XGA35DFWD12-07100 ………………………………………………………………..272
453527868 AXLE BRAKE SYSTEM CONFIGURATION ………………………………………..274
453527638 XGA35JFY2P1-09100…………………………………………………………………..276
453604543 ELECTRONIC PART……………………………………………………………………………278
453604540 ELECTRONICS DEVICE……………………………………………………………………..280
453604545 EBS ………………………………………………………………………………………………282
453715398 ELECTRICAL PART…………………………………………………………………………….284
331403552 DRIVE SYSTEM …………………………………………………………………………………… 84
331403600 MIDDLE AXLE ASSEMBLY ………………………………………………………………….. 86
331403376 OUTER WHEEL ASSEMBLY ………………………………………………………… 90
331403377 INNER WHEEL ASSEMBLY………………………………………………………….. 92
331402830 MIDDLE AXLE……………………………………………………………………………….. 94
331403555 BRAKING SYSTEM……………………………………………………………………………..110
331403554 AIR BRAKE PIPELINE………………………………………………………………….112
331403558 AIR INLET ASSEMBLY…………………………………………………………………116
331403556 BRAKE ASSEMBLY……………………………………………………………………..120
331403557 GEARBOX CONTROL SYSTEM …………………………………………………………132
331403374 TRANSMISSION SHAFT FINAL ASSEMBLY………………………………………134
800363883 TRANSMISSION SHAFT ASSEMBLY………………………………………….136
800363881 TRANSMISSION SHAFT ASSEMBLY………………………………………….138
331403553 CLUTCH OPERATING SYSTEM…………………………………………………………140
331403598 REAR AXLE ASSEMBLY …………………………………………………………………….144
331403376 OUTER WHEEL ASSEMBLY ……………………………………………………….148
331403377 INNER WHEEL ASSEMBLY…………………………………………………………150
331402832 REAR AXLE………………………………………………………………………………….152
331403370 FRONT AXLE ASSEMBLY…………………………………………………………………..162
800366792 FRONT WHEEL RIM ASSEMBLY
331403332 LEFT FRONT WHEEL ASSEMBLY………………………………………………170
331403333 RIGHT FRONT WHEEL ASSEMBLY ……………………………………………176
800362212 STEERING TIE ROD…………………………………………………………………….182
331403823 CENTRALIZED LUBRICATING SYSTEM……………………………………………184
801141901 LUBRICATING SYSTEM……………………………………………………………………..188
331404060 DECK ASSEMBLY ………………………………………………………………………………194
331404052 LEFT DECK ASSEMBLY……………………………………………………………………..200
331404058 MUDGUARD ASSEMBLY……………………………………………………………………202
331404051 FRONT WHEEL MUDGUARD II …………………………………………………..204
331404050 FRONT WHEEL MUDGUARD III ………………………………………………….206
331404053 FRONT DECK ASSEMBLY………………………………………………………………….208
331404057 RIGHT DECK ASSEMBLY…………………………………………………………………..212
331404054 ENGINE COVER ASSEMBLY……………………………………………………………..216
331404975 FIRE EXTINGUISHER CYLINDER ASSEMBLY ………………………………….218
331404020 ELECTRICAL SYSTEM……………………………………………………………………….220
331404023 BATTERY HARNESS ASSEMBLY………………………………………………………224
331403835 DRIVER’S CAB …………………………………………………………………………………228
331403834 CAB……………………………………………………………………………………………………..232
331404009 GLASS ASSEMBLY ……………………………………………………………………..242
331407281 CONSOLE II …………………………………………………………………………………246
802156563 WIPER ASSEMBLY ……………………………………………………………………..248
331404002 INTERIOR ASSEMBLY ………………………………………………………………..252
331404010 CAR DOOR ASSEMBLY ………………………………………………………………256
802157520 LEFT-SIDE REAR-VIEW MIRROR BRACKET (EXTENDED
SYSTEM……………………………………………………………………………………………268
331403584 HYDRAULIC SYSTEM…………………………………………………………………………268
804200537 LIFTING SYSTEM ASSEMBLY……………………………………………………………270
331407389 LIFTING SYSTEM HYDRAULIC ASSEMBLY……………………………….272
331407478 LIFTING SYSTEM AIR CONTROL ASSEMBLY……………………………282
331403816 LIFTING CYLINDER ASSEMBLY…………………………………………………288
331407388 STEERING SYSTEM …………………………………………………………………………..292
331403830 STEERING GEAR COMPONENT ………………………………………………..294
331400629 STEERING CYLINDER OIL CIRCUIT ASSEMBLY ………………………300
331407403 STEERING CONTROL ASSEMBLY……………………………………………..302
331407407 FUEL TANK COMPONENT …………………………………………………………………318
SUSPENSION SYSTEM………………………………………………………………………………………..320
331403583 SUSPENSION SYSTEM ……………………………………………………………………..320
331402816 REAR SUSPENSION CYLINDER………………………………………………………..322
331402818 REAR SUSPENSION CYLINDER………………………………………………………..324
331404045 AIR CONDITIONING SYSTEM ……………………………………………………………326
813500918 AIR CONDITIONING ASSEMBLY ……………………………………………………….328
803596988 SHOCK PAD ASSEMBLY …………………………………………………………….330
813500908 EVAPORATOR-COMPRESSOR HOSE……………………………………….332
331404102 ACCESSORY………………………………………………………………………………………334
331404109 FIRE EXTINGUISHER COMPONENTS ………………………………………………336
331404033 LOGO (35M3)………………………………………………………………………………………338

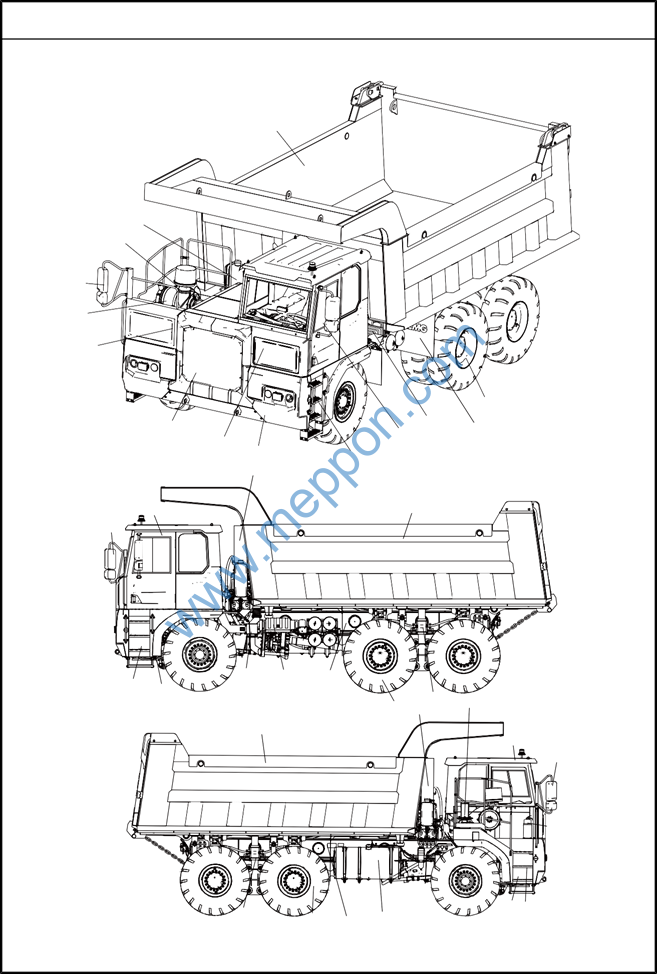

331408872 1 POWER SYSTEM 10
331403968 1 FRAME ASSEMBLY 36
331404043 1 SAFETY PROTECTION 56
331404072 1 CARGO COMPARTMENT ASSEMBLY 70
331403552 1 DRIVE SYSTEM 84
331403823 1 CENTRALIZED LUBRICATING SYSTEM 184
331404060 1 DECK ASSEMBLY 194
331404020 1 ELECTRICAL SYSTEM 220
331403835 1 DRIVER’S CAB 228
331403584 1 HYDRAULIC SYSTEM 268
331403583 1 SUSPENSION SYSTEM 320
331404045 1 AIR CONDITIONING SYSTEM 326
331404102 1 ACCESSORY 334
331404033 1 LOGO (35M3) 338
331403869 1 SUSPENSION SYSTEM 12
331403894 1 COOLING SYSTEM 16
331406176 1 INTAKE AND EXHAUST SYSTEM
331406168 1 FUEL SYSTEM 30
331406175 1 RADIATOR 34
800166791 1 ENGINE ASSEMBLY
800168792 1 FANS
805046508 6 BOLT M8×20 GB/T5783-2000
800368750 1 GEARBOX ASSEMBLY
860170856 12 STUD
860170855 12 WASHER
860170857 12 HEXAGON FLANGE NUT M10×1.25
331400210 1 ENGINE LEFT FRONT SUPPORT
805006332 12 BOLT M16×40 GB/T5783-2000
805338296 12 WASHER 16 GB/T1230-2006
331400209 1 ENGINE FRONT SEAT
805046689 6 BOLT M24×200 GB/T5782-2000
800154139 4 DAMPER
331407228 6 BASEPLATE
805338299 6 WASHER 24 GB/T1230-2006
805238397 6 NUT M24 GB/T6184-2000
331404063 1 ENGINE LEFT REAR SUPPORT
331403868 1 ENGINE RIGHT REAR SUPPORT
805005944 12 BOLT M14×45 GB/T5783-2000
805301376 12 WASHER 14 DIN6796
800104641 8 DAMPER
331401830 1 GEARBOX BRACKET
331403880 1 GEARBOX PULL ROD ASSEMBLY 14
SYSTEM (1/2) CATALOGUE
800554141 1 ROD END KNUCKLE BEARING
330300090 1 SLEEVE PIPE
805238375 1 NUT M20 GB/T6170-2000
331403874 1 SCREW ROD
801970408 1 DAMPER
331407297 2 BASEPLATE
805238918 3 NUT M24×2 GB/T6171-2000
805046680 1 BOLT M20×90 GB/T5782-2000
805338297 1 WASHER 20 GB/T1230-2006
805338299 2 WASHER 24 GB/T1230-2006
805006412 2 BOLT M12×30 GB/T5783-2000
331404348 1 INTAKE PIPE FIXING BRACKET
801974934 1 U TYPE CLAMP
331407615 1 INTERCOOLER AIR INTAKE STEEL PIPE
331407602 1 INLET PIPE
803446869 28 SPIRAL CLAMP
331407600 1 INLET WATER JOINT
331400193 4 WATER INLET PIPE JOINT
331407601 1 AIR OUTLET JOINT
331407592 1 RETURN WATER HOSE
800164262 1 WARM-AIR RETURN WATER JOINT
331400195 3 INTERCOOLING PIPE CONNECTOR
803446867 8 HOOP
331400196 1 INTERCOOLING INTAKE PIPE
803446866 12 SPIRAL CLAMP
331400198 1 OUTLET PIPE
331400197 2 OUTLET PIPE CONNECTOR
331403430 1 INTAKE SUPPORT ASSEMBLY 22
800164261 1 WARM-AIR WATER INLET PIPE
800164263 1 WARM-AIR WATER CONNECTOR
800164260 1 TRANSIT JOINT
331403859 1 WATER PIPE L=2510
331403901 1 WATER PIPE L=1800
331407904 1 OUTLET PIPE
331404546 1 WATER PIPE BRACKET
805301374 6 WASHER 12 DIN6796
SYSTEM CONFIGURATION
331403857 1 WATER PIPE L=1185
331403840 1 INLET PIPE
331403875 1 WATER PIPE BRACKET
805238370 1 NUT M6 GB/T6170-2000
801905725 6 RUBBER SLEEVE HOOP
331409057 1 WATER PIPE BRACKET WELDING ASSEMBLY
331409054 2 WATER PIPE BRACKET CLAMP PLATE
800552271 2 ROD END KNUCKLE BEARING
805238374 3 NUT M16 GB/T6170-2000
805238372 1 NUT M12 GB/T6170-2000
331403432 1 BASEPLATE
805046664 1 BOLT M16×70 GB/T5782-2000
805301374 1 WASHER 12 DIN6796
805301377 1 WASHER 16 DIN6796
331403431 1 SECURING PLATE
331403433 1 PULL ROD
330300087 1 SLEEVE PIPE
805046640 1 BOLT M12×60 GB/T5782-2000
SYSTEM (1/2) CATALOGUE
800160724 1 SPIRAL CLAMP
800169751 1 AIR FILTER
800171606 1 INTAKE HOSE
800171781 1 ELECTRONIC DIFFERENTIAL PRESSURE ALARM
801974223 1 SPIRAL CLAMP
331404904 1 BRACKET
805301373 12 WASHER 10 DIN6796
805011330 4 BOLT M10×25 GB/T5783-2000
800163829 1 U TYPE CLAMP
800141586 2 T TYPE CLAMP
805046557 4 BOLT M12×70 GB/T5783-2000
805301374 8 WASHER 12 DIN6796
331404903 1 AIR INLET PIPE WELDING ASSEMBLY
SYSTEM (1/2) CATALOGUE
805301373 12 WASHER 10 DIN6796
805301374 8 WASHER 12 DIN6796
331404626 1 AIR INLET JOINT
800104563 3 HOOP
801968459 2 RUBBER SLEEVE HOOP
805046525 4 BOLT M10×20 GB/T5783-2000
331400149 1 INNER DIAMETER OF INTAKE HOSE Φ25×5-1600
331403861 1 HEAT-INSULATING COTTON I
331403885 1 REAR EXHAUST PIPE WELDING
331403882 2 UPPER PRESSURE PLATE
803496022 3 LARGE STRAIGHT EXHAUST PIPE CLAMP
805004626 4 BOLT M10×35 GB/T5782-2000
331403841 1 FRONT EXHAUST PIPE BRACKET
331403849 1 MIDDLE EXHAUST PIPE WELDING
331403848 1 REAR EXHAUST PIPE II
331403886 1 HEAT-INSULATING COTTON II
805238371 4 NUT M10 GB/T6170-2000
331403889 1 EXHAUST PIPE BRACKET II
331403928 1 BAFFLE ASSEMBLY
805046469 4 BOLT M12×25 GB/T5783-2000
331403883 1 CONVERSION DEVICE 28
331403876 1 HEAT-INSULATING COTTON III
803496055 2 CLAMP ASSEMBLY
331403871 1 INTERMEDIATE TRANSITION PIPE
331403877 1 UPPER MOVABLE COVER PLATE
331403865 1 SPRING
331403898 1 REAR EXHAUST PIPE WELDING
331403870 1 CONVERSION SQUARE BOX
805200186 4 NUT M16 GB/T6181-1986
805639639 4 PIN 4×32 GB/T91-2000
331403895 1 BLOCKING PLATE
331403864 1 MAT
800173562 1 FUEL TANK ASSEMBLY 32
800164255 1 WATER-HEATING SENSOR
800164256 1 FUEL SENSOR
800164321 1 OIL PIPE ASSEMBLY
800164321 1 OIL PIPE ASSEMBLY
805338296 12 WASHER 16 GB/T1230-2006
805006289 12 BOLT M16×35 GB/T5783-2000
800156968 1 DIESEL PRE-FILTERING
803272847 11 PIPE CLIP
331408236 1 OIL-WATER SEPARATOR BRACKET ASSEMBLY
800156969 1 PRE-FUEL FILTER ELEMEMT
803382901 2 END STRAIGHT COUPLING
803381591 2 END STRAIGHT COUPLING
805301373 18 WASHER 10 DIN6796
805046525 5 BOLT M10×20 GB/T5783-2000
805046416 6 BOLT M10×30 GB/T5783-2000
805201420 7 NUT M10 GB/T6170-2000
805011330 3 BOLT M10×25 GB/T5783-2000
801974657 1 RUBBER SLEEVE HOOP
800172350 1 DIESEL HOSE
800172351 1 DIESEL HOSE
800164318 1 OIL PIPE ASSEMBLY
925601083 1 PLASTIC SHEATH
800167663 1 DIESEL HOSE
819908944 6 HOSE CLAMP
331401204 2 INNER DIAMETER OF BREATHER PIPE Φ6×3.5-850
331505363 1 DOUBLE CAVITY OIL TANK OPERATION MARK
331505364 1 OIL TANK OPERATION MARK I
331505365 1 OIL TANK OPERATION MARK II
331505366 1 OIL TANK OPERATION MARK III
331505367 1 OIL TANK OPERATION MARK IV
800173977 1 FUEL TANK
800173985 2 OIL TANK COVER WITH LOCKS
800173980 6 OIL TANK CUSHION BELT
800173976 3 OIL TANK BRACKET ASSEMBLY
800173981 12 BLOCKAGE
800173983 3 FASTENING BELT AND CUSHION BELT ASSEMBLY/700×700
800173978 3 PLUG-IN NUT
800173984 3 PIN
800173975 3 SPLIT PIN
800173982 1 DRAWSTRING
801970943 6 DAMPER
331401781 1 RADIATOR
332101553 8 RADIATOR DAMPING GASKET
805006392 4 BOLT M16×110 GB/T5782-2000
805338296 13 WASHER 16 GB/T1230-2006
805238406 8 NUT M16 GB/T6184-2000
331400218 2 WATER TANK PULL ROD ASSEMBLY
805238374 1 NUT M16 GB/T6170-2000
805006280 1 BOLT M16×45 GB/T5783-2000
801968459 3 RUBBER SLEEVE HOOP
801971594 1 RUBBER SLEEVE HOOP
805301373 15 WASHER 10 DIN6796
805046416 4 BOLT M10×30 GB/T5783-2000
805238371 5 NUT M10 GB/T6170-2000
805139925 6 SCREW M10×20 GB/T70.1-2008
801905490 5 RUBBER SLEEVE HOOP
803103341 1 CONNECTOR
803103351 1 CONNECTOR
805011330 1 BOLT M10×25 GB/T5783-2000
819909238 5 HOSE CLAMP
800167754 1 VENT PIPE
331404343 1 WATER SUPPLY PIPE INNER DIAMETER 25 WALL
331404345 1 VENT PIPE INNER DIAMETER 8 WALL THICKNESS
331404344 1 VENT PIPE INNER DIAMETER 10 WALL THICKNESS
925603449 1 PLASTIC SHEATH
800141586 2 T TYPE CLAMP
331403808 1 FRAME WELDING ASSEMBLY
331403980 3 WIND SCREEN
331403920 1 PLANK
805011330 10 BOLT M10×25 GB/T5783-2000
805238371 6 NUT M10 GB/T6170-2000
805046416 22 BOLT M10×30 GB/T5783-2000
805301373 46 WASHER 10 DIN6796
331403982 1 CAB LEFT BRACKET
331403904 1 CAB RIGHT BRACKET
331404285 6 ADJUSTABLE PAD
805338296 55 WASHER 16 GB/T1230-2006
805006289 16 BOLT M16×35 GB/T5783-2000
331403946 1 LEFT CONNECTING SEAT OF COVERING PART
805301374 12 WASHER 12 DIN6796
805006412 4 BOLT M12×30 GB/T5783-2000
805301384 4 WASHER 8 DIN6796
331403925 4 PIN ASSEMBLY
805046508 4 BOLT M8×20 GB/T5783-2000
805338856 4 WASHER 8 GB/T5287-2002
331400683 8 SPACER SLEEVE
331403969 4 RETAINER
805006332 13 BOLT M16×40 GB/T5783-2000
331403979 1 SUPPORT
805046416 22 BOLT M10×30 GB/T5783-2000
805301373 46 WASHER 10 DIN6796
805338296 55 WASHER 16 GB/T1230-2006
805006289 16 BOLT M16×35 GB/T5783-2000
805301374 12 WASHER 12 DIN6796
805006332 13 BOLT M16×40 GB/T5783-2000
331400684 4 PIN ASSEMBLY
805006287 4 BOLT M12×40 GB/T5783-2000
331403962 8 PRESSURE PLATE
331403800 2 HOOP
331401794 6 ADJUSTABLE PAD
331403957 1 FIXED SUPPORT
331403922 1 FIXED SUPPORT
331403909 1 PLATFORM FIXED SEAT
331400685 16 SPACER SLEEVE
805238372 12 NUT M12 GB/T6170-2000
805338296 55 WASHER 16 GB/T1230-2006
805006290 26 BOLT M16×50 GB/T5783-2000
331406171 1 UPPER GANTRY BEAM
331403550 2 LIFTING SUPPORT LIMITING PLATE
331407486 2 LIFT BASE THIN WASHER
331407476 2 LIFT BASE THIN WASHER
331407477 2 LIFT BASE THIN WASHER
331409246 1 LIFT BASE ASSEMBLY 48
331405145 4 SPACING PLATE
805047534 12 BOLT M20×85 GB/T5782-2000
805338297 28 WASHER 20 GB/T1230-2006
331407374 2 LIFT BASE THIN BASE PLATE
805238375 12 NUT M20 GB/T6170-2000
331403934 1 OIL PUMP SUPPORT
805047660 4 BOLT M20×35 GB/T5783-2000
805046416 22 BOLT M10×30 GB/T5783-2000
805301373 46 WASHER 10 DIN6796
331403962 8 PRESSURE PLATE
331400685 16 SPACER SLEEVE
331403941 4 PIN ASSEMBLY
331409250 4 STONE BREAKING PLATE ASSEMBLY 50
331409258 2 ACCUMULATOR SUPPORT ASSEMBLY
800514008 8 OSCILLATING BEARING GEG50ES-2RS GB/T9163-2001
805408009 8 SNAP RING 90×3 DIN472
459332346 1 AIR CHAMBER ASSEMBLY(LEFT)
