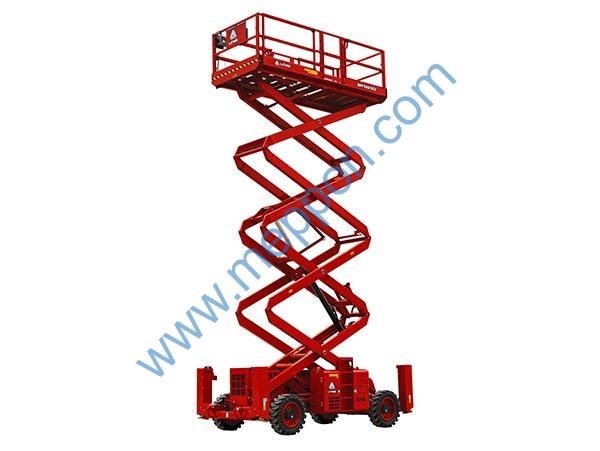

LGMG SR1323D MOBILE ELEVATING WORK PLATFORMS PARTS list T
| 4120001578014 | 挡圈280802F006 | Snap ring for hole280802f006 |
| 4120001578015 | 油缸密封包045012B300-SK01 | Cylinder sealing kit 045012b300-sk01 |
| 25130000022 | 支腿油缸支座 | Forming (stamping, etc.),outrigger cylinder support |
| 25130000072 | 支腿油缸支座压板 | Outrigger cylinder mounting pressure plate |
| 4030000065 | 油杯JB7940.1-M10*1 | Grease fitting jb7940.1-m10*1 |
| 4011010908 | 螺钉GB70.1-M8*25flZnyc-8.8-480 | Screw gb70.1-m8*25flznyc-8.8-480 |
| 25130000673 | 支腿安装球头 | Outrigger mounting ball joint |
| 4014010461 | 螺钉GB70.1-M10*70flZnyc-10.9-480 | Screwgb70.1-m10*70flznyc-10.9-480 |
| 4013010385 | 螺母GB6184-M10flZnyc-10-480 | Nut gb6184-m10flznyc-10-480 |
| 25130000061 | 支腿油缸安装螺栓 | Outrigger cylinder mounting bolt, m14*30 |
| 4013010384 | 螺母GB6184-M14*1.5flZnyc-10-480 | Nut gb6184-m14*1.5flznyc-10-480 |
| 4120702862 | 支腿油缸 | Outrigger cylinder |
| 4014010462 | 螺钉GB70.1-M8*55flZnyc-12.9-480 | Screwgb70.1-m8*55flznyc-12.9-480 |
| 4120704687 | 支腿油缸控制阀ST4652-AB0A | Outrigger cylinder control valve st4652-ab0a |
| 4120704913 | 接头GE12LR1/4EDOMDCF | Fitting ge12lr1/4edomdcf |
| 25130000081 | 支腿油缸导向螺柱 | Outrigger cylinder guide stud, m14*60 |
| 4120001224 | 接头GE12LREDOMDCF | Fitting ge12lredomdcf |
| 4120000619 | 三通接头EL12LOMDA3C | Tee fitting el12lomda3c |
| 4129900314 | 接头EW12LOMDA3C | Fitting ew12lomda3c |
| 4120702841 | 软管FC402CACA121206-3500 | Hose fc402caca121206-3500, outrigger cylinder control |
| 4120001226 | 三通接头T12LCFX | Tee fitting t12lcfx |
| 4120706219 | 软管 FC402CACA121206-700 | Hose fc402caca121206-700，lift control valve-tank |
| 4120704918 | 软管FC402CACA121206-2840 Hose fc402caca121206-2840, outrigger cylinder control Y 2 valve | |
| 4120706949 | 软管FC402CACA121206-2750 Hose fc402caca121206-2750, outrigger cylinder control Y 2 valve | |
| 4120705093 | 软管FC402CACA121206-1590 | Hose fc402caca121206-1590, control valve |
| 4120702841 | 软管FC402CACA121206-3500 | Hose fc402caca121206-3500, outrigger cylinder control valve |
| 4120703766018 | 锁紧片166301A100 | Locking tab 166301a100 |
| 4120702862012 | 缸筒组件170213D150 | Cylinder tube assembly 170213d150 |
| 4120702862013 | 活塞杆170619C150 | Piston rod 170619c150 |
| 4120702862014 | 活塞171113A153 | Piston 171113a153 |
| 4120702862015 | 导向套171419A150 | Guide sleeve 171419a150 |
| 4120702862016 | 盖板1714101A159 | Cover plate 1714101a159 |
| 4120702862017 | 胶垫1714102A159 | Rubber gasket1714102a159 |
| 4120702862018 | 内六角圆柱头螺钉262108C002 | Hexagon socket head screw 262108c002 |
| 4120702862019 | 内六角锥端紧定螺钉262508R002 | Hexagon socket set screw with cone point 262508r002 |
| 4120702862020 | 支腿油缸密封件包 | Seal kit for outrigger cylinder |
| 4120702862001 | 孔用支承环280503T060 | Support ring for hole280503t060 |
| 4120702862002 | 轴用支承环280505T055 | Support ring for shaft280505t055 |
| 4120702862003 | O形圈280703A010 | O-ring 280703a010 |
| 4120702862004 | O形圈280703A017 | O-ring 280703a017 |
| 4120702862005 | O形圈280703A034 | O-ring 280703a034 |
| 4120702862006 | 挡圈280803F004 | Snap ring for hole280803f004 |
| 4120702862007 | 斯特封290109T008 | Step seal 290109t008 |
| 4120702862008 | 活塞动密封290228A006 | Piston dynamic seal 290228a006 |
| 4120702862009 | 防尘圈290409T011 | Scraper seal290409t011 |
| 4120702862010 | 杆动密封280105B035 | Rod dynamic seal 280105b035 |
| 4120704687001 | 电磁阀SVD0.S08.00.N00 | Solenoid valve svd0.s08.00. n00, controlling floating cylinder |
| 4120704687002 | 线圈STR0A-C24-01 | Coil str0a-c24-01 |
| 4120002399 | O型圈10.77*2.62 | O-ring 10.77*2.62 |
| 4120002545001 | 阀块ST4652-A000M | Valve block st4652-a000m |
| 25300015191 | ❹架线束 | Wire |
| 25300014951 | 车体前线束 | Wire |
| 25300008105 | 车体后线束 | Wire |
| 25310003381 | 电源线P25*1800 | Power cable p25*1800, engine alternator-engine starter |
| 25300010031 | 预热线束 | Pre-heating harness, engine |
| 25300010932 | 电源线P20*1150 | Power cable p20*1150, engine starter-preheating relay |
| 25300010951 | 诊断口安装板 | Forming (stamping, etc.),diagnostic port mounting plate |
| 4014010417 | 螺钉GB818-M3*20flZnyc-4.8-480 | Screw gb818-m3*20flznyc-4.8-480 |
| 4015010370 | 垫圈GB97.1-3flZnyc-300HV | Washer gb97.1-3flznyc-300hv |
| 4013010387 | 螺母GB889.1-M3flZnyc-8-480 | Nut gb889.1-m3flznyc-8-480 |
| 4011010824 | 螺栓GB5783-M12*20flZnyc-8-480 | Bolt gb5783-m12*20flznyc-8-480 |
| 4015010340 | 垫圈GB97.1-12flZnyc-300HV-480 | Washer gb97.1-12flznyc-300hv-480 |
| 25320023091 | 接插件固定板 | Plate |
| 4015010339 | 垫圈GB97.1-10flZnyc-300HV-480 | Washer gb97.1-10flznyc-300hv-480 |
| 4011010748 | 螺栓GB5783-M10*20flZnyc-8.8-480 | Bolt gb5783-m10*20flznyc-8.8-480 |
| 25300010961 | 保险安装板 | Fuse mounting plate |
| 4011010754 | 螺栓GB16674-M6*12flZnyc-8.8 | Bolt gb16674-m6*12flznyc-8.8 |
| 4130702377 | 平台控制器PCU-G2-CE | Platform controller pcu-g2-ce |
| 25300005321 | PCU线束 | Pcu harness,main harness-platform controller |
| 4130701538 | 压力传感器 | Pressure sensor |
| 4130702441 | 下控箱总成-G2-CE | Ground box-t4f |
| 4011010993 | 螺栓GB16674-M10*20flZnyc-8.8-480 | Bolt gb16674-m10*20flznyc-8.8-480 |
| 25300008091 | 车体线束装配 | Wire |
| 25300009063 | 电源线P70*5500 | Power cable p70*5500, engine flywheel housing-power |
| 25300007963 | 电源线P70*5200 | Power cable p70*5200, engine starter-battery + |
| 25300010012 | 电源线P70*800 | Power cable p70*800, power switch-battery – |
| 25210049252 | PCU支架焊合 | Weldment, pcu bracket weldment |
| 4011010754 | 螺栓GB16674-M6*12flZnyc-8.8 | Bolt gb16674-m6*12flznyc-8.8 |
| 4011010722 | 螺栓GB5783-M10*25flZnyc-8.8-480 | Bolt gb5783-m10*25flznyc-8.8-480 |
| 4013010296 | 螺母GB889.1-M10flZnyc-8 | Nut gb889.1-m10flznyc-8 |
| 4015010279 | 垫圈GB97.1-10flZnyc-480 | Washer gb97.1-10flznyc-480 |
| 28129900131 | 管夹 | Pipe clamp，25*5*20 |
| 4011011106 | 螺栓GB16674-M12*20flZnyc-8.8-480 | Bolt gb16674-m12*20flznyc-8.8-480 |
| 4011010994 | 螺栓GB16674-M8*25flZnyc-8.8-480 | Bolt gb16674-m8*25flznyc-8.8-480 |
| 27150109581 | 管夹 | Pipe clamp, harness |
| 26370002451 | 红电瓶线护套 | Cable sleeve |
| 26370002441 | 黑电瓶线护套 | Cable sleeve |
| 4130701751009 | 弹簧线束10470083 | Spring harness10470083 |
| 4130701751007 | 急停开关10420049 | Emergency stop switch 10420049 |
| 4130701751012 | 手柄硅胶套20020132 | Silicone sleeve for joystick 20020132 |
| 4130701751008 | 霍尔手柄10480012 | Hall effect joystick10480012 |
| 4130701751011 | 手柄转接线束10470114 | Joystick adapter harness assembly 10470114 |
| 4130702313001 | 手柄方向贴膜20020249 | Joystick direction decal 20020249 |
| 4130702377001 | PCU欧标面膜20020220 | Platform controller sticker 20020221 |
| 4130702313003 | PCU壳体20020217 | Pcu housing 20020217 |
| 4130702313004 | PCU底座20020218 | Pcu holder 20020218 |
| 4130701636008 | 蜂鸣器10430003 | Buzzer 10430003 |
| 4130001046015 | 蜂鸣器线束 10470100 | Buzzer harness 10470100 |
| 4130701636007 | 20A断路器10420008 | 20a circuit breaker 10420008 |
| 4130701752002 | 断路器10420006 | Circuit breaker 10420006 |
| 4130702035001 | GCU-越野60020196 | Gcu-off-road 60020196 |
| 4130702035002 | 下控箱箱体 20020255 | Lower control panel body 20020255 |
| 4130701636008 | 蜂鸣器10430003 | Buzzer 10430003 |
| 4130701636010 | 继电器10450018 | Relay 10450018 |
| 4130701511006 | 钮子开关10420041 | Switch 10420041 |
| 4130701848001 | 超载指示灯10480006 | Overload indicator 10480006 |
| 4130701636005 | 计时器10480013 | Timer 10480013 |
| 4130701636003 | 钥匙开关10420057 | Key switch 10420057 (key code 4130000723001) |
| 4130701751007 | 急停开关10420049 | Emergency stop switch 10420049 |
| 4130702035005 | 黄色信号指示灯10480030 | Yellow signal indicator 10480030 |
| 4130702035006 | 下控箱指示面板20020256 | Lower control panel indication panel 20020256 |
| 4130000734 | 角度传感器SYSA | Angle sensor sysa |
| 4014010416 | 螺钉GB818-M4*10flZnyc-8.8-480 | Screw gb818-m4*10flznyc-8.8-480 |
| 4015010290 | 垫圈GB97.1-4flZnyc-480 | Washer gb97.1-4flznyc-480 |
| 4130001029 | 喇叭DC12V | Horn dc12v |
| 4011010966 | 螺栓GB16674-M8*20flZnyc-8.8-480 | Bolt gb16674-m8*20flznyc-8.8-480 |
| 4015010283 | 垫圈GB97.1-5flZnyc-480 | Washer gb97.1-5flznyc-480 |
| 25320001344 | 板 | Forming (stamping, etc.) |
| 4130701637 | 行程开关 | Lower limit switch |
| 4011011069 | 螺栓GB16674-M8*35flZnyc-10.9-480 | Bolt gb16674-m8*35flznyc-10.9-480 |
| 4013010396 | 螺母GB889.1-M8flZnyc-10 | Nut gb889.1-m8flznyc-10 |
| 4014010123 | 螺钉GB70.1-M5*40flZnyc-8.8-480 | Screw gb70.1-m5*40flznyc-8.8-480 |
| 4013010305 | 螺母GB889.1-M5flZnyc-8-480 | Nut gb889.1-m5flznyc-8-480 |
| 25320005621 | 垫块 | Cushion block，24*12*10 |
| 4130702113 | 直流电源开关75920-10 | Dc power switch 75920-10 |
| 4015010280 | 垫圈GB97.1-8flZnyc-480 | Washer gb97.1-8flznyc-480 |
| 4130000059 | 蓄电池6-QW-120B | Battery 6-qw-120b |
| 25320001381 | 锁紧角钢 | Weldment，locking angle steel， |
| 25320001321 | 螺纹杆 | Threaded rod, m8 |
| 4013010304 | 螺母GB6170-M4flZnyc-8-480 | Nut gb6170-m4flznyc-8-480 |
| 4130001028 | 工作指示灯LTE5051-12V | Operating indicator lte5051-12v |
| 25320000192 | 护罩 | Housing, operating indicator |
| 4014010121 | 螺钉GB818-M4*20flZnyc-4.8-480 | Screw gb818-m4*20flznyc-4.8-480 |
| 4014010353 | 螺钉GB70.1-M5*45flZnyc-8.8 | Screwgb70.1-m5*45flznyc-8.8 |
| 4130001025 | 行程开关XCKP2121P16 | Travel switch xckp2121p16 |
| 25320001361 | 板 | Plate, fixing travel switch |
| 25320013273 | 倾角传感器护罩 | Forming (stamping, etc.),tilt sensor |
| 4130001027 | 倾角传感器 | Tilt sensor |
| 4130701635 | 行程开关 | Travel switch |
| 25320013283 | ECU安装板 | Forming (stamping, etc.),ecu mounting plate |
| 4041010363 | 管夹LGB169-A20*12.5 | Pipe clamp lgb169-a20*12.5, fuel pipe |
| 25320013311 | 支架 | Weldment，bracket |
| 4013010407 | 螺母GB56-M6flZnyc-8-480 | Nut gb56-m6flznyc-8-480 |
| 4015010284 | 垫圈GB97.1-6flZnyc-480 | Washer gb97.1-6flznyc-480 |
| 4011010747 | 螺栓GB5783-M6*16flZnyc-8.8-480 | Bolt gb5783-m6*16flznyc-8.8-480 |
