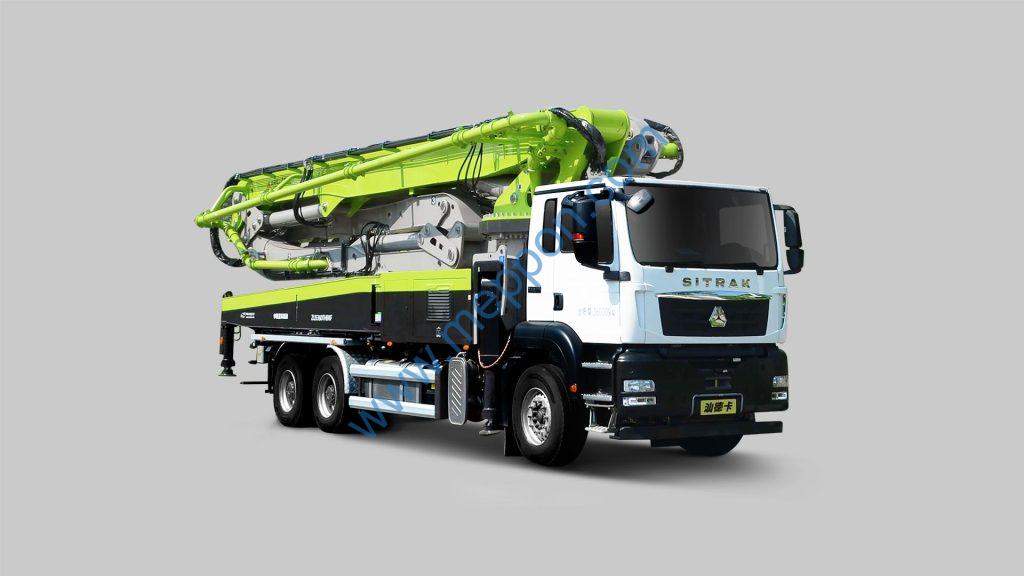

ZOOMLION ZLJ5298THB 37-4R truck-mounted concrete pump PARTS list B
1040300066 GB/T97.1-2002 垫圈 8-200HV Washer
1040300061 GB/T97.1-2002 垫圈 10-200HV Washer
1140101591 M10SCFX 螺母 M18×1.5 Nut
1140101586 M12LCFX 螺母 M18×1.5 Nut
1140101589 M15LCFX 螺母 M22×1.5 Nut
1140101590 M16SCFX 螺母 M24×1.5 Nut
1140101587 M18LCFX 螺母 M26×1.5 Nut
1140101496 PSR10LX PSR 卡套 Cover
1140101497 PSR12LX PSR 卡套 Cover
1140101494 PSR15LX PSR 卡套 Cover
1140101499 PSR16SX PSR 卡套 Cover
1140101495 PSR18LX PSR 卡套 Cover
001605149A0000009 钢管 φ12×2 Steel pipe
001605149A0000010 钢管 φ12×2-330 Steel pipe
001605149A0000011 钢管 φ15×2 Steel pipe
001605149A0000012 钢管 φ15×2 Steel pipe
001605149A0000013 钢管 φ16×2.5 Steel pipe
001605149A0000014 钢管 φ18×3-290 Steel pipe
001605149A0000000
001605149A0000015 钢管 φ18×3-90 Steel pipe 1
1990200076 TTPG1-215 双联管夹 φ15 Clamp
1990200049 TLPG3-112 管夹 φ12 Clamp
1990200059 TLPG3-215 管夹 φ15 Clamp
1990200081 TLPG3-216 管夹 φ16 Clamp
1990200157 TLPG3-218 管夹 φ18 Clamp
001605149A0010000
001605149A0010000
001605149A0010001 钢管 φ15×2 Steel pipe
001605149A0010002 钢管 φ15×2 Steel pipe
001605149A0010003 钢管 φ15×2 Steel pipe
001605149A0010004 钢管 φ15×2 Steel pipe
001605149A0010005 钢管 φ15×2 Steel pipe
001605149A0010006 钢管 φ15×2 Steel pipe
001605149A0010007 钢管 φ15×2 Steel pipe
001605149A0010008 钢管 φ15×2 Steel pipe
001605149A0010009 钢管 φ15×2-2130 Steel pipe
001605149A0010010 钢管 φ15×2-2190 Steel pipe
001605149A0010011 钢管 φ15×2-2200 Steel pipe
001605149A0010012 钢管 φ15×2-2220 Steel pipe
001605149A0020000
001605149A0020001 钢管 φ15×2 Steel pipe
001605149A0020002 钢管 φ15×2 Steel pipe
001605149A0020003 钢管 φ15×2 Steel pipe
001605149A0020004 钢管 φ15×2 Steel pipe
001605149A0020005 钢管 φ15×2-6000 Steel pipe
001605149A0020006 钢管 φ15×2-6000 Steel pipe
001605149A0030000
001605149A0030000
001605149A0030001 钢管 φ15×2 Steel pipe
001605149A0030002 钢管 φ15×2 Steel pipe
001605149A0040000
001605149A0040000
001605149A0040001 钢管 φ15×2 Steel pipe
001605149A0040002 钢管 φ10×2 Steel pipe
001605149A0050000
001605149A0050000
001605149A0050001 钢管 φ10×2 Steel pipe
001605149A0060000
001605149A0060000
001605149A0060001 钢管 φ10×2 Steel pipe
001605149A0070000
001605149A0070000
001605149A0070001 钢管 φ10×2 Steel pipe
001692501A0000000
001692501A0000000
1069900001 加长豪华型高压水枪 Squirt gun
1040200096 GB/T6170-2000 螺母 M12-8 Nut
001692501A0000006 弯板 Board
000192501A0100000 马达安装支架 Bracket
1040000108 GB/T5783-2000 螺栓 M12×30-8.8 Bolt
1040300054 GB/T93-1987 垫圈 12 Washer
1040000116 GB/T5783-2000 螺栓 M10×20-8.8 Bolt
1040300067 GB/T93-1987 垫圈 10 Washer
1040300211 GB/T96.1-2002 垫圈 10-200HV Washer
1060000001 水泵组件 Water pump
1040200113 GB/T6170-2000 螺母 M10-8 Nut
1040000114 GB/T5783-2000 螺栓 M10×25-8.8 Bolt
001692501A0000003 0167125B0001 水管接头 Joint
001692501A0000007 0165525C0002 过滤器吊板 Board
1060200001 水管路过滤器 Filter
001692501A0000001 0167525A0001 出口法兰 Outlet flange
1040000090 GB/T5783-2000 螺栓 M10×30-8.8 Bolt
001692501A0000002 0160425C0006 入口法兰 Inlet flange
1040000152 GB/T5783-2000 螺栓 M10×40-8.8 Bolt
1140101420 GB/T3287-2000 弯头G1 A1-1-Zn Bend
1140101560 GB/T3287-2000 内接头 N8-1-Zn Joint
1140101421 GB3287-2000 三通接头 G1 B1-1 Joint
001692501A0000005 0160425C0011 直管 3 GB/T3091-2001 Straight pipe
1140101422 KY50 消防接头 G2 G2 Joint
1140101411 GB3289.27-82 异径内接头 G1×G2 G1×G2 Joint
1010300521 球阀 G1 Valve
001692501A0000004 0160425C0007 直管 1 GB/T3091-2001 Straight pipe
1990200037 喉箍 No.1 19-29 Hoop
001692401A0000000
001692401A0000000
1990300042 199580802 直线形软管 5×8 hoses
1990300044 软管(保护气管) AD13 Bent protection
1140101502 153049 L 形快插接头 QSL-1/4-8 Angular plug-in nipple
1019900038 525725 压力表 MA-40-10-R1/8-E-RG Pressure gauge
1019900039 调压器 MINI REG 08K Regulator
1140101551 10027357 双螺纹接头 R1/4 外 Double connection
1000200034 2316 消声器 U-1/4 Muffler
1010300512 电磁阀 MFH-3-1/4 3/2-way Valve
1029900009 电磁线圈 MSFG-24DC/42AC Plug socket
001692401A0000001 0165524B0001 换向阀安装板 Mounting bracket
1040100353 GB/T70.1-2000 螺钉 M5×40-8.8 Screw
1040300060 GB/T93-1987 垫圈 5 Lock washer
1140101644 151521 双螺纹接头 ESK ESK-1/4-1/4 Double connection
1140101415 199005302 T 型连接件 G1/4 内 T connection
1140101645 199001212 双外螺纹接头 G1/4″-G1/4″ Double connection
1010300601 10027353 内螺纹球阀 G1/4 内 Ball Valve
1140101413 3577 变径接头 D-1/8I-1/4A Reducing nipple
1140101501 153046 L 形快插接头 QSL-1/8-6 Angular plug-in nipple
1080200005 68213 黄油机 Grease-injector
1080200004 1750RT 液压型黄油枪枪嘴 M10×1 Gun mouth
1990300041 199585860 成套螺旋软管 Spiral hoses
1990300043 199580702 直线形软管 4×6 Hoses
1070000000 41880-10-1 气动润滑泵组 Pneumatic pump
001692401A0000002 0165524A0004 润滑脂泵安装板 Mounting bracket
1040100122 GB/T70.1-2000 螺钉 M8×25-8.8 Screw
1040300063 GB/T93-1987 垫圈 8 Lock washer
001692401A0000003 0010524A0003 滤油器安装板 24F-5 Mounting bracket
1040100272 GB/T70.1-2000 螺钉 M6×40-8.8 Screw
1040300062 GB/T93-1987 垫圈 6 Lock washer
1080400017 1001 21 202 90°弯涨芯 φ6 Insert for ferrule
1080400021 1001 21 200 螺纹管套 Threaded ferrule
001692401A0000000
1080400022 1001 20 200 高压胶管 φ8.6×2.3 High pressure hose
1080400023 1001 21 005 保护套 Bent protection
1080400016 1001 21 208 90°弯涨芯 φ6 Insert for ferrule
1140101506 0401 2000 306 锥螺纹直接头 M10×1k Straight couplings
1010600044 网式过滤器 TL274A Filter for grease
1140101505 0401 2200 306 弯角接头 M10×1k Angular couplings
1089900002 紫铜管 φ6×1 Copper pipes
001692401A0000004 0011424B0002 一管夹底板 Pair of clamping half
001692401A0000005 0011424B0001 一管夹盖板 Pair of clamping half
1040000151 GB/T5783-2000 螺栓 M5×12-8.8 Screw
001692401A0000006 0011424B0004 二管夹底板 Pair of clamping half
001692401A0000007 0011424B0003 二管夹盖板 Pair of clamping half
001692401A0000008 0011424B0006 三管夹底板 Pair of clamping half
001692401A0000009 0011424B0005 三管夹盖板 Pair of clamping half
1080400020 VPBM-4 八点递进式分配器总成 进出油口带接头、油管直径φ6 Lubricant distributor
001692401A0000010 0011424B0008 四管夹底板 Pair of clamping half
001692401A0000011 0011424B0007 四管夹盖板 Pair of clamping half
001692401A0000012 0165524B0002 分配器安装板 Mounting bracket
001692401A0000013 0160824D2101 加长接头 1 Extension piece
001692401A0000014 加长接头 2 Extension piece
1081000560 JB/T982-1977 组合密封垫圈 10 Ring
1040100024 GB/T70.1-2000 螺钉 M8×65-8.8 Screw
001692401A0000015 双线分配器安装板 Mounting bracket
001692401A0000016 加油点三通接头 Tee couplings
1080000007 JB/T7940.1-1995 油杯 M10×1 Grease gun nipple
1080400018 620-29178-1 双线分配器 VSKV4-d0.3 Lubricant distributor
001692401A0000017 0018624A0003 螺塞 G1/4 Screw plug
1081000480 DRV100116 菱形密封圈 14 Ring
1140101461 GE10LREDOMDCF 端直通接头 G1/4/M16×1.5 Couplings
1080400015 1001 21 201 直涨芯 φ6 Insert for ferrule
