Description

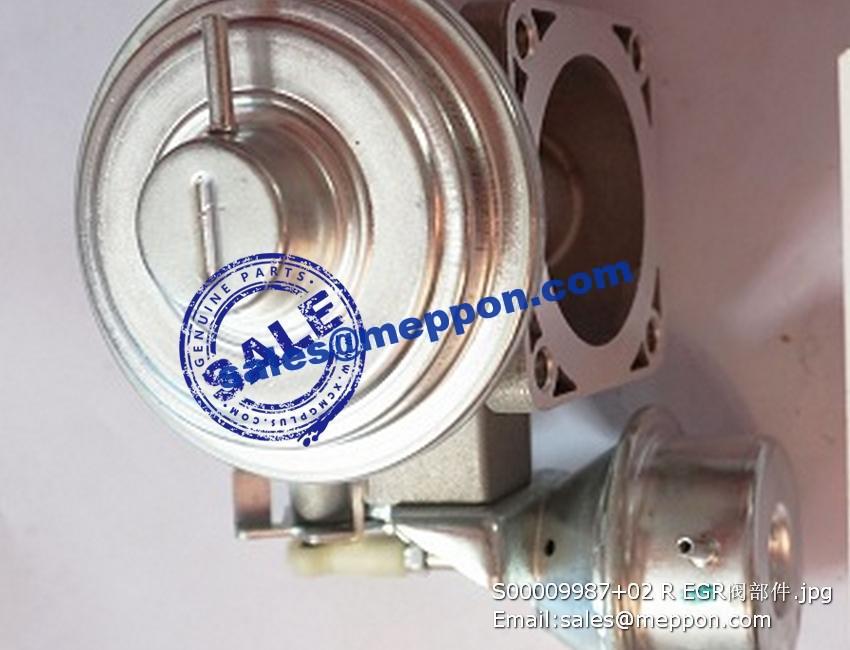

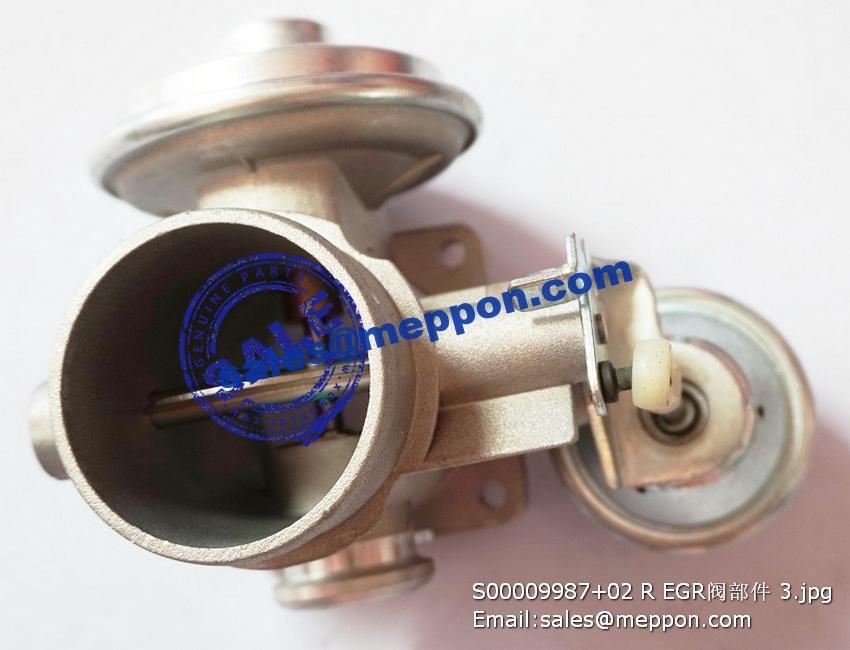

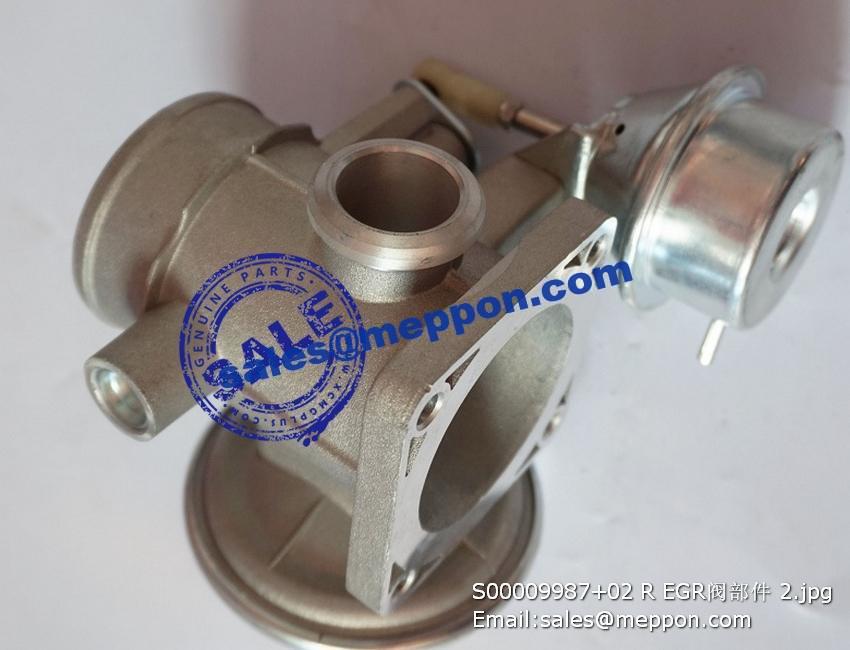

S00009987+02 R EGR VALVE
1 Q/SC622-M8*25:六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00002137 8
2 六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP D02B-300-01+A 4
3 盖板 COVER PLATE D12-305-01+C 1
4 进气口垫片 GASKET, AIR INTAKE PIPE D12-308-01+C 2
5 支架 BRACKET D12-306-01+B 1
6 Q/SC622-M8*20:六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00002134 4
7 Q/SC622-M6*16:六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00002114 2
8 Q/SC622-M8*35:六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00002142 2
9 垫块 SPACE D12-304-01+A 2
10 GB/T827-2.5*6-L3:标牌铆钉 RIVET, NAMEPLATE B00000958 4
11 铭牌 NAMEPLATE D12-309-07+C 1
12 Q/SC587.1-M10*1:六角头螺塞 PLUG, PIPE B00001724 1
13 Q/SC1294-10:复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET B00001545 1
14 内六角螺塞(Z1/2) PLUG, PIPE D02A-164-01+B 1
15 进气管 INTAKE MANIFOLD D12-001-31A+A 1
1 Q/SC1092-70（W）：弹簧卡箍 SPRING CLAMP B00001539 2
2 Q/SC1372-64*125：橡胶软管 HOSE B00001619 1
3 夹箍 CLIP D12B-107-30+D 1
4 Q/SC622-M10*20：六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00001996 1
5 GB/T41-M10-Y：1型六角螺母 HEXAGON NUT (TYPE 1) B00000311 1
6 出气管撑条 OUTLET TUBE BRACE D12B-115-50+B 1
7 压气机出气管 COMPRESSOR OUTLET TUBE D12B-101-63+C 1
8 进气管盖板焊接部件 COVER ASSY (WELDED), AIR INTAKE PIPE D12B-003-02+B 1
9 Q/SC1302-78~101：喉箍 CLAMPING COLLAR B00001583 4
10 橡胶连接管 HOSE, PLAIN D12B-106-01+A 2
1 GB/T899-GM8-M8*25-8.8-Y：双头螺栓 CLIP B00001137 1
2 螺塞(Z1/8) PLUG D02A-166-01+C 2
3 双头螺栓 STUD B00001136 5
4 增压器接口螺母 NUT D13-304-01+B 4
5 排气管 EXHAUST MANIFOLD D13-101-38+A 1
6 涡轮进口垫片 GASKET, TURBOCHARGER D13-102-30B+B 1
7 GB/T6170-M8-Y:I型六角螺母 HEXAGON HEAD NUT, TYPE I B00000793 6
8 双头螺栓 STUD D13-103-01+A 4
9 涡轮出口盖板垫片 GASKET D13-113-01+A 1
10 涡轮出口盖板 PLATE, OUTLET-TURBINE D13-114-01+A 1
1 机油泵组件 OIL PUMP GROUP D15-000-41+B 1
1 GB/T5783-M8*20：六角头螺栓 HEXAGON HEAD BOLT B00000631 2
2 风扇胶带 BELT, V RIBBED D16A-106-38+A 1
3 张紧轮部件 TENSIONER, BELT D16A-003-03+C 1
4 Q/SC622-M10*80-10.9：六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00002031 1
5 张紧轮固定板 BRACKET, BELT TENSIONER D16A-121-56+A 1
6 Q/SC622-M12*30：六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00002050 4
7 风扇胶带轮 PULLEY, FAN D16A-107-21+A 1
8 Q/SC622-M8*45：六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00002147 4
9 风扇轴承座压装部件 FAN BEARING BRACKET, PRESSED ASSEMBY D16A-010-01A+C 1
10 风扇连接盘 COVER, FAN COUPLING PLATE D16A-128-33B+A 1
11 Q/SC622-M12*40：六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP B00002057 4
1 风扇组件 FAN GROUP D16R-000-13+B 1
1 机油滤清器部件 OIL FILTER ASSY D17-002-40(W)+A 1
1 机油冷却器总成 OIL COOLER GROUP D18-000-150+B 1
